Product Overview
The AirTAC 300M6F Pneumatic Manifold is a precision-engineered air distribution component designed to consolidate multiple pneumatic circuits into a single, organized supply point. Manufactured by AirTAC, a globally recognized leader in pneumatic control components, this manifold serves as a central hub for routing compressed air to valves, cylinders, and actuators within automated industrial systems. The 300M6F features a six-station configuration, allowing multiple directional control valves to be mounted on a common base, significantly reducing tubing complexity, installation time, and potential leak points. Its robust aluminum alloy construction ensures structural integrity and corrosion resistance in demanding factory environments, while the modular design permits flexible system expansion and simplified maintenance. As a critical spare and accessory component, the 300M6F enhances pneumatic system reliability, streamlines air circuit management, and optimizes space utilization in control panels and machinery enclosures.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Manifold (General Industrial Parts > Spares & Accessories) |
| Model Designation | 300M6F |
| Operating Pressure | Standard Industrial Grade (Up to 1.0 MPa / 10 bar) |
| Mounting & Connection | Standard ISO / AirTAC Interface, G1/4 or NPT port threads |
| Number of Stations | 6 (Six-valve mounting positions) |
| Body Material | Anodized Aluminum Alloy |
| Operating Temperature | -5°C to +60°C (23°F to 140°F) |
| Media | Filtered Compressed Air (Non-lubricated or lubricated) |
Engineering Features & Advantages
- Precision Performance: Six-station modular design enables centralized air distribution with uniform pressure delivery to each mounted valve, minimizing pressure drop and ensuring consistent actuator response across all circuits.
- Industrial Reliability: Constructed from high-grade anodized aluminum alloy, the manifold resists corrosion, withstands continuous industrial duty cycles, and maintains seal integrity under vibration and thermal fluctuation.
- Direct Fit Replacement: Exact dimensional and functional compatibility with AirTAC 300 series valves and original OEM manifold standards, ensuring drop-in installation without modification.
- Space Optimization: Consolidates multiple valve connections into a single compact unit, dramatically reducing panel footprint and simplifying tubing routing in dense control cabinets.
- Leak Reduction: Integrated common supply and exhaust galleries eliminate numerous individual fittings, reducing potential leak points and improving overall system energy efficiency.
- Simplified Maintenance: Modular valve mounting allows individual valve replacement or service without disturbing adjacent pneumatic circuits, minimizing downtime.
Typical Industrial Applications
The AirTAC 300M6F Pneumatic Manif
PRODUCT IMAGES

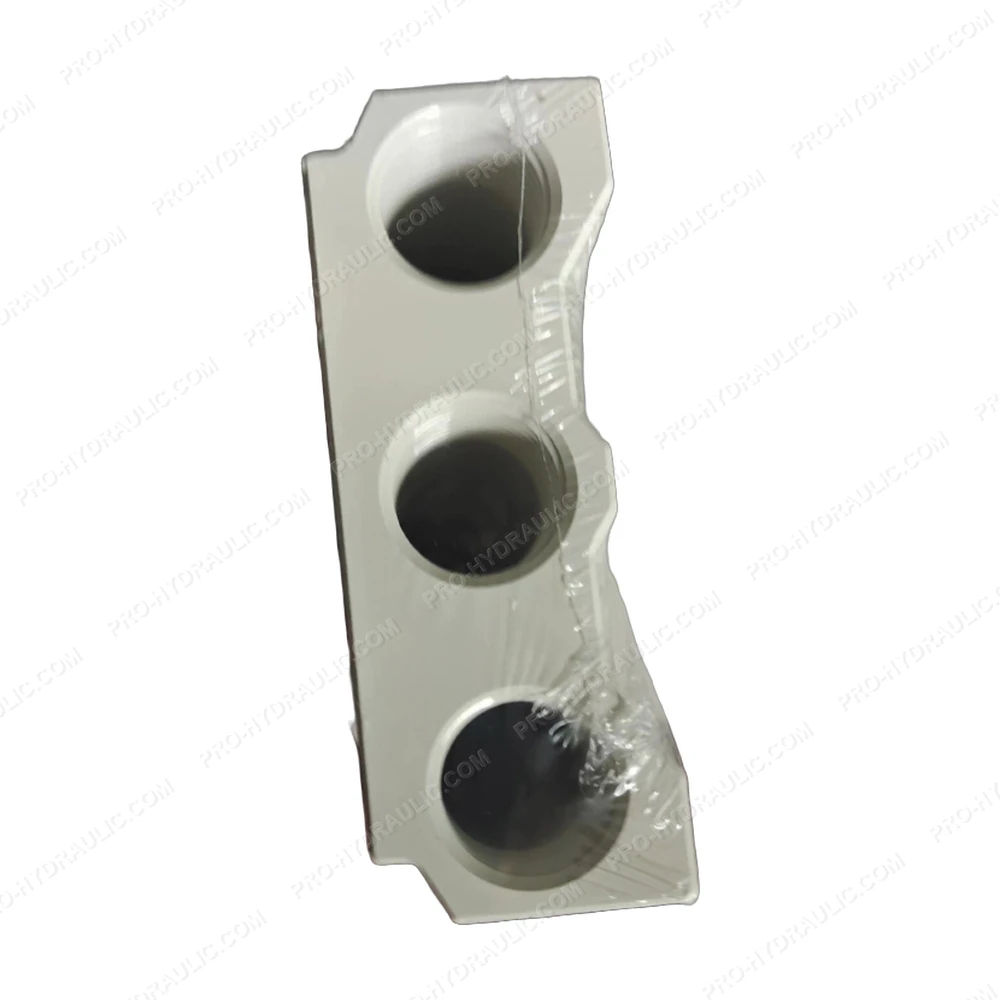

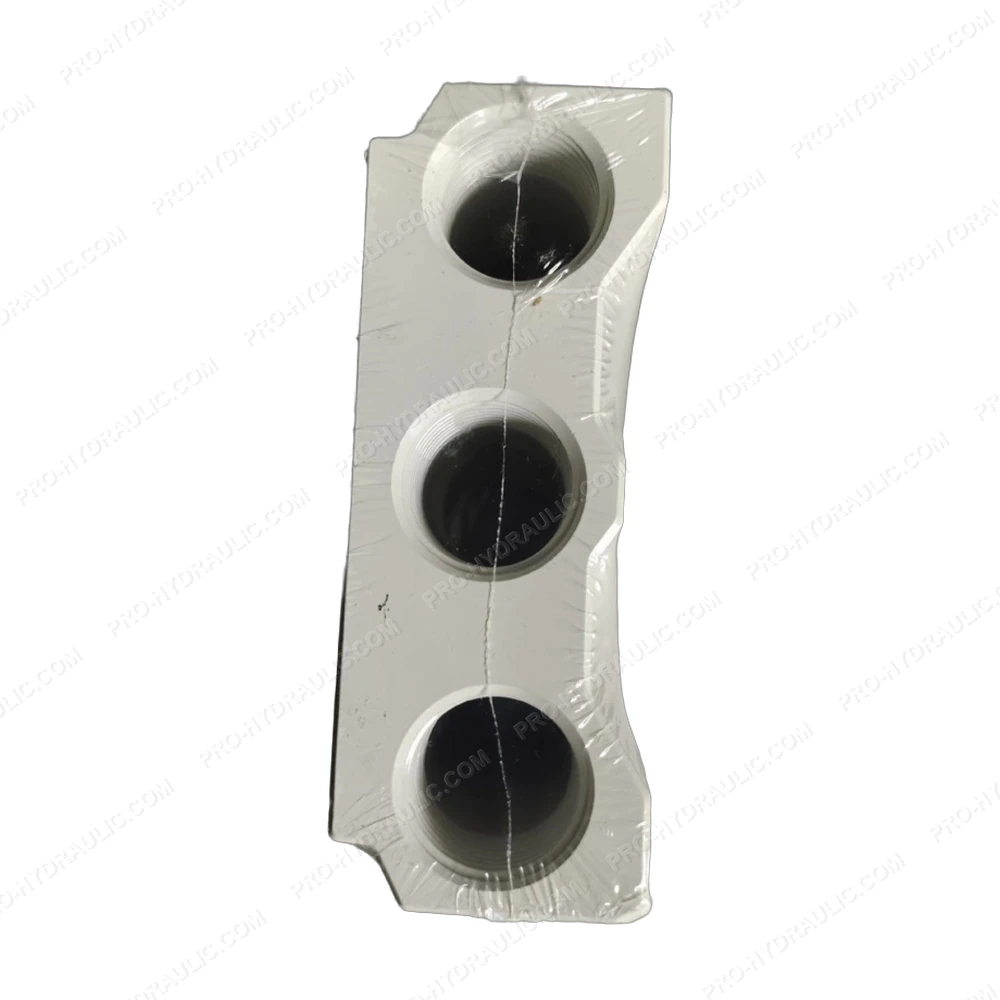

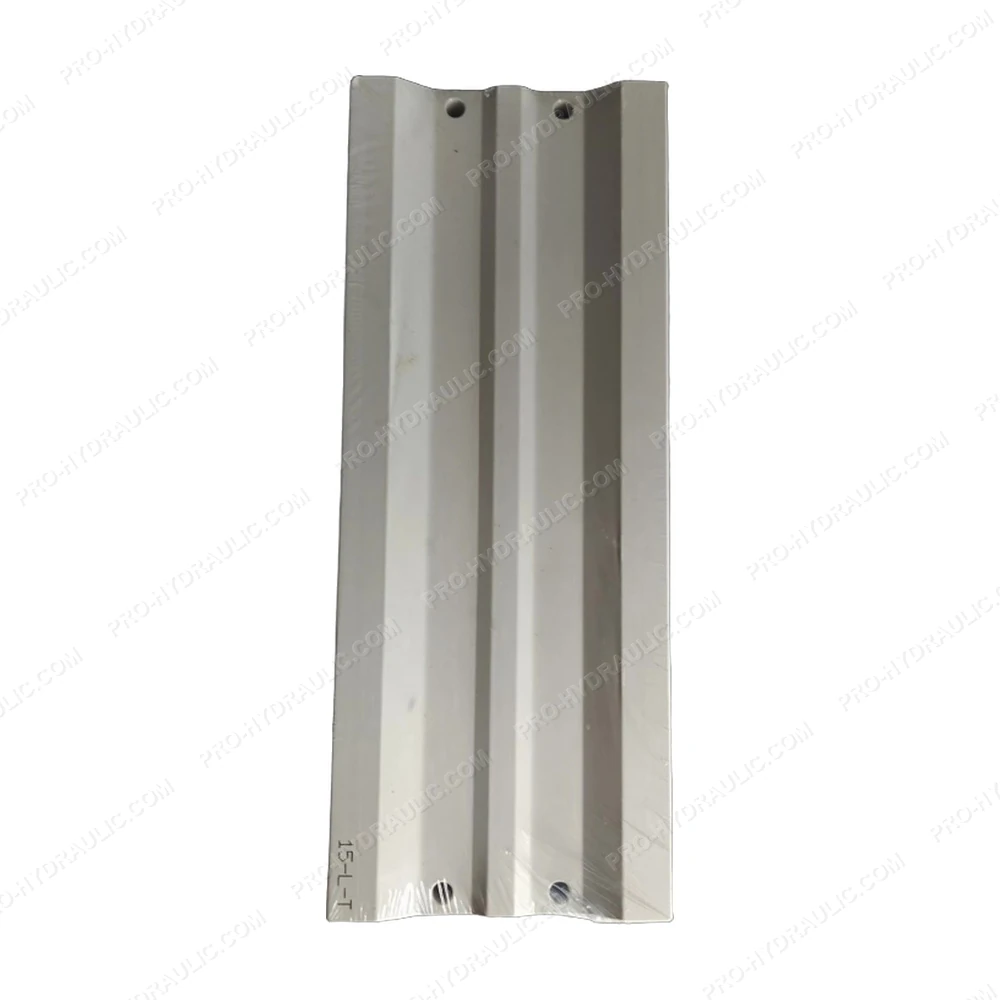

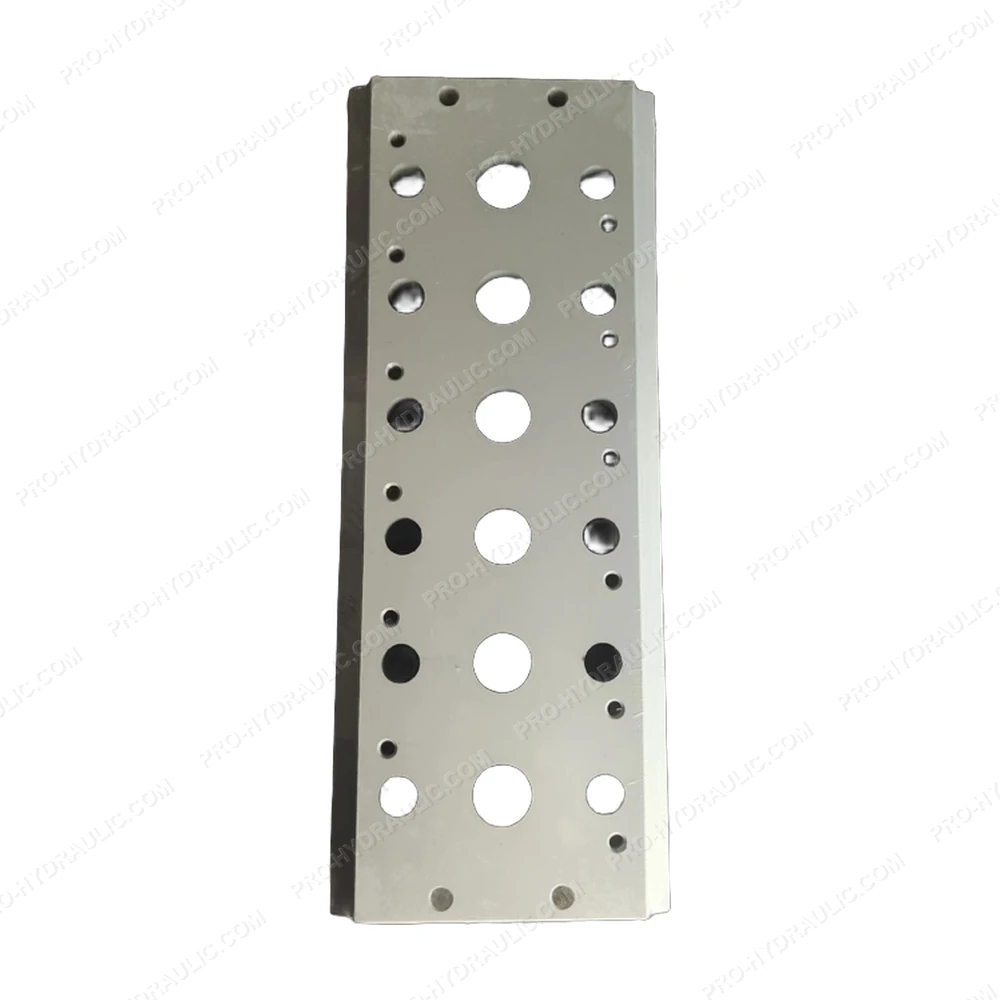

AirTAC 300M6F Pneumatic Manifold
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AIRTAC 300M6F Solenoid Valve. This China-made 24V DC hydraulic component features a 2-position, 6-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
