Product Overview
The AirTAC 4M310-08 is a 5/2-way NAMUR-mount pneumatic solenoid valve engineered for direct pilot actuation of quarter-turn pneumatic actuators and double-acting cylinders. As part of the AirTAC 4M series, this valve utilizes a precision spool-and-sleeve design with a NAMUR interface (VDI/VDE 3845) that allows direct mounting to standard pneumatic actuator pads without additional piping or adapter plates. The 4M310-08 is a single-solenoid, spring-return configuration, meaning the valve shifts to the energized position when the solenoid is powered and automatically returns to the de-energized position upon signal loss, providing fail-safe operation. With an 08 (1/4″) port size, this valve is suited for moderate-flow pneumatic circuits in process automation, packaging machinery, and industrial valve actuation systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5/2-Way, NAMUR Interface) |
| Model Designation | 4M310-08 |
| Valve Function | 5/2-way, single solenoid, spring return |
| Operating Pressure | 0.15 – 0.8 MPa (approx. 1.5 – 8 bar) |
| Port Size | 1/4″ (08 designation) |
| Mounting & Connection | NAMUR interface (VDI/VDE 3845) direct actuator mount; threaded port connections |
| Solenoid Voltage | Commonly DC24V / AC220V (configurable per order) |
| Body Material | Anodized aluminum alloy |
| Seal Material | NBR (standard) |
| Operating Temperature | -5°C to +60°C (standard) |
Engineering Features & Advantages
- Precision Spool Performance: The balanced spool-and-sleeve design ensures fast, repeatable shifting with minimal pressure drop and reliable sealing across the full operating pressure range.
- NAMUR Direct Mounting: The integrated NAMUR interface eliminates the need for adapter blocks and external tubing, reducing installation time, leak paths, and overall system footprint.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original AirTAC specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With an 08 (1/4″) port size, this valve is suited for moderate-flow pneumatic circuits in process automation, packaging machinery, and industrial valve actuation systems.
PRODUCT IMAGES

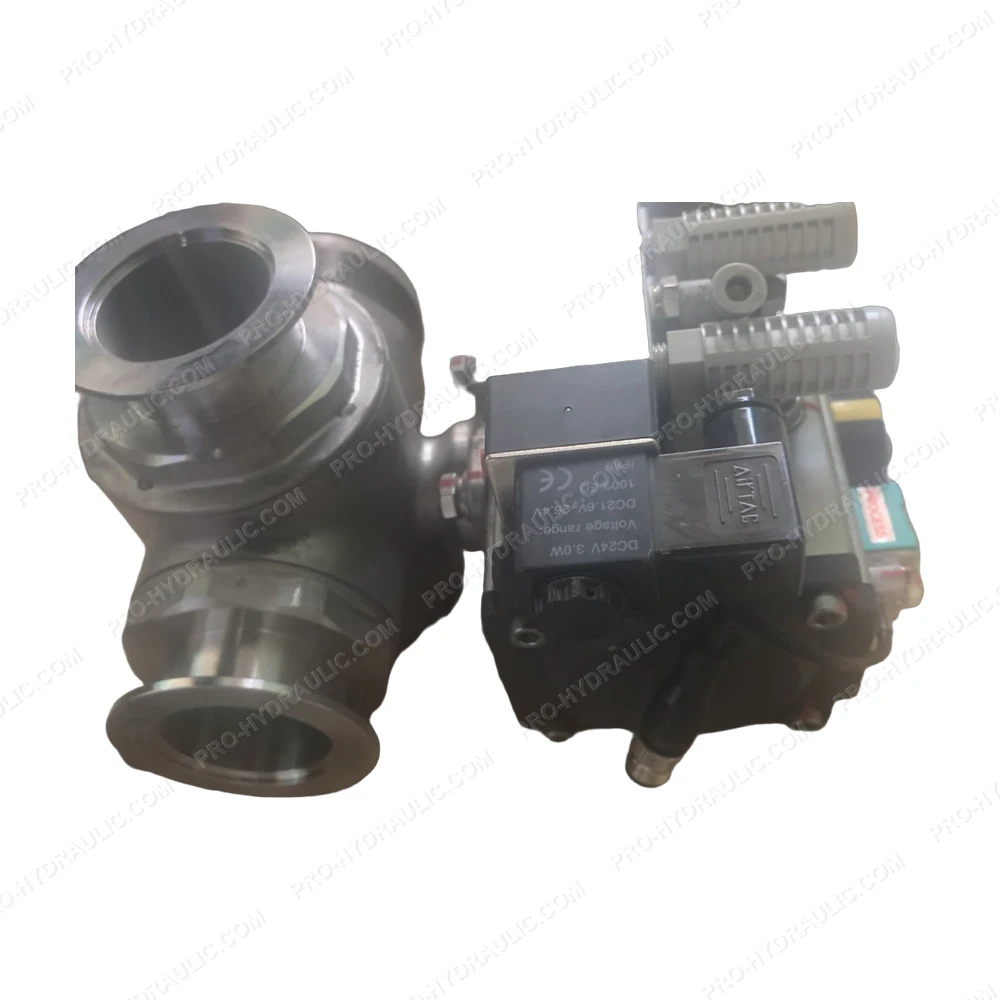

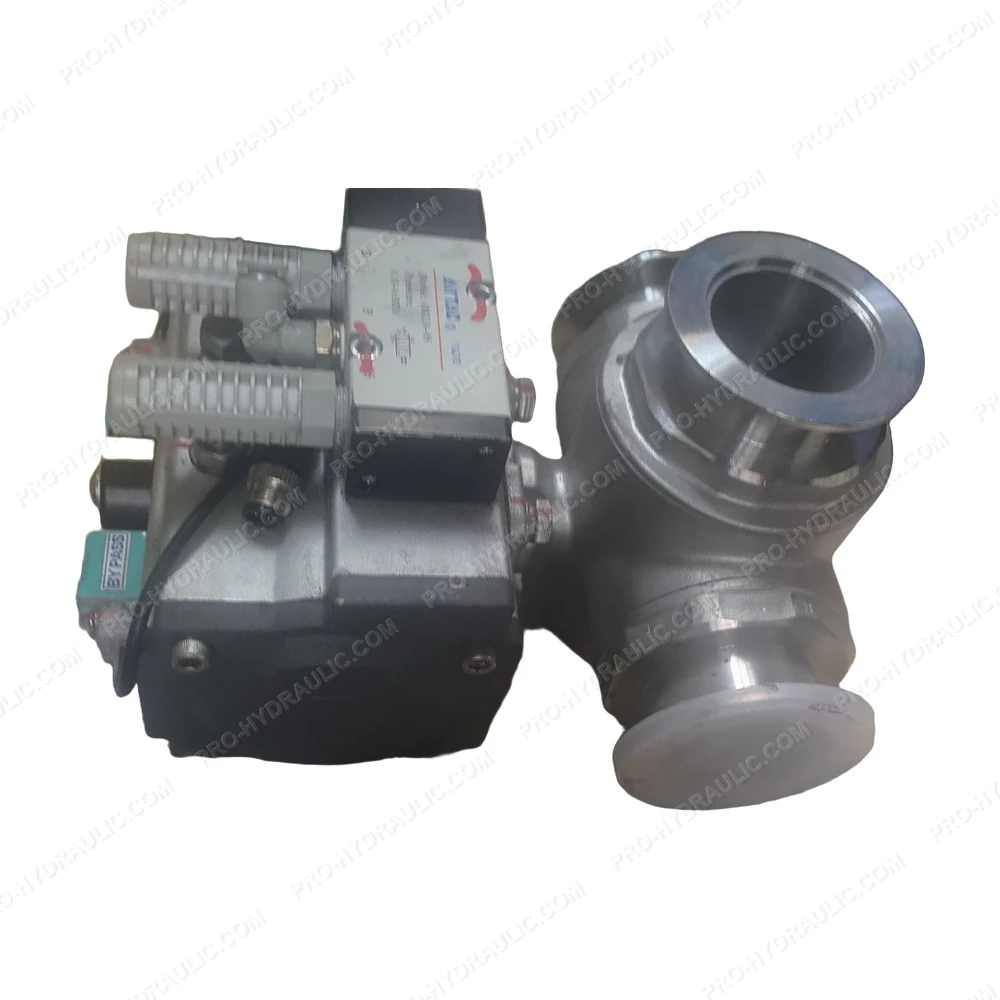

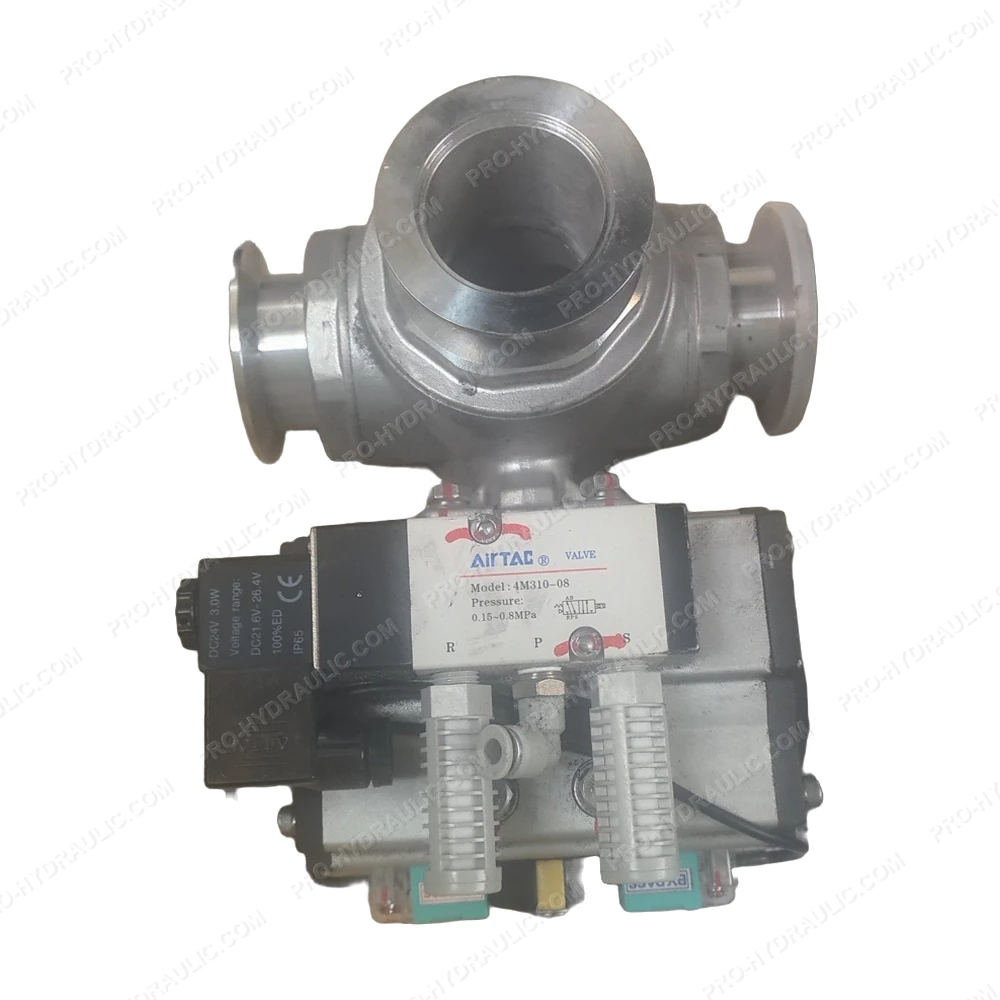

AirTAC 4M310-08 NAMUR Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AIRTAC 4M310-08 Solenoid Directional Valve. This China-made 5/2-way pneumatic component features a solenoid pilot actuation, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
