Product Overview
The AirTAC 4V120-06 is a 5/2-way pneumatic solenoid valve from the AirTAC 4V series, engineered for precise directional control of compressed air in industrial automation and process systems. As a 5/2-way configuration, it features five port connections (one pressure inlet, two cylinder ports, and two exhaust ports) with two distinct spool positions, enabling dual-acting cylinder extension and retraction through a single valve body. The 4V120-06 utilizes an internal pilot-operated solenoid mechanism that delivers fast, reliable spool shifting with minimal power consumption, making it a direct-fit solution for OEM pneumatic circuits and replacement applications. Its compact body design, combined with the 06 (1/8″) port size, provides an optimal balance of flow capacity and installation footprint for manifold or inline mounting.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5/2-Way Directional Control) |
| Model Designation | 4V120-06 |
| Operating Pressure | 0.15 – 0.8 MPa (1.5 – 8 bar) Standard Industrial Grade |
| Port Size | 1/8″ (06 designation) — Inlet, Outlet & Exhaust |
| Valve Function | 5/2-Way, Single Solenoid, Spring Return |
| Actuation Type | Internal Pilot Solenoid Actuation |
| Mounting & Connection | Manifold / Sub-base Mounting, Standard ISO Interface |
| Operating Temperature | -5°C to +60°C (Standard Ambient Range) |
| Working Medium | Filtered Compressed Air (40 μm filtration recommended) |
Engineering Features & Advantages
- Precision Spool Performance: The 5/2-way spool design ensures accurate directional control of dual-acting actuators, delivering consistent flow paths for extension and retraction cycles with minimal pressure drop across the valve.
- Fast Solenoid Response: Internal pilot-operated solenoid actuation enables rapid spool shifting with low power consumption, supporting high-cycle automation sequences and precise timing in pneumatic control circuits.
- Industrial Reliability: Built for continuous operation under demanding industrial conditions, with a durable valve body and spring-return mechanism that ensures fail-safe return to the default position upon signal loss.
- Direct Fit Replacement: Exact dimensional and functional compatibility with AirTAC 4V series standards, allowing drop-in replacement on existing manifolds and sub-base assemblies without modification.
- Direct Fit Replacement: Precision-manufactured to original AirTAC specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The 4V120-06 utilizes an internal pilot-operated solenoid mechanism that delivers fast, reliable spool shifting with minimal power consumption, making it a direct-fit solution for OEM pneumatic circuits and replacement applications.
PRODUCT IMAGES

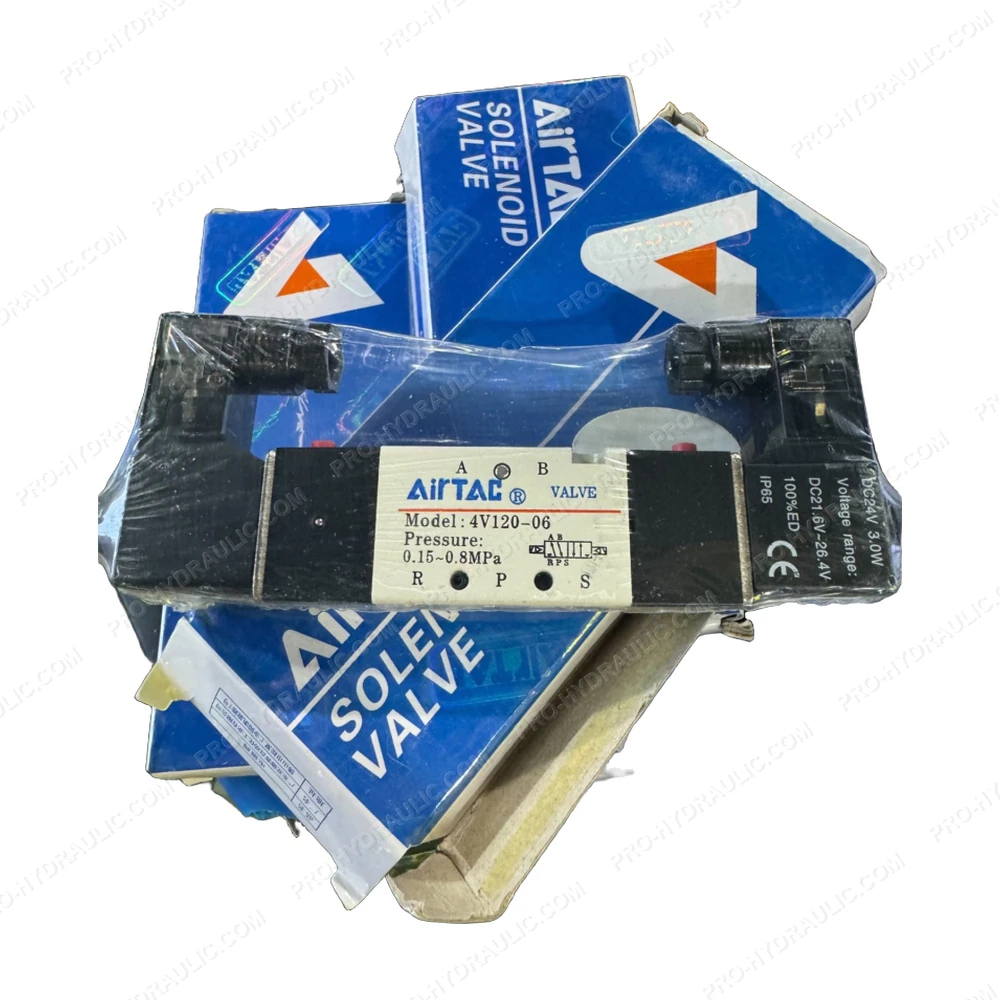

AirTAC 4V120-06 5/2-Way Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AIRTAC 4V120-06 Solenoid Directional Valve. This China-made 12V DC hydraulic component features a 5/2 way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
