Product Overview
The AirTAC 4V230C-08 is a 5/3-way pneumatic solenoid valve from the AirTAC 4V series, engineered for precise directional control of compressed air in industrial automation and process systems. This valve utilizes a closed-center spool configuration, meaning all ports are blocked in the de-energized neutral position, providing reliable load-holding capability for double-acting actuators. With an 08 (1/4″) port size and a robust solenoid pilot actuation mechanism, the 4V230C-08 delivers fast response times, high cycle life, and consistent flow characteristics. It is designed as a direct-fit replacement for OEM pneumatic control circuits and is widely deployed in manufacturing environments requiring dependable directional air control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | 5/3-Way Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | 4V230C-08 |
| Valve Function | 5/3-Way, Closed Center (All Ports Blocked in Neutral) |
| Port Size | 1/4″ (08 Designation) |
| Operating Pressure | 0.15 – 0.8 MPa (1.5 – 8 bar) |
| Actuation Type | Solenoid Pilot / Spring Return (Center Position) |
| Operating Voltage | DC24V / AC220V (Standard Coil Options) |
| Mounting & Connection | Manifold / Sub-base Mounted, Threaded Port Connection |
| Body Material | Aluminum Alloy with Anodized Finish |
| Seal Material | NBR (Nitrile Rubber) |
Engineering Features & Advantages
- Closed-Center Spool Design: In the neutral position, all five ports are blocked, enabling precise load-holding and mid-position stop capability for double-acting pneumatic cylinders and actuators.
- Fast Solenoid Response: High-performance solenoid pilot mechanism ensures rapid shifting and consistent actuation, minimizing cycle time in high-speed automated processes.
- Precision Spool & Bore Machining: Tight-tolerance spool-to-bore clearance delivers minimal internal leakage and stable flow metering across the full pressure range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original AirTAC standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
It is designed as a direct-fit replacement for OEM pneumatic control circuits and is widely deployed in manufacturing environments requiring dependable directional air control.
PRODUCT IMAGES

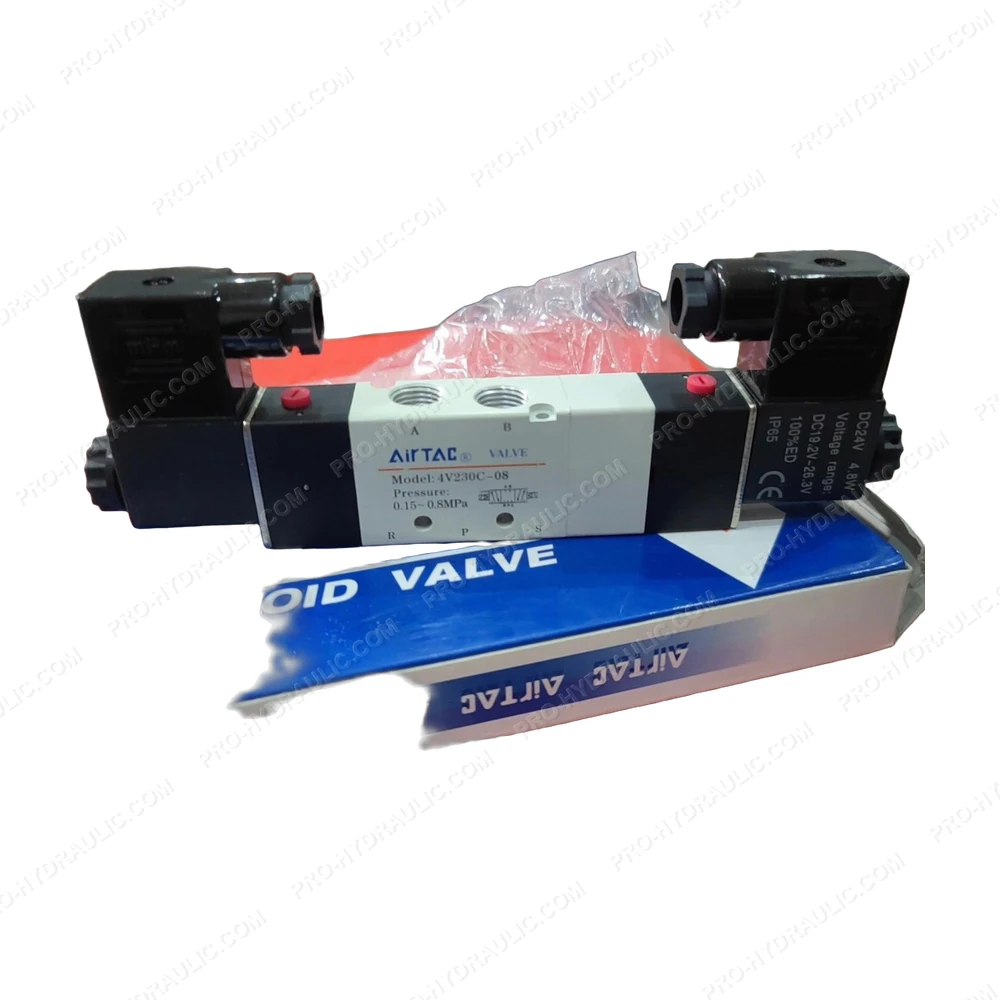

AirTAC 4V230C-08 5/3-Way Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AIRTAC 4V230C-08 Solenoid Directional Control Valve. This China-made 24V DC hydraulic component features a 5/2-way solenoid actuated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
