Product Overview
The AIRTEC M 22 510-HN is a pneumatically actuated solenoid valve engineered for precise control of compressed air and neutral gaseous media within industrial process circuits. As a member of the AIRTEC M-series valve family, this unit utilizes an indirect (pilot) actuated solenoid principle, where an electrical signal energizes the solenoid coil to shift the internal spool, directing pilot pressure to drive the main valve element. This design allows for reliable switching of higher flow rates while maintaining low power consumption at the coil. The M 22 510-HN is configured as a 5/2-way valve, making it suitable for double-acting cylinder control and other directional air logic functions. Its robust construction and standardized interface make it a direct-fit replacement for OEM pneumatic control blocks in automated machinery, packaging lines, and general industrial automation systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (5/2-Way, Indirect Actuated) |
| Model Designation | M 22 510-HN |
| Operating Pressure | Standard Industrial Grade (typically 2–10 bar / 29–145 psi) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (sub-base or manifold mount) |
| Valve Function | 5/2-way directional control, solenoid pilot with spring return |
| Actuation | Electrical solenoid (pilot) / manual override standard |
| Media | Filtered compressed air, neutral gases (lubricated or non-lubricated) |
Engineering Features & Advantages
- Precision Performance: Indirect solenoid actuation enables fast, consistent spool shifting with minimal electrical power, ensuring repeatable cycle times in high-frequency pneumatic logic operations.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with wear-resistant spool and seal materials that tolerate contaminated or lubricated air supplies.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including standard sub-base porting and coil voltage options, minimizing downtime during changeover.
- Manual Override: Integrated manual override allows for safe system testing and troubleshooting without energizing the solenoid coil.
- Compact Manifold Design: Space-efficient body suitable for high-density valve islands and multi-station pneumatic control panels.
Typical Industrial Applications
The AIRTEC M 22 510-HN is deployed across a wide range of heavy industrial and process automation scenarios, including: plastic injection molding machines (mold clamping and ejector circuits), packaging and palletizing lines (double-acting cylinder sequencing), CNC machine tools (tool changer and clamping actuation), and general factory automation (assembly stations, material handling, and pneumatic press controls). Its 5/2-way configuration makes it particularly suited for controlling double-acting pneumatic actuators where precise directional switching and reliable spring-return fail-safe behavior are required.
PRODUCT IMAGES

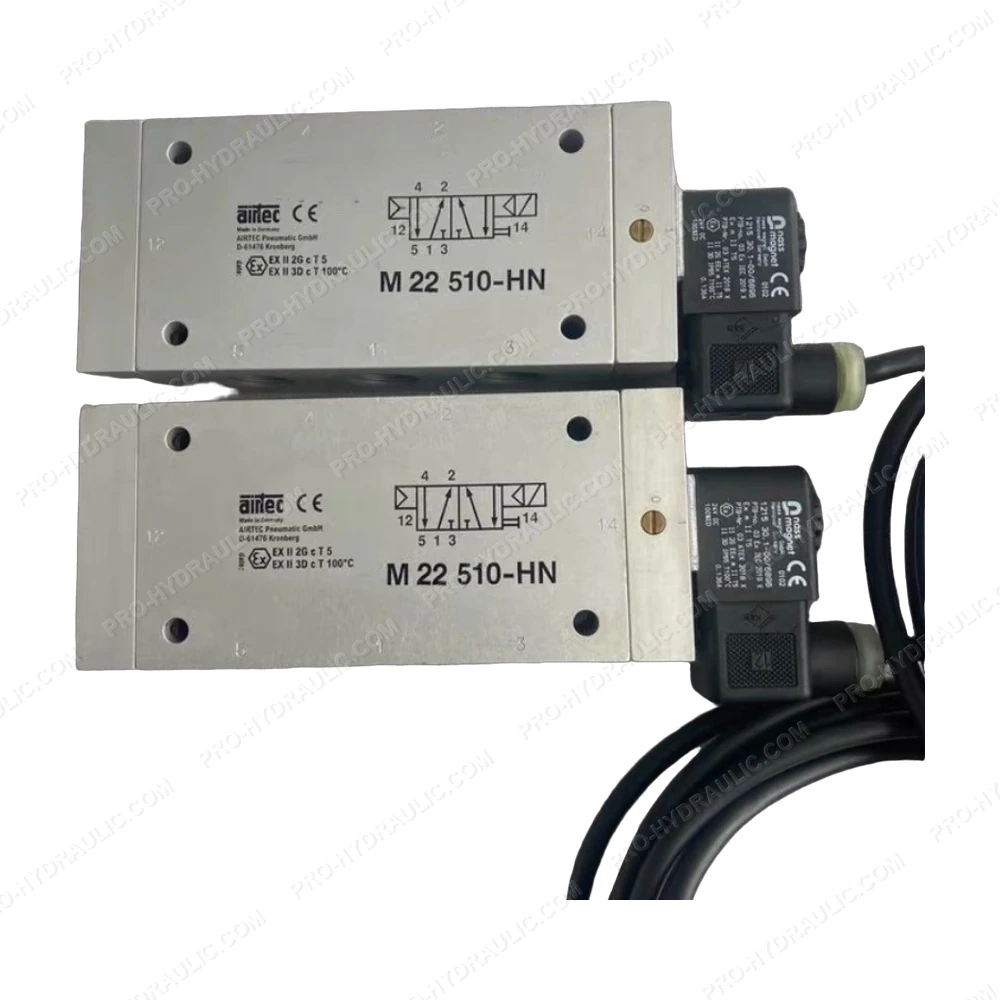

AIRTEC M 22 510-HN Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AIRTEC M 22 510-HN Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 5/2-way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
