Product Overview
The AMG-PESCH BR03-SAD 15 is a heavy-duty pneumatic rotary actuator engineered for precise 90° quarter-turn operation of industrial process valves, including ball, butterfly, and plug valves. Manufactured by AMG-PESCH, a recognized specialist in valve automation technology, this double-acting rack-and-pinion actuator converts compressed air energy into controlled rotary torque, delivering reliable open/close positioning in automated fluid handling systems. The BR03-SAD 15 is designed for seamless integration into process control loops, offering consistent torque output, compact mounting, and long service life in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Rotary Actuator (Quarter-Turn Valve Actuator) |
| Model Designation | BR03-SAD 15 |
| Actuation Type | Double-Acting (Air-to-Open / Air-to-Close) |
| Rotation Angle | 90° Quarter-Turn (Adjustable ±5° at end stops) |
| Operating Pressure | Standard Industrial Grade (Up to 8 bar / 116 psi) |
| Mounting & Connection | Standard ISO 5211 Valve Mounting Flange / Namur Interface |
| Body Material | Anodized Aluminum Alloy Housing |
| Sealing | NBR / Viton O-Rings and Guide Rings |
| Temperature Range | -20°C to +80°C (Standard NBR Configuration) |
Engineering Features & Advantages
- Precision Rack-and-Pinion Mechanism: Symmetrical dual-rack and pinion design ensures balanced torque output, minimal backlash, and accurate 90° positioning for critical process valve control.
- Compact High-Torque Output: The BR03-SAD 15 delivers substantial torque relative to its compact footprint, enabling direct mounting on small to medium-sized quarter-turn valves without additional linkage.
- Industrial Reliability: Hard-anodized aluminum body and corrosion-resistant internal components are built for continuous operation under severe industrial conditions, including humid, chemical, and outdoor environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with AMG-PESCH BR-series actuators and standard ISO 5211 valve interfaces, ensuring drop-in replacement without modification.
- Integrated Accessory Mounting: Namur-standard top and side ports allow direct mounting of solenoid pilot valves, positioners, and limit switch boxes for streamlined automation integration.
Typical Industrial Applications
The AMG-PESCH BR03-SAD 15 pneumatic rotary
PRODUCT IMAGES

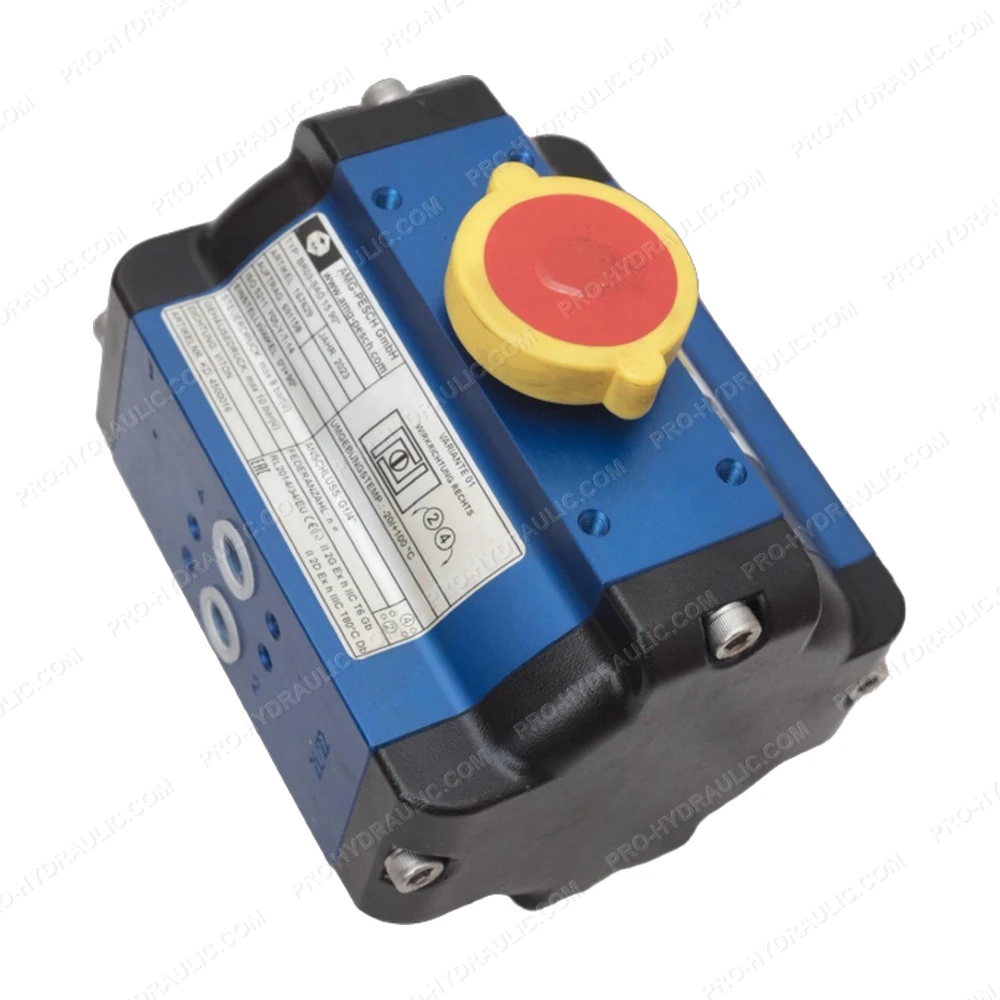

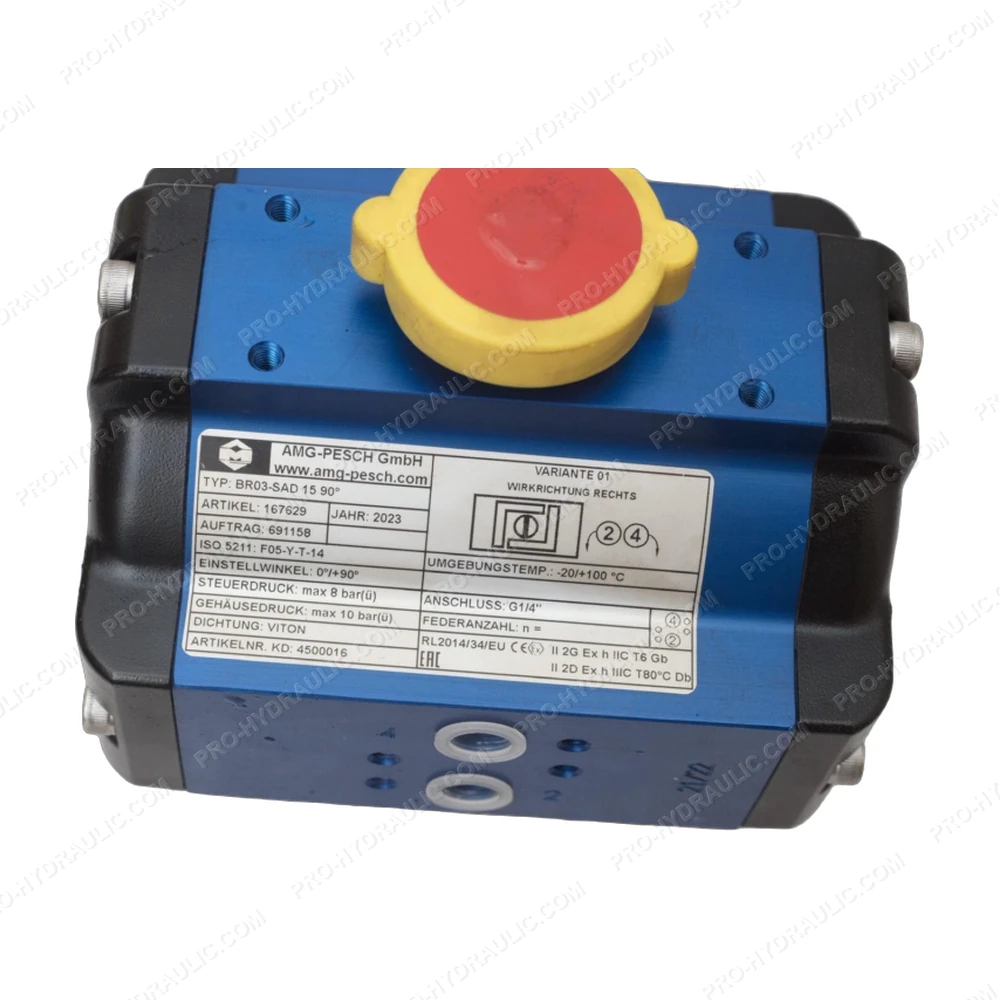

AMG-PESCH BR03-SAD 15 90° Pneumatic Rotary Actuator
