The ARO PH15F-BSP-SAA-A is a heavy-duty industrial air operated diaphragm pump engineered for reliable transfer of aggressive fluids, slurries, and high-solids media in demanding process environments. As part of the ARO PH15 series, this 1-1/2″ pump utilizes a positive displacement, reciprocating diaphragm design driven by compressed air, eliminating electrical components and allowing safe operation in wet or hazardous locations.
ARO PH15F-BSP-SAA-A Technical Specifications
| Type | Air Operated Double Diaphragm Pump |
| Port Size | 1-1/2 in (BSPT) |
| Max Flow Rate | Approx. 106 GPM (401 LPM) |
| Max Operating Pressure | 120 psi (8.3 bar) |
| Air Inlet | 1/2 in NPT |
| Displacement per Stroke | 0.62 gal (2.35 L) |
| Wetted Materials | Aluminum, Santoprene, PTFE |
| Ball/Seat Material | Santoprene / PTFE |
| Diaphragm Material | Santoprene |
| Max Solids Handling | 1/4 in (6.4 mm) |
| Mounting | Foot / Flange |
Key Engineering Features
- Air-operated, positive displacement diaphragm principle with no electrical motor or rotating shaft seals
- BSPT threaded ports for leak-tight integration into European and international piping systems
- Santoprene diaphragms and PTFE ball/seat options for chemical compatibility and extended service life
- Stall-free, deadhead-capable operation without pressure relief or bypass requirements
- Self-priming and dry-run capable, suitable for intermittent or continuous duty
- Modular air valve and diaphragm assembly for simplified maintenance
Industrial Applications
- Chemical transfer and dosing of acids, bases, and solvents
- Paint, coating, and ink circulation in manufacturing lines
- Wastewater and slurry handling in treatment plants
- Food and beverage processing with compatible elastomers
- Oil and gas transfer of light oils, fuels, and produced water
- Mining and construction dewatering with high-solids content
For technical inquiries, dimensional drawings, or replacement support for ARO PH15F-BSP-SAA-A, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

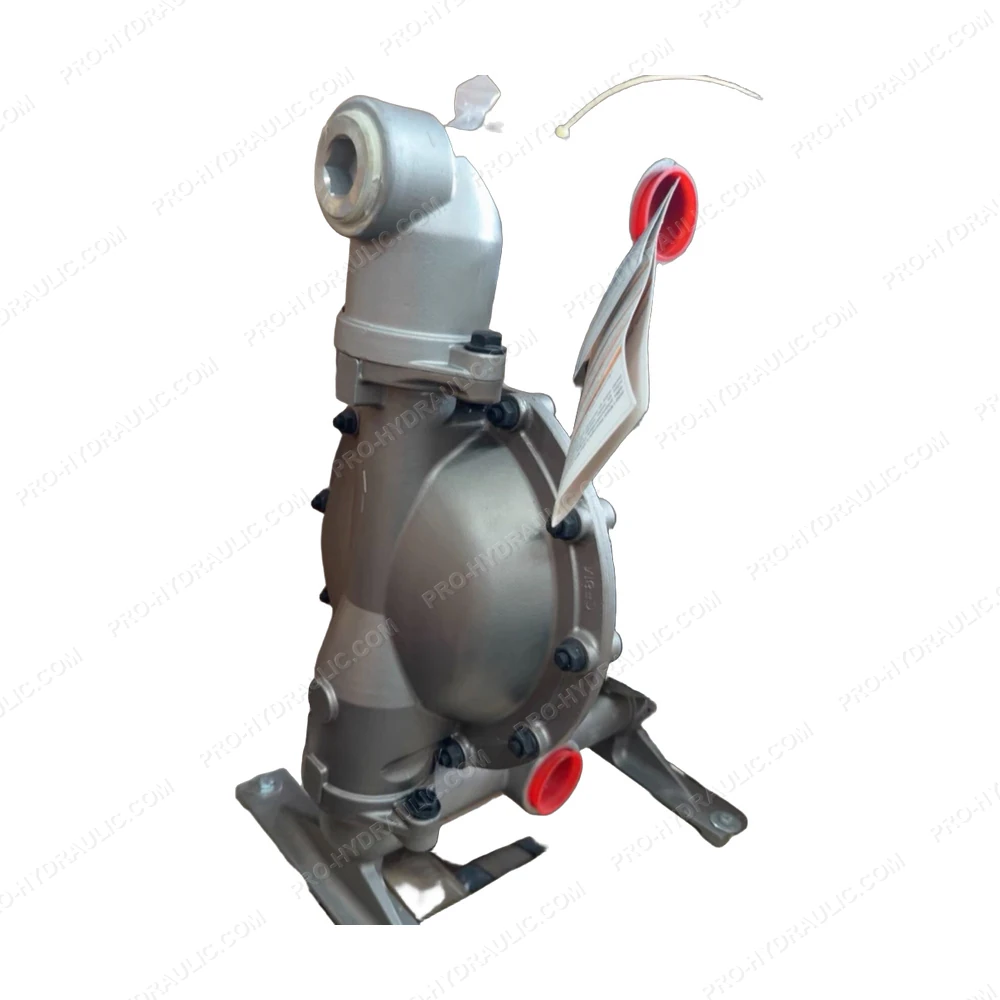

ARO PH15F-BSP-SAA-A Air Operated Diaphragm Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the ARO PH15F-BSP-SAA-A Air Operated Diaphragm Pump. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
