Product Overview
The ASCO G551B401 is a precision-engineered pneumatic spool valve from the ASCO 551 series, designed for reliable directional control of compressed air and inert gas circuits in demanding industrial environments. Utilizing a robust sliding spool and sleeve architecture, this valve delivers fast, repeatable actuation with minimal pressure drop across the flow path. Its balanced spool design ensures consistent shifting force regardless of system pressure fluctuations, making it an ideal choice for process automation, packaging machinery, and pneumatic actuation systems where precise directional control and long service life are critical. The G551B401 is configured for direct integration into manifold or inline installations, offering dependable performance in continuous-duty industrial operation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Spool Valve (Directional Control Valve) |
| Model Designation | G551B401 |
| Series | ASCO 551 Series |
| Valve Function | 5/2 Spool Configuration (Inferred from 551 series standard) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per ASCO 551 specifications) |
| Actuation Type | Solenoid / Air Pilot (Model-dependent configuration) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Inline or Manifold Mount) |
| Media | Compressed Air, Inert Gases (Filtered, Lubricated or Non-Lubricated) |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The hardened, precision-matched spool and sleeve assembly ensures minimal internal leakage, low friction, and highly repeatable directional control for accurate pneumatic circuit management.
- Balanced Spool Architecture: Pressure-balanced spool design maintains consistent actuation force across varying system pressures, eliminating erratic shifting and extending solenoid or pilot life.
- Fast Response Time: Optimized flow paths and lightweight spool construction deliver rapid valve actuation, improving cycle times in high-speed automated processes.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction resistant to vibration, thermal cycling, and contaminated air supplies.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM ASCO 551 series standards, ensuring drop-in replacement without modification.
Typical Industrial Applications
The ASCO G551B401 pneumatic spool valve is widely deployed across heavy industrial sectors including: plastic injection molding machines for mold opening/closing and ejection sequencing; packaging and labeling machinery requiring high-speed directional air control; metallurgical presses and forming equipment for clamping and transfer actuation; CNC machine tools for tool changers and pneumatic workholding; and general process automation systems where reliable 5/2 directional control of compressed air is essential for cylinder and actuator management.
PRODUCT IMAGES

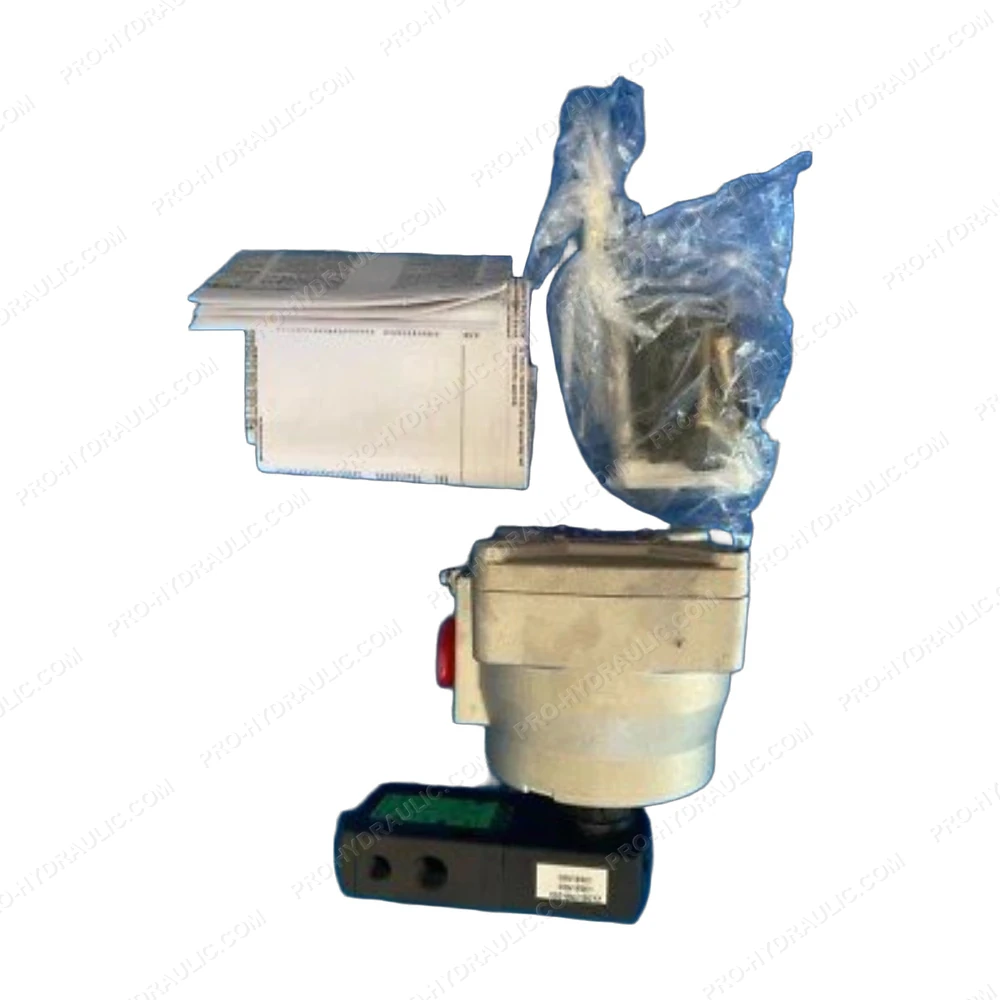

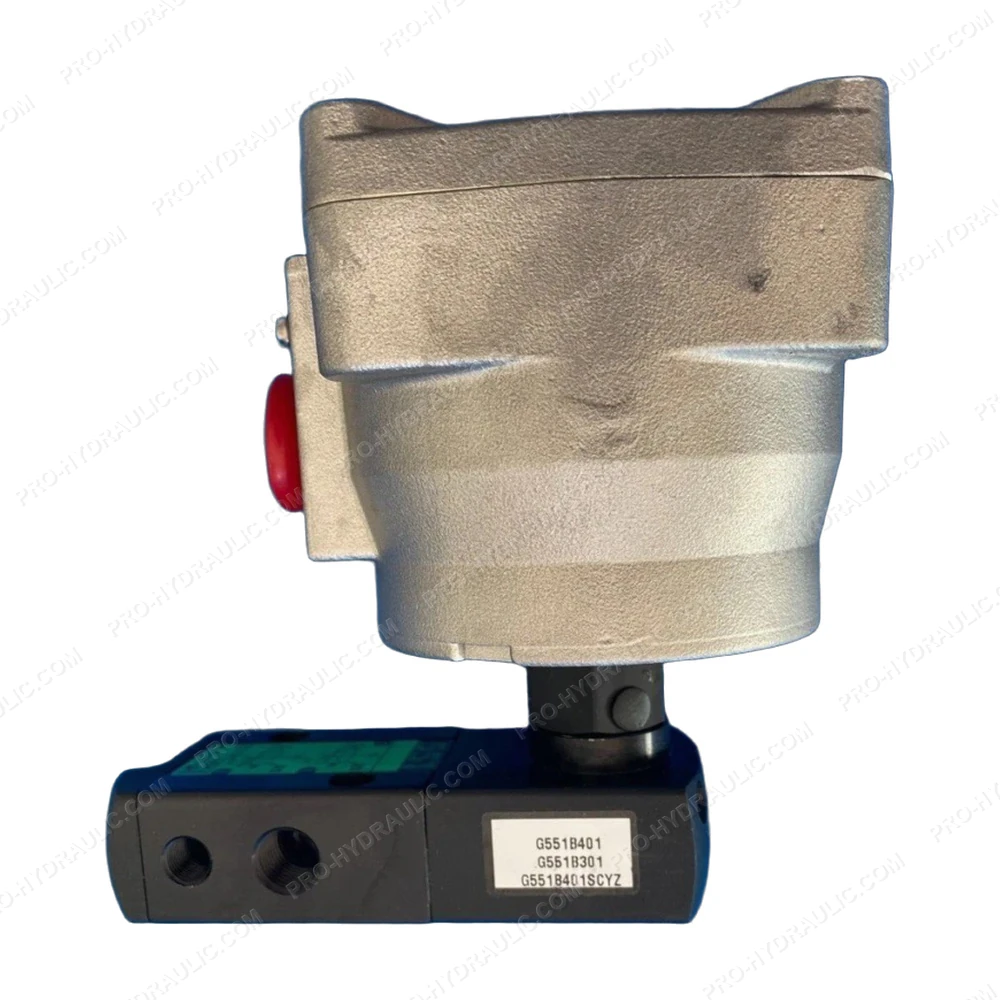

ASCO G551B401 Pneumatic Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ASCO G551B401 Solenoid Pilot Valve. This USA-made 120VAC hydraulic component features a 4-way pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
