Product Overview
The ASCO NUMATICS 614357D503103 is a high-performance pneumatic solenoid valve engineered for precise directional control of compressed air and inert gas circuits in demanding industrial environments. Part of the renowned ASCO NUMATICS 614 series, this valve utilizes a robust solenoid pilot actuation mechanism to shift an internal spool, delivering fast, repeatable response times and reliable sealing across millions of cycles. Designed as a direct-acting or pilot-operated directional control valve, it serves as a critical interface between electronic control systems (PLC/SCADA) and pneumatic actuators, cylinders, and process lines. Its compact modular construction allows for flexible integration into manifold assemblies or standalone inline installations, making it a preferred choice for OEMs and MRO engineers seeking uncompromising reliability in automation, packaging, and process control applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Directional Control Valve) |
| Model Designation | 614357D503103 |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi, typical for ASCO 614 series) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Namur / Sub-base or inline threaded ports) |
| Valve Function | 3/2 or 5/2 Way Directional Control (Spool Type) |
| Actuation Method | Solenoid Pilot Operated with Manual Override |
| Seal Material | NBR / FKM (Standard industrial elastomers for air service) |
| Response Time | Fast actuation (typically 10–30 ms depending on pilot pressure) |
Engineering Features & Advantages
- Precision Performance: The balanced spool design ensures consistent shifting forces and minimal pressure drop, delivering precise flow metering and reliable directional control even under varying pilot pressures.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the ASCO NUMATICS 614357D503103 features a robust solenoid coil and wear-resistant seals, ensuring millions of maintenance-free cycles in high-duty automation environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, allowing drop-in replacement without modification to existing manifolds, sub-bases, or electrical connections.
- Flexible Integration: Modular design supports both inline and manifold mounting, with standard electrical plug connections (DIN 43650 / ISO 4400) for simplified wiring and quick commissioning.
- Manual Override: Integrated manual operator enables safe system testing and emergency actuation during setup or troubleshooting without energizing the solenoid.
Typical Industrial Applications
This pneumatic solenoid valve is widely deployed in heavy industrial scenarios including: plastic injection molding machines (for mold opening/closing and ejector control), packaging and palletizing lines (actuating gri
PRODUCT IMAGES

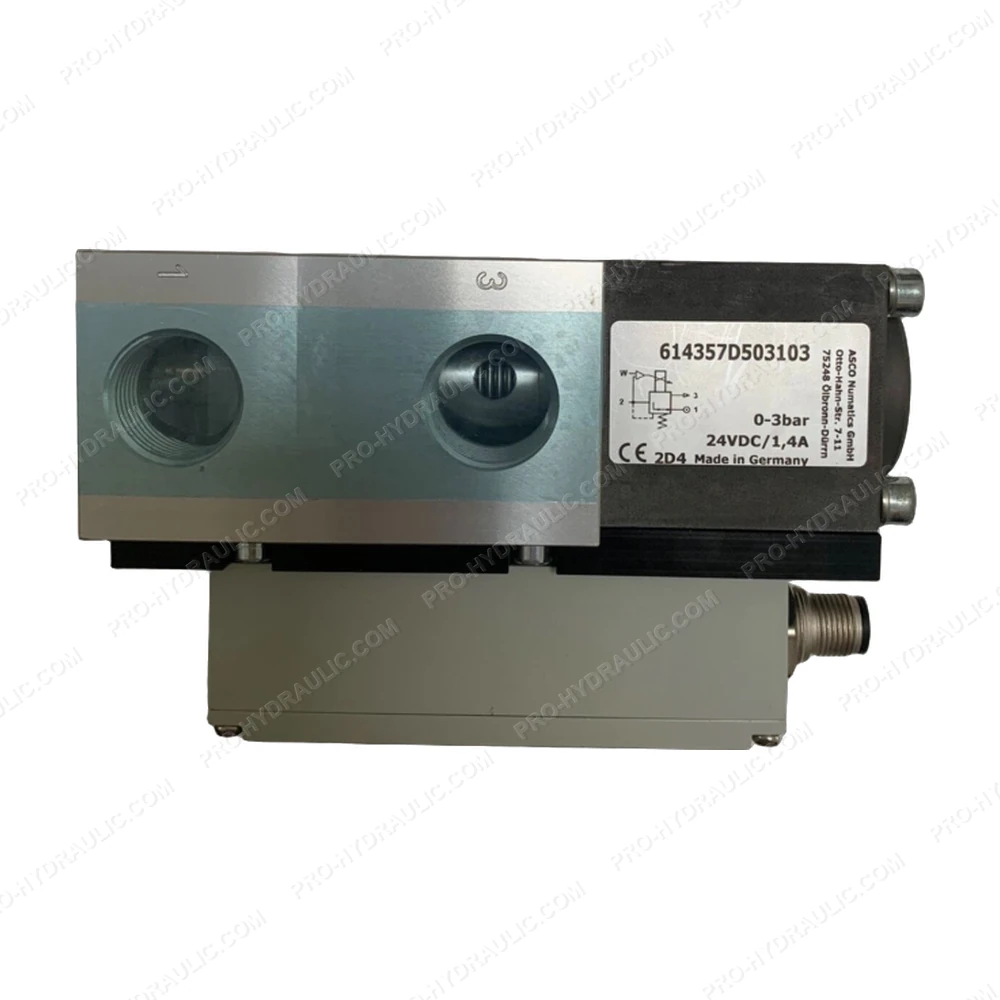

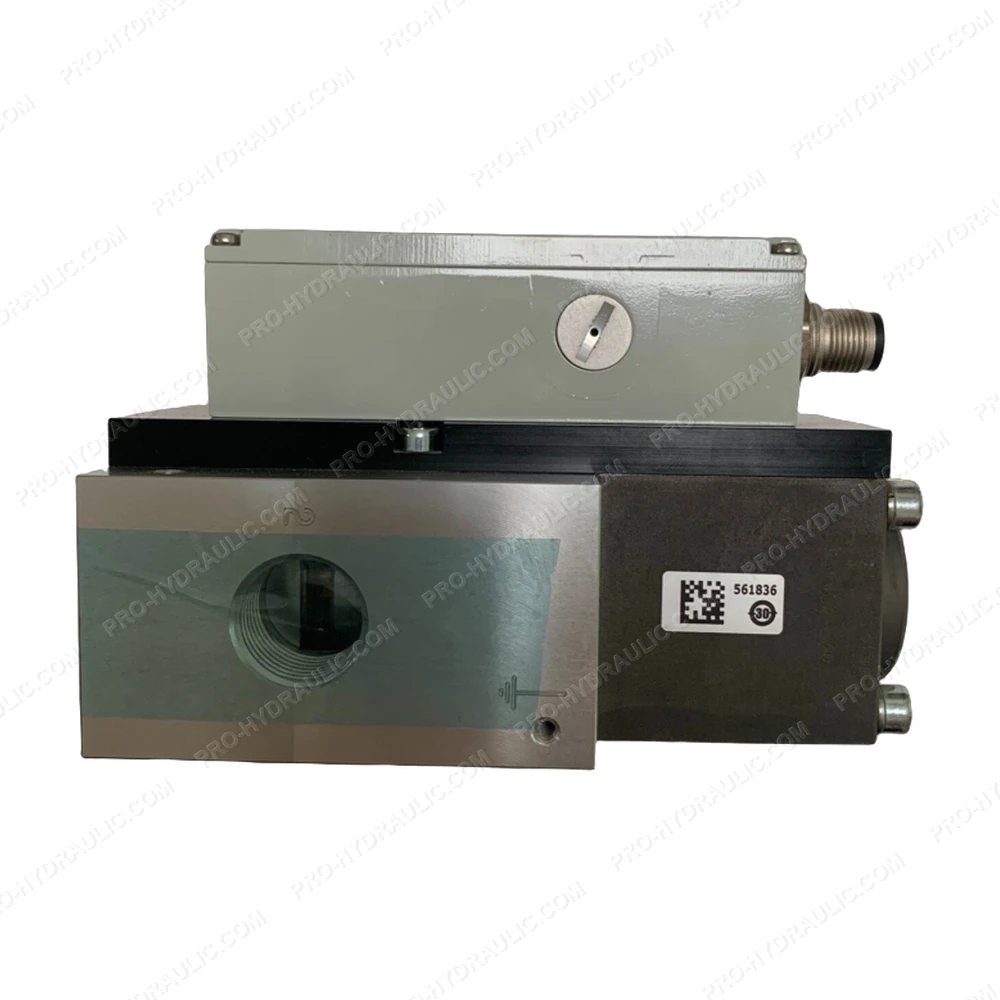

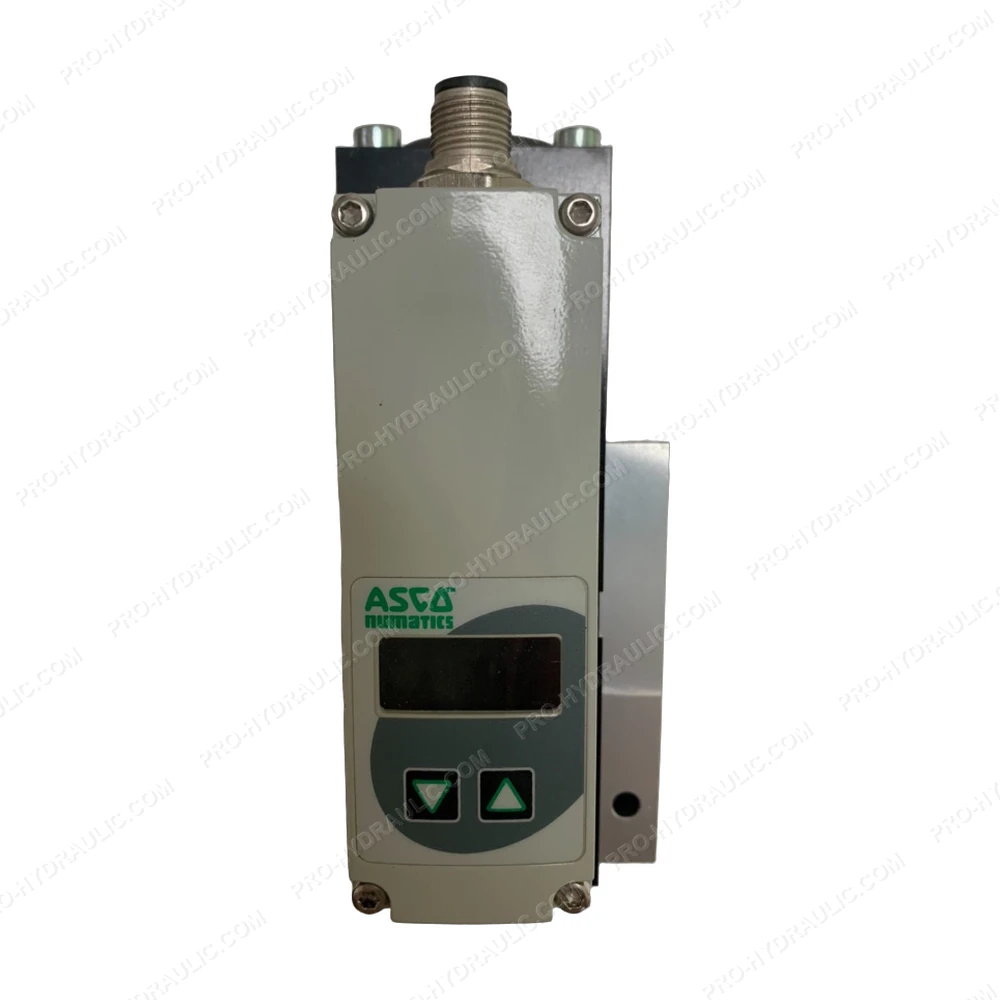

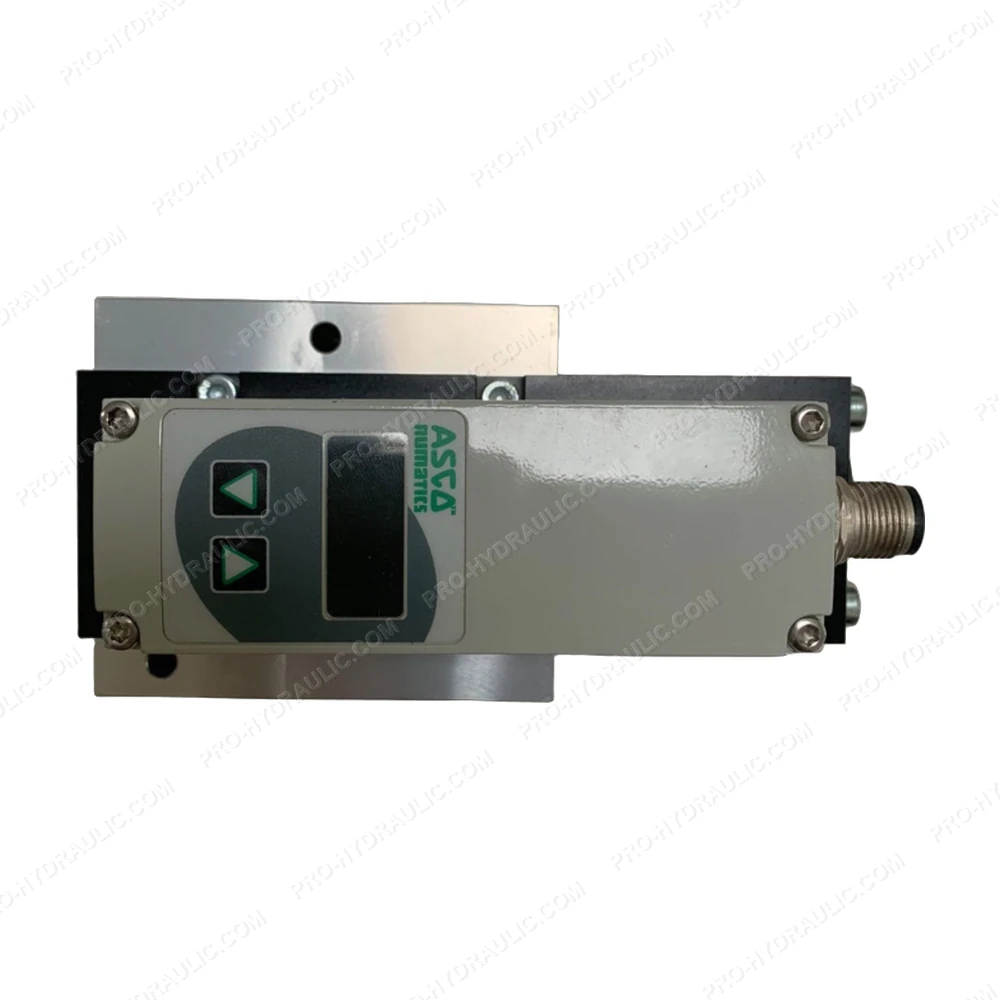

ASCO NUMATICS 614357D503103 Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ASCO NUMATICS 614357D503103 Solenoid Directional Control Valve. This USA-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
