Product Overview
The ASCO NUMATICS 614357G801125018 is a high-performance pneumatic solenoid valve engineered for precise directional control of compressed air and inert gas circuits in demanding industrial environments. Part of the ASCO NUMATICS 614 series, this valve utilizes a robust solenoid pilot actuation mechanism to shift an internal spool, delivering fast, repeatable response for automated process control. Its balanced design ensures reliable sealing and consistent flow characteristics, making it a critical component in pneumatic automation systems where accuracy, longevity, and minimal downtime are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Valve (Process & Pneumatic Valve) |
| Model Designation | 614357G801125018 |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi, depending on port size and seal material) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (threaded port connections, NAMUR or sub-base mount options) |
| Valve Function | 3/2 or 5/2-way directional control (spool-type, solenoid pilot actuated) |
| Solenoid Voltage | Standard industrial AC/DC coils available (e.g., 24 VDC, 110 VAC, 230 VAC) |
| Body Material | Anodized aluminum or brass (corrosion-resistant) |
| Seal Material | NBR / FKM (compatible with air, inert gases, and light oils) |
Engineering Features & Advantages
- Precision Performance: Fast solenoid actuation and precise spool positioning ensure accurate flow control and minimal pressure drop, optimizing pneumatic circuit efficiency.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust coil insulation and wear-resistant spool seals for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original ASCO NUMATICS OEM standards, ensuring drop-in installation without modification.
- Versatile Configuration: Available in multiple flow rates and voltage options to suit a wide range of pneumatic control requirements.
- Low Power Consumption: Efficient solenoid design reduces heat generation and energy costs, ideal for high-cycle automation systems.
Typical Industrial Applications
This pneumatic solenoid valve is widely used in plastic injection molding machines for mold opening/closing and ejection control, metallurgical presses for clamping and material handling, packaging and assembly lines for actuator sequencing, and CNC machine tools for tool changers and pneumatic clamping systems. It is also suitable for marine and offshore pneumatic control panels, food and beverage processing equipment, and general factory automation where reliable directional air control is critical.
PRODUCT IMAGES

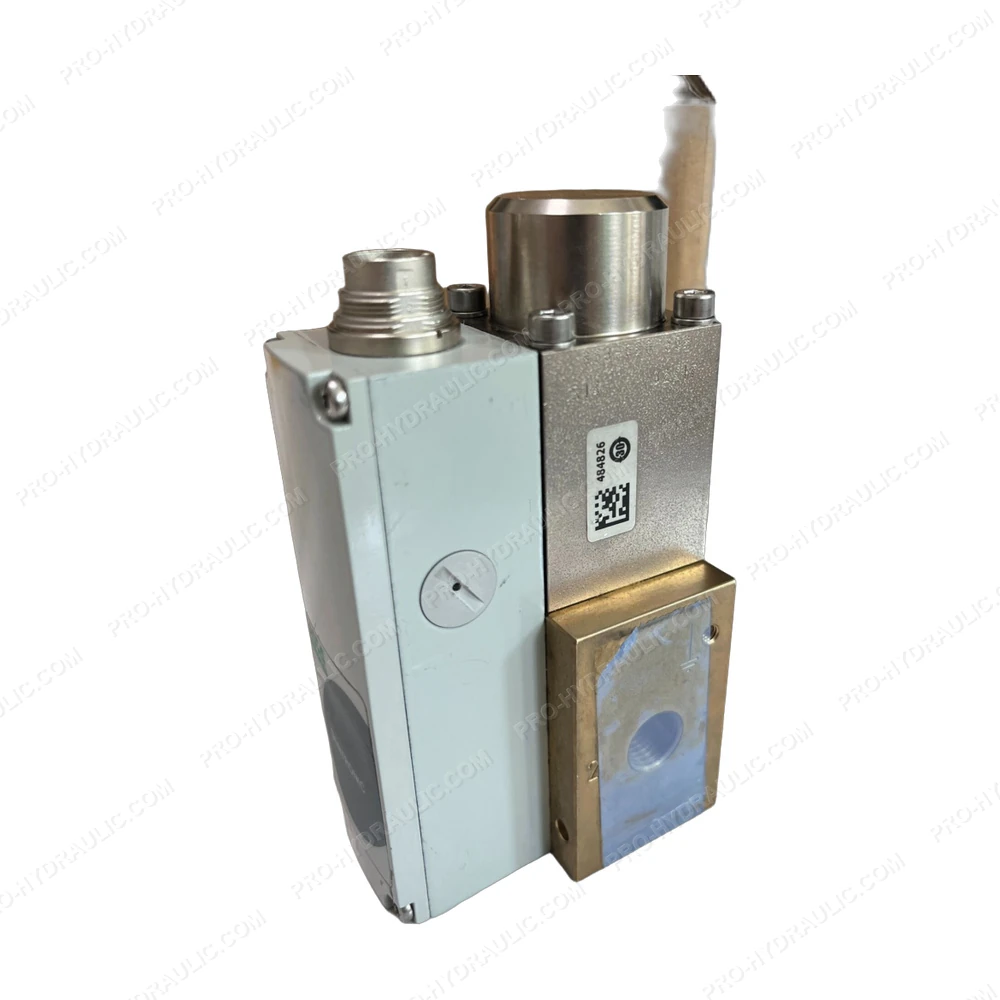

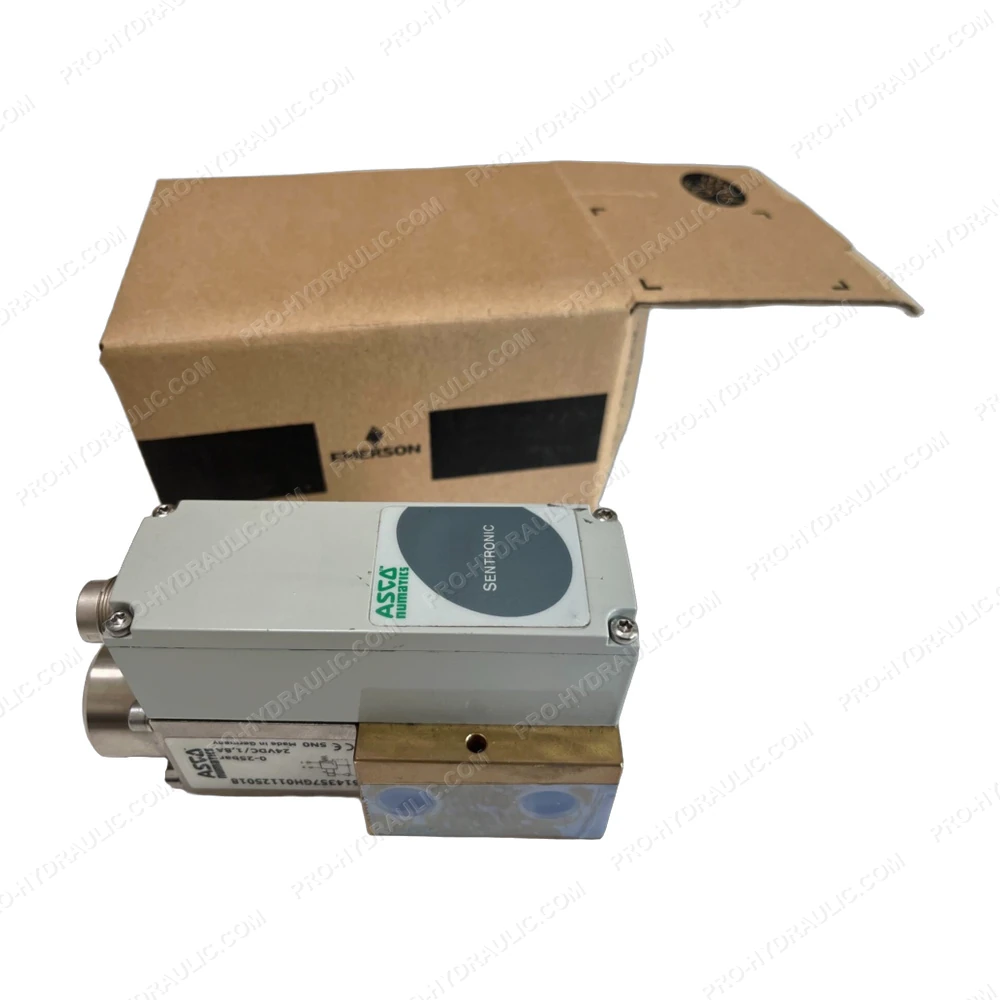

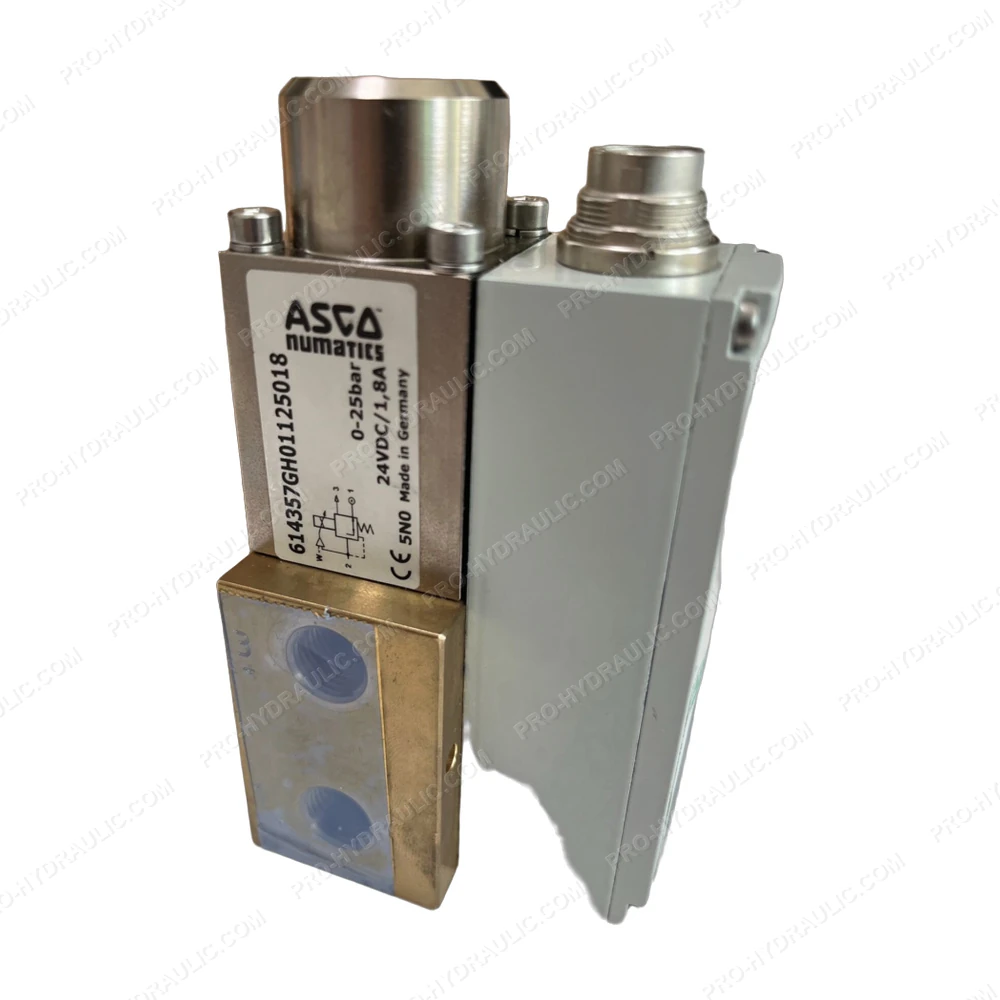

ASCO NUMATICS 614357G801125018 Pneumatic Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ASCO NUMATICS 614357G801125018 Solenoid Directional Control Valve. This USA-made 24V DC hydraulic component features a 4-way 2-position spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
