The ASCO SCE238D002 is a heavy-duty industrial solenoid valve engineered for precise on/off control of neutral gases and liquids in demanding process and pneumatic circuits. It features a robust wet-pin armature design that ensures reliable operation and extended service life under continuous duty cycles.
ASCO SCE238D002 Technical Specifications
| Valve Type | 2/2-way normally closed solenoid valve |
|---|---|
| Body Material | Brass |
| Seal Material | NBR (Buna-N) |
| Port Size | 1/4″ NPT |
| Orifice Diameter | 3.0 mm |
| Flow Coefficient (Cv) | 0.20 |
| Operating Pressure Range | 0 to 10 bar (0 to 145 psi) |
| Coil Voltage | 24 VDC |
| Power Consumption | 2.5 W |
| Electrical Connection | DIN 43650 Form A |
| Protection Class | IP65 |
| Media Temperature Range | -10°C to +80°C |
| Mounting | Inline or manifold |
Key Engineering Features
- Wet-pin armature design for smooth, reliable shifting and reduced wear
- Compact brass body with 1/4″ NPT ports for easy integration
- NBR seals compatible with air, water, and light oils
- DIN 43650 Form A electrical connection with IP65 protection
- Low power consumption (2.5 W) suitable for continuous duty
- Fast response time and high cycle life
Industrial Applications
- Pneumatic control systems
- Process automation and instrumentation
- Water treatment and dosing equipment
- Packaging and food processing machinery
- Medical and laboratory equipment
- General industrial fluid handling
For technical inquiries, dimensional drawings, or replacement support for ASCO SCE238D002, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

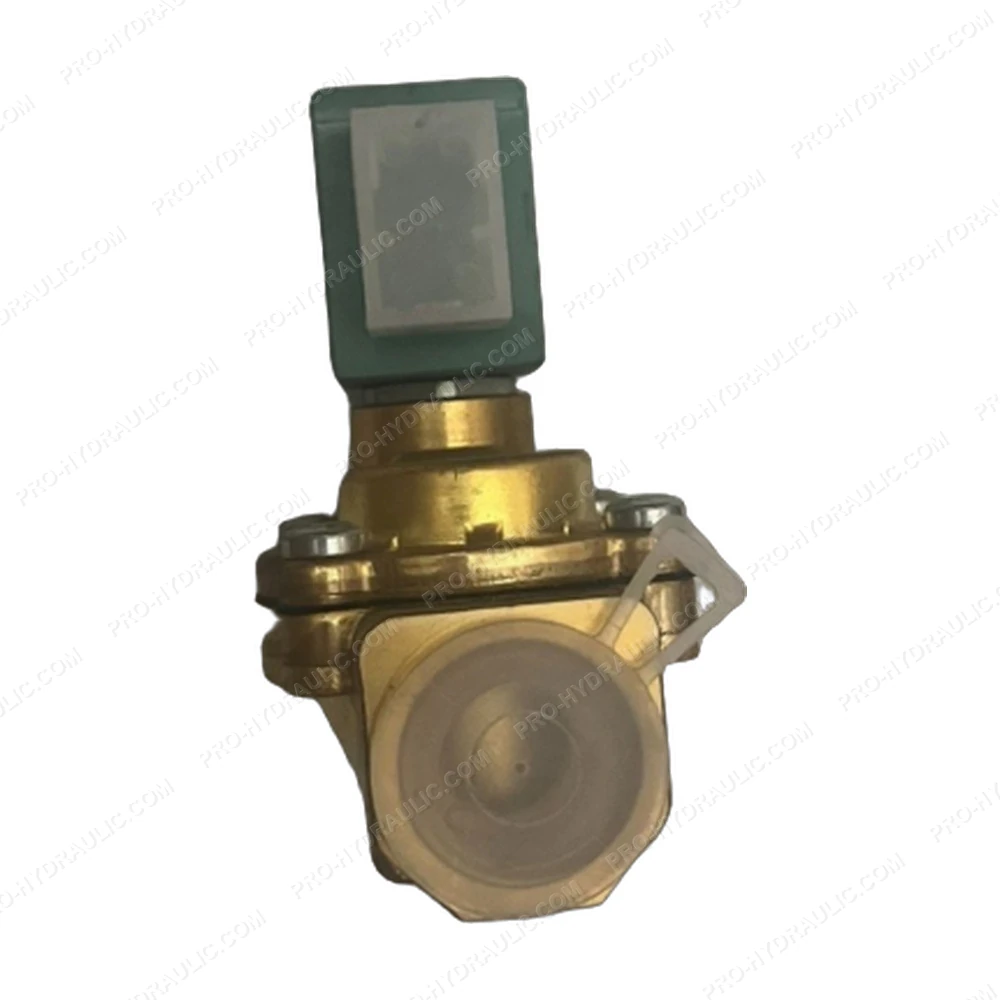

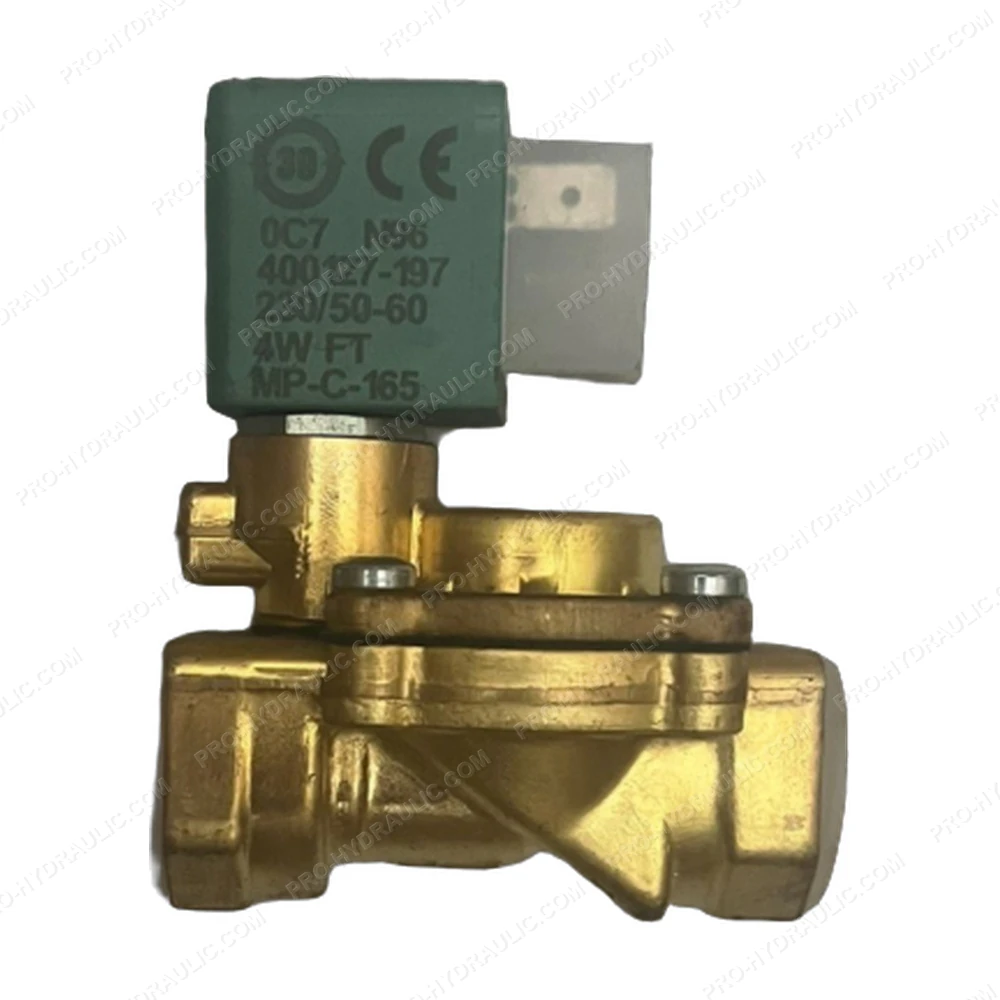

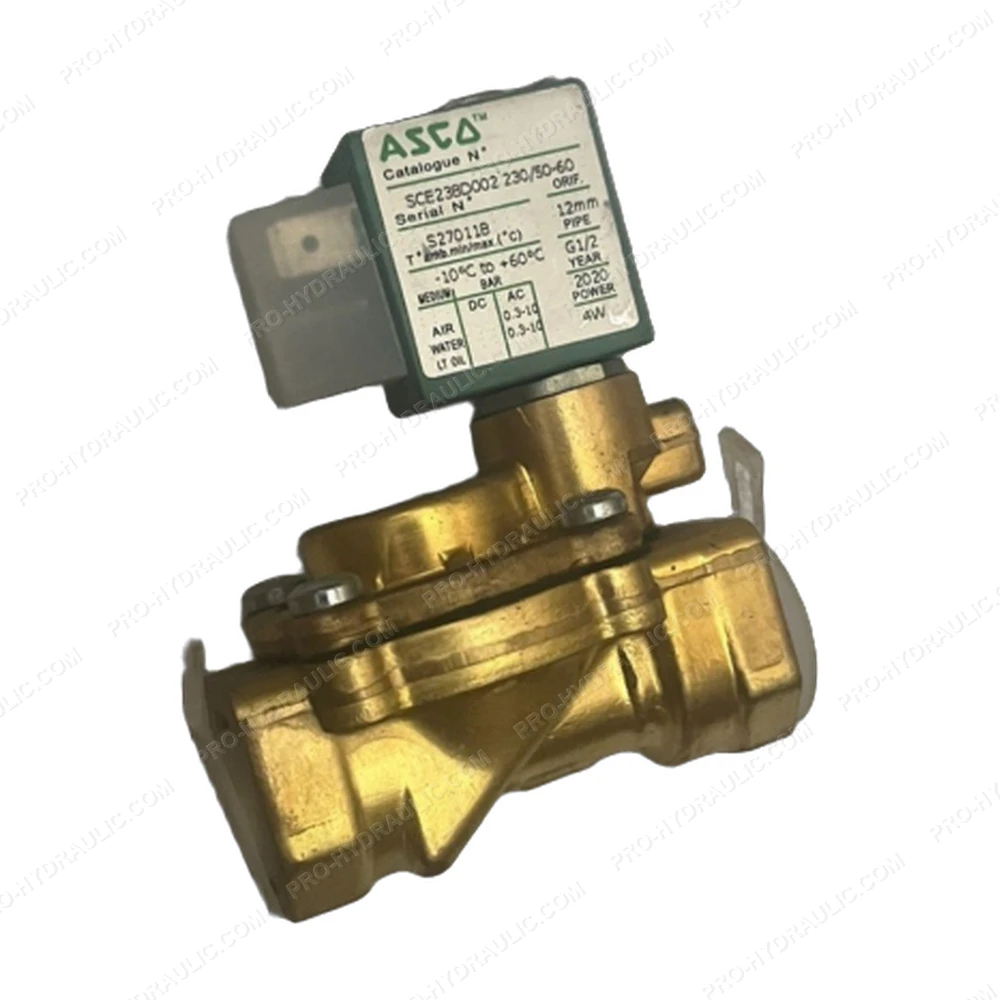

ASCO SCE238D002 Solenoid Valve
