Product Overview
The ATC X-PPV30153004 is a precision-engineered proportional pressure relief valve designed for accurate electro-hydraulic pressure control in demanding industrial hydraulic systems. Manufactured by ATC, this valve utilizes a proportional solenoid actuator acting directly on a precision-machined spool and poppet assembly, enabling continuously variable pressure regulation proportional to the electrical input signal. Unlike fixed-setting relief valves, the X-PPV30153004 allows real-time adjustment of system pressure setpoints through analog or PWM control signals, making it an essential component in closed-loop pressure control architectures, load-sensing circuits, and multi-actuator systems requiring dynamic pressure profiling. Its robust construction and precise metering characteristics ensure stable pressure regulation, minimal hysteresis, and fast response times across the full operating envelope.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Relief Valve (Precision Proportional & Servo Valve) |
| Model Designation | X-PPV30153004 |
| Actuation Type | Proportional Solenoid with Integrated Position Feedback |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Control Signal Range | 0–10 V DC / 4–20 mA / PWM (dependent on amplifier card) |
| Hysteresis | < 3% of rated pressure |
| Response Time | < 30 ms (typical, step response) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate or Manifold Mounting) |
| Fluid Compatibility | Mineral Oil (HLP/HLVP), Synthetic Fluids per ISO 6743-4 |
| Filtration Requirement | ISO 4406 Class 18/16/13 or better |
Engineering Features & Advantages
- Precision Proportional Control: The proportional solenoid and precision spool geometry deliver highly linear pressure-to-signal characteristics, enabling accurate remote and automated pressure regulation with minimal hysteresis and excellent repeatability.
- Fast Dynamic Response: Optimized spool and spring dynamics ensure rapid response to command signal changes, critical for closed-loop pressure control, load-sensing, and high-cycle industrial processes.
- Robust Contamination Tolerance: Hardened spool and sleeve surfaces with tight clearances provide reliable operation even in demanding hydraulic environments, extending service intervals and reducing downtime.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original ATC standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
Unlike fixed-setting relief valves, the X-PPV30153004 allows real-time adjustment of system pressure setpoints through analog or PWM control signals, making it an essential component in closed-loop pressure control architectures, load-sensing circuits, and multi-actuator systems requiring dynamic pressure profiling.
PRODUCT IMAGES

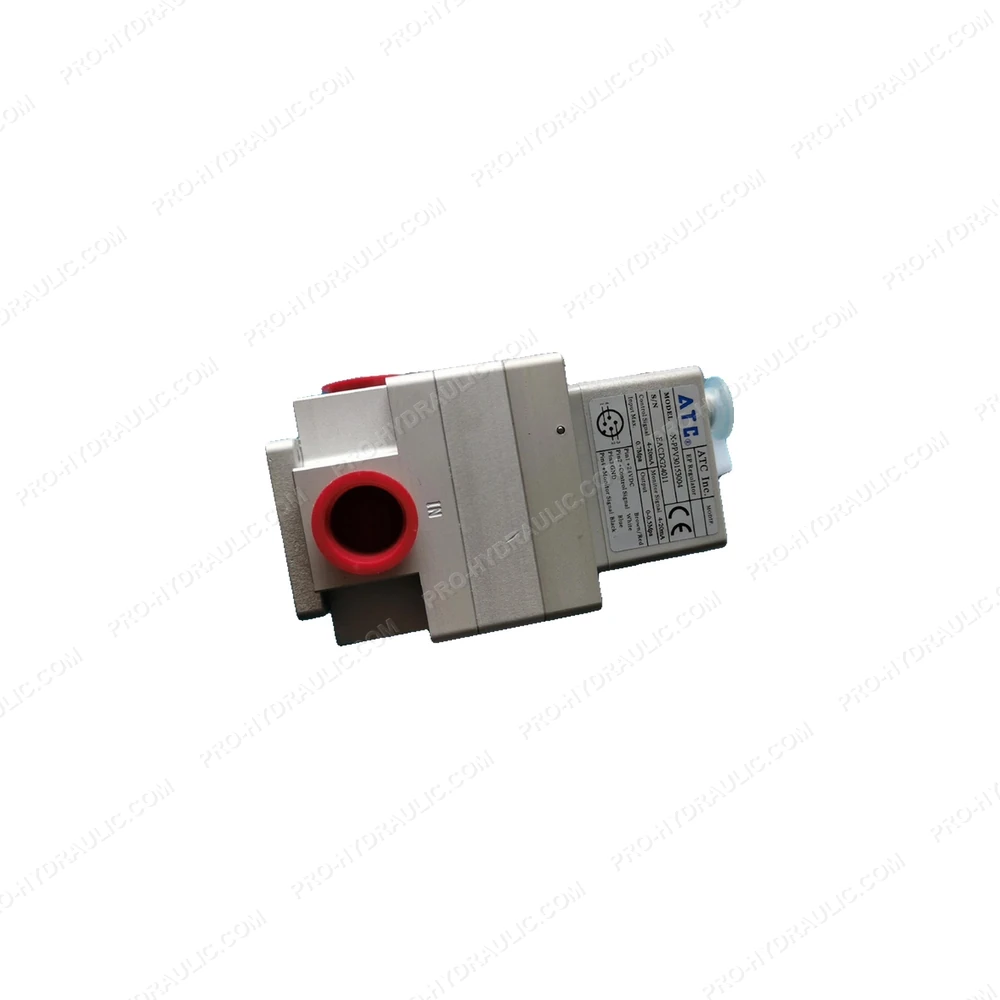

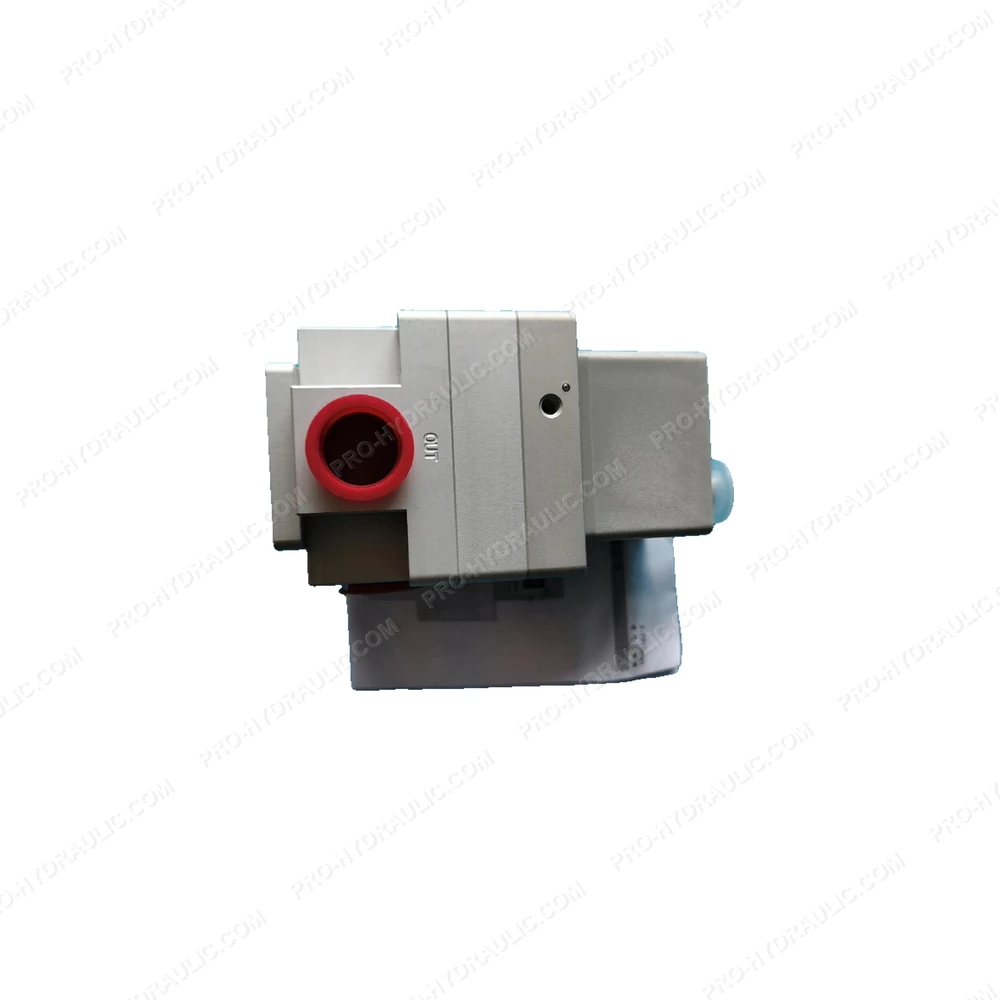

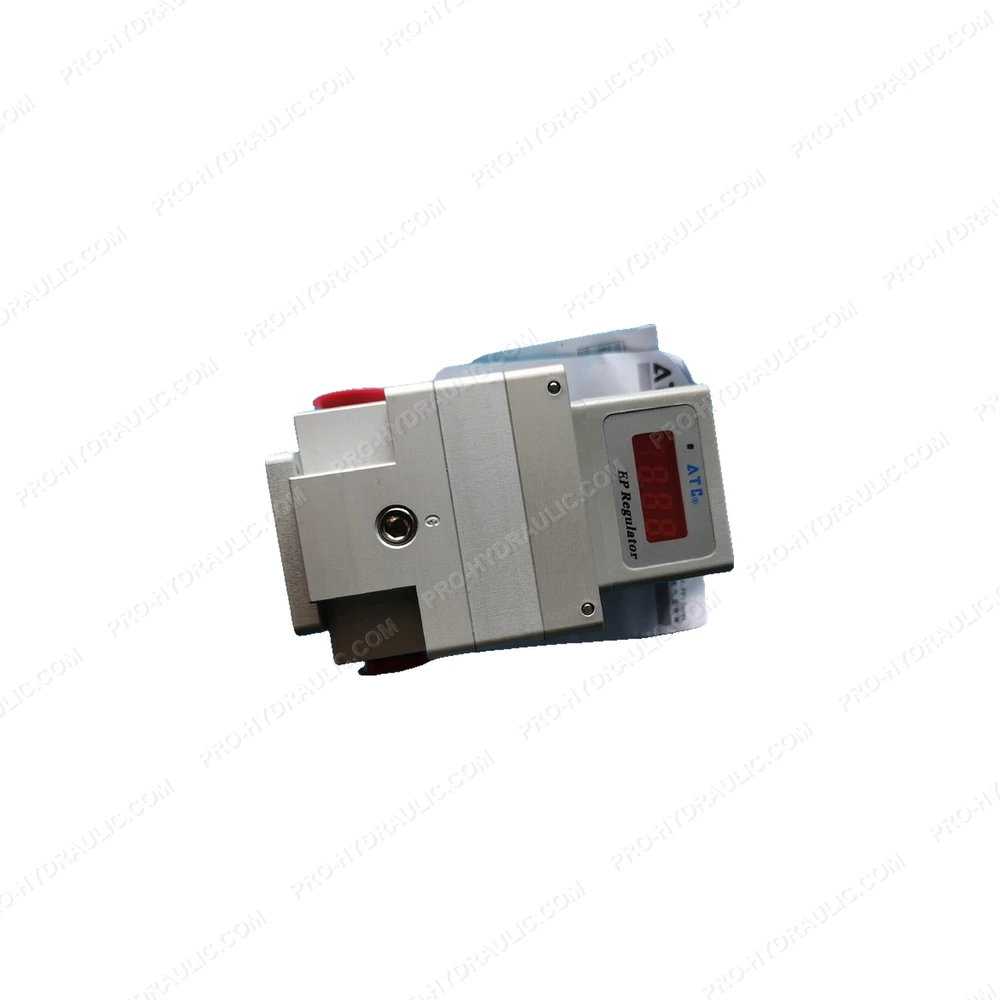

ATC X-PPV30153004 Proportional Pressure Relief Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ATC X-PPV30153004 Proportional Pressure Relief Valve. This German-made 24V DC hydraulic component features a precise pressure control design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
