The ATOS DHI-0631/2 23 is a heavy-duty industrial directional control valve engineered for precise flow management in hydraulic circuits. It features a robust spool design and wet-pin armature construction, ensuring reliable shifting and long service life under demanding operating conditions.
ATOS DHI-0631/2 23 Technical Specifications
| Valve Type | Directional Control Valve |
| Mounting Standard | CETOP / ISO 4401 |
| Actuation | Solenoid, wet-pin armature |
| Spool Configuration | 2-position, 3-way (23) |
| Nominal Size | NG6 (DHI-0631 series) |
| Max Operating Pressure | 350 bar |
| Max Flow Rate | 60 L/min |
| Coil Voltage | Standard DC or AC coils available |
| Seal Material | NBR (standard), FKM optional |
| Fluid Temperature Range | -20°C to +80°C |
Key Engineering Features
- Wet-pin solenoid design for efficient heat dissipation and extended coil life
- Hardened, precision-ground spool for minimal leakage and reliable shifting
- CETOP/ISO 4401 mounting for direct interchangeability
- High flow capacity relative to compact NG6 body size
- Optional manual override and position monitoring available
Industrial Applications
- Mobile hydraulic systems
- Industrial power units
- Machine tool clamping circuits
- Material handling equipment
- Press and forming machinery
For technical inquiries, dimensional drawings, or replacement support for ATOS DHI-0631/2 23, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

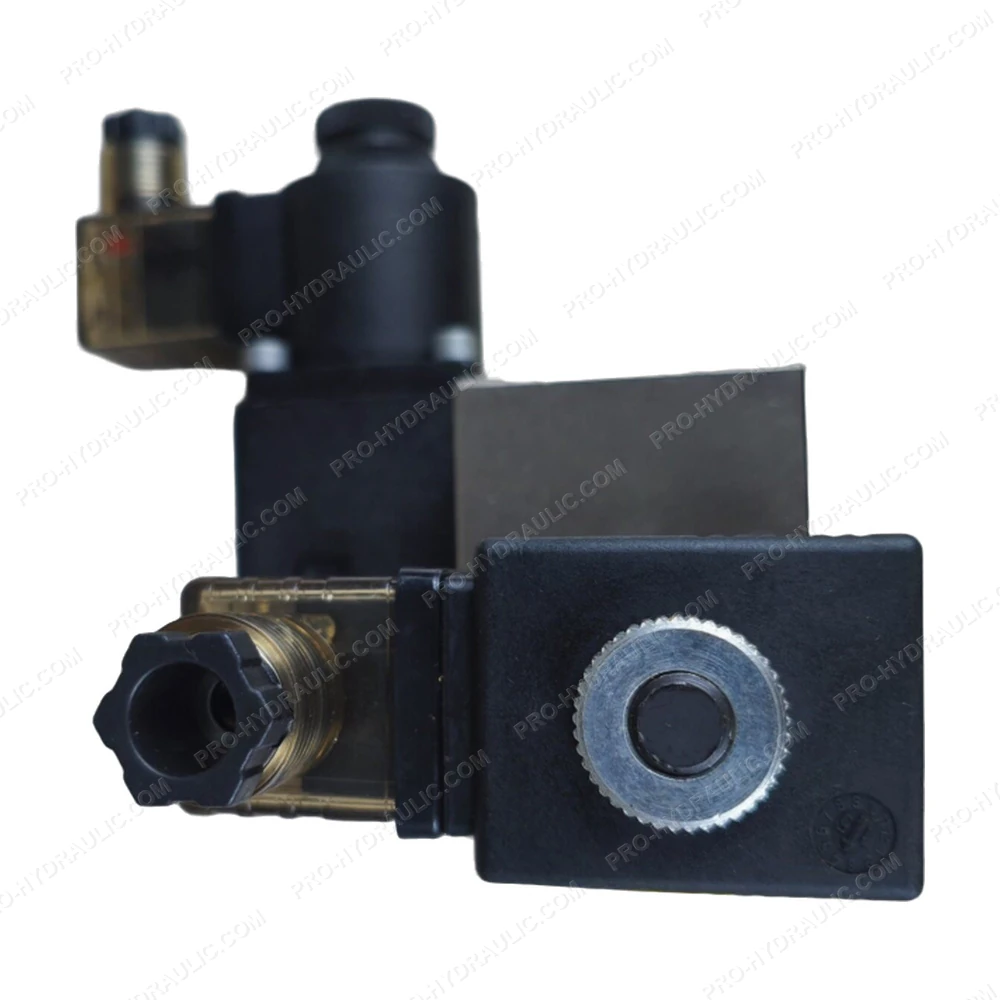

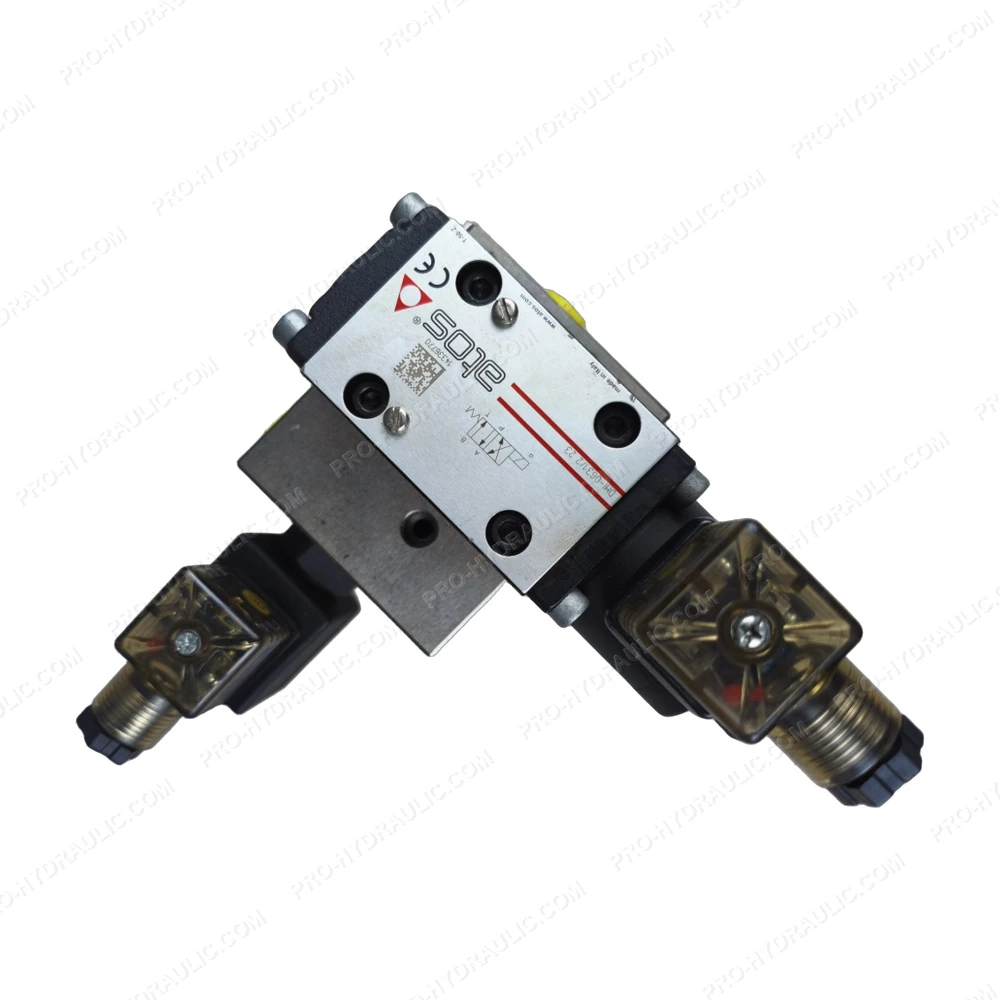

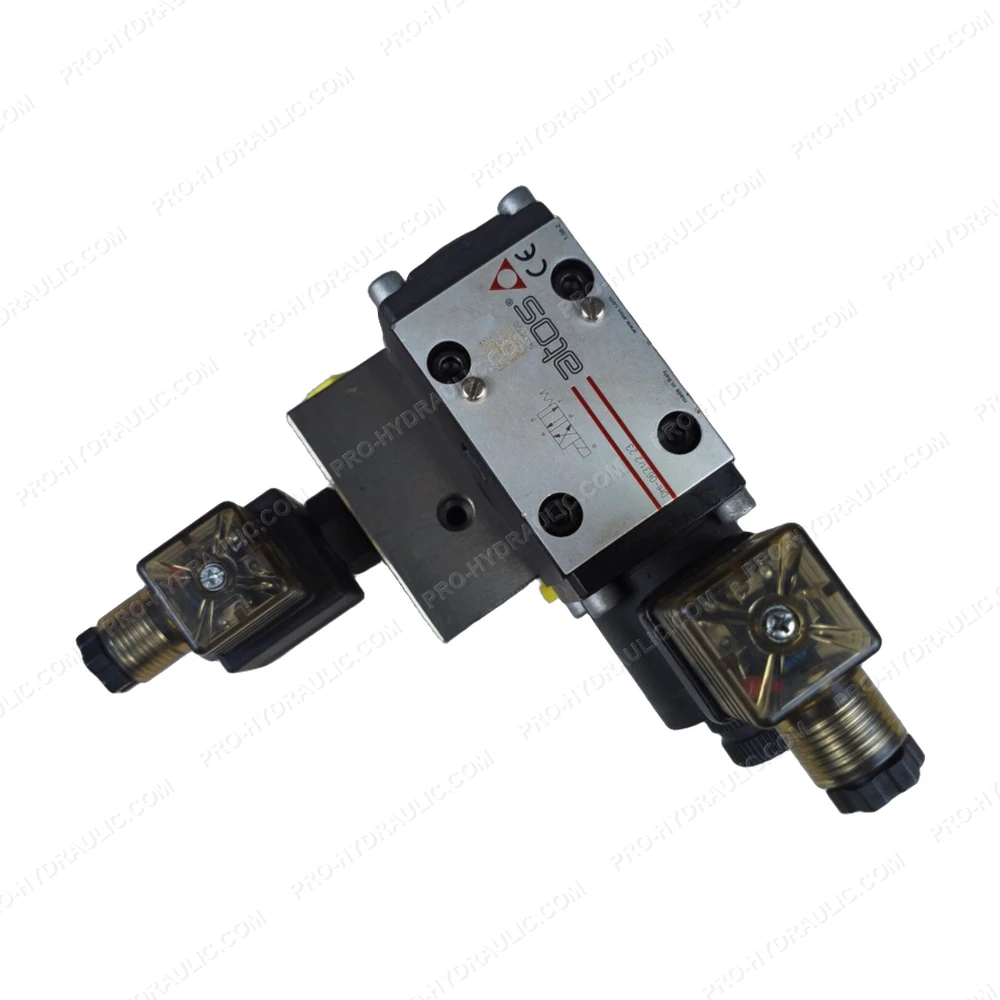

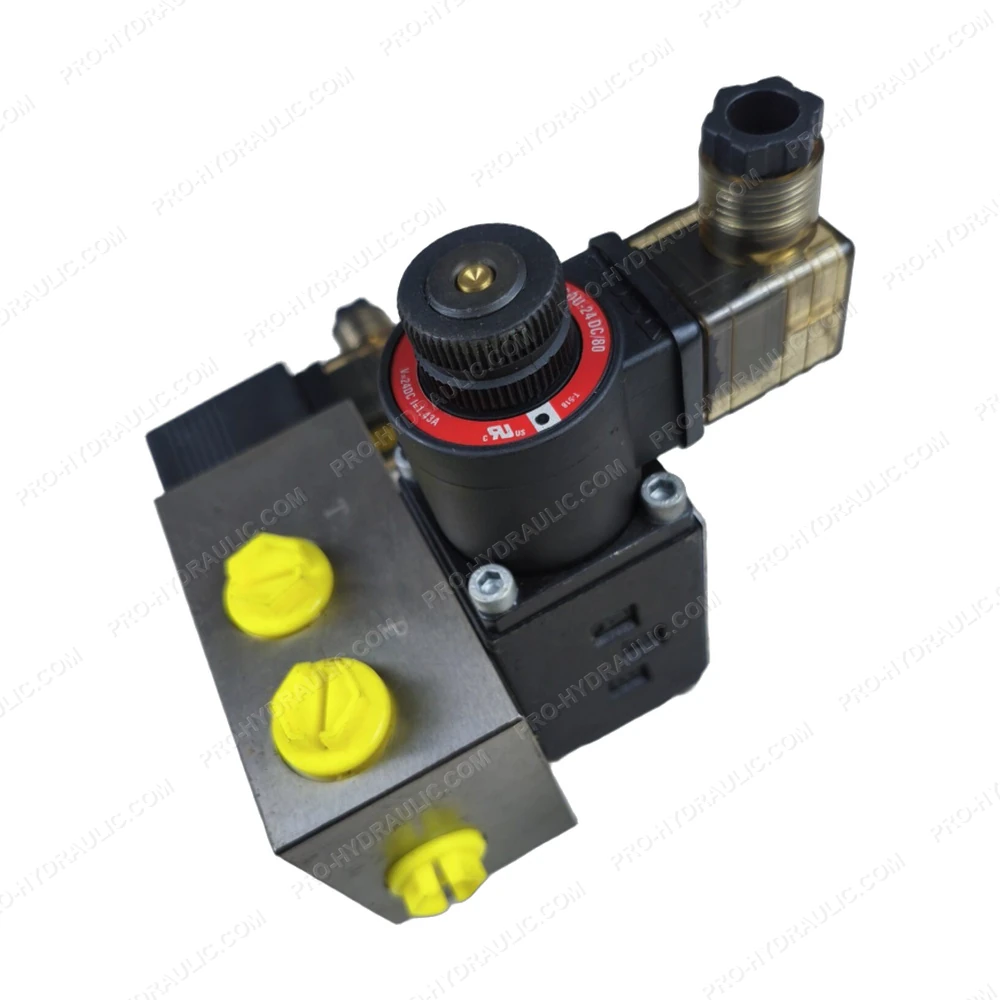

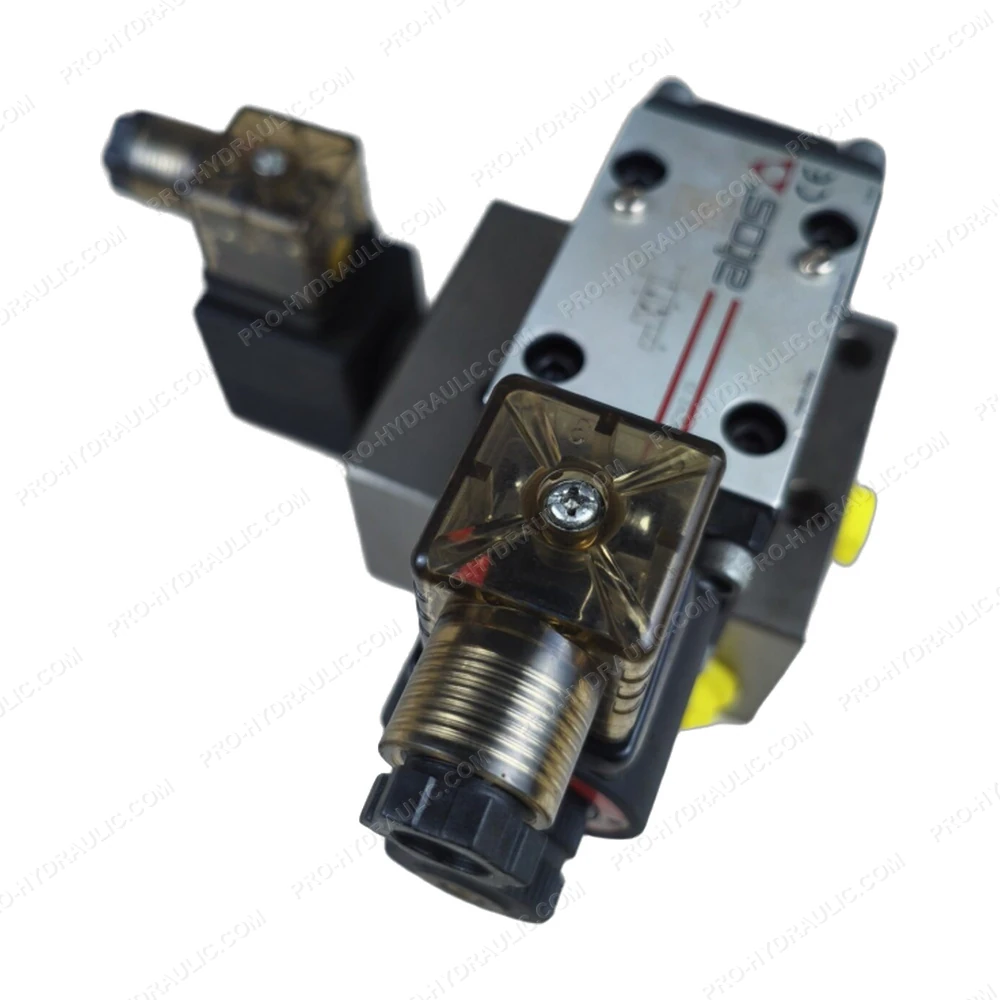

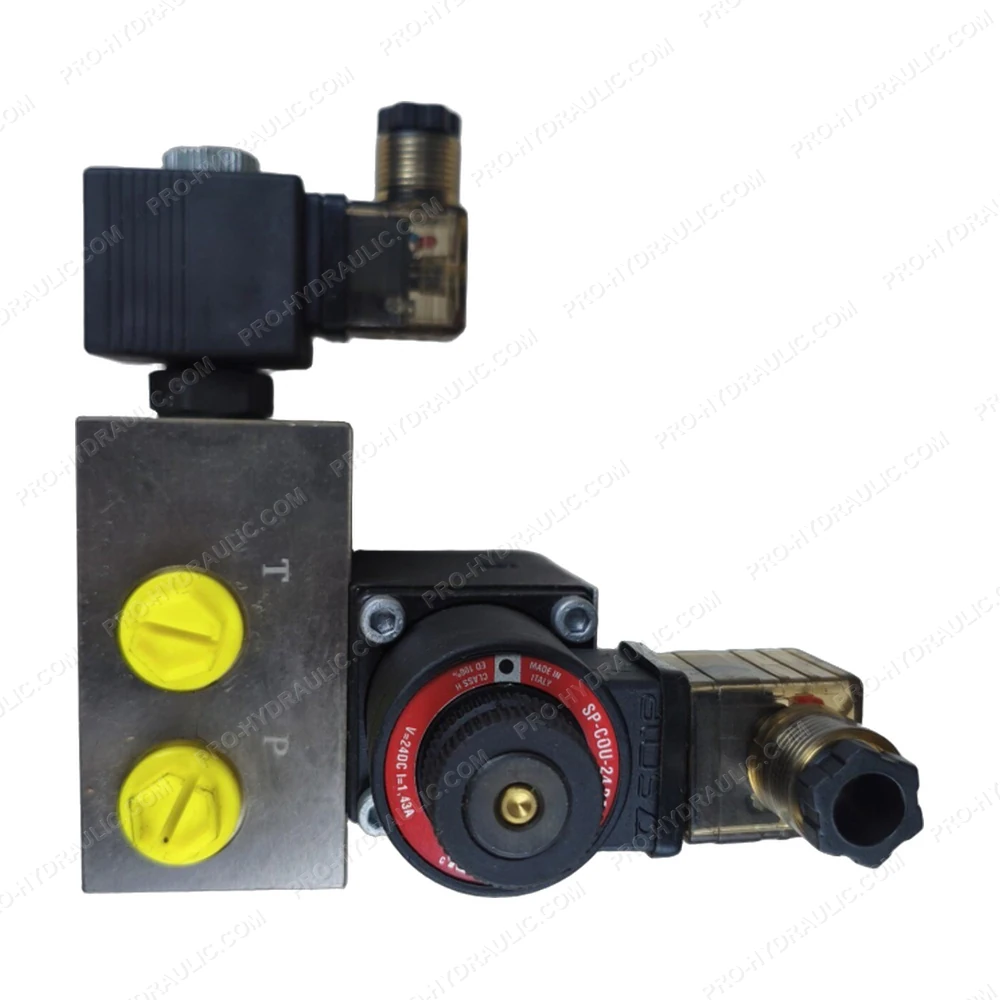

ATOS DHI-0631/2 23 Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the ATOS DHI-0631/2 23 Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
