Product Overview
The Atos DKZOR-A/B-NP-171-L5 is a high-performance proportional directional valve designed for precise control of flow direction and magnitude in industrial hydraulic systems. Manufactured by Atos, a global leader in electrohydraulic components, this valve features a four-way, three-position spool configuration with direct-operated proportional solenoids. The DKZOR series is engineered to deliver smooth, infinitely variable control of actuator speed and direction, making it ideal for applications requiring accurate motion control, load holding, or synchronized movement. The “NP” designation indicates a normally closed center spool (closed center in neutral), while the “L5” suffix denotes a specific solenoid voltage and connector type (typically 24V DC with a standard DIN connector). This valve is a direct fit replacement for OEM systems and is widely used in plastic injection molding, metallurgical presses, and other demanding industrial machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve |
| Model Designation | DKZOR-A/B-NP-171-L5 |
| Operating Pressure | Up to 350 bar (standard industrial grade) |
| Mounting & Connection | ISO 4401 standard subplate mounting; DIN 43650 connector |
| Spool Configuration | Four-way, three-position, closed center (NP) |
| Actuation Type | Direct-operated proportional solenoids |
| Solenoid Voltage | 24V DC (L5 designation) |
| Nominal Flow Rate | Up to 80 L/min (depending on pressure drop) |
| Hysteresis | ≤ 5% (typical for proportional valves) |
| Response Time | ≤ 30 ms (typical) |
| Fluid Temperature Range | -20°C to +80°C |
| Viscosity Range | 10 to 400 cSt (recommended 20-100 cSt) |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original ATOS standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 80 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is a direct fit replacement for OEM systems and is widely used in plastic injection molding, metallurgical presses, and other demanding industrial machinery.
PRODUCT IMAGES

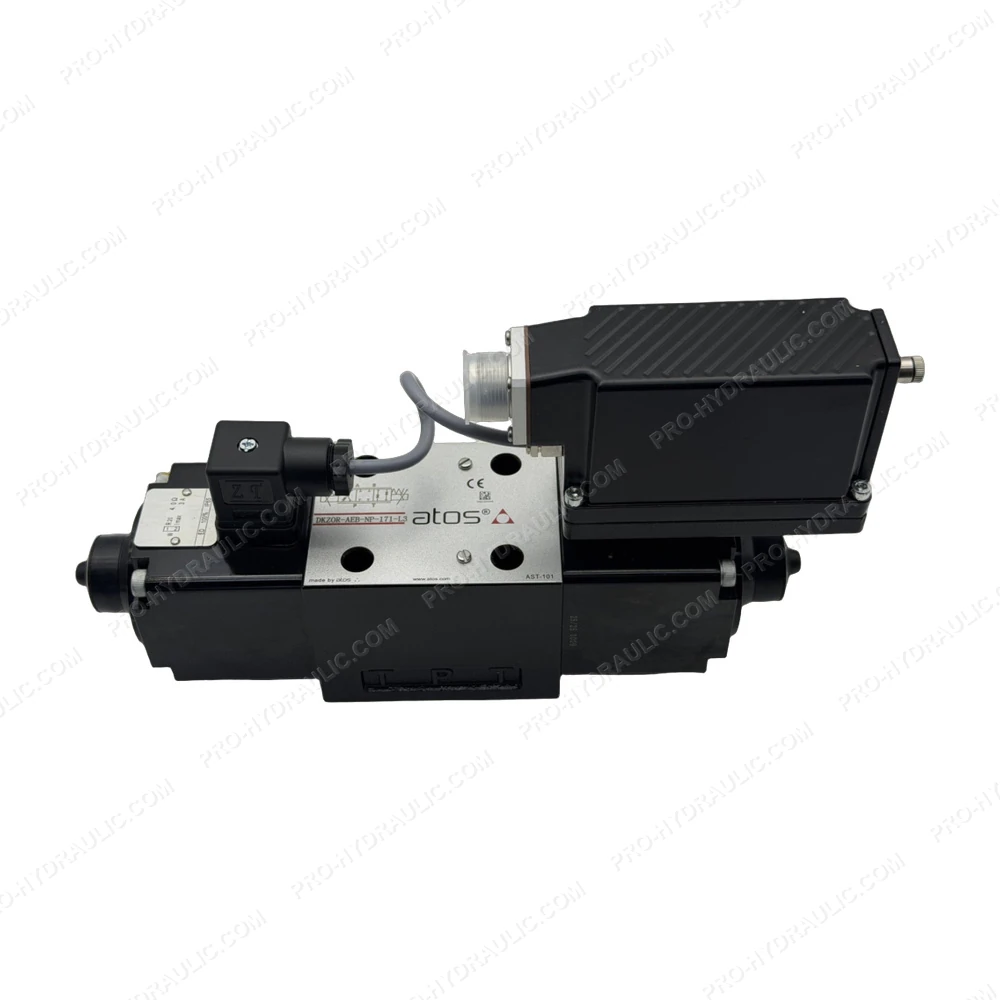

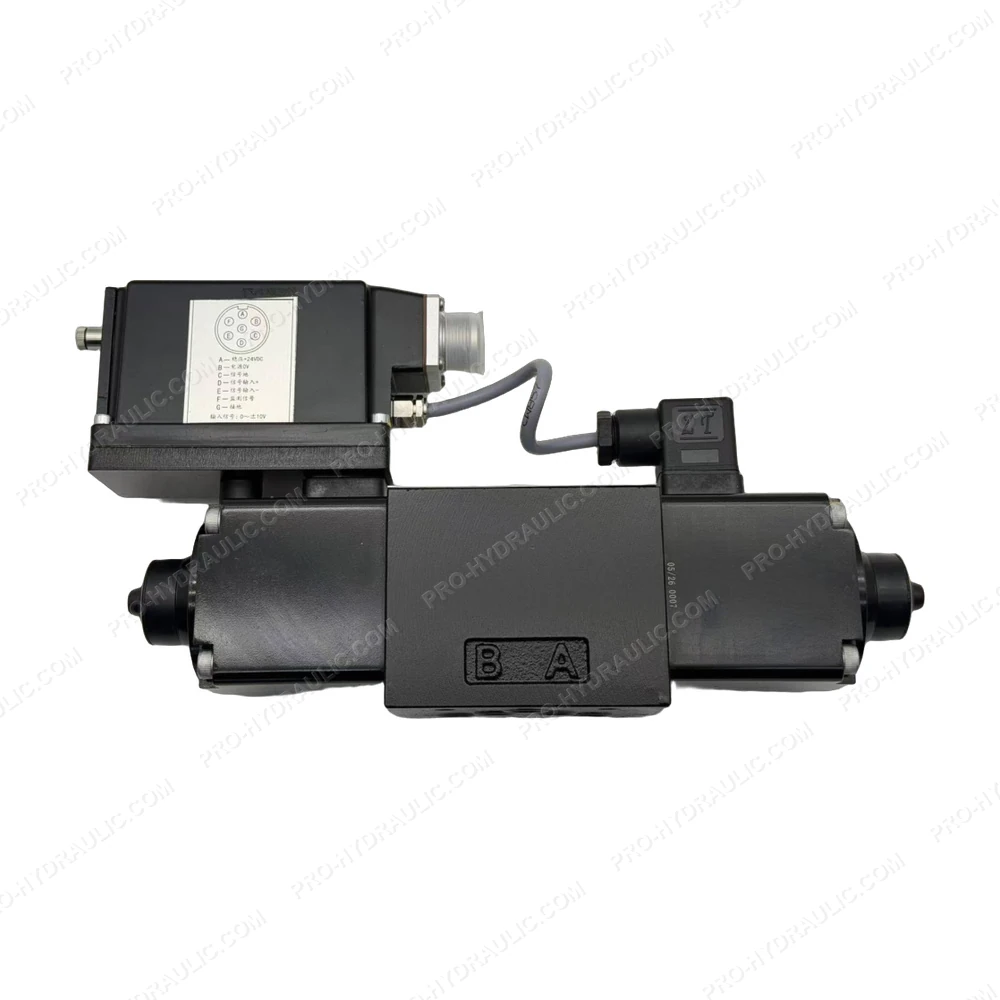

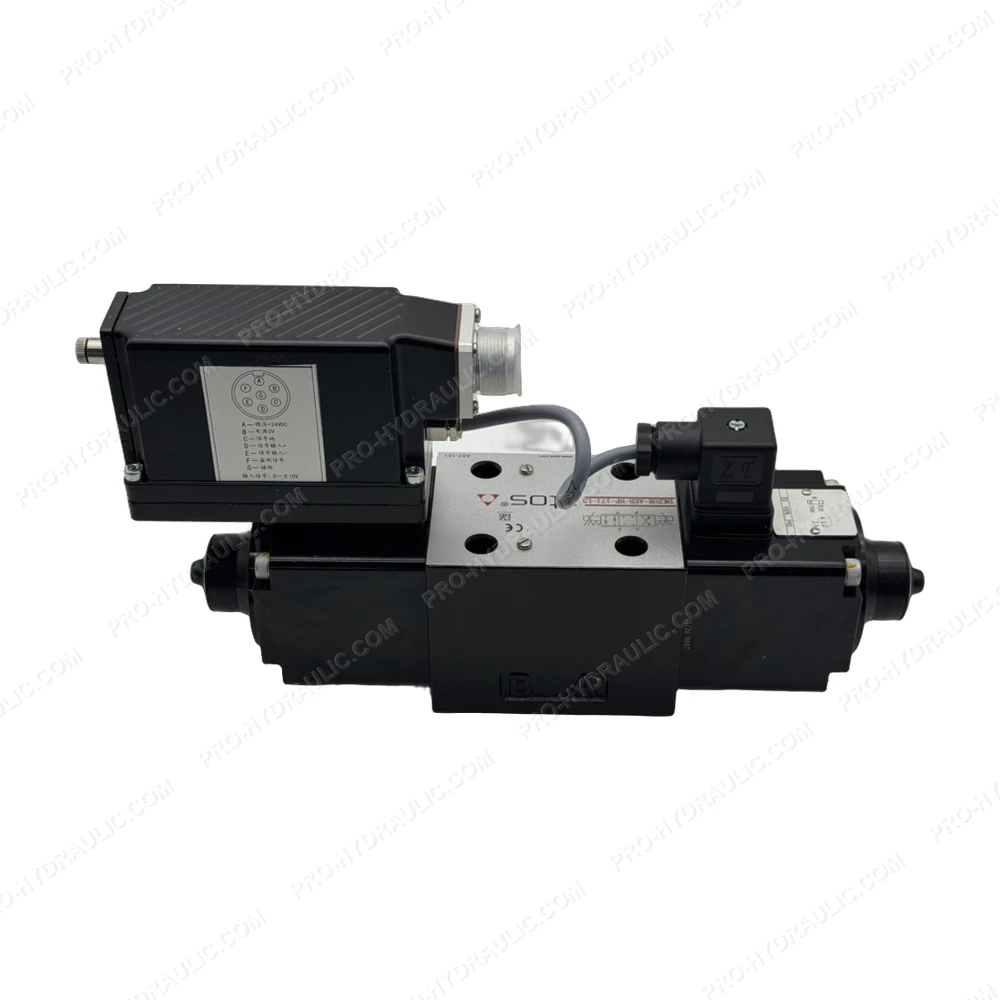

ATOS DKZOR-A/B-NP-171-L5 Proportional Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ATOS DKZOR-A/B-NP-171-L5 Proportional Directional Valve. This Italy-made 24V DC hydraulic component features a 4-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
