Product Overview
The ATOS DLEH-3C/WP 20 is a high-performance solenoid-operated directional control valve engineered by Atos, a global leader in electrohydraulic components. Designed around a robust spool-type architecture, this valve directs and controls the start, stop, and direction of hydraulic fluid flow within industrial circuits. The DLEH series is a direct-acting, high-pressure solenoid valve featuring a 3-position, 4-way (3C) spool configuration. The “WP” designation indicates a wet-armature, high-power solenoid with an integrated manual override, ensuring reliable actuation even in demanding environments. With a nominal size of NG10 (CETOP 5 / ISO 4401-05), the DLEH-3C/WP 20 is a standard mounting interface component, making it a direct drop-in replacement for a wide range of industrial hydraulic systems requiring precise directional control and high flow capacity.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Spool Type) |
| Model Designation | DLEH-3C/WP 20 |
| Spool Configuration | 3-Position, 4-Way (3C) — Closed Center |
| Nominal Size | NG10 (CETOP 5 / ISO 4401-05) |
| Operating Pressure | Up to 350 bar (5075 psi) — Standard Industrial Grade |
| Rated Flow | Up to 120 L/min (dependent on spool type and pressure drop) |
| Solenoid Type | Wet-armature, high-power (WP) with manual override |
| Mounting & Connection | Subplate mounting — ISO 4401-05 / CETOP 5 interface |
| Electrical Supply | Standard industrial DC voltage (e.g., 24V DC) — consult factory for AC options |
| Seal Material | NBR (Buna-N) / FKM (Viton) options for fluid compatibility |
Engineering Features & Advantages
- Precision Spool Metering: The 3C closed-center spool provides accurate, repeatable flow control with minimal internal leakage, ensuring precise actuator positioning and load holding in critical circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original ATOS standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a nominal size of NG10 (CETOP 5 / ISO 4401-05), the DLEH-3C/WP 20 is a standard mounting interface component, making it a direct drop-in replacement for a wide range of industrial hydraulic systems requiring precise directional control and high flow capacity.
PRODUCT IMAGES

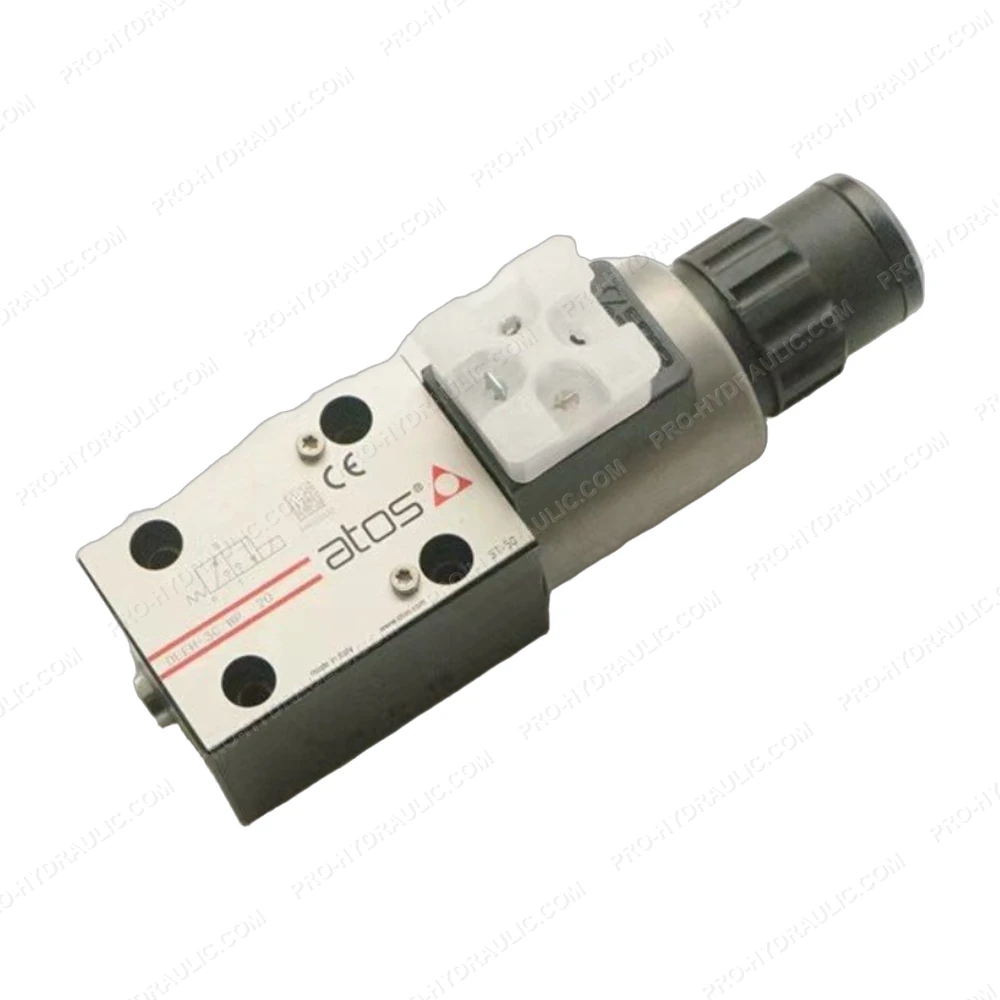

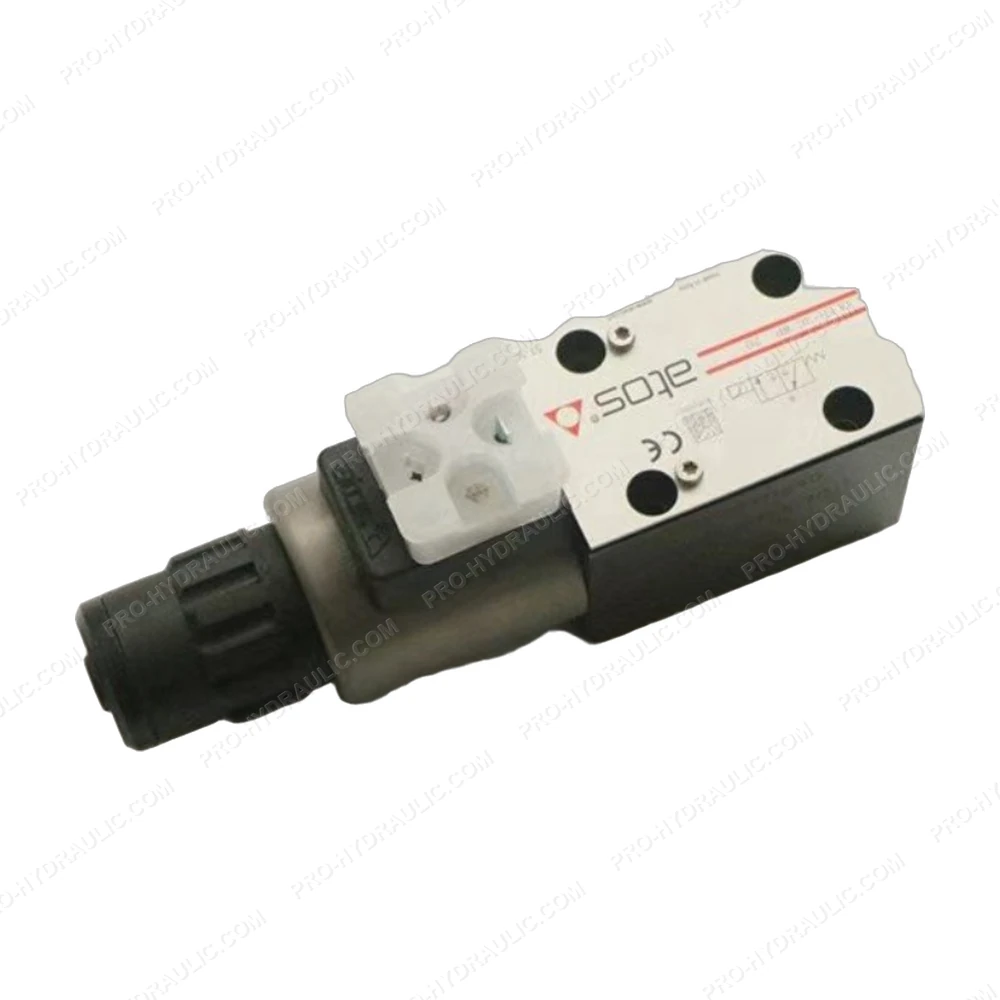

ATOS DLEH-3C/WP 20 Solenoid Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ATOS DLEH-3C/WP 20 Solenoid Directional Valve. This Italy-made 24V DC hydraulic component features a 3-position 4-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
