Product Overview
The ATOS DLEHM-3C 10/PE is a high-performance solenoid-operated directional control valve engineered by Atos (part of the Bosch Rexroth group) for precise management of hydraulic fluid flow direction in industrial power systems. This valve utilizes a direct-acting wet-armature solenoid design to shift a precision-machined spool within a hardened steel body, enabling reliable switching, holding, and unloading of hydraulic circuits. The DLEHM series is specifically configured for standard directional control tasks where fast response, low pressure drop, and leak-free operation are critical. The “3C” spool configuration provides a closed-center function, making it ideal for applications requiring actuator locking or pressure holding when the solenoid is de-energized. The 10 size designation corresponds to a nominal flow capacity of up to 60 l/min, while the “/PE” suffix indicates a specific electrical connection and manual override configuration suited for demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Standard, Direct-Acting) |
| Model Designation | DLEHM-3C 10/PE |
| Spool Configuration | 3C (Closed Center, All Ports Blocked in Neutral) |
| Size / Nominal Flow | NG10 (CETOP 5 / ISO 4401-05) – Up to 60 l/min |
| Operating Pressure | Up to 350 bar (P, A, B ports); 210 bar (T port) |
| Solenoid Type | Wet-armature, AC or DC (PE version: DIN 43650 connector with LED and manual override) |
| Mounting & Connection | Subplate mounting per ISO 4401-05 / CETOP 5; 4 x M6 mounting bolts |
| Seal Material | NBR (Buna-N) standard; FKM (Viton) available on request |
| Protection Class | IP65 (with correctly installed connector) |
Engineering Features & Advantages
- Precision Spool & Sleeve Assembly: The hardened, ground, and honed spool-to-sleeve fit ensures minimal internal leakage and precise metering characteristics, providing consistent actuator control and reduced energy loss.
- Fast & Reliable Solenoid Actuation: The wet-armature solenoid design delivers high switching force with short response times, enabling rapid cycle rates in automated machinery while protecting internal components from contamination and wear.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original ATOS standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
The 10 size designation corresponds to a nominal flow capacity of up to 60 l/min, while the “/PE” suffix indicates a specific electrical connection and manual override configuration suited for demanding industrial environments.
PRODUCT IMAGES

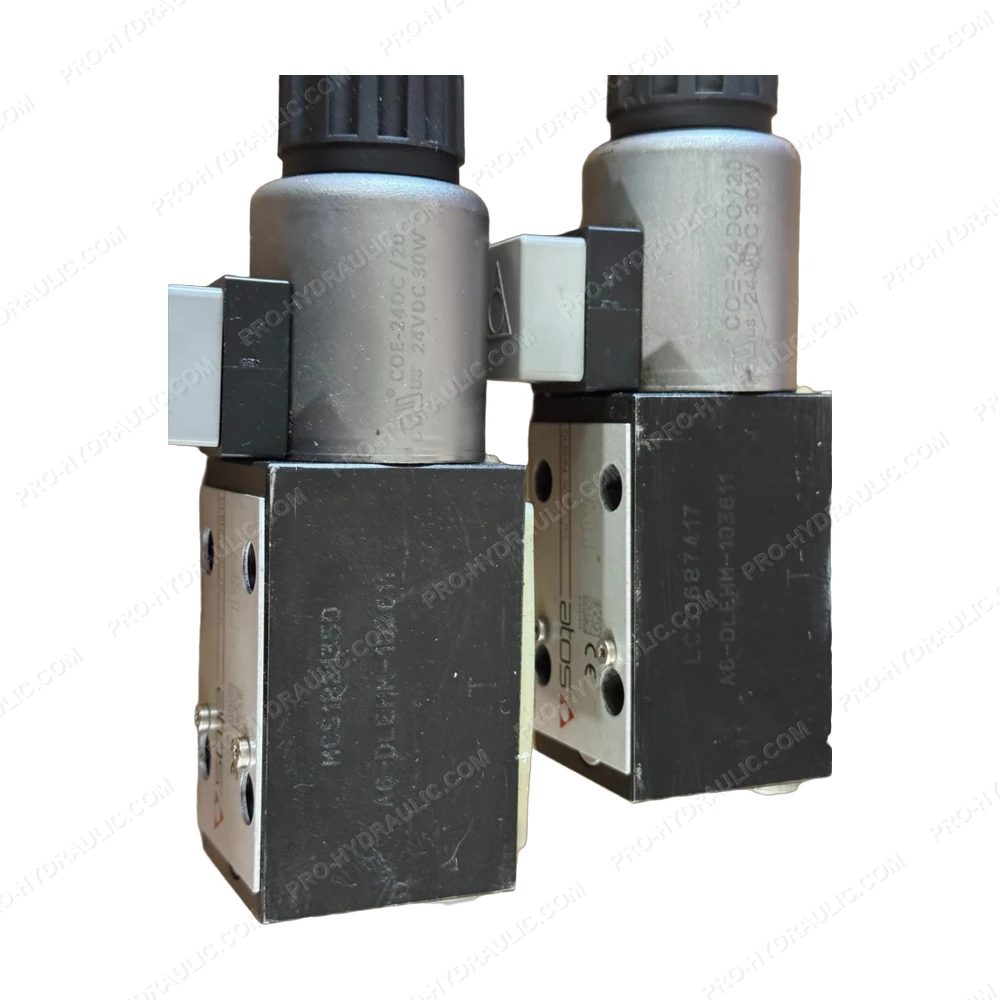

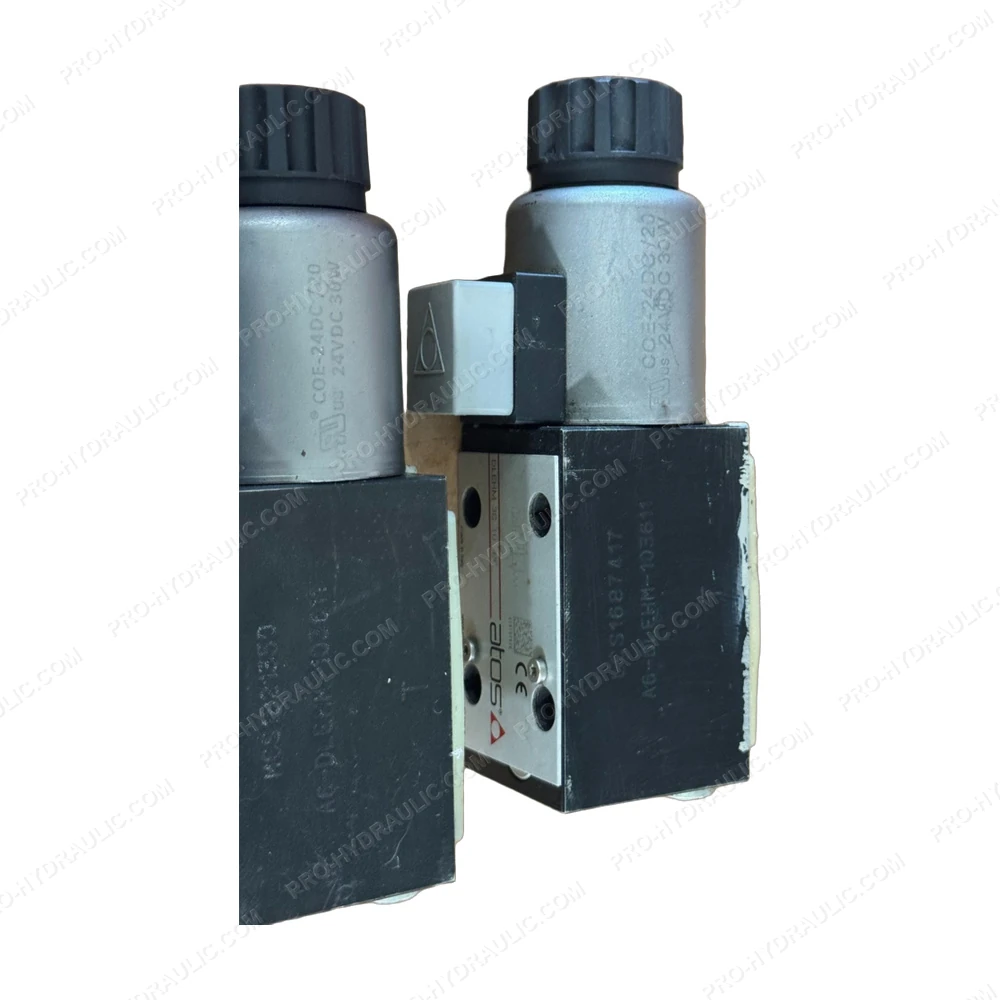

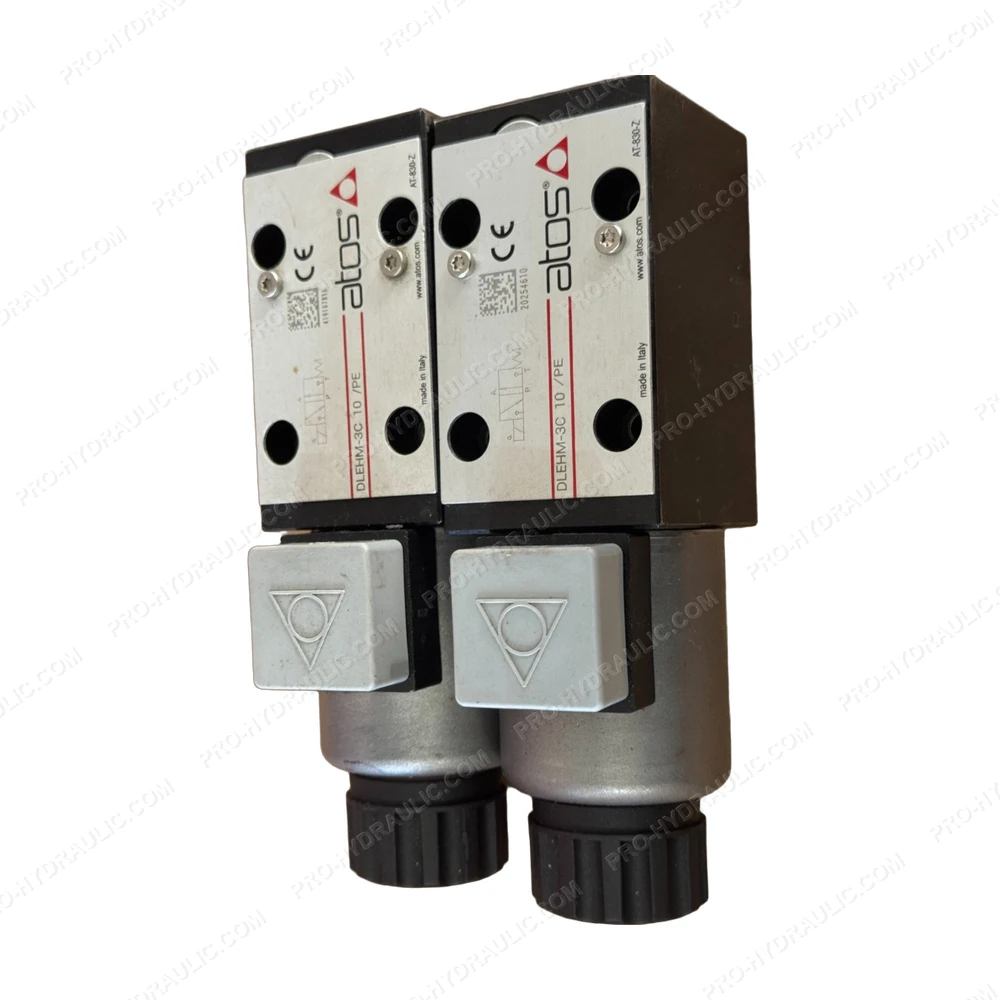

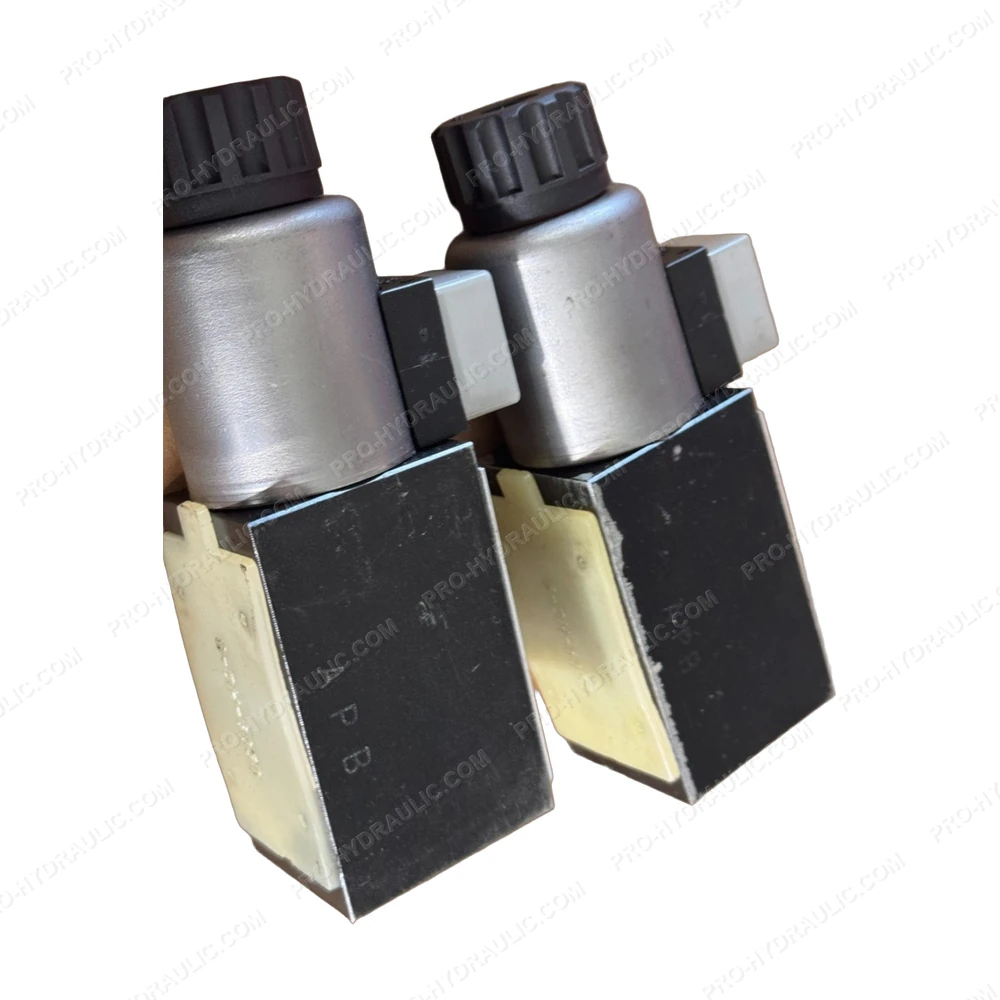

ATOS DLEHM-3C 10 /PE Solenoid Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ATOS DLEHM-3C 10 /PE Proportional Directional Valve. This Italy-made 24V DC hydraulic component features a 3-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
