Product Overview
The ATOS DLOH-2C-U 21 is a high-performance solenoid-operated directional control valve engineered by Atos, a globally recognized leader in electrohydraulic technology. This valve functions as a 2-way, 2-position (2/2) directional control element, designed to start, stop, and direct hydraulic fluid flow within industrial circuits. The “DLOH” series is specifically engineered for leak-free operation in holding circuits, clamping systems, and safety-related applications where load holding and pressure integrity are critical. The “2C” spool configuration provides a closed-center function, ensuring that in the de-energized position, the flow path is blocked, thereby preventing actuator drift. The “U” designation indicates a specific solenoid and electrical interface standard, while the “21” denotes the design series. This valve is a direct-acting, poppet-type design, offering fast response times and reliable sealing performance, making it an essential component for precise motion control in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valves > Directional Control Valves |
| Model Designation | DLOH-2C-U 21 |
| Valve Configuration | 2-Way, 2-Position (2/2), Poppet Type, Normally Closed |
| Operating Pressure | Up to 350 bar (5075 psi) for standard industrial grade |
| Rated Flow | Up to 40 l/min (dependent on specific spool and pressure drop) |
| Actuation Type | Solenoid Actuated (Wet pin, oil-immersed design) |
| Mounting & Connection | Subplate Mounting, ISO 4401 / CETOP Standard Interface |
| Electrical Interface | DIN 43650 Standard Connector (U Designation) |
| Seal Material | NBR (Buna-N) / FKM (Viton) options for fluid compatibility |
Engineering Features & Advantages
- Precision Performance: The poppet-type design ensures zero leakage in the closed position, providing superior load holding and preventing drift in clamping or positioning circuits. The direct-acting solenoid allows for rapid response times, essential for high-cycle industrial applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions. The wet-pin solenoid armature is oil-immersed, providing excellent lubrication, heat dissipation, and resistance to contamination, significantly extending the valve’s service life.
- Direct Fit Replacement: Precision-manufactured to original ATOS specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
This valve is a direct-acting, poppet-type design, offering fast response times and reliable sealing performance, making it an essential component for precise motion control in demanding industrial environments.

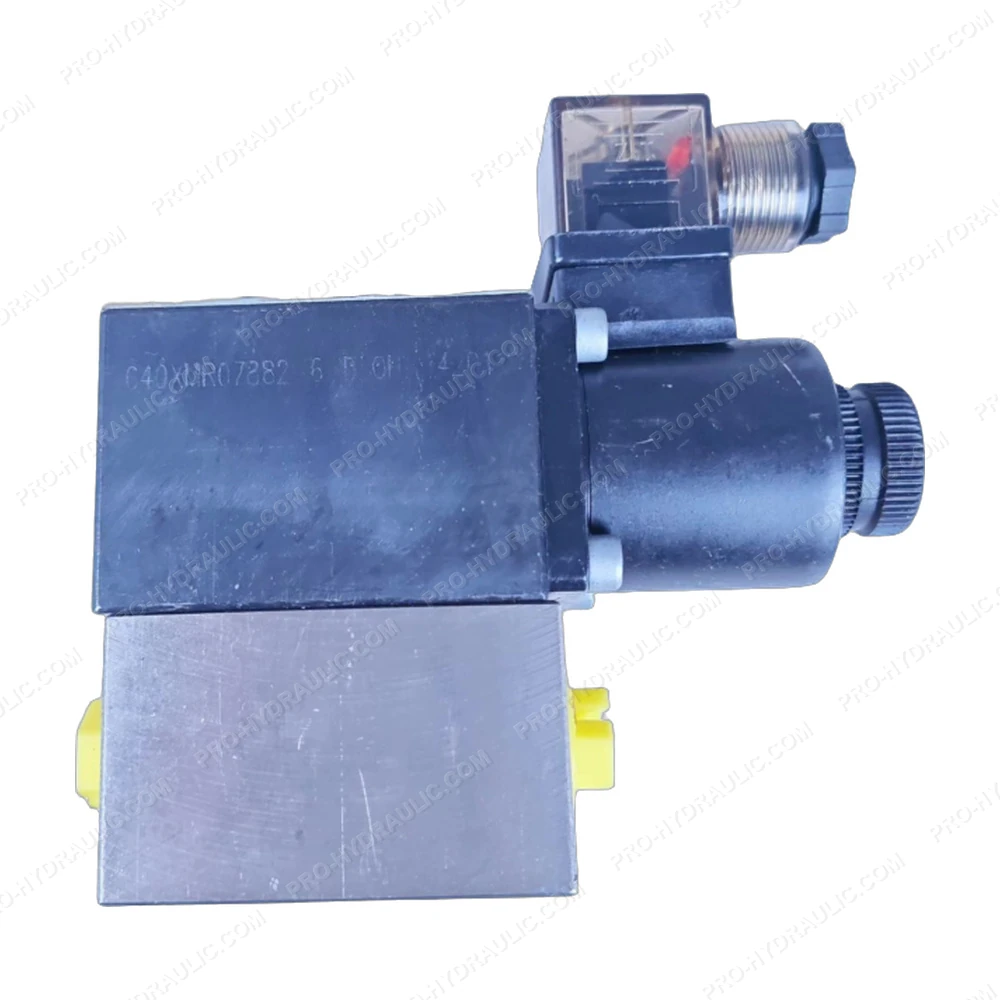

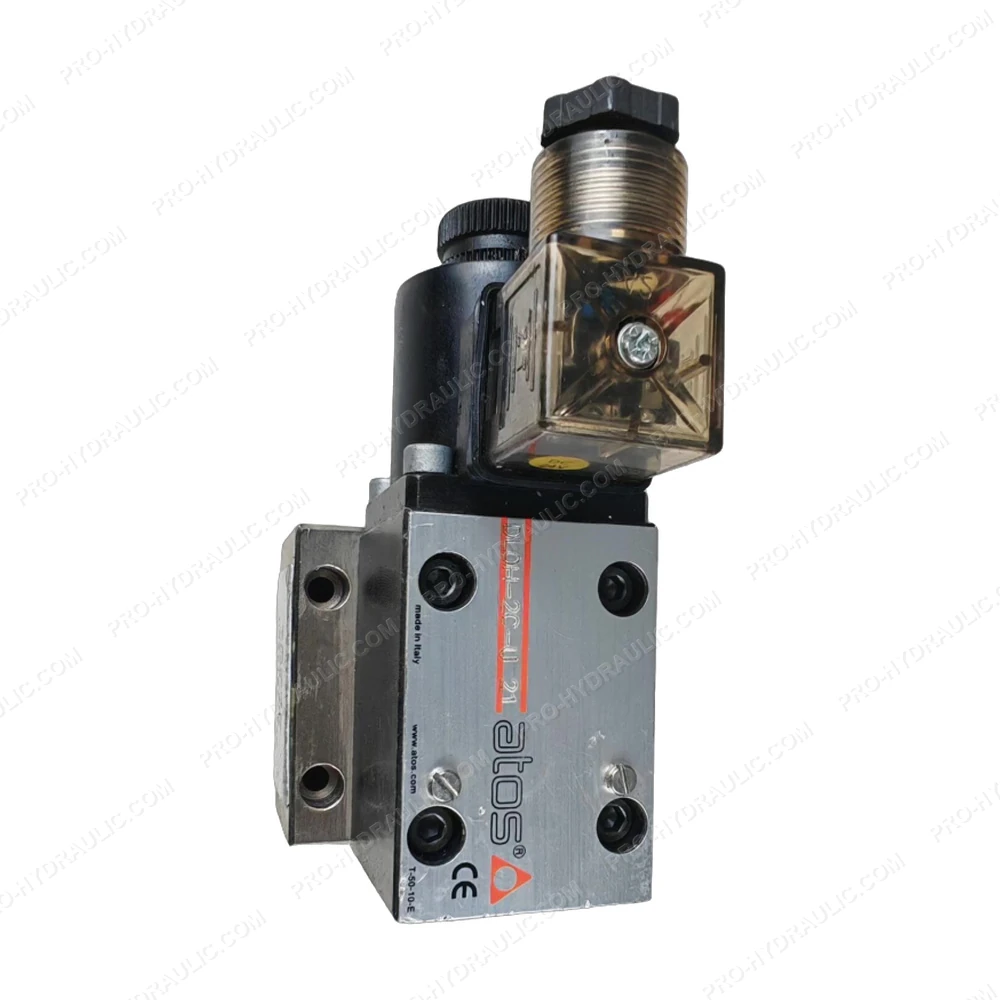

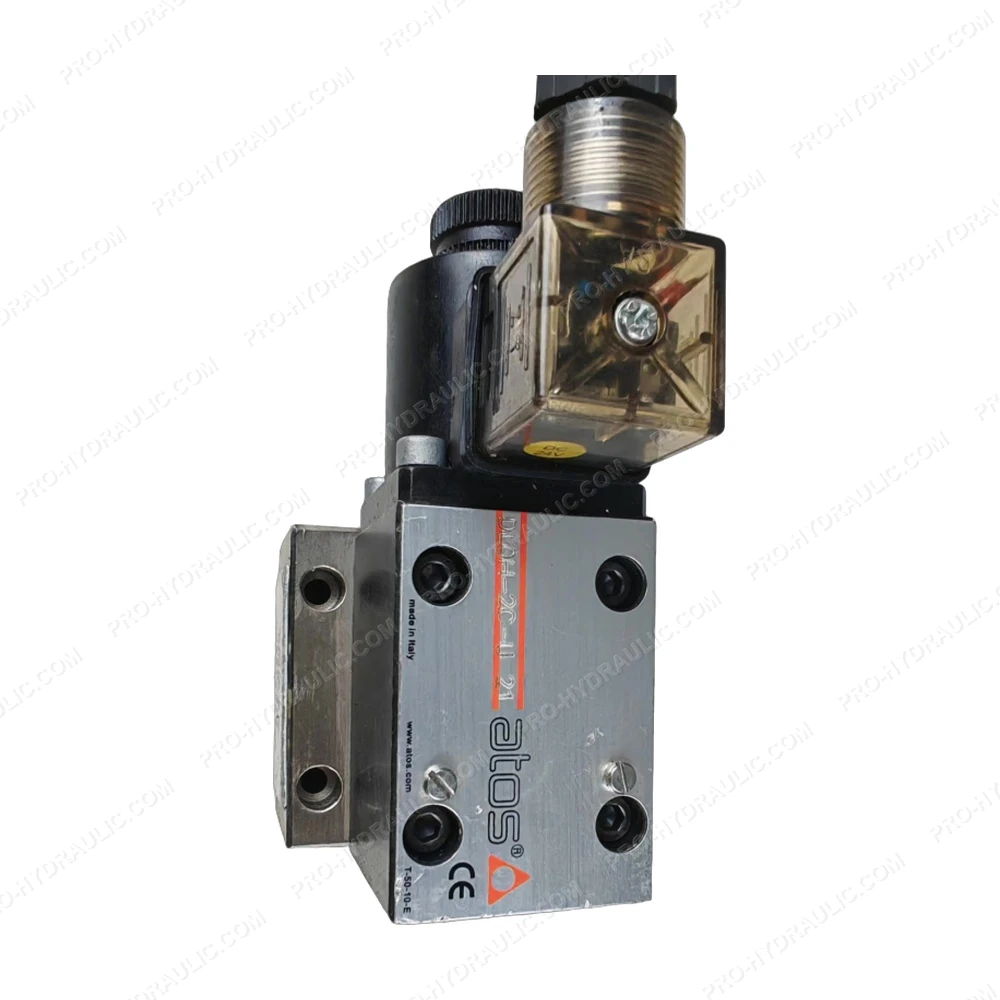

PRODUCT IMAGES
ATOS DLOH-2C-U 21 Solenoid Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ATOS DLOH-2C-U 21 Solenoid Directional Valve. This Italy-made 24V DC hydraulic component features a 2-way normally closed poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
