The ATOS HG-033/210 23 is a heavy-duty industrial pressure control valve engineered for precise regulation of hydraulic system pressure in modular stack configurations. It operates as a direct-operated, spring-loaded poppet or spool type, providing reliable overpressure protection and pressure reduction without electrical actuation.
ATOS HG-033/210 23 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Pressure Control Valve |
| Mounting Interface | Modular, ISO 4401 / CETOP 3 (NG6) |
| Maximum Working Pressure | 210 bar |
| Pressure Adjustment Range | Up to 210 bar |
| Actuation | Manual / Mechanical (spring-loaded) |
| Fluid Compatibility | Mineral oil, synthetic hydraulic fluids |
| Seal Material | NBR (standard), FKM (optional) |
| Operating Temperature | -20°C to +80°C |
Key Engineering Features
- Direct-operated pressure relief or reducing function with precise spring calibration
- Modular design for sandwich mounting between directional valve and manifold
- Hardened and ground internal components for long service life
- Low pressure drop and minimal hysteresis
- Optional pressure gauge port for system monitoring
Industrial Applications
- Hydraulic power units and central systems
- Machine tools and metal forming presses
- Mobile and industrial hydraulic circuits requiring pressure limitation
- Modular valve stacks in automation and testing equipment
For technical inquiries, dimensional drawings, or replacement support for ATOS HG-033/210 23, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

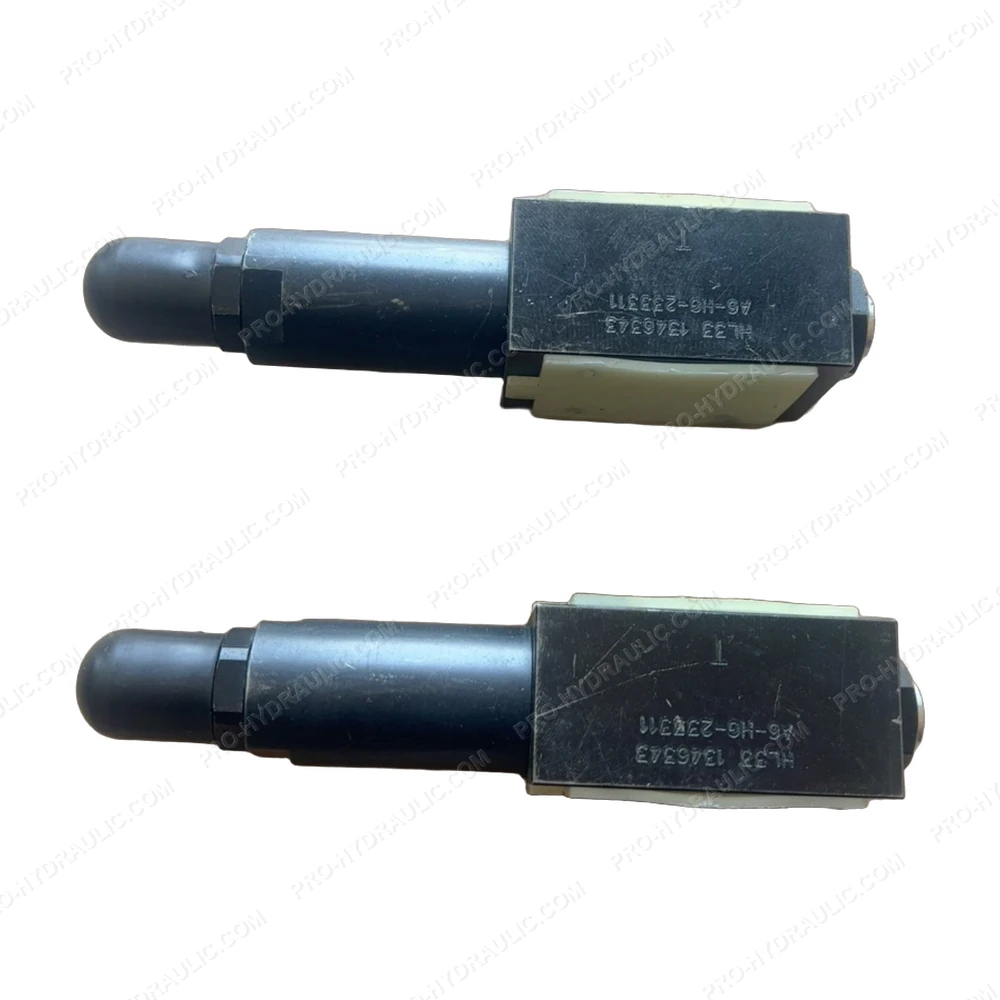

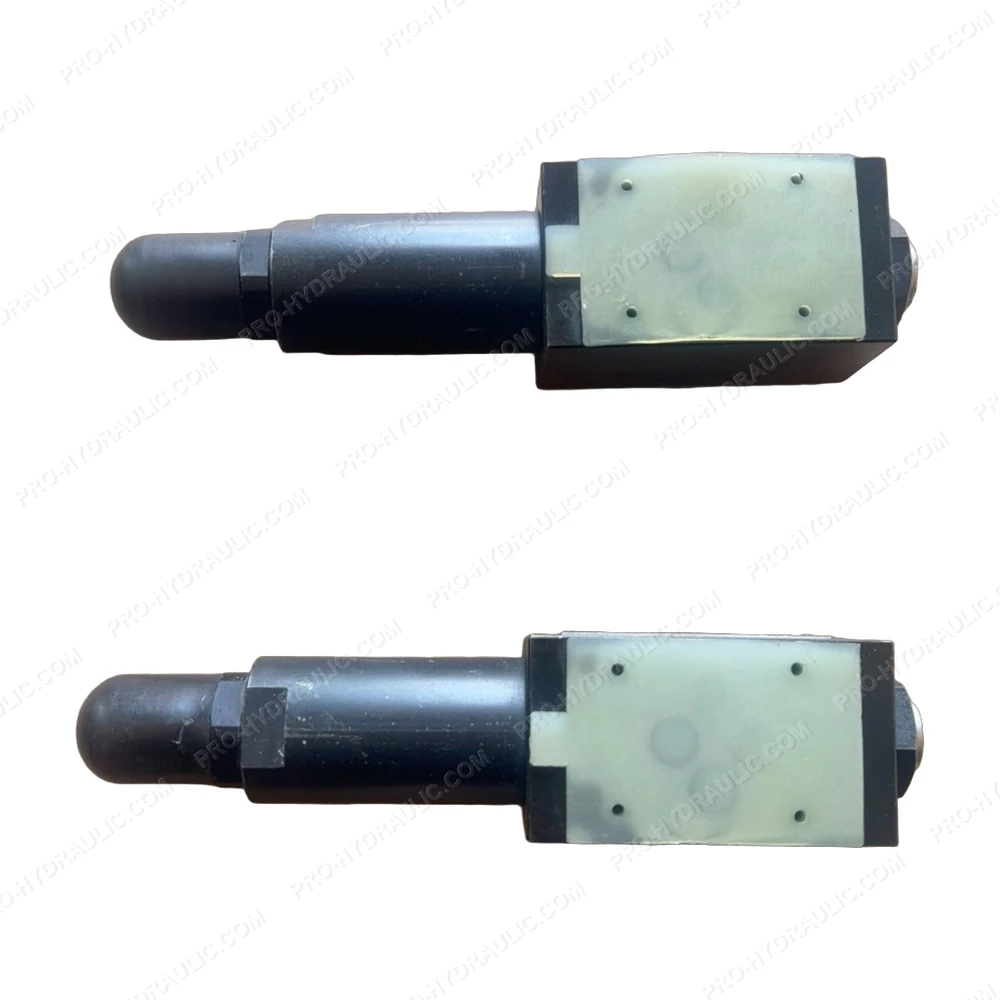

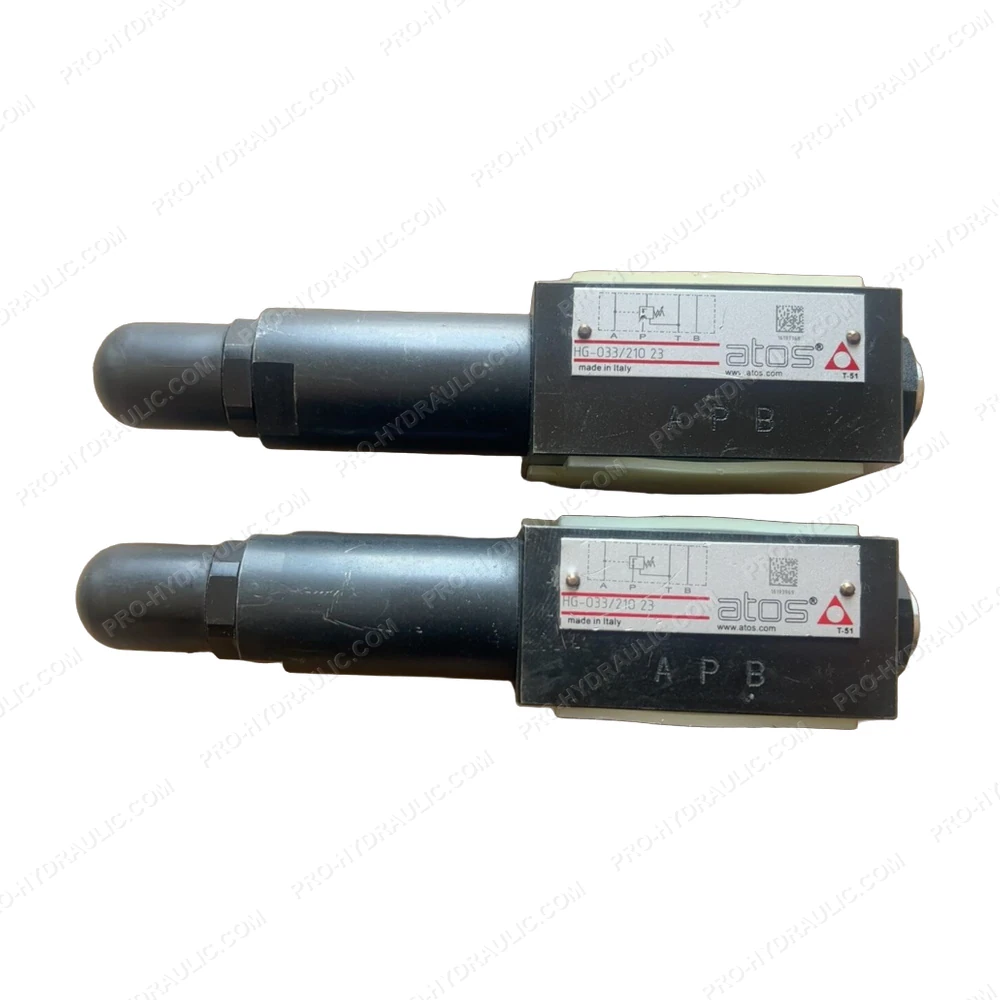

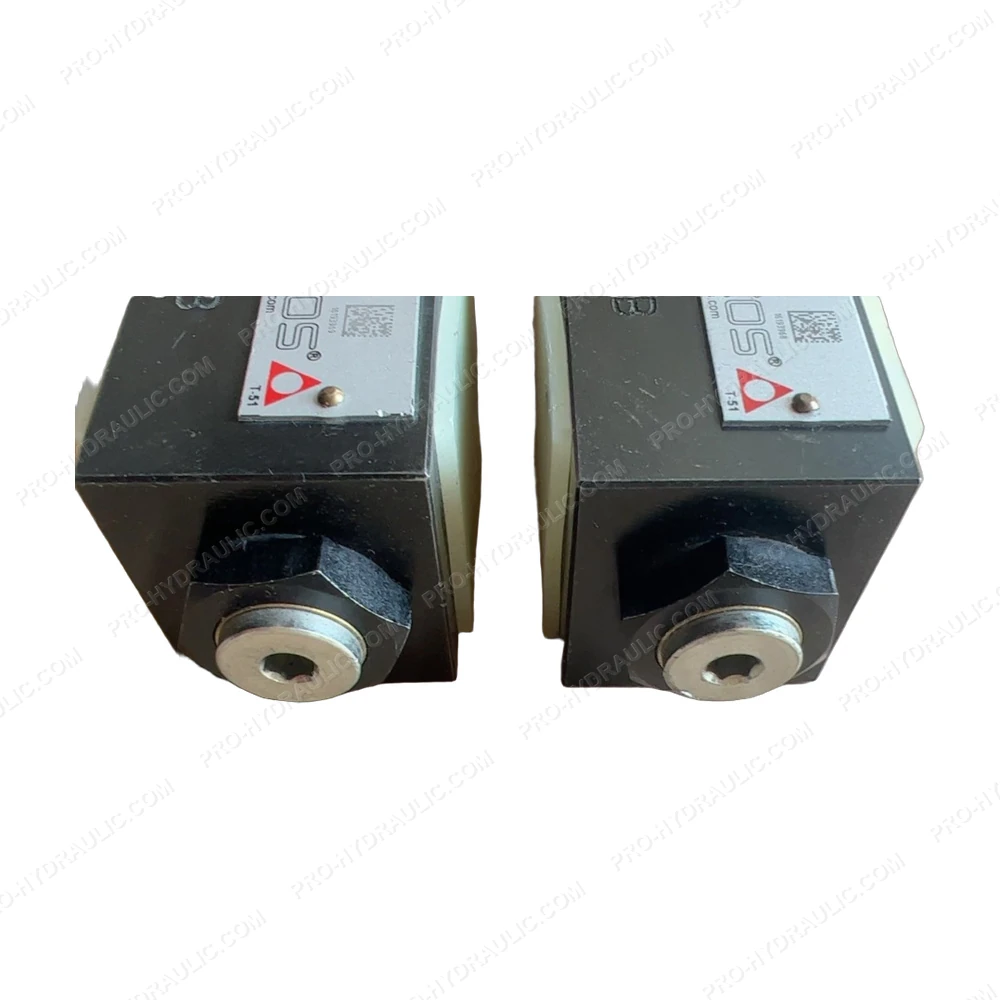

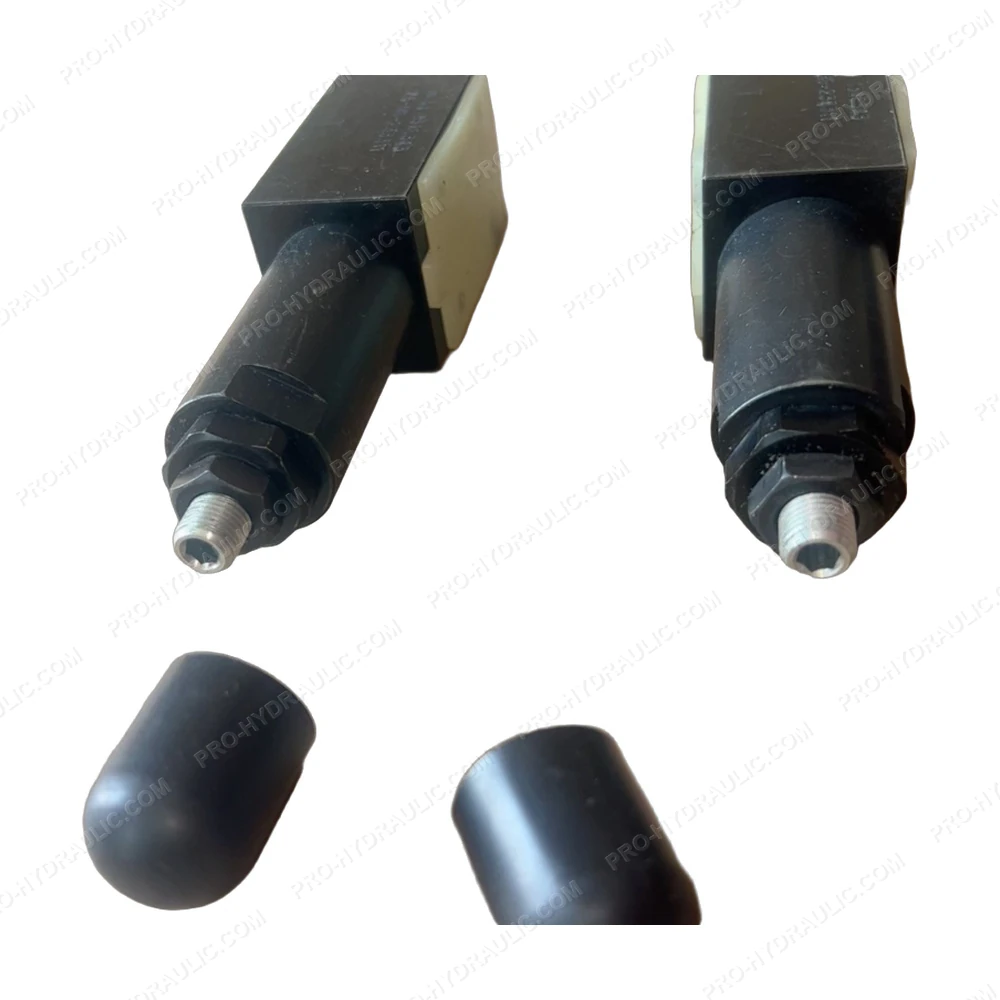

ATOS HG-033/210 23 Pressure Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the ATOS HG-033/210 23 Pressure Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
