Product Overview
The ATOS RZMO-P1-010/100 20 is a pilot-operated proportional pressure relief valve from the Atos RZMO series, designed for electro-proportional control of system pressure in industrial hydraulic circuits. The valve modulates its pressure setting in direct proportion to the electrical reference signal supplied to the integrated proportional solenoid, enabling continuous, stepless pressure regulation rather than fixed-step adjustment. The “010” size designation corresponds to a nominal flow capacity of 10 L/min, while the “100” identifies a maximum adjustable pressure of 100 bar. The “20” suffix denotes the Atos series generation, ensuring dimensional and functional interchangeability with equivalent RZMO valves of the same series. As a normally closed, spring-offset proportional relief valve, the RZMO-P1-010/100 20 limits circuit pressure by diverting excess flow to tank when the electrically commanded setpoint is reached, making it a core pressure-control element in proportional hydraulic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Relief Valve (Pilot-Operated) |
| Model Designation | RZMO-P1-010/100 20 |
| Nominal Size | 010 (10 L/min nominal flow) |
| Maximum Adjustable Pressure | 100 bar (pressure range /100) |
| Actuation Type | Proportional solenoid, single-stage pilot with pressure-compensated main poppet |
| Control Signal | Analog current command via proportional amplifier (e.g., Atos E-BM series or equivalent) |
| Mounting & Connection | Subplate mounting, ISO 6264 / CETOP interface, P1 configuration |
| Hydraulic Fluid | Mineral oil based hydraulic fluid, ISO VG 32–68, cleanliness class ISO 4406 18/16/13 or better |
| Operating Temperature | Standard industrial range, fluid temperature -20 °C to +70 °C |
Engineering Features & Advantages
- Precision Proportional Metering: The proportional solenoid and pressure-compensated pilot stage deliver smooth, hysteresis-minimized pressure modulation across the full 0–100 bar range, allowing accurate closed-loop pressure control in dynamic industrial cycles.
- Stable Pressure Regulation: The pilot-operated architecture isolates the main poppet from flow forces, maintaining consistent pressure setpoint accuracy even as system flow varies within the 10 L/min nominal capacity.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components and a robust solenoid coil rated for sustained duty cycles in demanding hydraulic power units.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original ATOS standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
As a normally closed, spring-offset proportional relief valve, the RZMO-P1-010/100 20 limits circuit pressure by diverting excess flow to tank when the electrically commanded setpoint is reached, making it a core pressure-control element in proportional hydraulic systems.
PRODUCT IMAGES

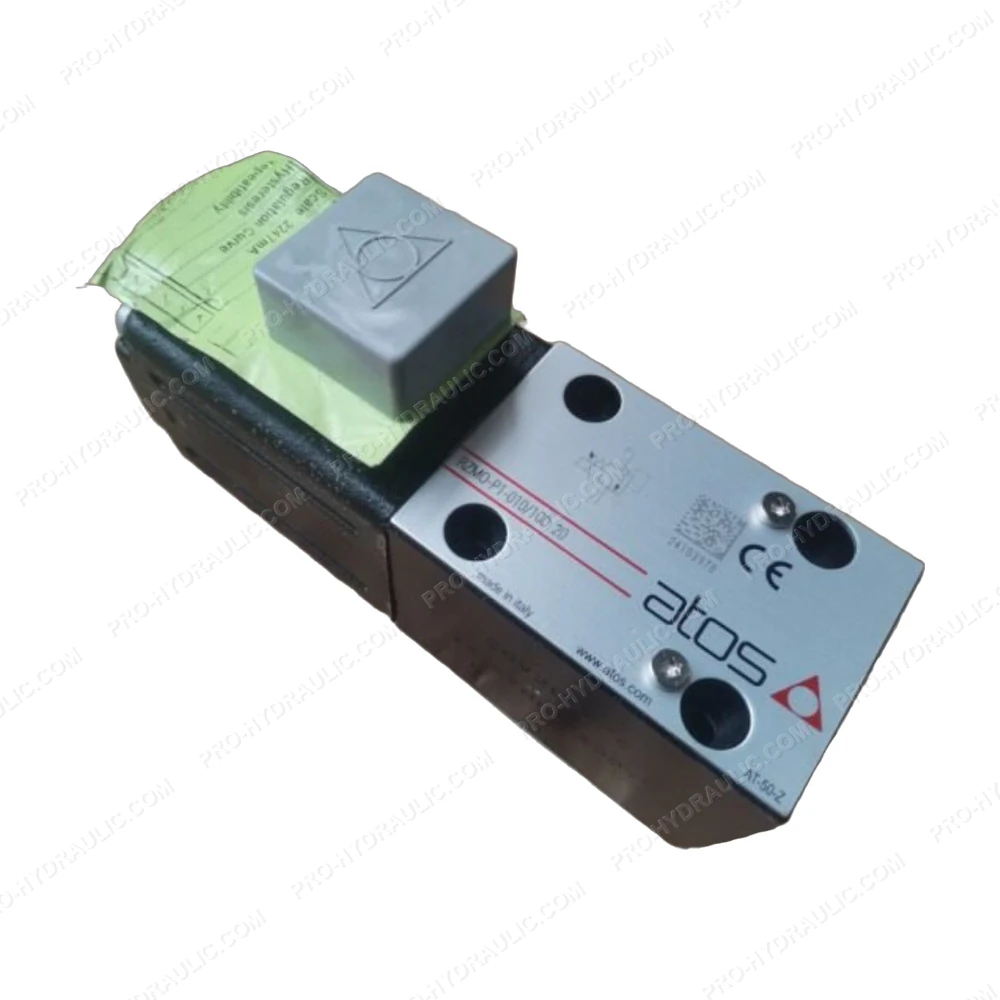

ATOS RZMO-P1-010/100 20 Proportional Pressure Relief Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ATOS RZMO-P1-010/100 20 Proportional Pressure Relief Valve. This Italian-made hydraulic component features a direct-acting poppet design, delivering precise, leak-free pressure control for demanding industrial systems.
