The ATOS SAGAM-10/350 10S is a heavy-duty industrial pressure control valve engineered for precise regulation of hydraulic system pressure in demanding applications. This direct-operated relief valve features a balanced poppet design that ensures stable pressure control and minimal hysteresis across the full flow range. The SAGAM series is designed for subplate mounting with ISO 6264 (CETOP 10) interface, providing a compact and efficient solution for pressure limiting and safety circuits.
ATOS SAGAM-10/350 10S Technical Specifications
| Valve Type | Direct-operated pressure relief valve |
| Mounting Interface | ISO 6264 (CETOP 10) |
| Maximum Pressure | 350 bar |
| Pressure Adjustment Range | 10 to 350 bar |
| Adjustment Mechanism | 10S – Hex socket screw with locknut |
| Nominal Flow | Up to 200 L/min |
| Fluid | Mineral oil or synthetic hydraulic fluid |
| Fluid Temperature Range | -20°C to +80°C |
| Viscosity Range | 10 to 400 cSt |
| Filtration | ISO 4406 20/18/15 or better |
| Body Material | Cast iron |
| Seal Material | NBR (Buna-N) |
Key Engineering Features
- Balanced poppet design for stable pressure regulation and low hysteresis
- Direct-operated, no pilot oil required for operation
- Adjustable pressure range from 10 to 350 bar via hex socket screw
- Subplate mounting per ISO 6264 (CETOP 10) for easy integration
- Hardened and ground internal components for extended service life
- Optional pressure gauge port for system monitoring
Industrial Applications
- Hydraulic power units and central systems
- Presses and forming machinery
- Injection molding machines
- Machine tools and metalworking equipment
- Marine and offshore hydraulic systems
- Test stands and simulation equipment
For technical inquiries, dimensional drawings, or replacement support for ATOS SAGAM-10/350 10S, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

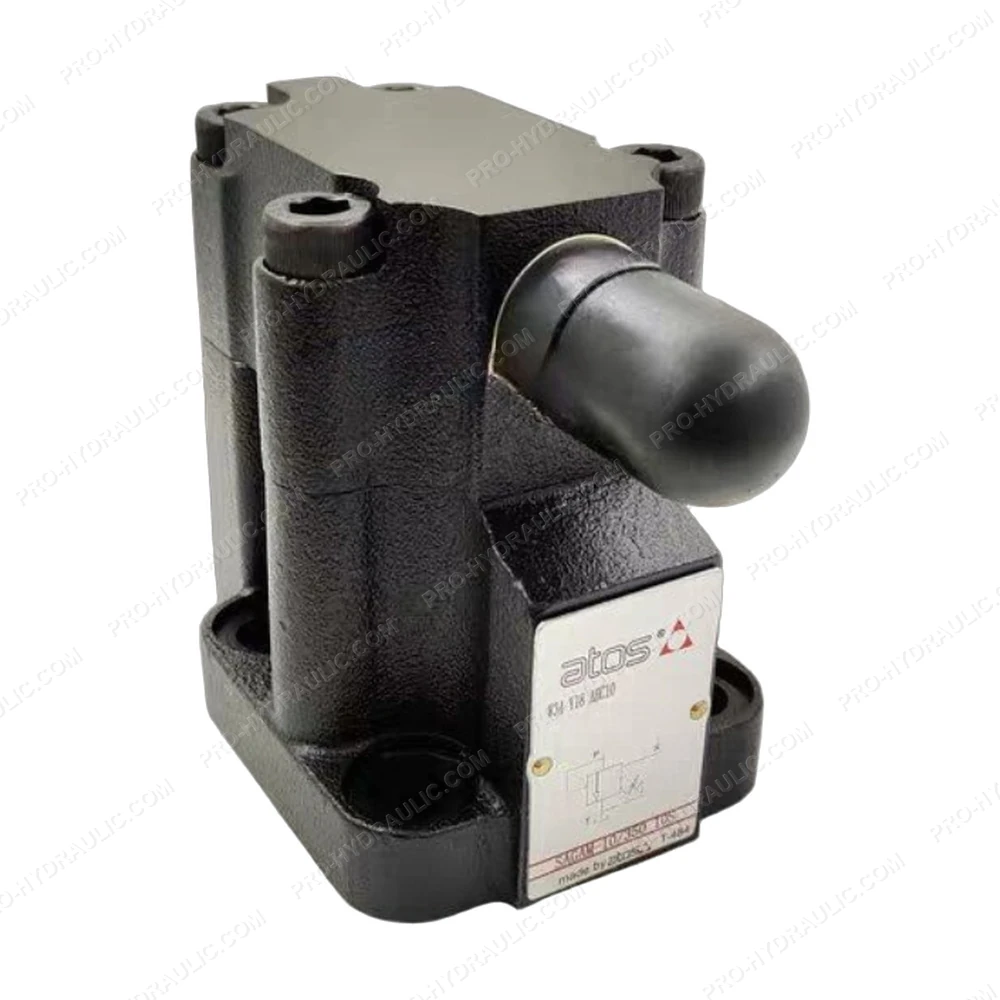

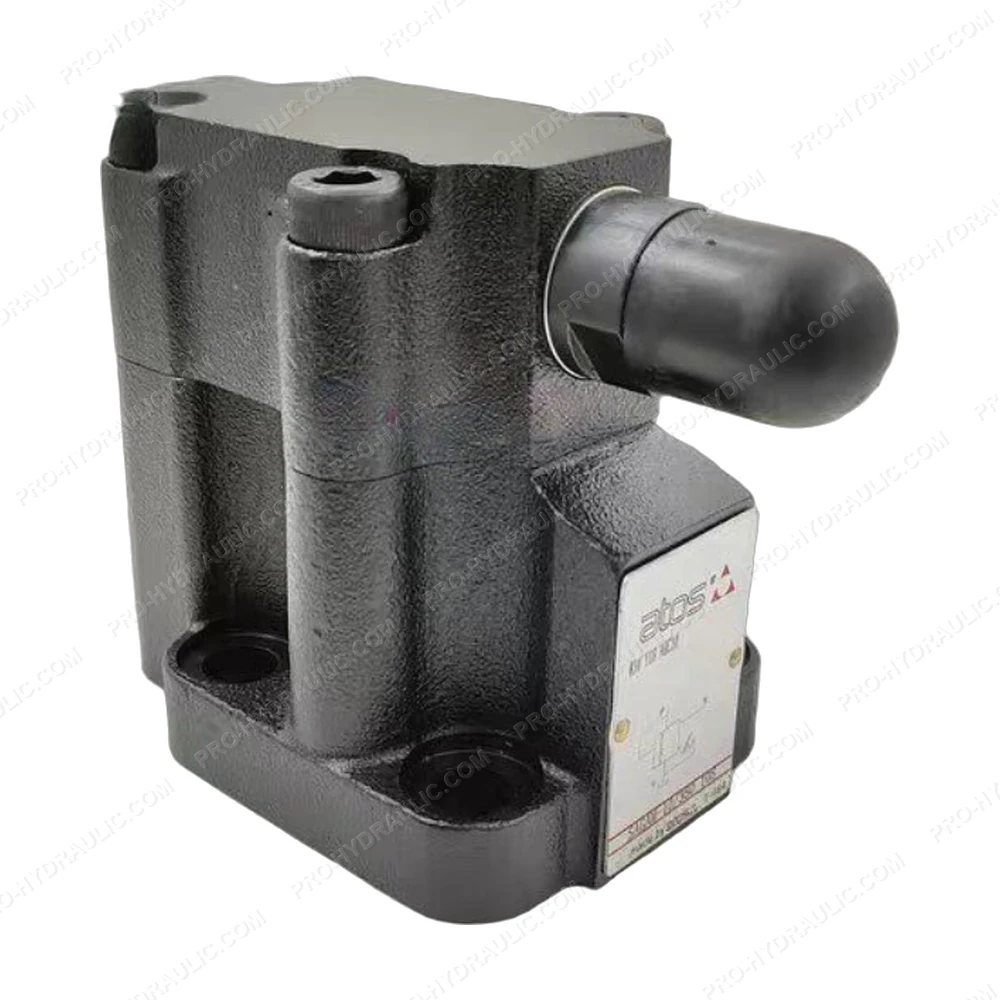

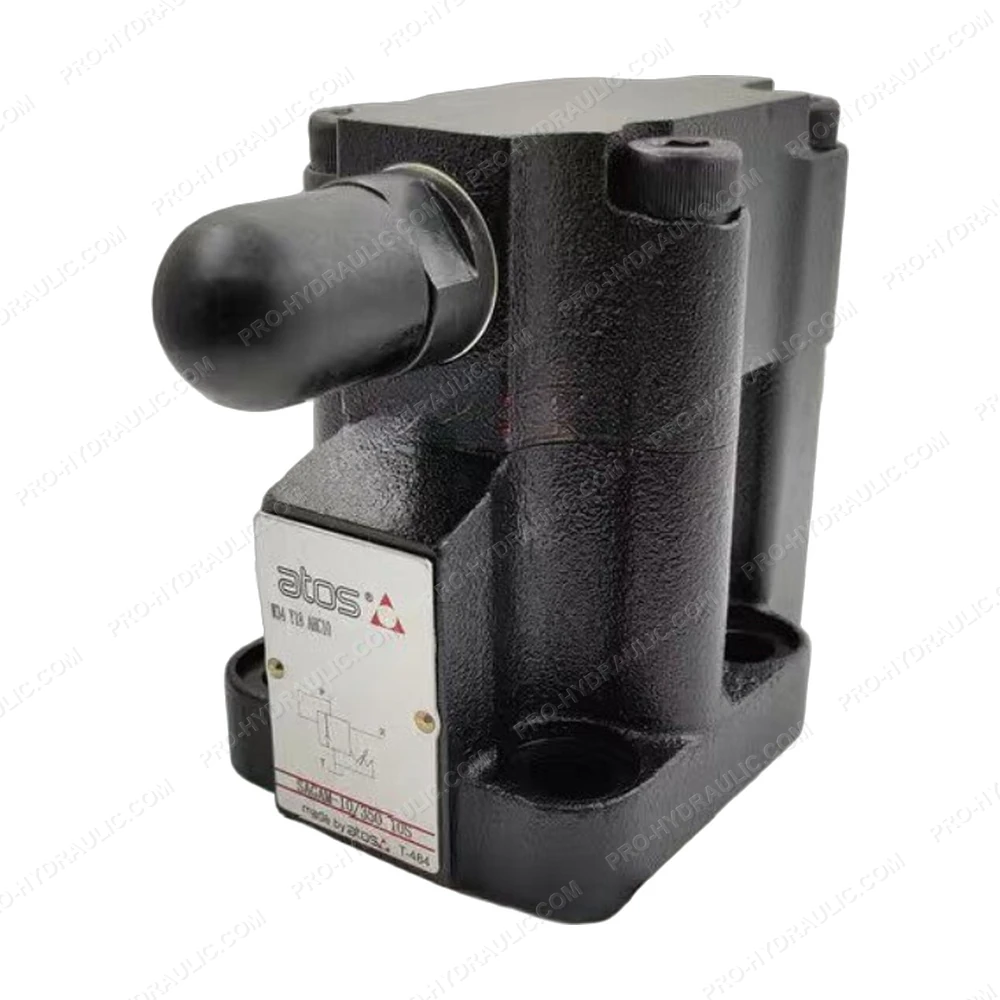

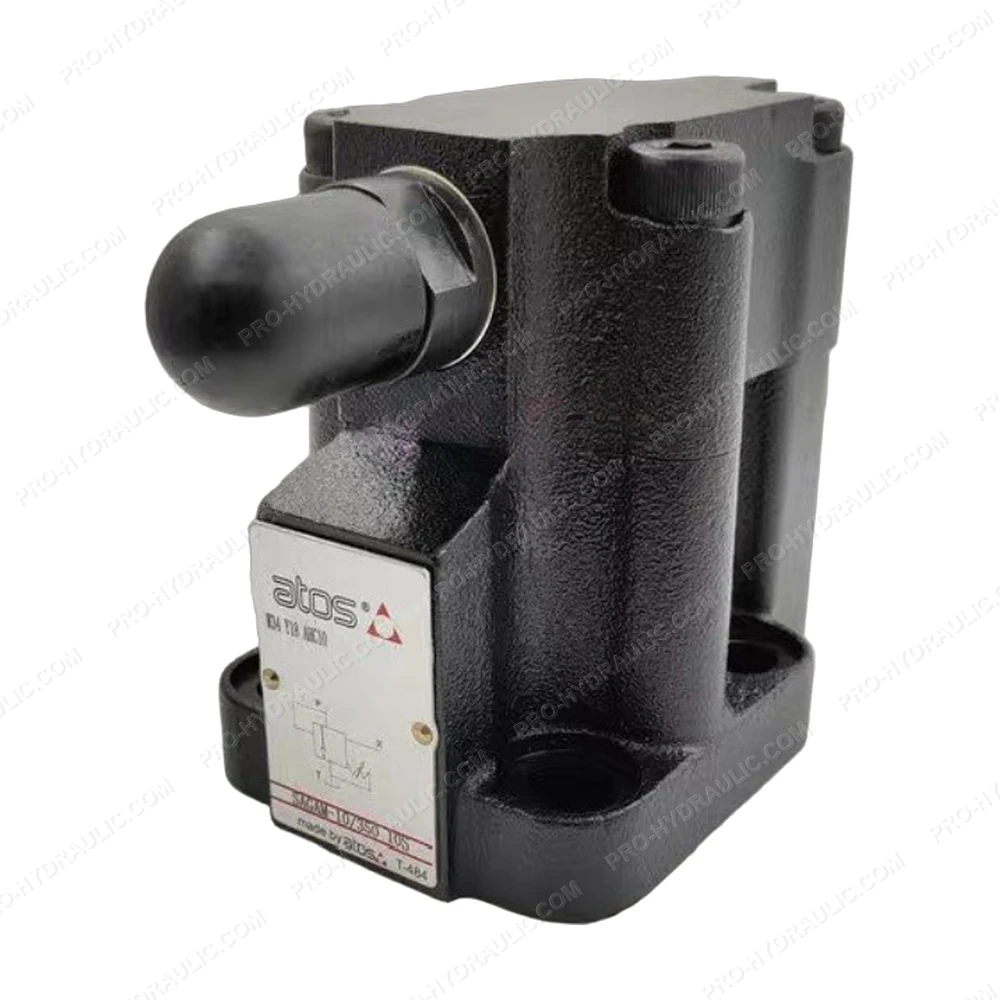

ATOS SAGAM-10/350 10S Pressure Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the ATOS SAGAM-10/350 10S Pressure Control Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
