Product Overview
The ATOS SAGAM-32/350 10S is a pilot-operated solenoid controlled pressure relief valve engineered by Atos (a globally recognized brand in industrial hydraulics) for precise system pressure regulation and safe overload protection. This valve operates on a two-stage working principle: a pilot stage with a solenoid-actuated poppet or spool controls the main stage, which discharges excess flow to tank when system pressure exceeds the set value. The SAGAM series is designed for high-pressure hydraulic circuits, offering reliable pressure limiting, unloading, and sequence functions. The 10S designation indicates a specific solenoid voltage and electrical configuration, ensuring compatibility with standard industrial control systems. This valve is a direct-fit replacement for OEM installations and is widely used in demanding industrial environments where accurate pressure control and rapid response are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve – Solenoid Operated Pressure Relief Valve (Pressure Control Valve) |
| Model Designation | SAGAM-32/350 10S |
| Operating Pressure | Up to 350 bar (rated pressure, as indicated by model code) |
| Mounting & Connection | Standard ISO 6264 / CETOP interface (subplate mounting) |
| Solenoid Voltage | 10S – Standard industrial solenoid (typically 24V DC or 110/230V AC, depending on configuration) |
| Flow Rate | Up to 350 L/min (nominal, dependent on system conditions) |
| Adjustment Type | Manual adjustment with locknut (standard), optional pressure adjustment |
| Seal Material | NBR (Buna-N) standard, suitable for mineral oil-based hydraulic fluids |
Engineering Features & Advantages
- Precision Pressure Control: Pilot-operated design ensures accurate and stable pressure regulation with minimal hysteresis, maintaining system integrity even under varying flow conditions.
- Solenoid Actuation: Allows for remote electrical control of pressure relief and unloading functions, enabling integration into automated hydraulic systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that withstands high pressure and cyclic duty.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in installation without modification.
- Fast Response: Quick opening and closing characteristics protect hydraulic components from pressure spikes and overloads.
Typical Industrial Applications
This valve is commonly used in plastic injection molding machines, metallurgical presses, construction and marine hydraulics, CNC machine tools, and other heavy industrial hydraulic systems requiring reliable pressure limiting, unloading, or sequence control. It is also suitable for test stands, hydraulic power units, and any application where precise pressure regulation and electrical override are essential.
PRODUCT IMAGES

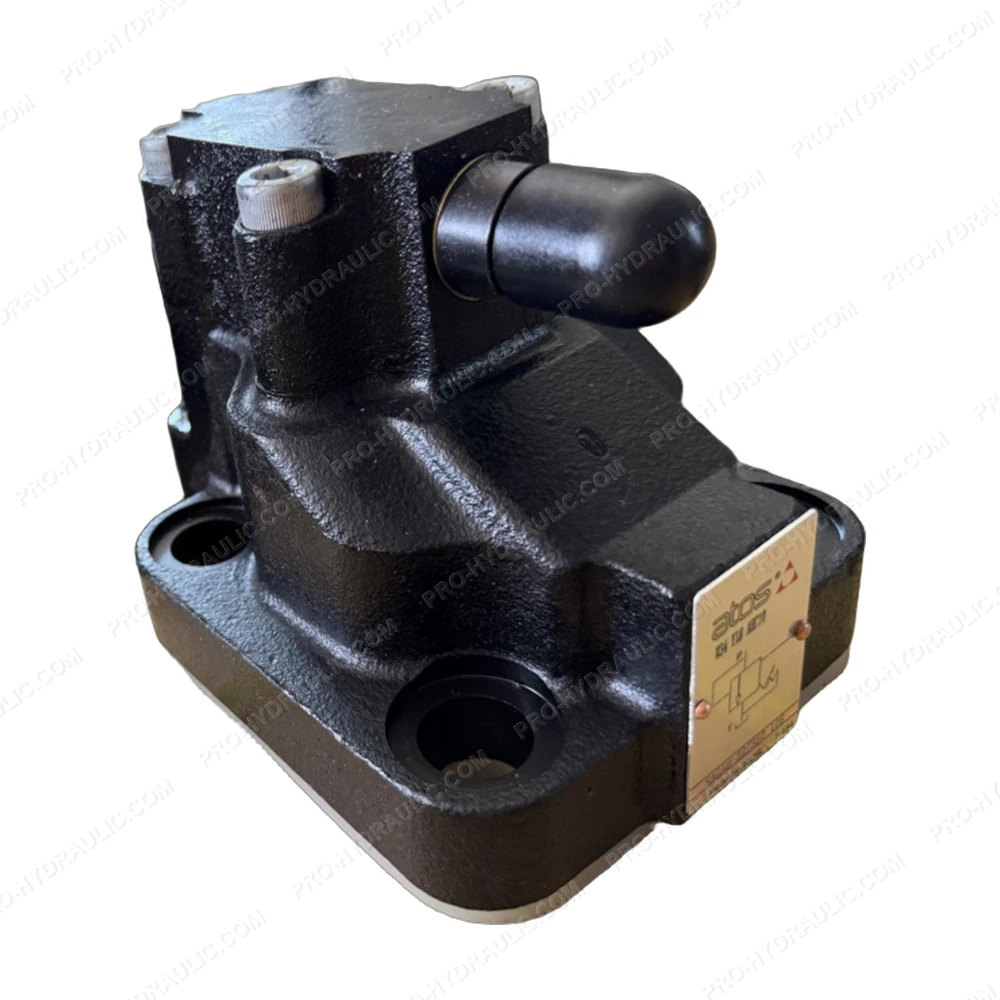

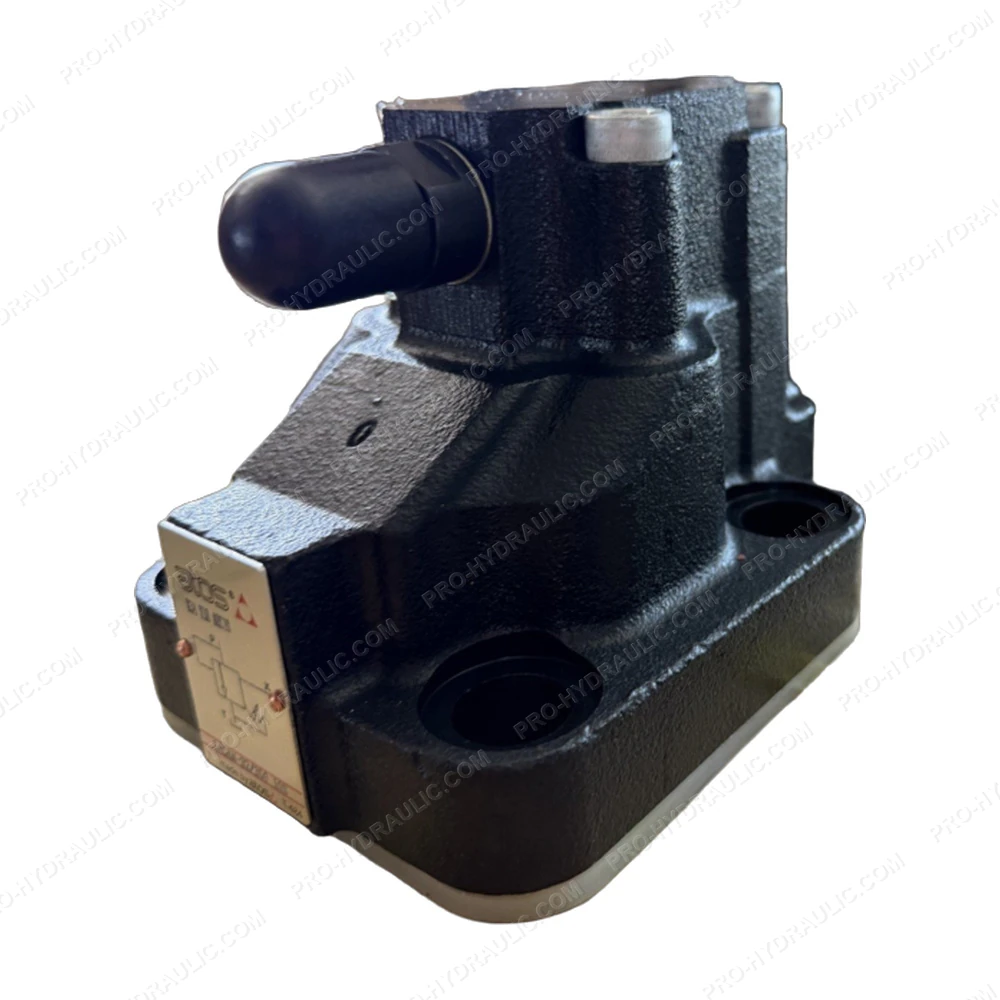

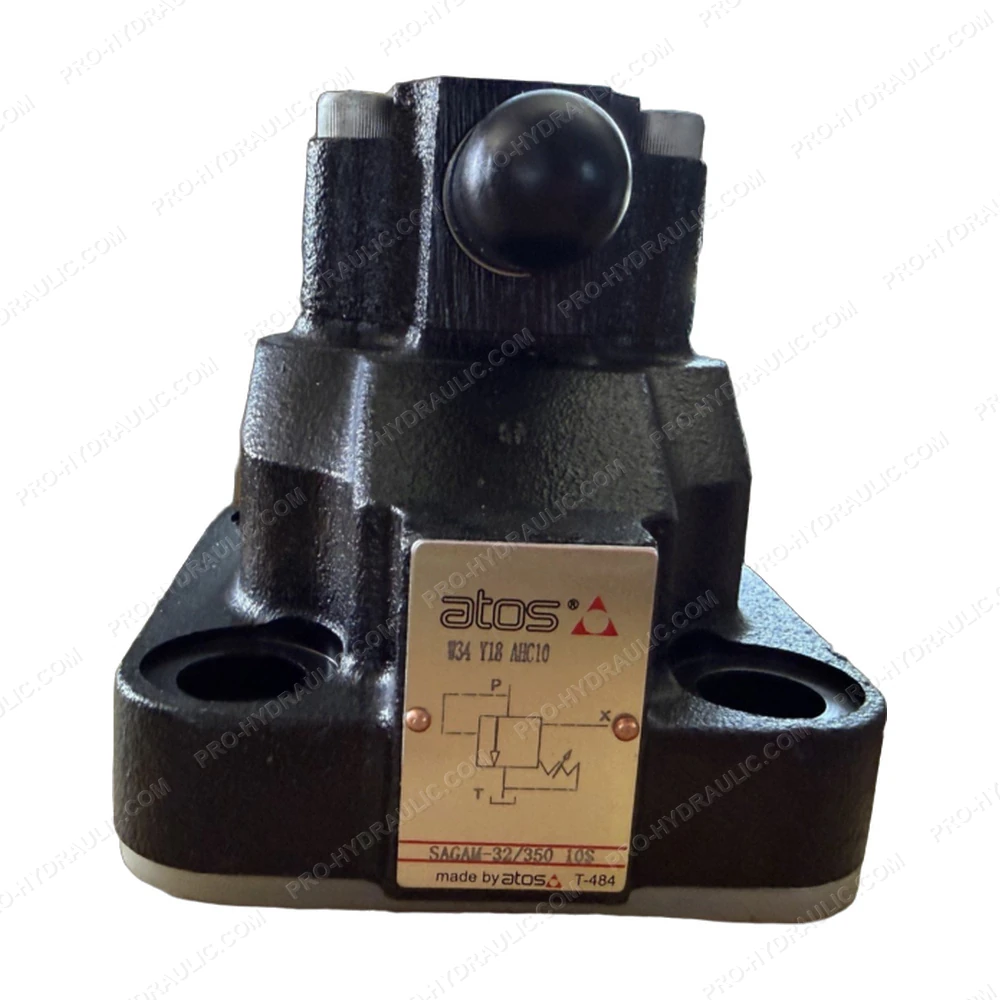

ATOS SAGAM-32/350 10S Solenoid Operated Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ATOS SAGAM-32/350 10S Solenoid Operated Directional Valve. This Italy-made 350 bar hydraulic component features a 4-way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
