Product Overview
The ATOS SDHE-0610 AC 10S is a direct-operated, solenoid-actuated directional control valve from the Atos SDHE series, engineered for precise control of hydraulic fluid flow direction in industrial power circuits. Utilizing a robust wet-armature AC solenoid and a hardened, precision-ground spool, this valve shifts between positions to direct, stop, or reverse actuator motion with fast, repeatable response. The SDHE-0610 designation indicates a nominal size 06 (NG6 / CETOP 3) subplate-mounted body with a 10-series design, while the “10S” suffix denotes the specific spool configuration and spring-return arrangement. As a standard directional control valve, it serves as a core switching element in hydraulic systems, managing flow paths to cylinders, motors, and other downstream components in machine tool, molding, and general industrial applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve — Standard Solenoid Directional Control Valve |
| Model Designation | ATOS SDHE-0610 AC 10S |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Actuation Type | AC Solenoid, Direct-Acting, Spring Return |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per Atos SDHE series) |
| Mounting & Connection | Subplate Mounting, ISO 4401-03 / CETOP 3 Interface |
| Spool Configuration | 10S Spool Type (per Atos designation) |
| Seal Material | Standard NBR / FKM Options Available |
Engineering Features & Advantages
- Precision Spool Metering: Hardened, precision-ground spool and body bore deliver accurate flow metering, minimal internal leakage, and consistent shift performance across the valve’s service life.
- Fast Solenoid Response: Direct-acting AC solenoid design provides rapid, reliable actuation for high-cycle industrial switching duty without the need for pilot pressure.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with a robust wet-armature solenoid and durable spring-return mechanism.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Atos SDHE-0610 interfaces, ensuring drop-in installation on CETOP 3 subplates.
Typical Industrial Applications
The ATOS SDHE-0610 AC 10S is widely deployed in plastic injection molding machines, metallurgical presses, CNC machine tools, and general industrial hydraulic power units where reliable directional control of cylinders and motors is required. Its NG6/CETOP 3 footprint makes it a standard choice for manifold-mounted valve stacks in compact and mid-range hydraulic systems.
PRODUCT IMAGES

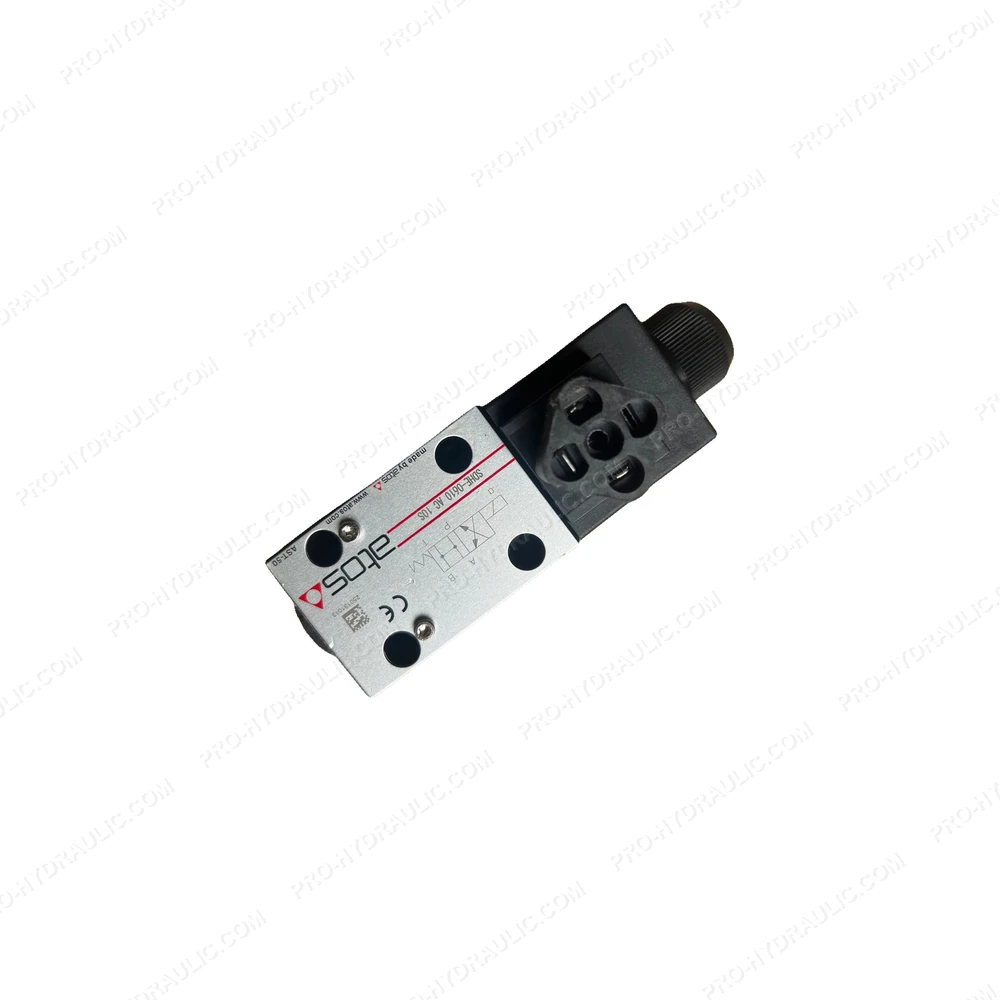

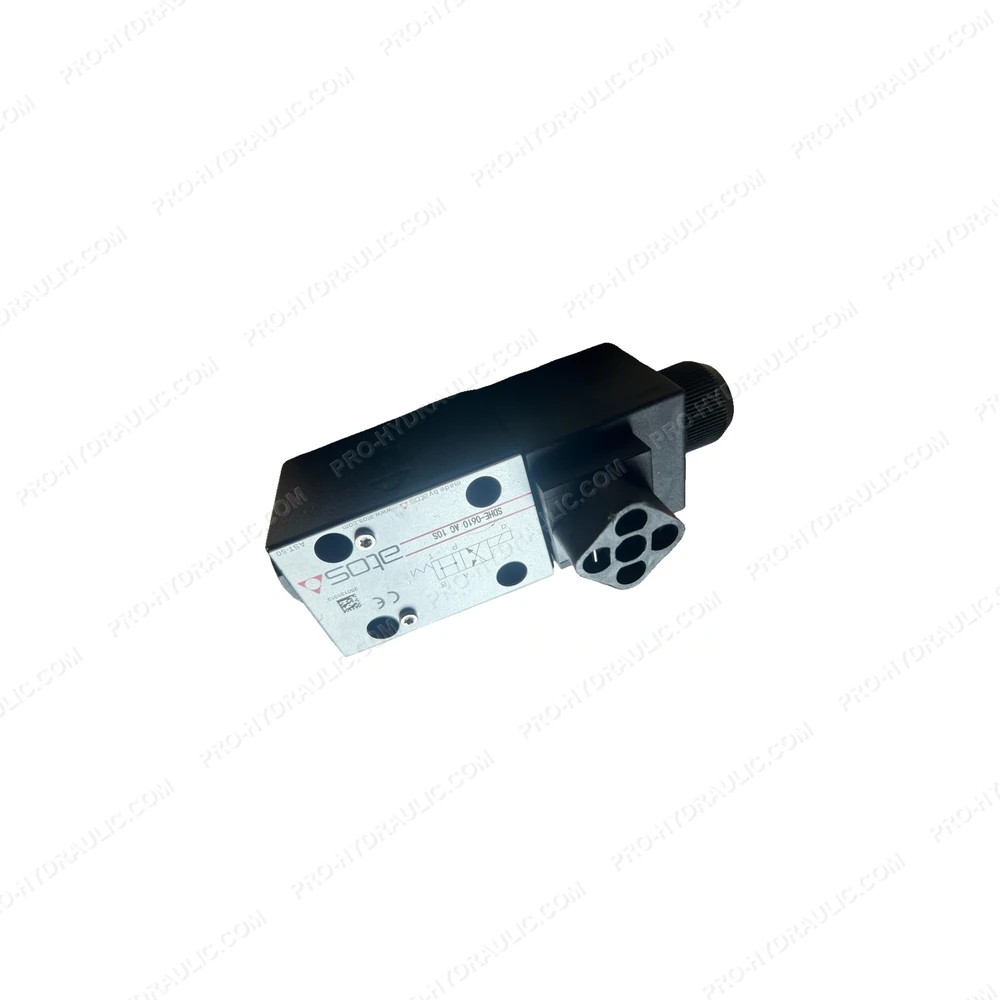

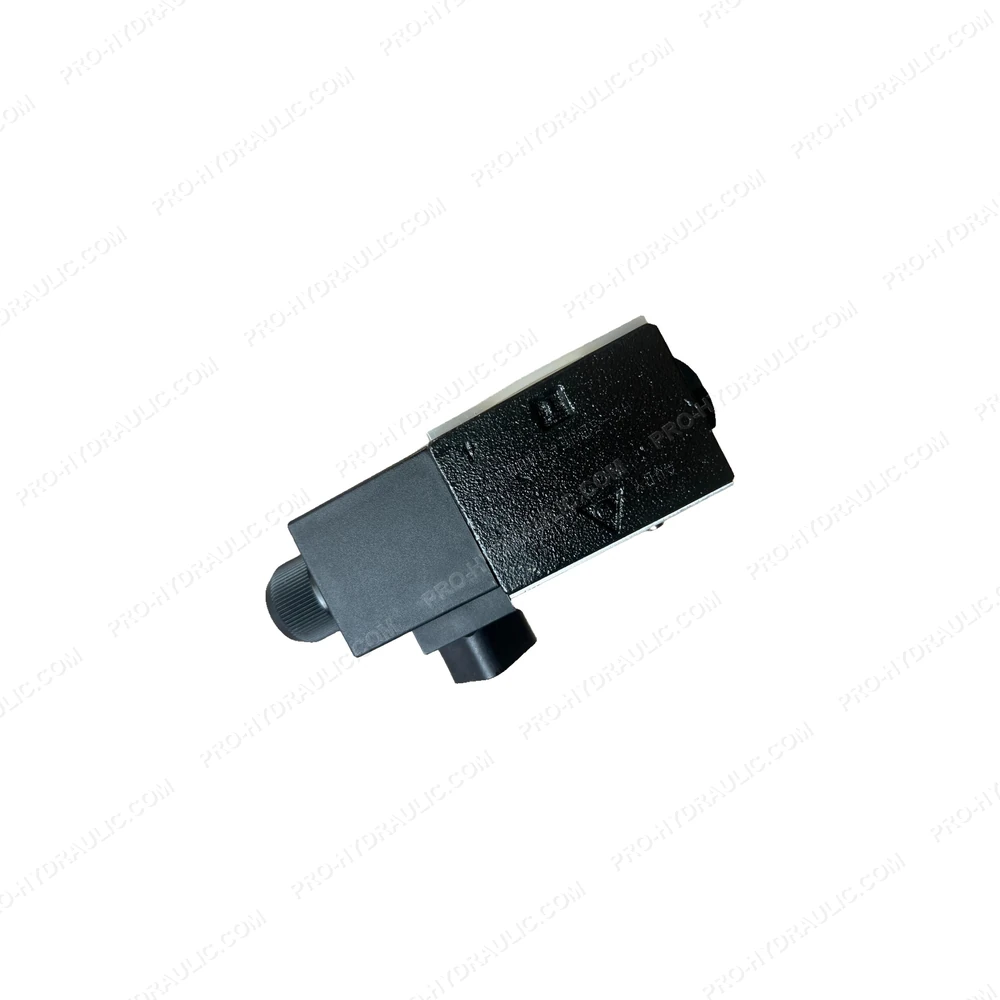

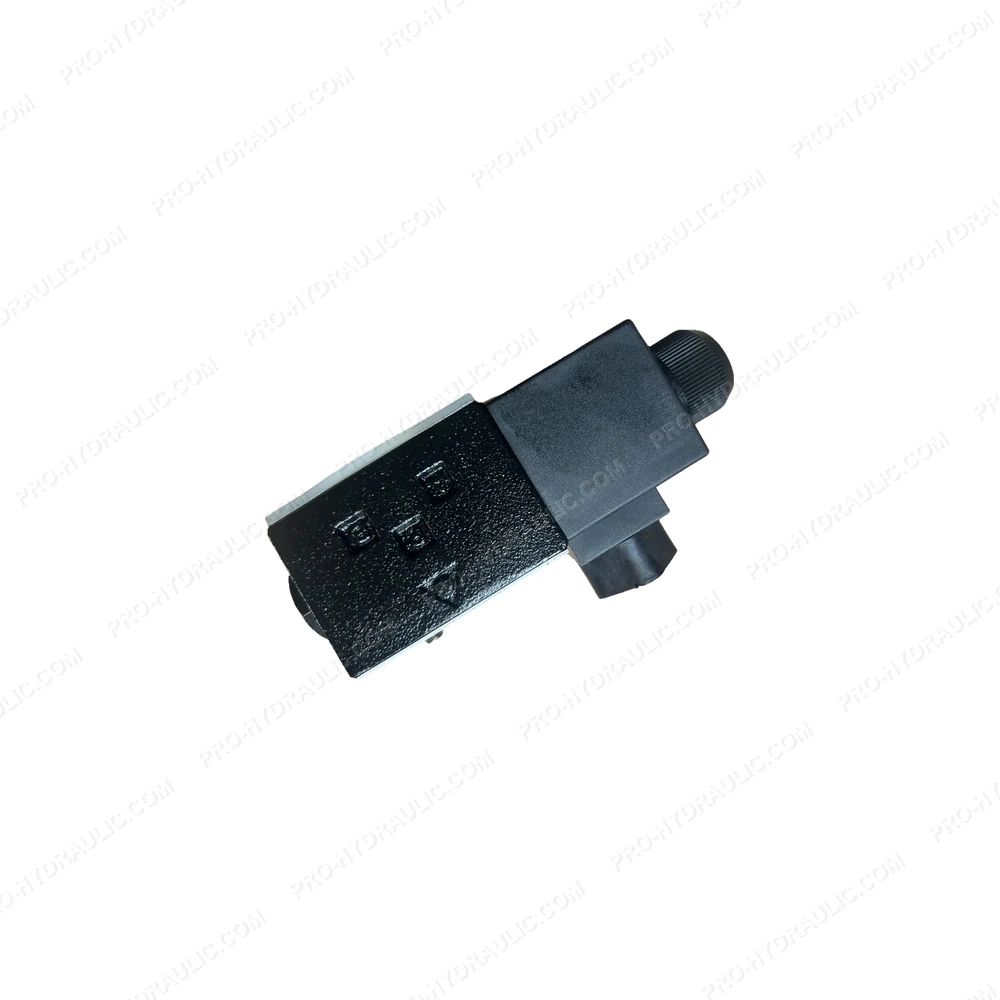

ATOS SDHE-0610 AC 10S Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ATOS SDHE-0610 AC 10S Solenoid Directional Valve. This Italian-made 110V AC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
