Product Overview
The ATOS SDHE-0713-X is a high-performance solenoid-operated directional control valve engineered by Atos, a global leader in electrohydraulic technology. Designed around a robust spool-type architecture, this valve directs and controls the start, stop, and direction of hydraulic fluid flow within a circuit. The SDHE series is a direct-acting, spring-centered directional valve featuring wet-armature solenoids for reliable, quiet operation. With a nominal size of NG10 (CETOP 5 / ISO 4401 size 10), the SDHE-0713-X is configured for 24 VDC solenoid actuation and is identified by the “10S” designation, indicating a specific spool type and spring arrangement. This valve is a critical control component in demanding industrial hydraulic systems requiring precise flow direction, fast response, and long service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Spool Type) |
| Model Designation | SDHE-0713-X 24 DC 10S |
| Manufacturer | Atos |
| Nominal Size | NG10 (CETOP 5 / ISO 4401-05) |
| Actuation Type | Solenoid Operated, Spring Centered / Spring Offset |
| Solenoid Voltage | 24 VDC (Direct Current) |
| Spool Configuration | Spool Type 10S (Specific flow path per Atos standard) |
| Operating Pressure | Up to 350 bar (5075 psi) — Standard Industrial Grade |
| Rated Flow | Up to 120 L/min (dependent on spool type and pressure drop) |
| Mounting & Connection | Subplate Mounting — ISO 4401 / CETOP 5 Interface |
| Seal Material | NBR (Buna-N) / FKM (Viton) — Standard Industrial |
| Electrical Connection | DIN 43650 Connector / Terminal Box |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve (spool type) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original ATOS standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 120 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is a critical control component in demanding industrial hydraulic systems requiring precise flow direction, fast response, and long service life.
PRODUCT IMAGES

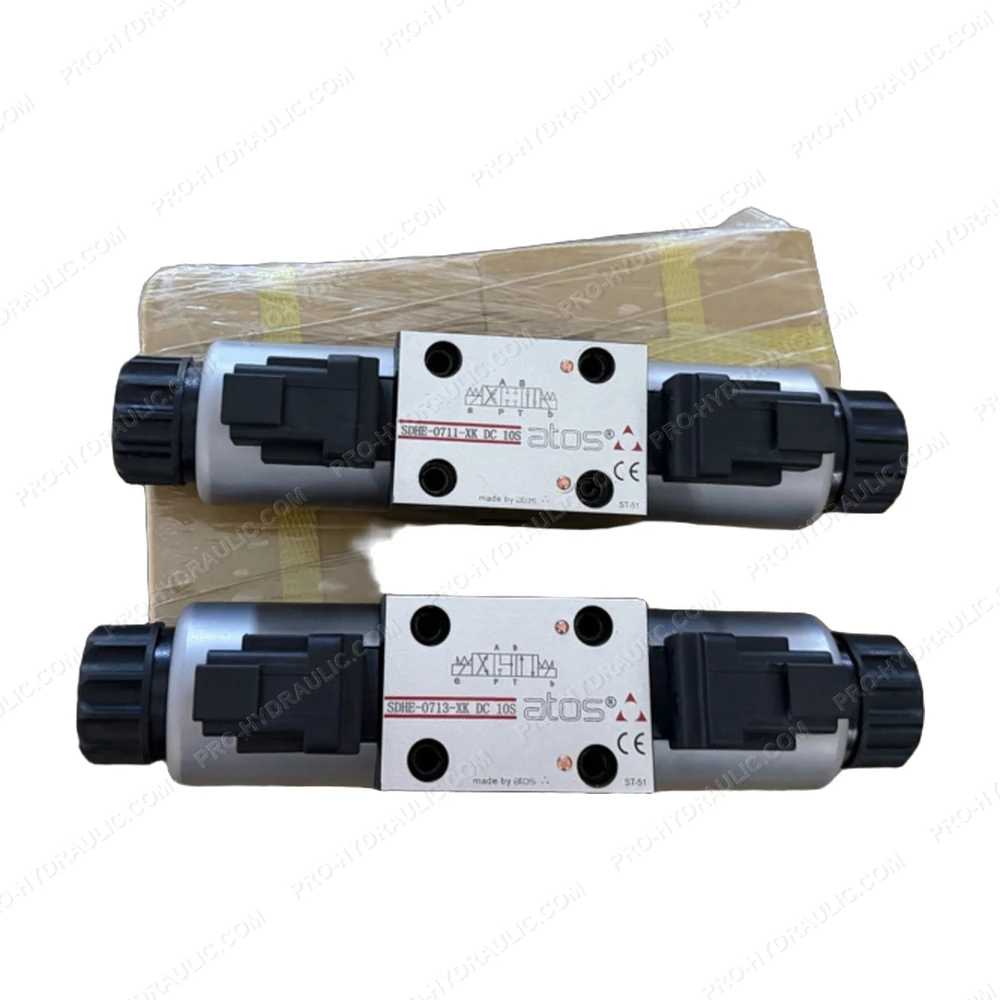

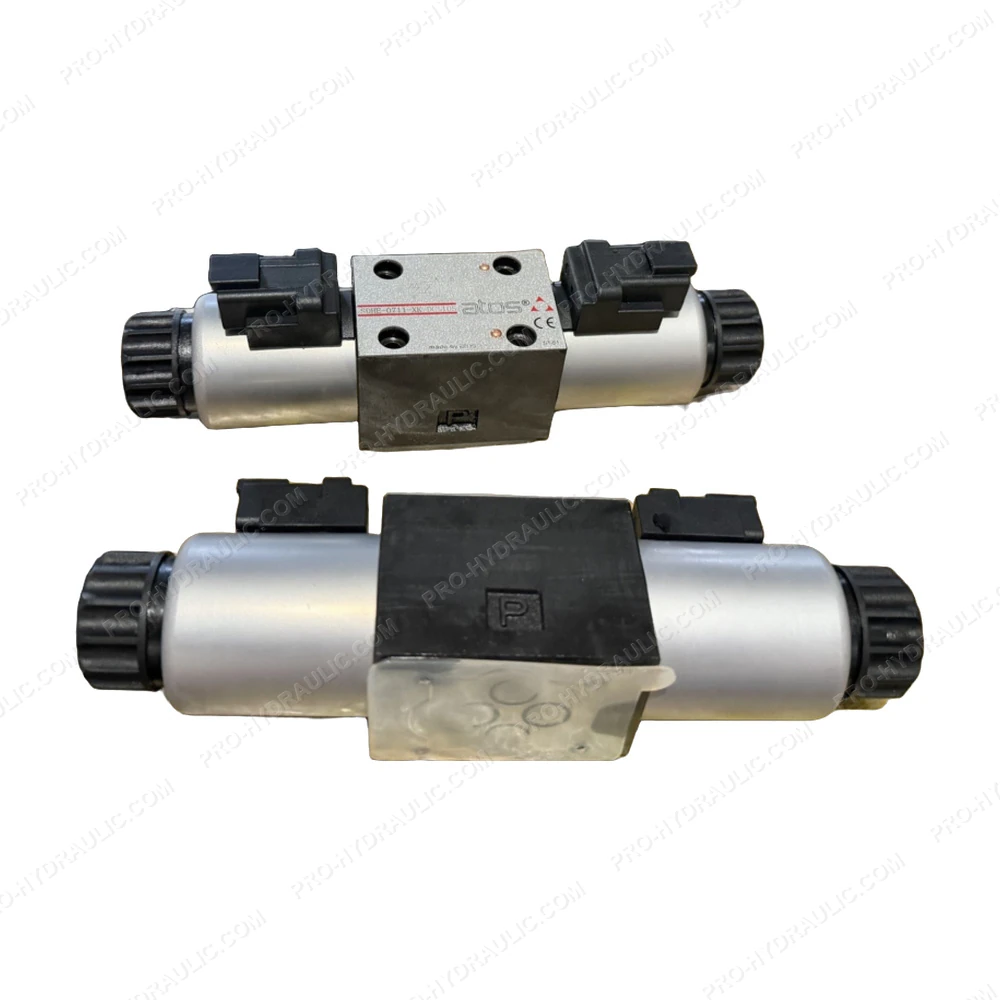

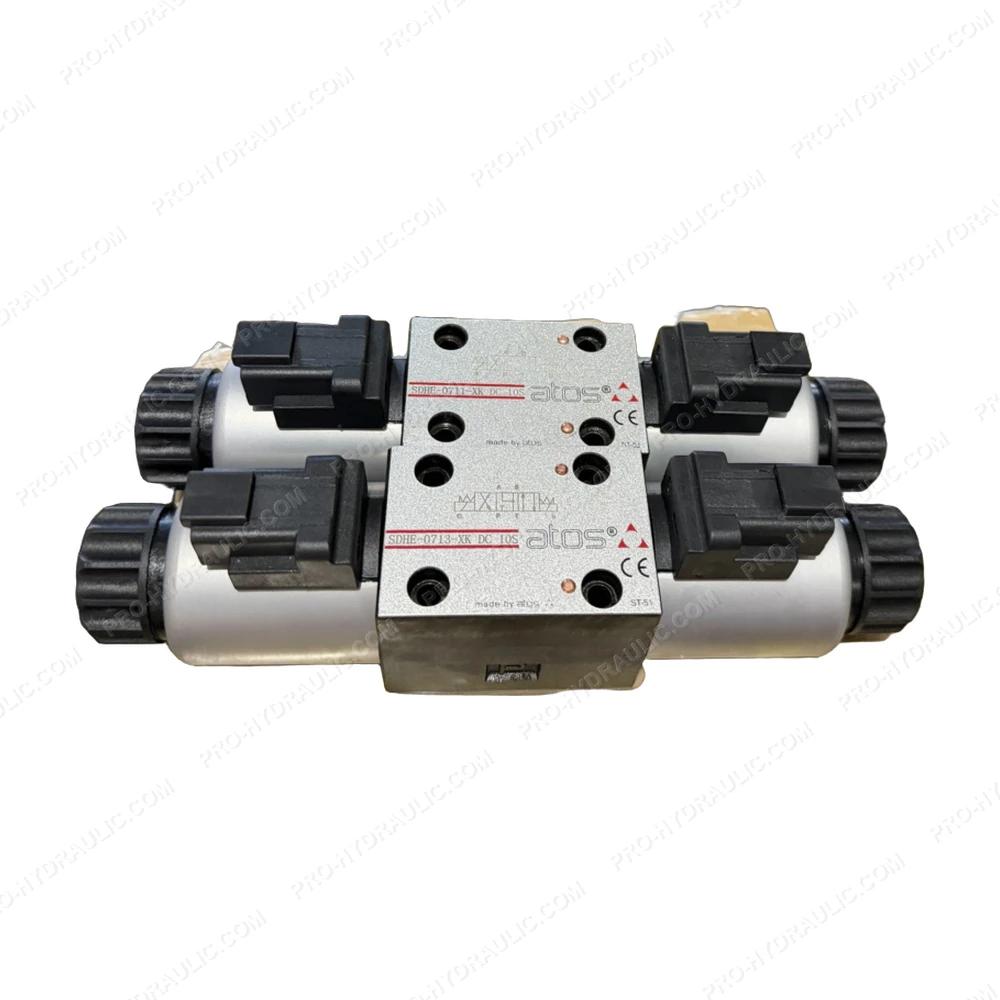

ATOS SDHE-0713-X 24 DC 10S Solenoid Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ATOS SDHE-0713-X 24 DC 10S Solenoid Directional Valve. This Italy-made 24 VDC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
