Product Overview
The ATOS SDHE-0751/2 DC 10S is a high-performance solenoid-operated directional control valve engineered by Atos (Atos S.p.A.), a globally recognized manufacturer of precision hydraulic components. This valve belongs to the SDHE series of direct-acting, spool-type directional control valves designed for reliable switching and routing of hydraulic fluid flow in industrial circuits. The “DC” designation indicates a direct current solenoid actuator, while the “10S” refers to the ISO 4401 size 10 (NG10 / CETOP 5) subplate mounting interface. The valve operates on a spool-in-body principle, where an electromagnetically actuated spool shifts within a precision-machined bore to connect or block flow paths between the pressure (P), tank (T), and work ports (A and B). This configuration provides fast, repeatable directional control of actuators such as cylinders and motors, making it a fundamental building block in modern industrial hydraulic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (Standard Directional Control Valve) |
| Model Designation | SDHE-0751/2 DC 10S |
| Manufacturer | Atos |
| Actuation Type | Direct current (DC) solenoid, direct-acting |
| Mounting Interface | ISO 4401 size 10 (NG10 / CETOP 5) subplate mounting |
| Spool Configuration | 2-position or 3-position spool (per model variant), 4-way |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Nominal Flow Rate | Up to 120 L/min (dependent on spool type and pressure drop) |
| Port Connections | P, T, A, B — ISO 4401 standard port pattern |
| Seal Material | NBR (Buna-N) standard; FKM available for high-temperature service |
| Mounting & Connection | Standard ISO / Manufacturer Interface |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve (standard directional control valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original ATOS standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
This configuration provides fast, repeatable directional control of actuators such as cylinders and motors, making it a fundamental building block in modern industrial hydraulic systems.
PRODUCT IMAGES

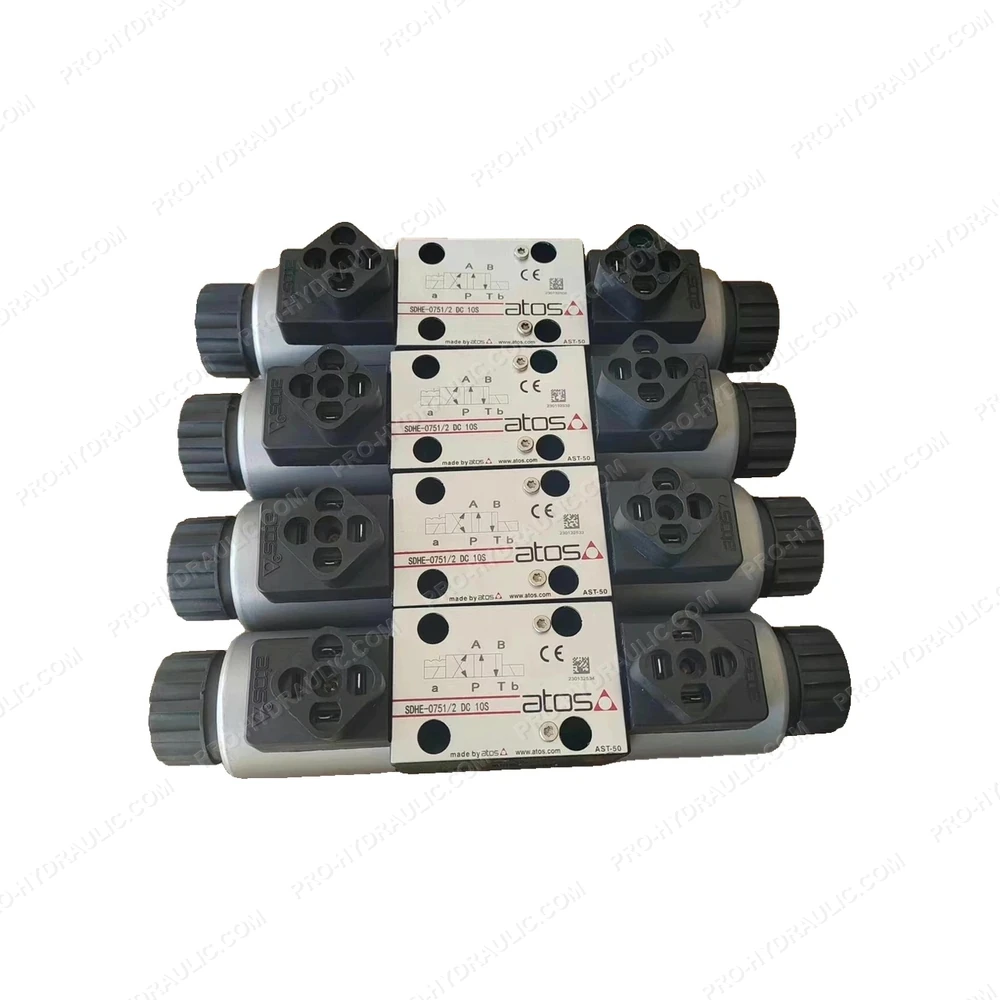

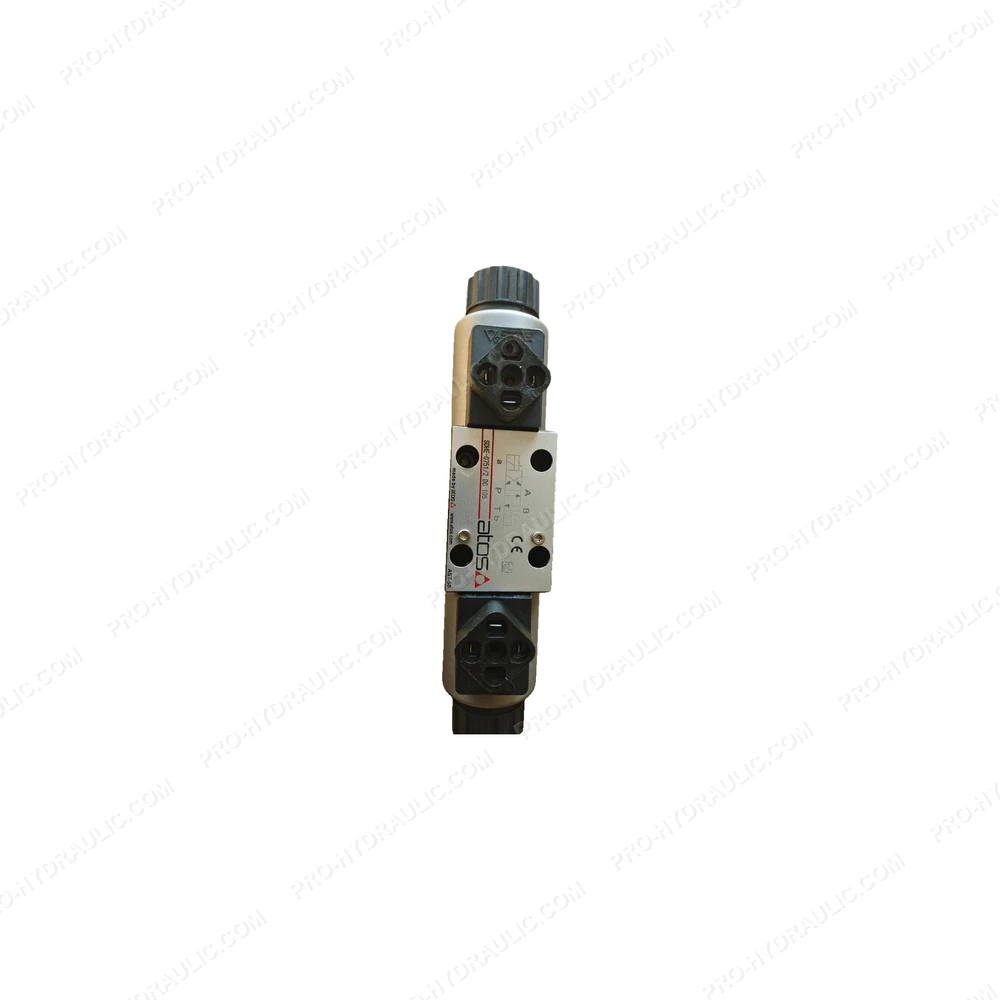

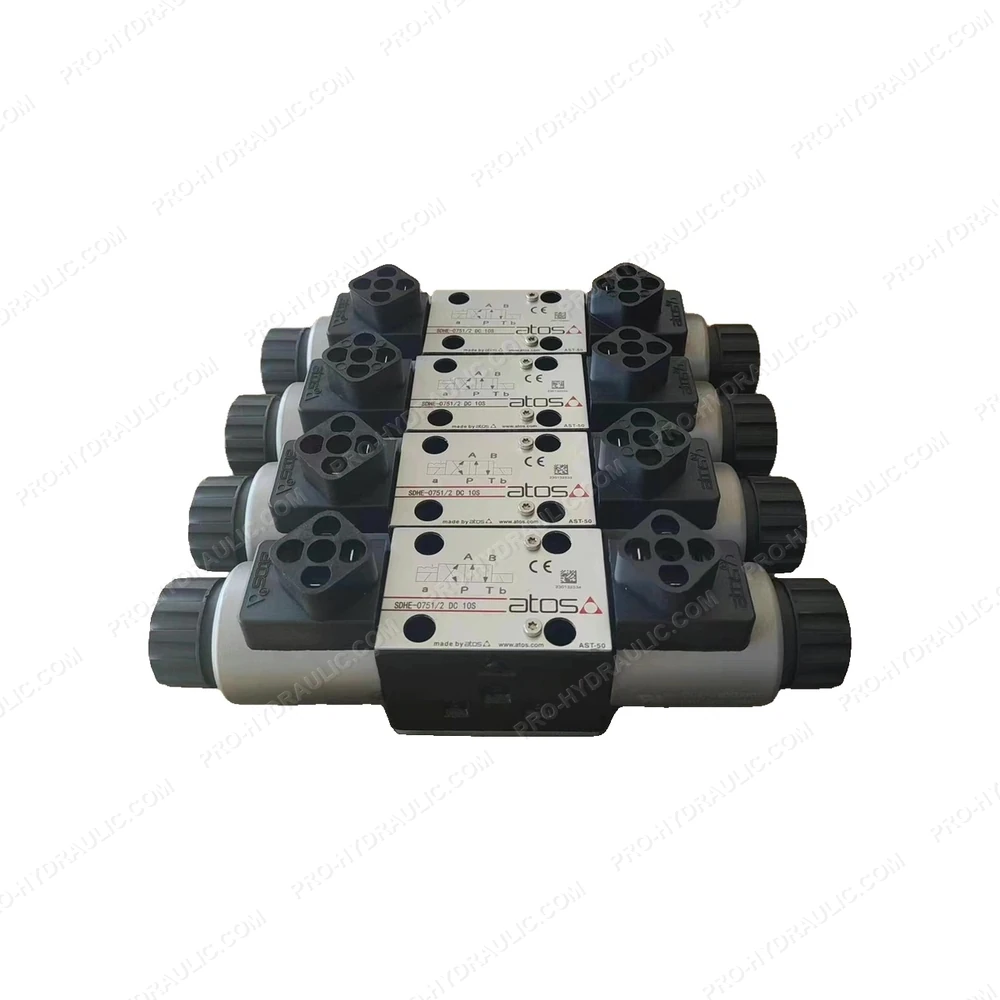

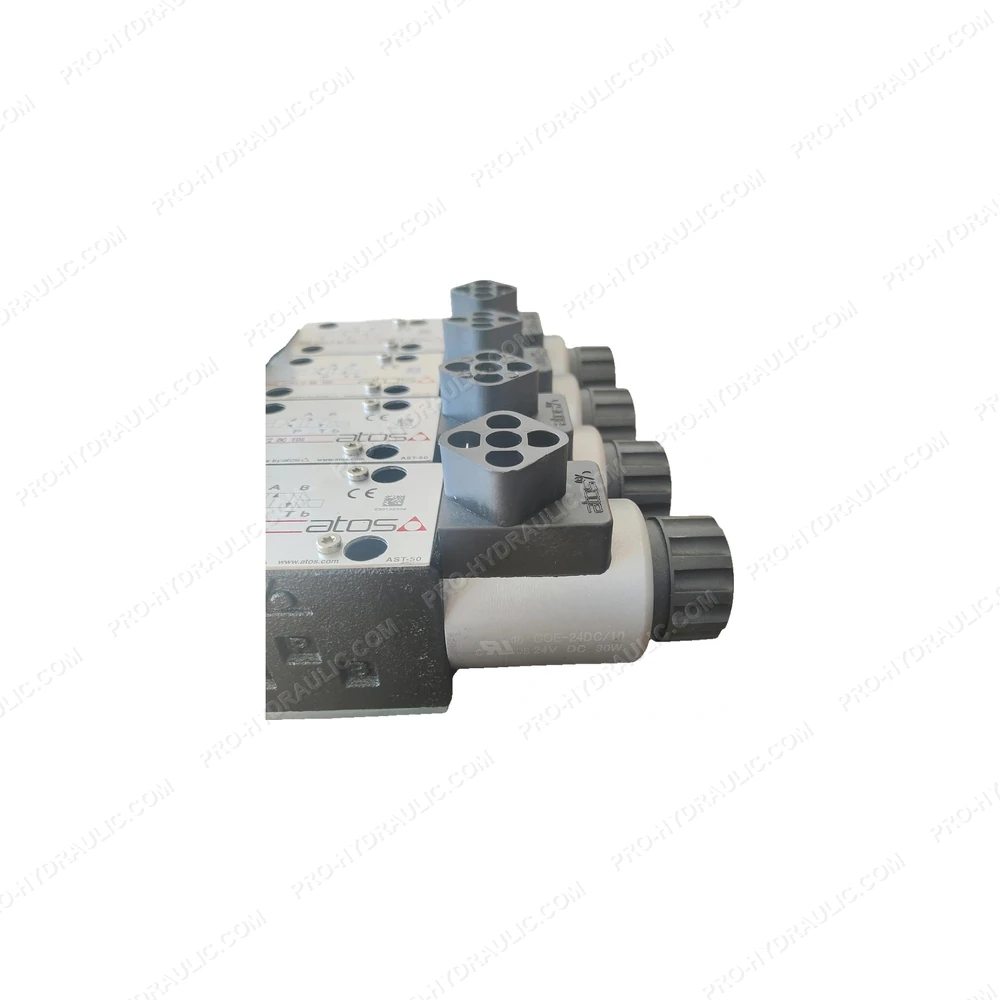

ATOS SDHE-0751/2 DC 10S Solenoid Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine ATOS SDHE-0751/2 DC 10S Solenoid Directional Control Valve. This Italian-made 10-size hydraulic component features a 4/2-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
