The ATOS SHQ-022 10S is a heavy-duty industrial modular flow control valve engineered for precise regulation of actuator speed in hydraulic circuits. Designed for CETOP/ISO 4401 mounting interfaces, it integrates directly into modular stack assemblies without additional piping, ensuring compact installation and reduced leakage points.
ATOS SHQ-022 10S Technical Specifications
| Mounting Standard | CETOP 3 / ISO 4401-03 / DIN 24340-A6 |
|---|---|
| Nominal Size | NG6 (CETOP 3) |
| Max Operating Pressure | 350 bar (5075 psi) |
| Max Flow Rate | 40 l/min (10.5 gpm) |
| Adjustment Type | Manual screw with locknut |
| Fluid Compatibility | Mineral oil, synthetic fluids (NBR seals standard) |
| Viscosity Range | 10–400 cSt |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
| Body Material | Zinc-plated steel |
| Port Connections | Subplate mounting, ISO 4401-03-02-0-05 |
Key Engineering Features
- Two-way flow control with pressure and temperature compensation for stable actuator speed independent of load variations.
- Modular sandwich design enables direct stacking between directional valve and subplate, minimizing piping and pressure drops.
- Precision-machined spool and sleeve assembly ensures repeatable flow settings and low hysteresis.
- Hardened and ground internal components for extended service life in high-cycle industrial applications.
- Optional reverse flow check valve available for meter-in or meter-out configurations.
Industrial Applications
- Machine tool hydraulic systems requiring precise feed rate control.
- Injection molding machines for consistent mold closing and injection speeds.
- Presses and forming equipment where synchronized actuator movement is critical.
- Material handling and lifting systems with variable load conditions.
- Test stands and simulation rigs demanding repeatable flow regulation.
For technical inquiries, dimensional drawings, or replacement support for ATOS SHQ-022 10S, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

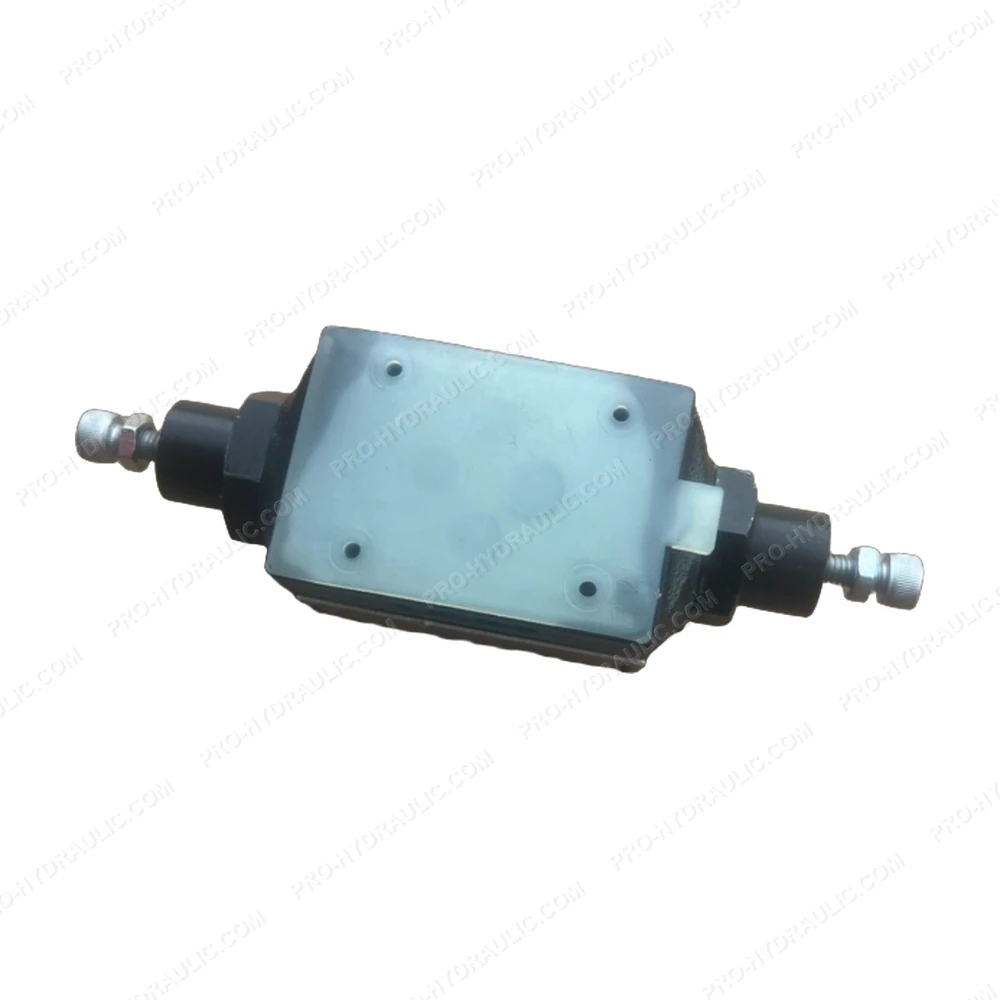

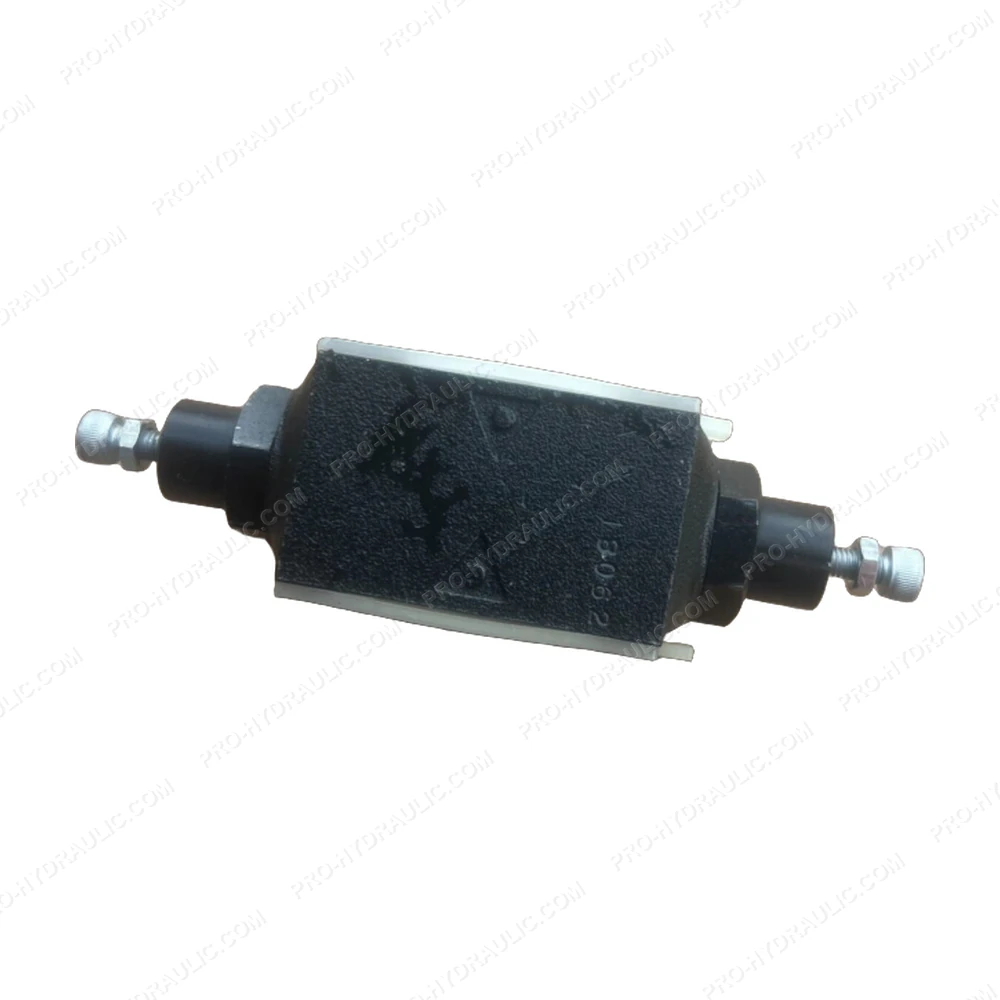

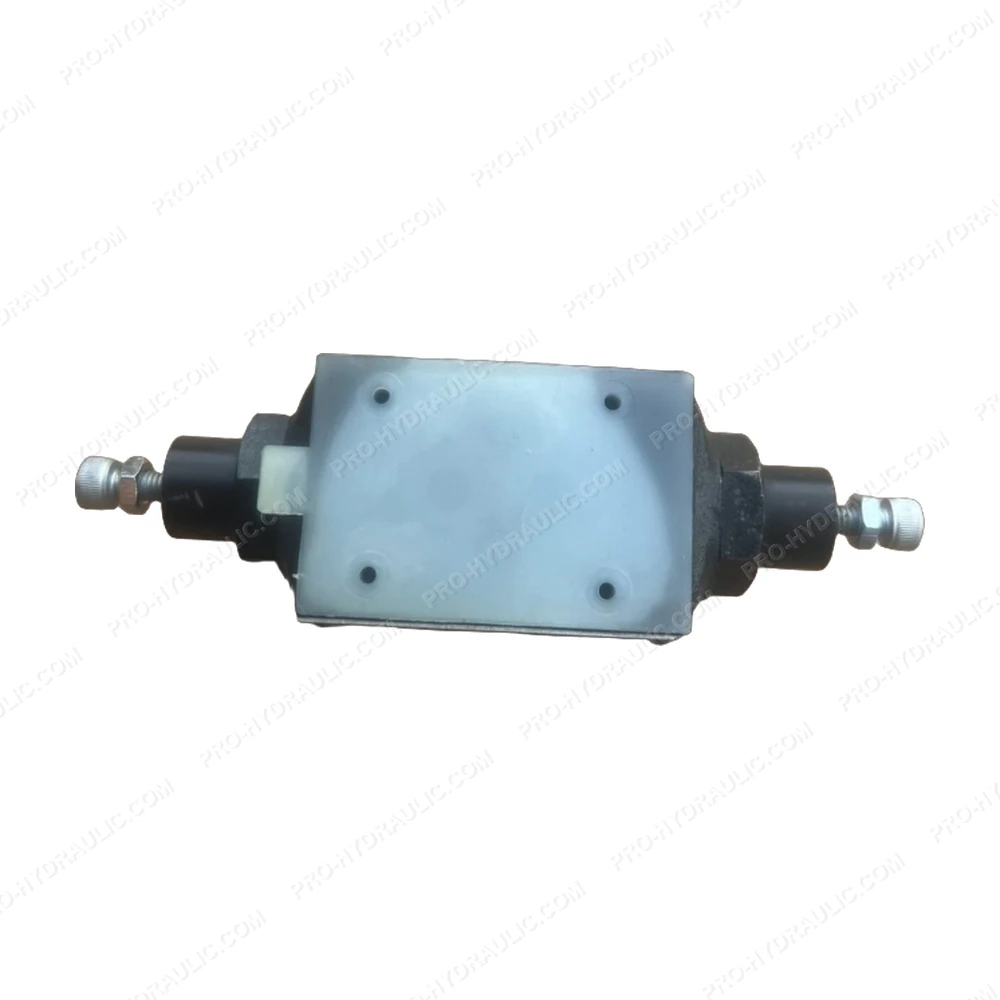

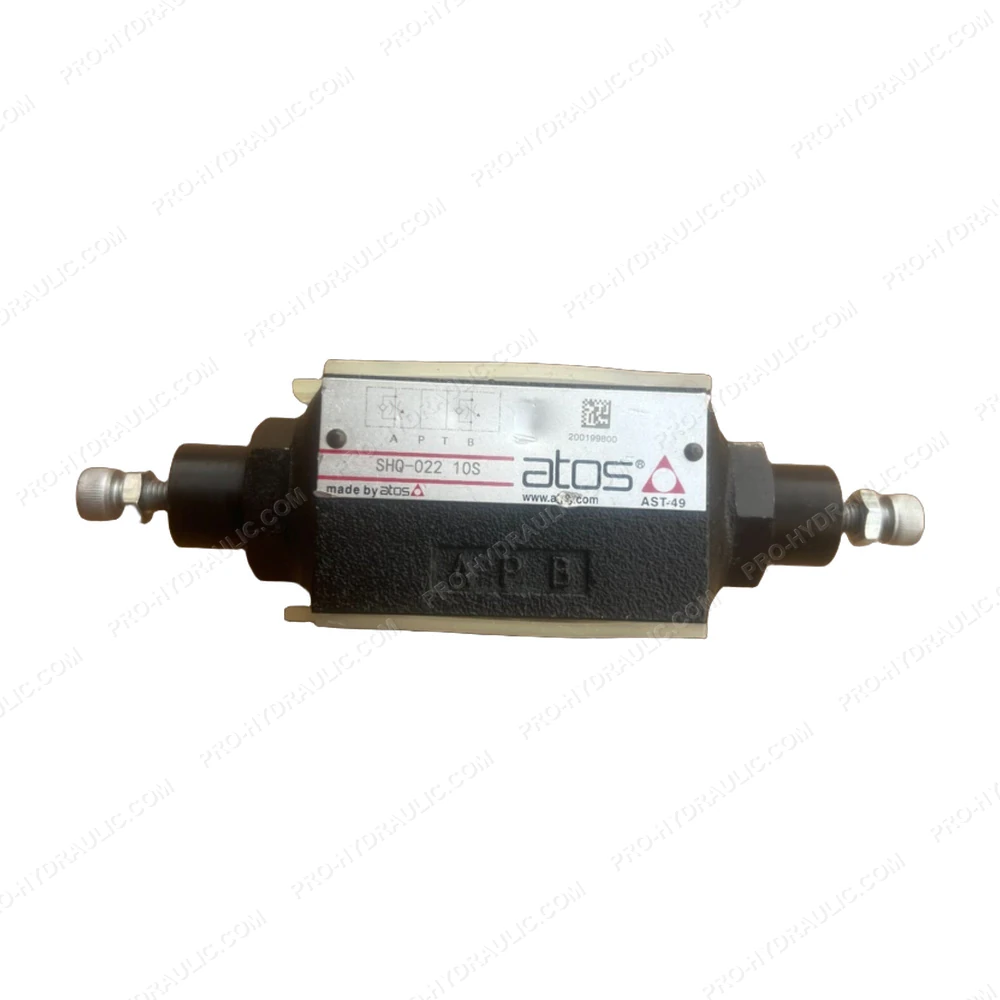

ATOS SHQ-022 10S Modular Flow Control Valve
