The ATOS SHR-012 10S is a heavy-duty industrial modular flow control valve engineered for precise regulation of actuator speed in hydraulic circuits. Designed for ISO 4401 size 10 (CETOP 5) subplate mounting, it integrates directly into modular stack assemblies, providing accurate bidirectional flow control without additional piping. The valve features a pressure-compensated flow control cartridge that maintains a constant set flow rate regardless of load variations, ensuring stable and repeatable motion control in demanding industrial applications.
ATOS SHR-012 10S Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Modular Flow Control Valve |
| Mounting Standard | ISO 4401 size 10 (CETOP 5) |
| Max Operating Pressure | 350 bar (5075 psi) |
| Max Flow Rate | 120 L/min (31.7 gpm) |
| Adjustment Type | Manual screw with locknut |
| Fluid Compatibility | Mineral oil, synthetic fluids (consult data sheet) |
| Seal Material | NBR (Buna-N) standard |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
Key Engineering Features
- Pressure-compensated design maintains constant flow regardless of load changes
- Modular construction for direct stacking on ISO 4401 size 10 subplates
- Precise manual adjustment with locking mechanism to prevent drift
- High-grade steel body with corrosion-resistant treatment
- Bidirectional flow control capability
- Compact footprint minimizes installation space
Industrial Applications
- Hydraulic presses and stamping machines
- Injection molding equipment
- Machine tool feed and positioning systems
- Material handling and lifting equipment
- Steel mill and heavy industrial machinery
- Test stands and hydraulic power units
For technical inquiries, dimensional drawings, or replacement support for ATOS SHR-012 10S, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

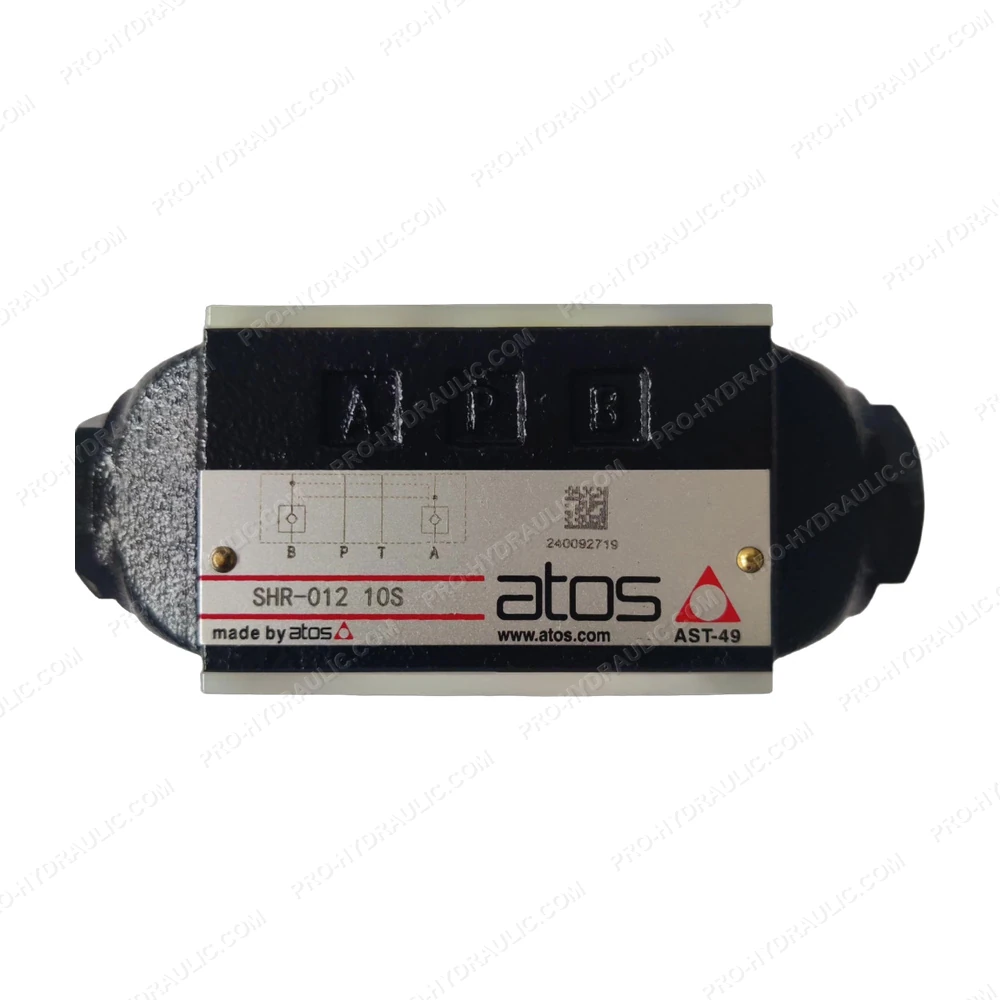

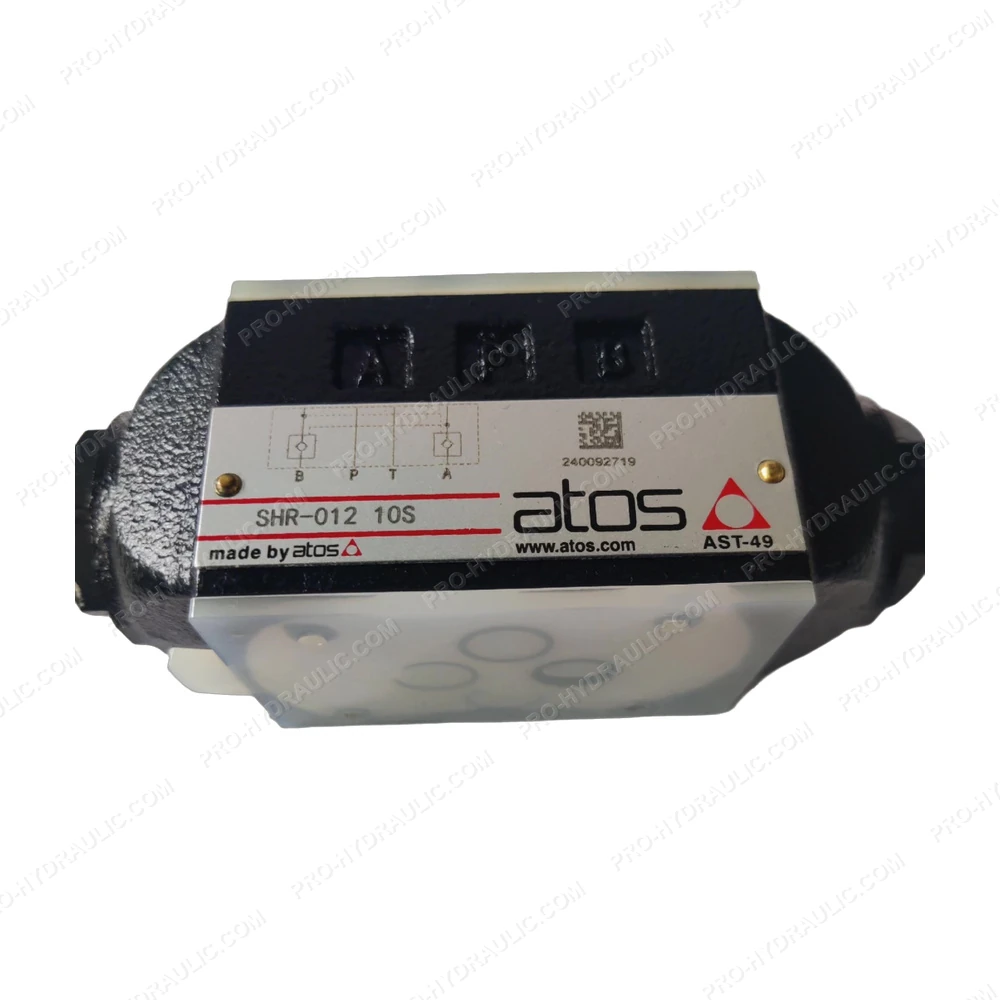

ATOS SHR-012 10S Modular Flow Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the ATOS SHR-012 10S Modular Flow Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
