The AVENTICS 0820019529 is a heavy-duty industrial pneumatic control valve engineered for precise directional control of compressed air in demanding automation and process systems. As part of the AVENTICS Series 581 valve platform, it features a robust spool-and-sleeve design with a wet-pin armature and interchangeable solenoid coil, ensuring consistent shifting forces and long service life under continuous duty.
AVENTICS 0820019529 Technical Specifications
| Function | 5/2-way directional control valve |
|---|---|
| Actuation | Electrical solenoid, wet-pin armature |
| Return Type | Spring return |
| Port Size | G 1/4 (ISO 228) |
| Operating Pressure | 2 to 10 bar |
| Flow Rate | 1200 l/min (at 6 bar, Δp = 1 bar) |
| Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Mounting Standard | ISO 5599-1 / CETOP 3 |
| Body Material | Die-cast aluminum |
| Seal Material | NBR |
| Media | Compressed air, filtered (5 µm), lubricated or non-lubricated |
| Temperature Range | -10 °C to +50 °C |
| Protection Class | IP65 |
Key Engineering Features
- Wet-pin solenoid armature design eliminates dynamic seals on the spool, reducing wear and leakage
- High flow capacity with optimized internal flow paths for rapid cylinder actuation
- Manual override for commissioning and emergency operation
- Interchangeable coil system for flexible voltage configuration
- ISO 5599-1 / CETOP 3 mounting interface for direct manifold or sub-base installation
- Robust die-cast aluminum body with corrosion-resistant surface treatment
Industrial Applications
- Automated assembly and handling systems
- Packaging machinery and material handling equipment
- Machine tool and CNC pneumatic control circuits
- Process automation valve manifolds
- Food and beverage production lines (with appropriate air treatment)
For technical inquiries, dimensional drawings, or replacement support for AVENTICS 0820019529, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

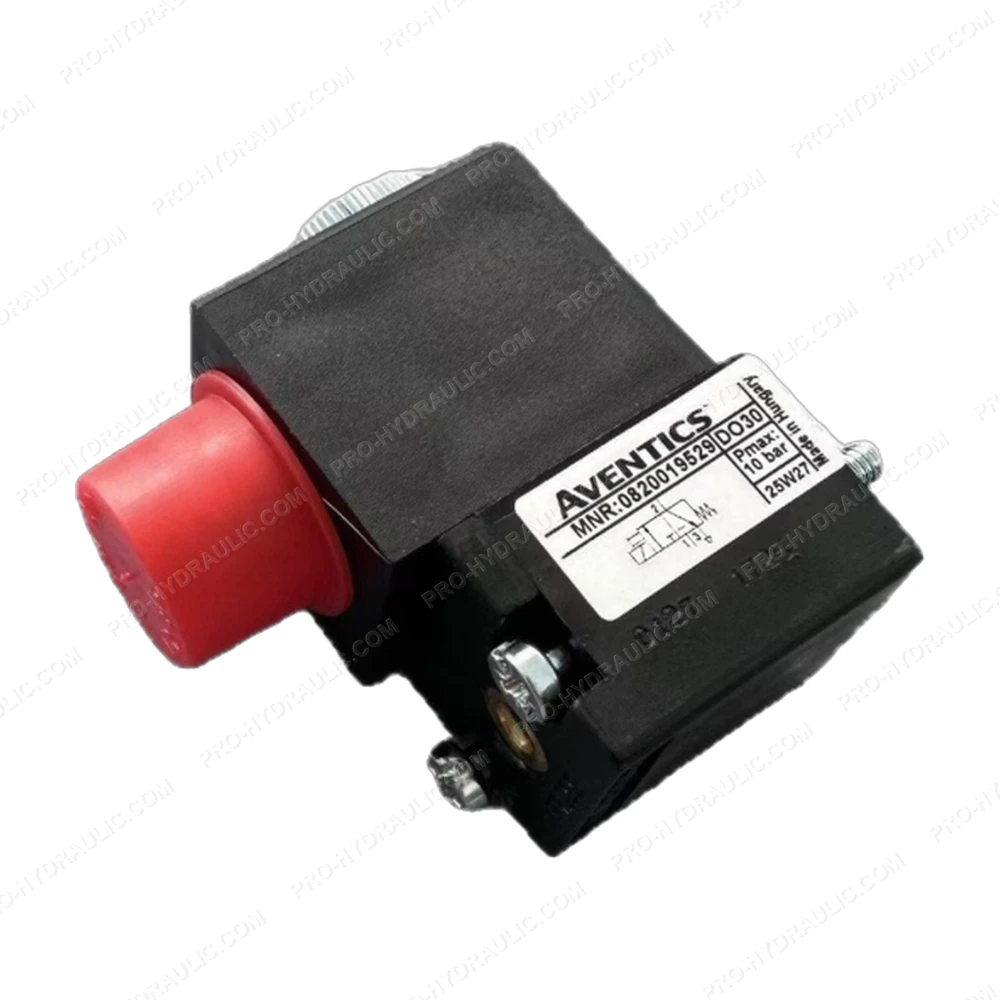

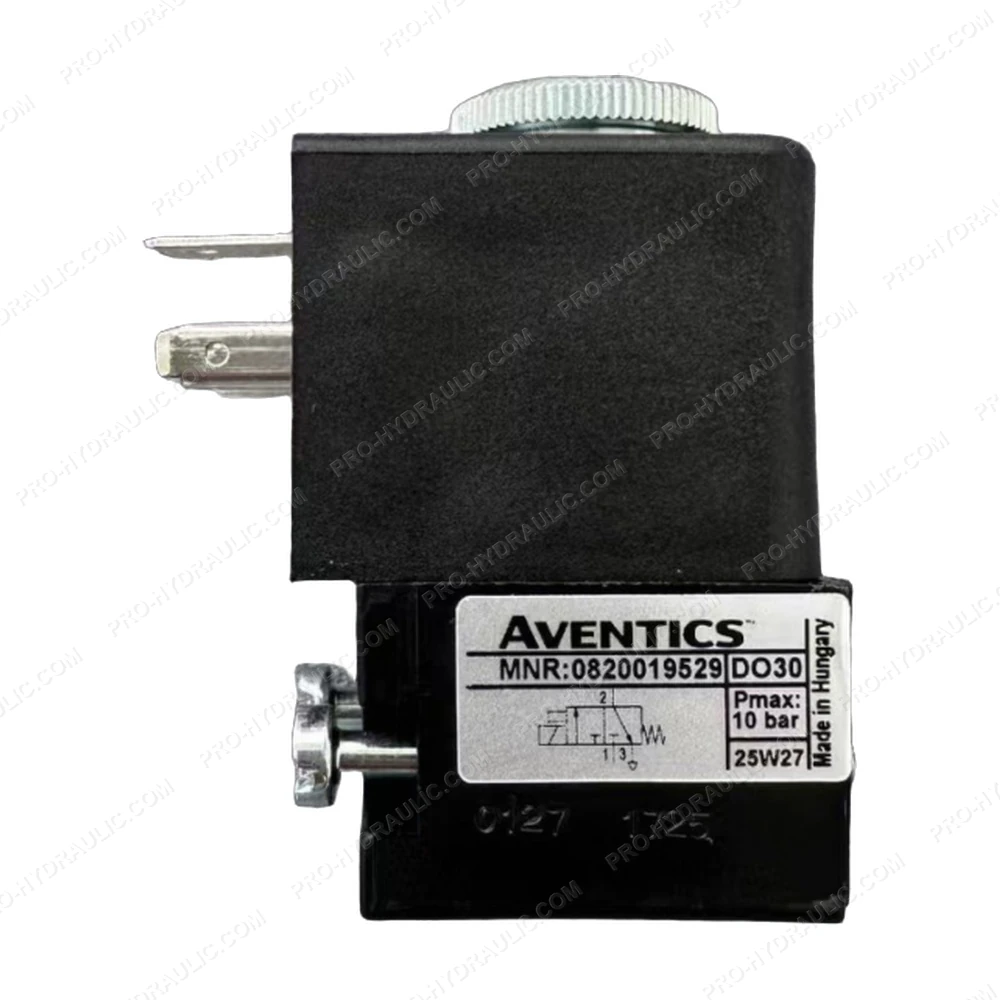

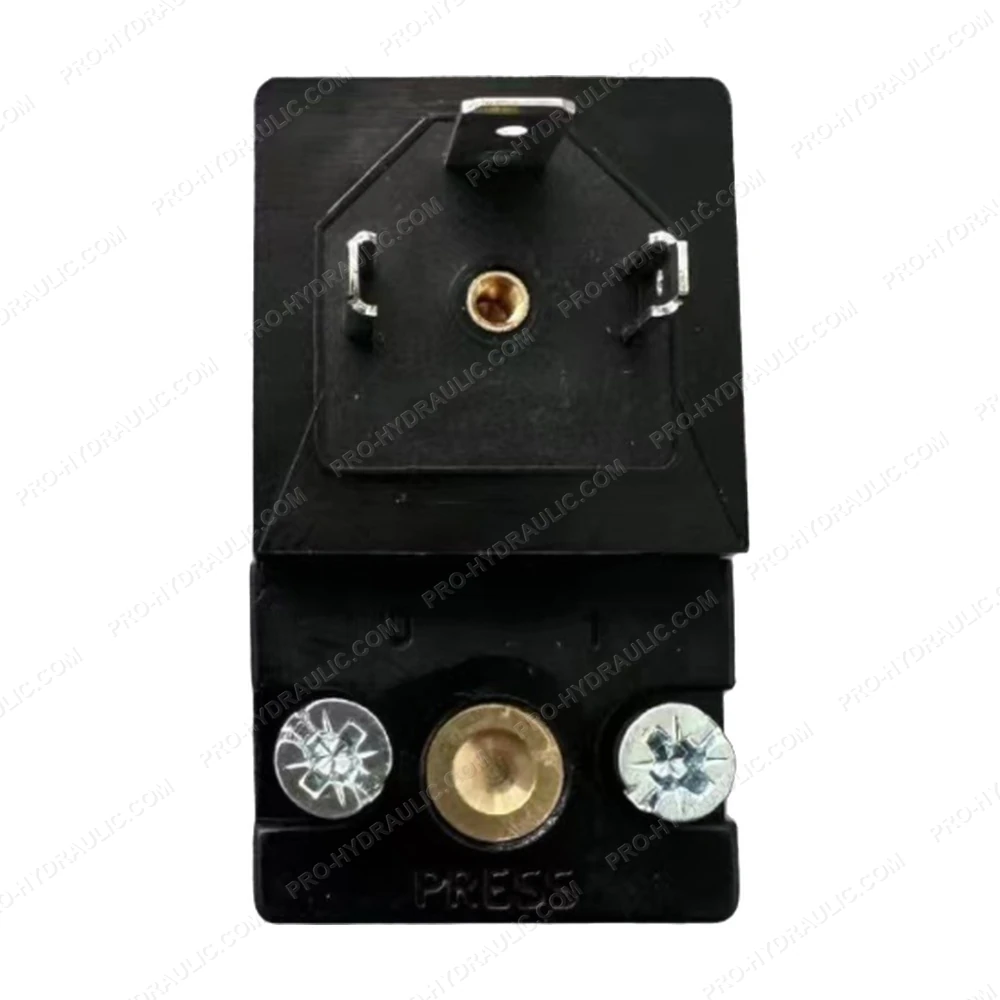

AVENTICS 0820019529 Pneumatic Control Valve
