Product Overview
The AVENTICS 0820057105 is a pneumatically actuated directional control valve engineered for precise control of compressed air flow in industrial automation and process systems. Part of the AVENTICS 500 Series platform, this 5/2-way solenoid valve features a robust spool-and-sleeve design that delivers fast, repeatable switching for double-acting cylinders and other pneumatic actuators. With a nominal flow rate optimized for standard industrial air supply, the 0820057105 provides reliable directional control in demanding environments where consistent response time and long service life are critical. Its compact body and industry-standard interface make it a direct replacement for OEM-installed valves in packaging, material handling, and general process control applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve (5/2-way solenoid actuated) |
| Model Designation | AVENTICS 0820057105 |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi) |
| Mounting & Connection | Standard ISO 15407-1 / AVENTICS manifold interface |
| Valve Function | 5/2-way, single solenoid, spring return |
| Actuation Type | Electrical solenoid with manual override |
| Nominal Flow Rate | Optimized for standard industrial pneumatic circuits (Qn approx. 1000–1200 l/min) |
| Operating Temperature | -10°C to +50°C (standard industrial range) |
Engineering Features & Advantages
- Precision Performance: Balanced spool design ensures consistent shifting forces and minimal pressure drop across the valve, delivering reliable directional control for double-acting pneumatic actuators.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with a hardened spool and wear-resistant seals rated for millions of switching cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original AVENTICS OEM standards, including ISO 15407-1 manifold mounting and standard electrical connector interface.
- Fast Response Time: Solenoid actuation with spring return provides rapid, repeatable switching for high-cycle automation applications.
- Manual Override: Integrated manual override allows for safe system testing and troubleshooting without electrical power.
Typical Industrial Applications
The AVENTICS 0820057105 pneumatic directional control valve is widely deployed in heavy industrial scenarios including plastic injection molding machines for mold clamping and ejection control, packaging and palletizing systems for actuator sequencing, material handling and assembly automation for double-acting cylinder operation, and general process control systems requiring reliable compressed air directional switching. It is also suitable for textile machinery, printing equipment, and food processing lines where clean, dry compressed air is used as the working medium.
PRODUCT IMAGES

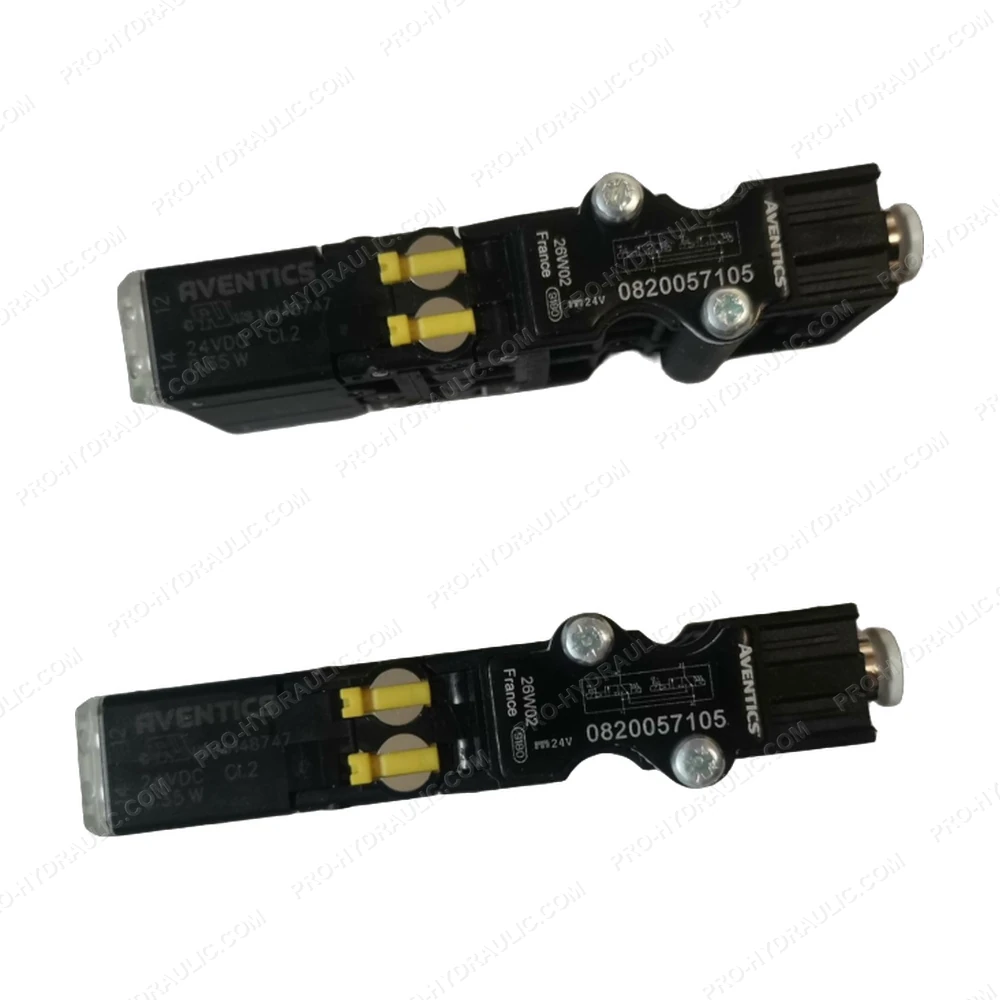

AVENTICS 0820057105 Pneumatic Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AVENTICS 0820057105 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
