Product Overview
The AVENTICS 0820060501 is a pneumatically actuated directional control valve engineered for precise control of compressed air flow in industrial automation and process systems. Part of the AVENTICS 500 Series (Titan) platform, this 5/2-way valve utilizes a robust spool-and-sleeve design that delivers fast, repeatable switching with minimal pressure drop. As a directional control component, it governs the start, stop, and direction of actuator movement by routing supply air to the appropriate outlet port while exhausting the opposite side. Its compact body, high flow capacity, and durable construction make it a reliable interface between pilot control signals and pneumatic drive elements in demanding factory environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve (5/2-way, spool type) |
| Model Designation | 0820060501 |
| Operating Pressure | Standard Industrial Grade (up to 10 bar / 145 psi) |
| Actuation Type | Pneumatic pilot / solenoid pilot (per model configuration) |
| Mounting & Connection | Standard ISO / AVENTICS interface, sub-base or manifold mount |
| Port Size | G1/4 (industry-standard for 500 Series platform) |
| Flow Rate | High-flow spool design for rapid cylinder actuation |
| Seal Material | NBR / Nitrile (standard industrial pneumatic media compatibility) |
Engineering Features & Advantages
- Precision Spool Metering: The hardened, precision-ground spool and sleeve assembly ensures minimal internal leakage, fast response times, and consistent switching behavior across millions of cycles.
- High Flow Capacity: Optimized internal flow paths reduce pressure drop, enabling rapid extension and retraction of pneumatic actuators for higher machine throughput.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust body construction and wear-resistant sealing elements that withstand contaminated plant air and temperature fluctuations.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original AVENTICS 500 Series OEM standards, ensuring drop-in interchangeability without modification to manifolds or piping.
- Versatile Actuation Options: Available with pneumatic or solenoid pilot actuation, allowing seamless integration into both manual and PLC-controlled automation architectures.
Typical Industrial Applications
This directional control valve is widely deployed in heavy industrial scenarios including plastic injection molding machines for mold open/close and ejector sequencing, metallurgical presses for clamping and material handling circuits, packaging and assembly lines for high-speed actuator control, and CNC machine tools for tool changer and workpiece clamping functions. It is equally suited to general factory automation, marine pneumatic systems, and process valve piloting where reliable directional air control is critical.
PRODUCT IMAGES

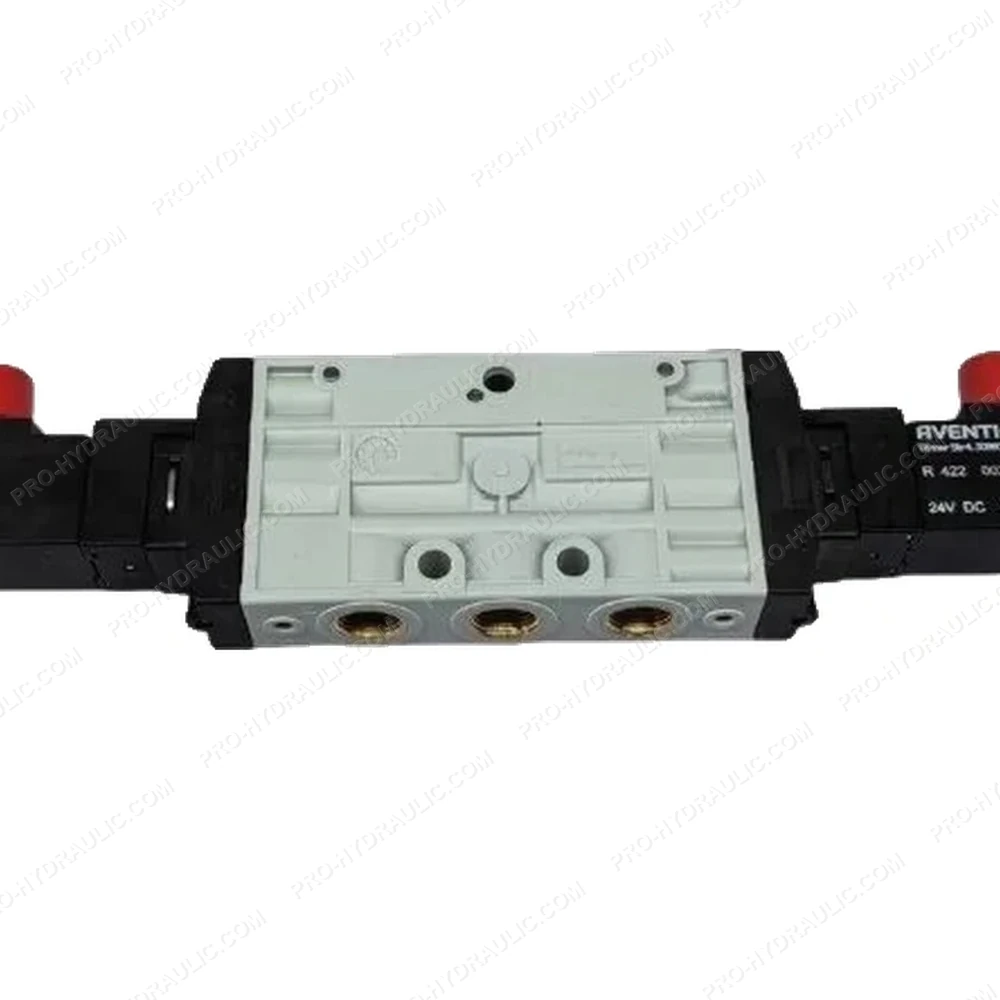

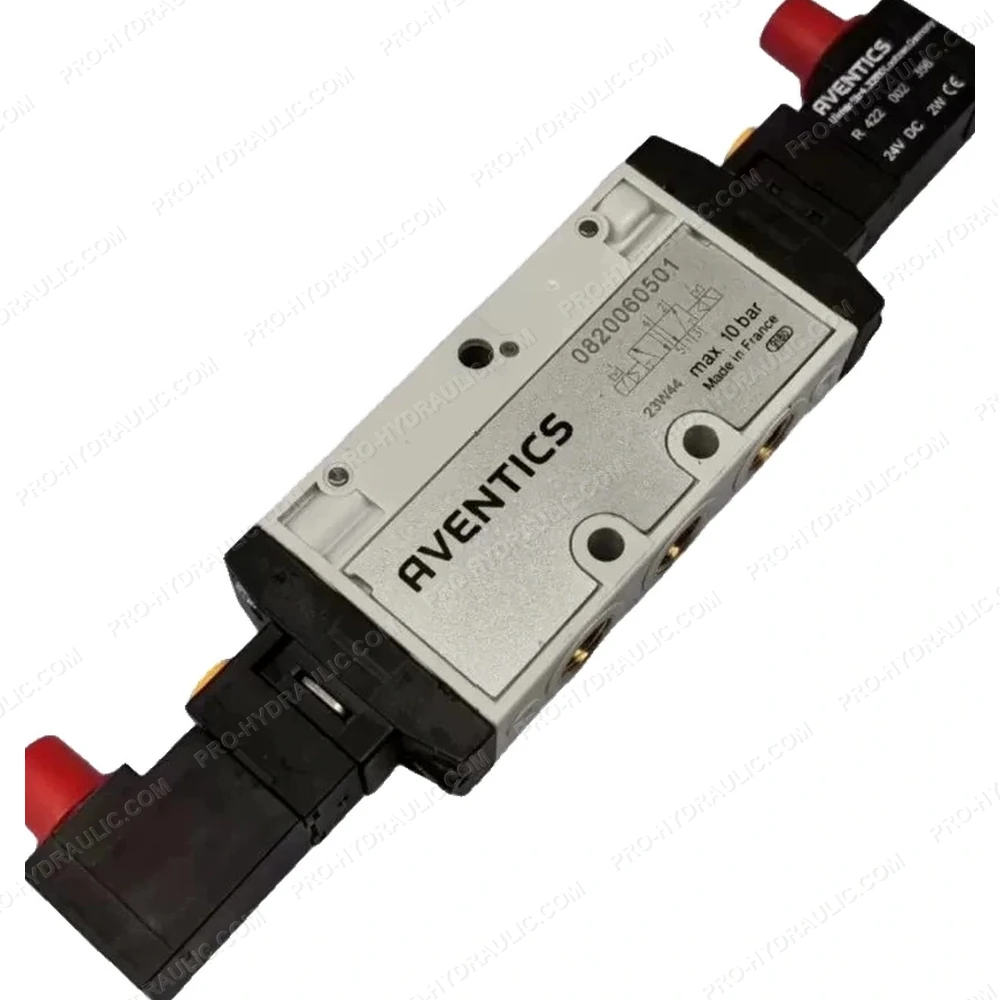

AVENTICS 0820060501 Pneumatic Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AVENTICS 0820060501 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
