Product Overview
The AVENTICS 0821003025 is a pneumatically actuated directional control valve engineered for precise control of compressed air flow in industrial automation and process systems. Part of the AVENTICS 500 series, this valve utilizes a robust spool-and-sleeve design to direct, divert, or block airflow within pneumatic circuits. Its 5/2-way configuration allows for dual-directional control of double-acting cylinders, making it a critical component in factory automation, packaging machinery, and material handling equipment. The valve is designed for high cycle rates and long service life, ensuring reliable performance in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve |
| Model Designation | 0821003025 |
| Valve Function | 5/2-way, single solenoid, spring return |
| Operating Pressure | 2 to 10 bar (29 to 145 psi) |
| Actuation Type | Electrical solenoid with manual override |
| Mounting & Connection | Sub-base mounting, ISO 15407-1 / CNOMO interface |
| Port Size | G 1/4 (BSPP) or NPT 1/4 (depending on variant) |
| Flow Rate | Up to 1200 l/min (at 6 bar) |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Body Material | Die-cast aluminum, anodized |
| Seal Material | NBR (Buna-N) / Polyurethane |
| Electrical Connection | DIN 43650 Form A / ISO 4400 plug |
Engineering Features & Advantages
- Precision Performance: The pneumatic directional control valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original AVENTICS standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings of 2 to 10 bar (29 to 145 psi) and flow rates up to 1200 l/min, supporting stable operation across the full working range.
Typical Industrial Applications
The valve is designed for high cycle rates and long service life, ensuring reliable performance in demanding industrial environments.
PRODUCT IMAGES

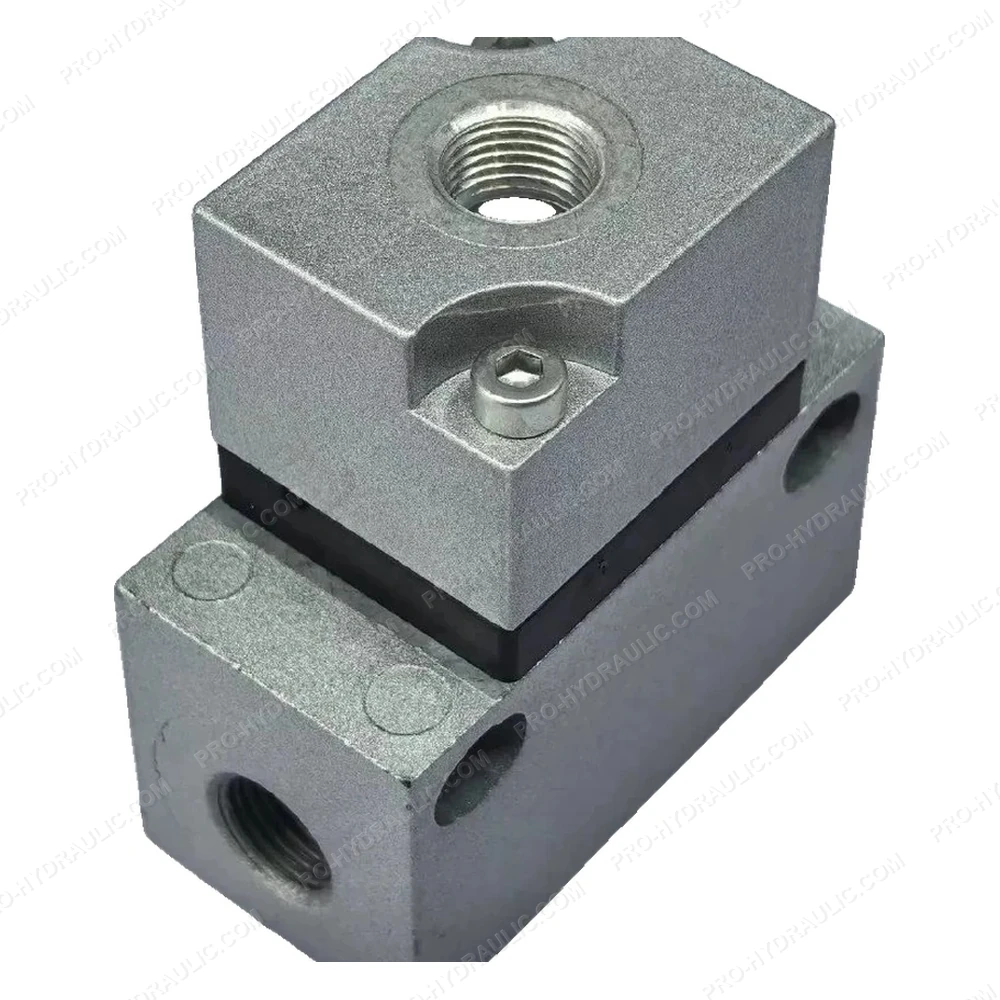

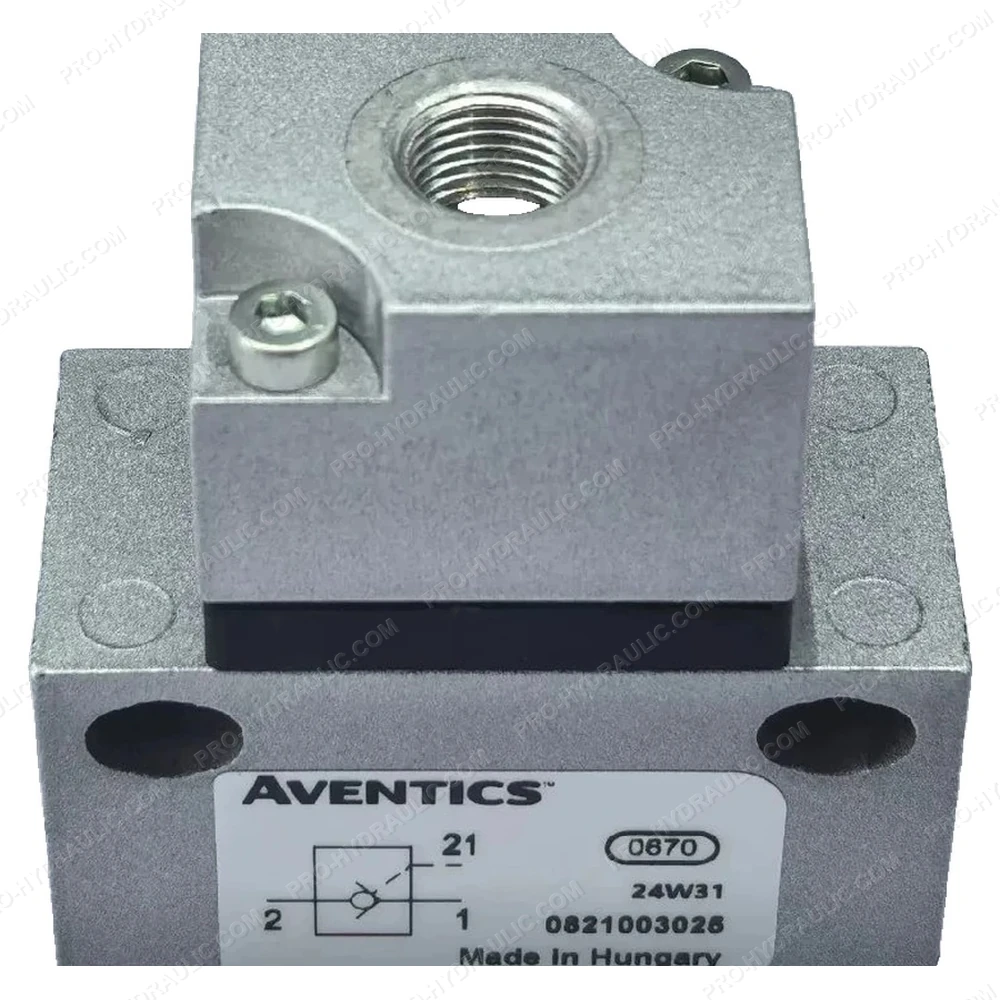

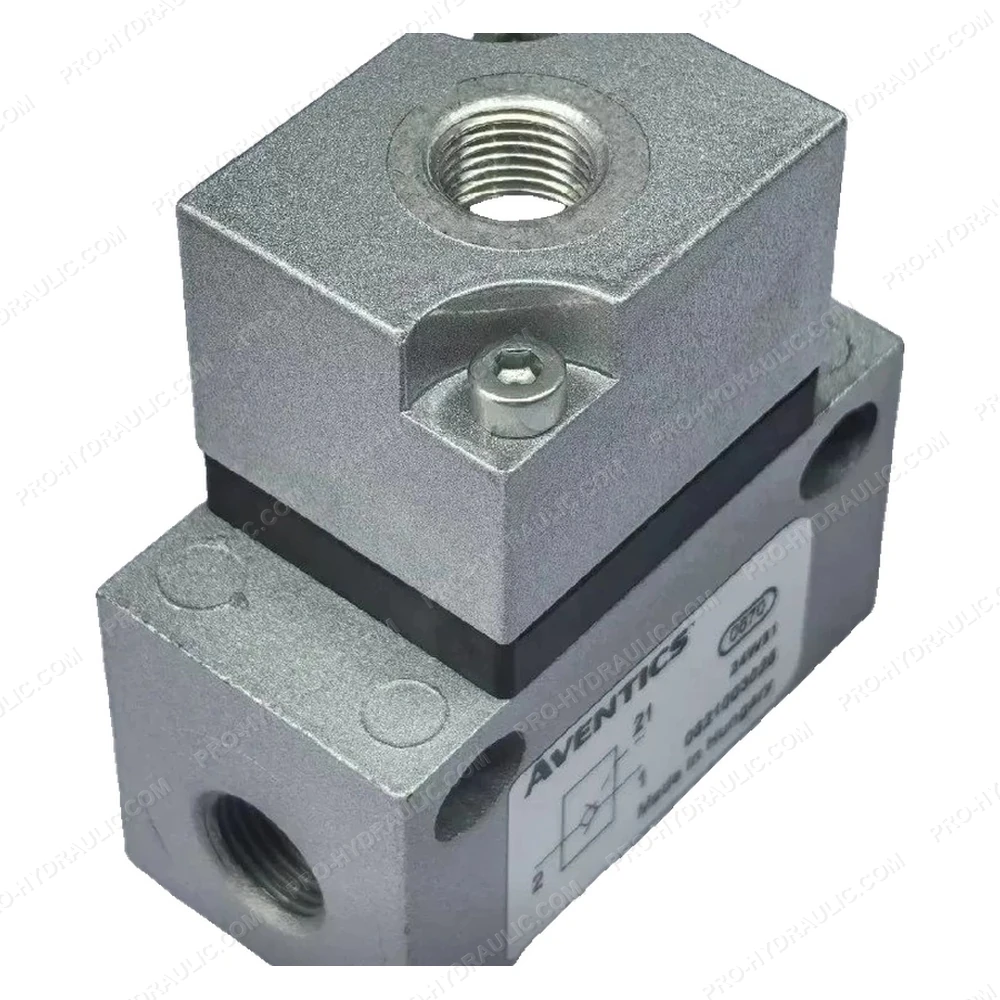

AVENTICS 0821003025 Pneumatic Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AVENTICS 0821003025 Solenoid Directional Control Valve. This German-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
