The AVENTICS 0821300934 is a heavy-duty industrial pneumatic control valve engineered for precise directional control of compressed air in demanding automation and process systems. It features a robust spool-and-sleeve design with a wet-pin armature and encapsulated solenoid coil, ensuring rapid, reliable shifting and long service life under continuous duty.
AVENTICS 0821300934 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | 5/2-way directional control valve |
| Actuation | Electrical solenoid, wet-pin armature |
| Mounting Standard | CETOP / ISO 5599-1, size 1 |
| Port Size | 1/4″ NPT (or G1/4) |
| Operating Pressure | 2 to 10 bar (29 to 145 psi) |
| Flow Rate | 1200 l/min (at 6 bar) |
| Voltage | 24 V DC (other voltages available) |
| Power Consumption | 2.5 W |
| Body Material | Anodized aluminum |
| Seal Material | NBR / FKM |
| Temperature Range | -10°C to +60°C (14°F to 140°F) |
Key Engineering Features
- Wet-pin armature design for high shifting forces and minimal wear
- Encapsulated solenoid coil with integrated manual override
- CETOP/ISO 5599-1 mounting for direct interchangeability
- Hard-anodized aluminum body for corrosion resistance
- High flow capacity with low pressure drop
- Optional integrated pilot exhaust and external pilot supply
Industrial Applications
- Automated assembly and packaging machinery
- Material handling and conveyor control systems
- Food and beverage processing lines (with appropriate seals)
- Pharmaceutical and cleanroom pneumatic circuits
- General industrial automation and robotics
For technical inquiries, dimensional drawings, or replacement support for AVENTICS 0821300934, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

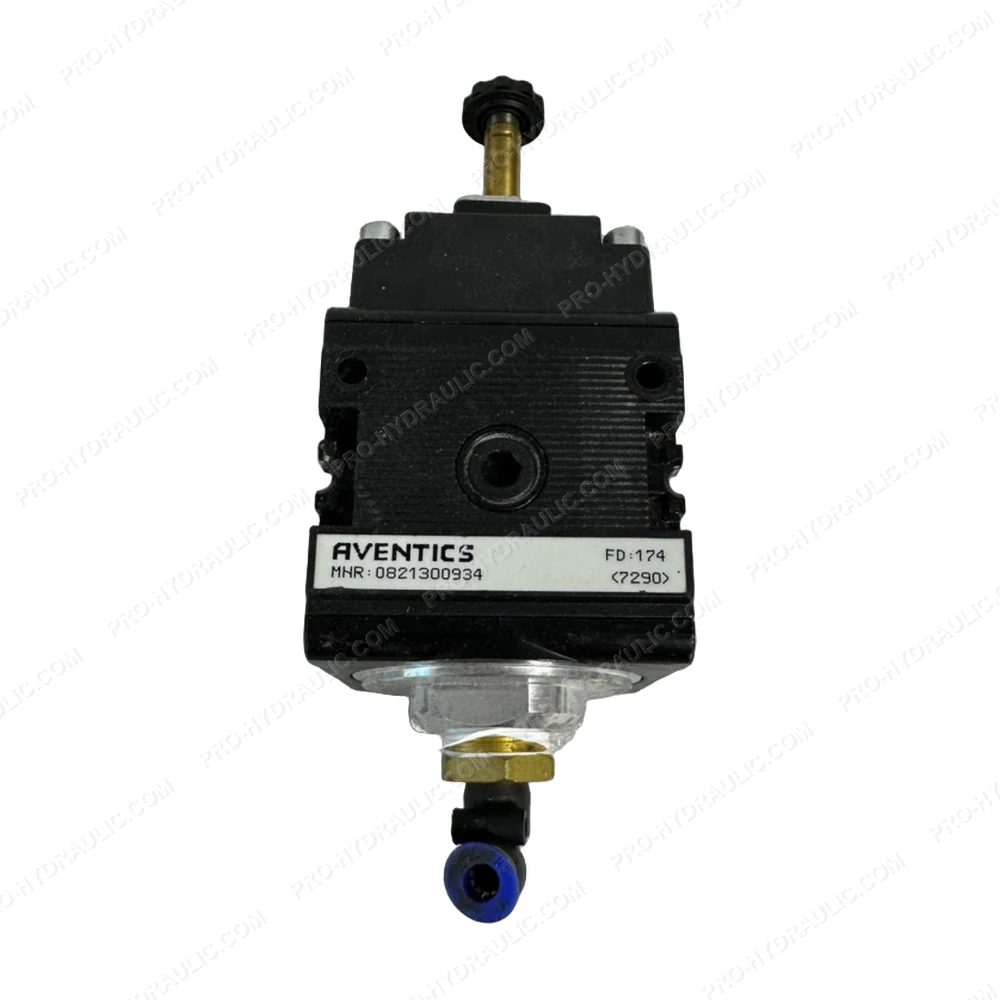

AVENTICS 0821300934 Pneumatic Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the AVENTICS 0821300934 Pneumatic Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
