The AVENTICS 3630109000 is a heavy-duty industrial manual pneumatic valve engineered for precise directional control of compressed air in demanding automation and process environments. As part of the AVENTICS Series 363, this valve features a robust spool-and-sleeve design with a mechanical lever or push-button actuator, providing reliable, repeatable operation without electrical power. Its compact, modular construction allows for easy integration into existing pneumatic circuits, while the high-quality seals and corrosion-resistant materials ensure long service life and minimal maintenance.
AVENTICS 3630109000 Technical Specifications
| Attribute | Specification |
|---|---|
| Valve Type | Manual Pneumatic Directional Control Valve |
| Actuation | Manual (lever / push-button) |
| Function | 5/2-way, 4/2-way, or 3/2-way (configurable) |
| Port Size | G1/4, G1/8, or NPT equivalent |
| Operating Pressure | 0 to 10 bar (0 to 145 psi) |
| Flow Rate | Up to 1200 l/min |
| Media | Compressed air, filtered (5 µm), lubricated or non-lubricated |
| Body Material | Anodized aluminum |
| Seal Material | NBR / Polyurethane |
| Mounting | Inline or manifold (CETOP / ISO 5599-1 compatible) |
| Temperature Range | -10°C to +60°C (14°F to 140°F) |
Key Engineering Features
- Mechanical manual override for reliable operation in power-loss or maintenance scenarios
- Precision-ground spool and honed sleeve for minimal leakage and long cycle life
- Modular design compatible with AVENTICS 363 series and standard ISO 5599-1 manifolds
- High flow capacity with low pressure drop for efficient pneumatic system performance
- Robust anodized aluminum body resists corrosion and mechanical wear
- Simple manual actuation reduces wiring and control system complexity
Industrial Applications
- Factory automation and assembly lines
- Packaging and material handling equipment
- Machine tools and CNC systems
- Process control and valve islands
- Textile, printing, and woodworking machinery
- Safety circuits and emergency shut-off systems
For technical inquiries, dimensional drawings, or replacement support for AVENTICS 3630109000, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

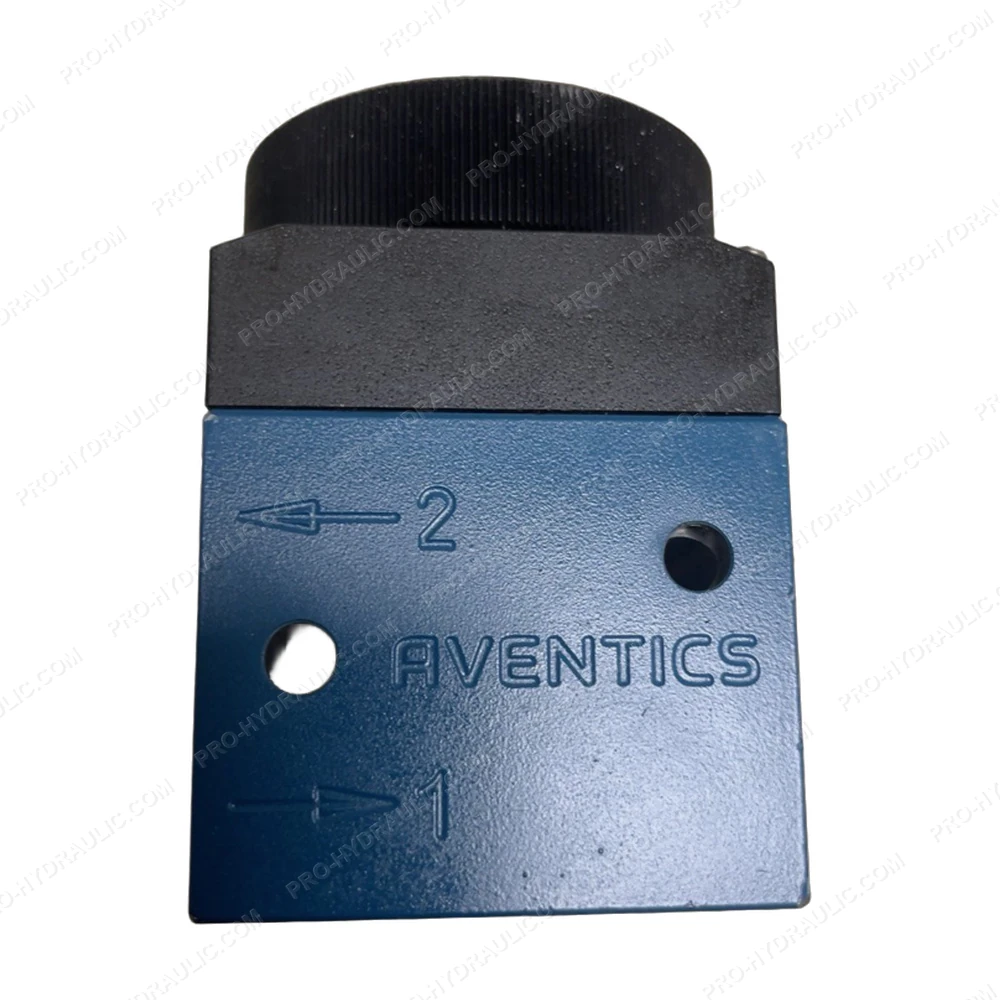

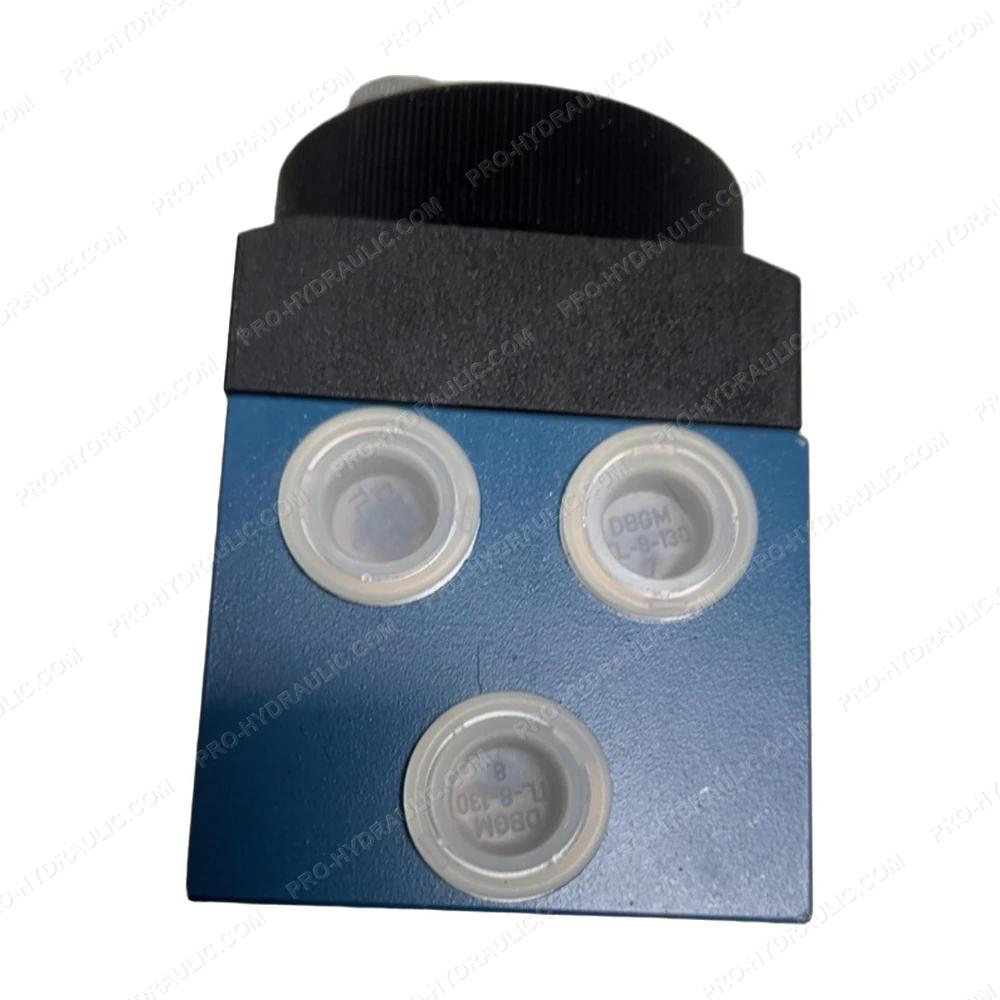

AVENTICS 3630109000 Manual Pneumatic Valve
