The AVENTICS 5342010100 is a heavy-duty industrial pneumatic directional valve engineered for precise control of compressed air in automated and process systems. This 5/2-way valve features a robust spool design and a wet-pin armature solenoid, ensuring rapid response and long service life in demanding environments.
AVENTICS 5342010100 Technical Specifications
| Valve Type | 5/2-way directional control valve |
| Actuation | Electrical solenoid, wet-pin armature |
| Mounting Standard | CETOP / ISO 5599-1, size 1 |
| Port Size | 1/4″ NPT |
| Operating Pressure | 2 to 10 bar |
| Flow Rate | 1200 l/min |
| Voltage | 24 V DC |
| Body Material | Aluminum alloy |
| Seal Material | NBR |
| Temperature Range | -10°C to +60°C |
Key Engineering Features
- Precision-ground spool for minimal leakage and consistent shifting
- Wet-pin armature design reduces wear and extends solenoid life
- CETOP/ISO 5599-1 mounting for direct interchangeability
- High flow capacity with low pressure drop
- Manual override for emergency operation
- Corrosion-resistant aluminum body
Industrial Applications
- Automated assembly and packaging machinery
- Pneumatic actuation in food and beverage processing
- Material handling and conveyor control systems
- General industrial automation and robotics
- Process valve piloting in chemical and pharmaceutical plants
For technical inquiries, dimensional drawings, or replacement support for AVENTICS 5342010100, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

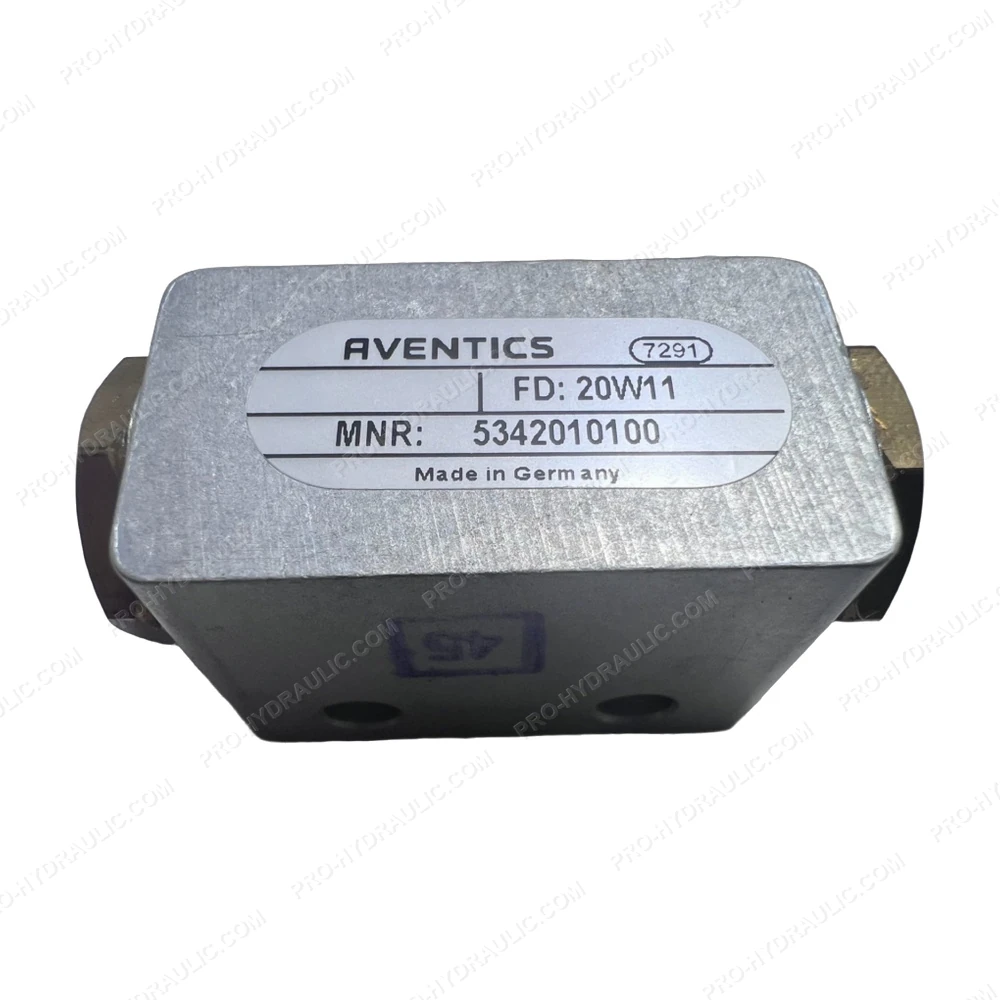

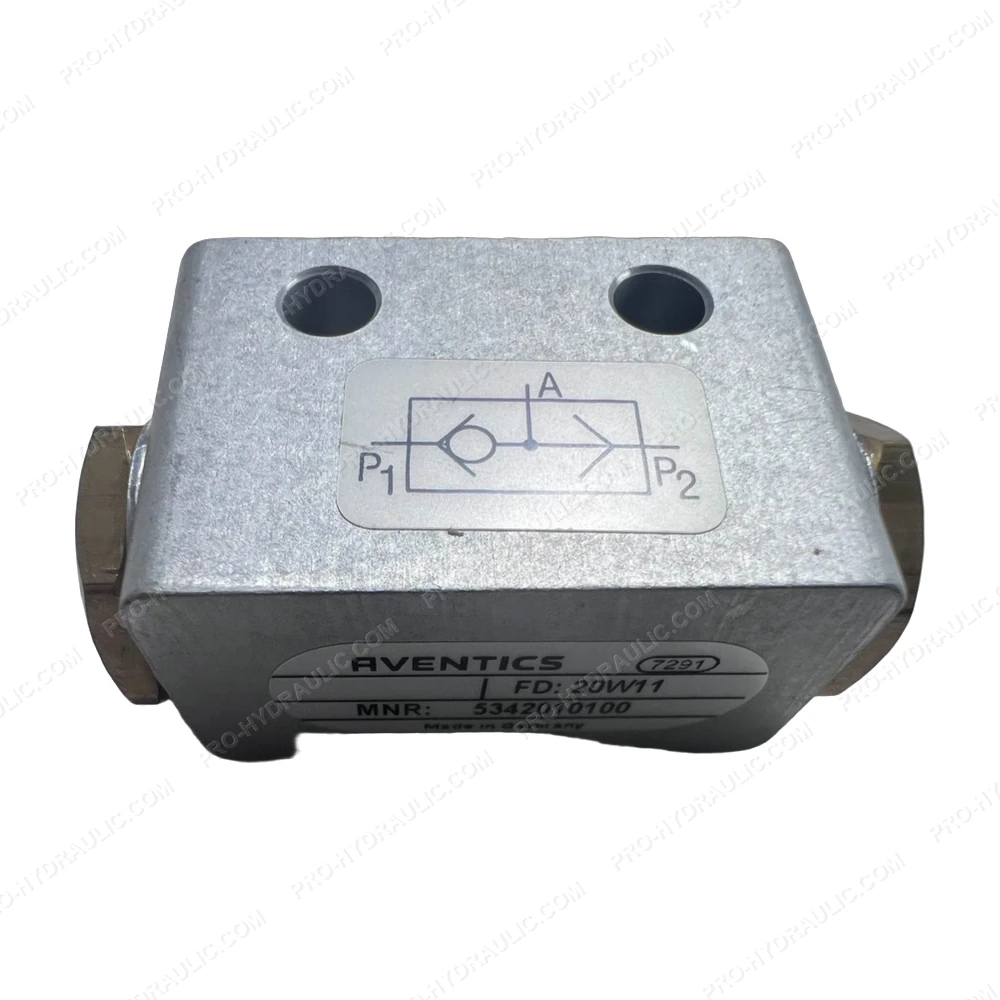

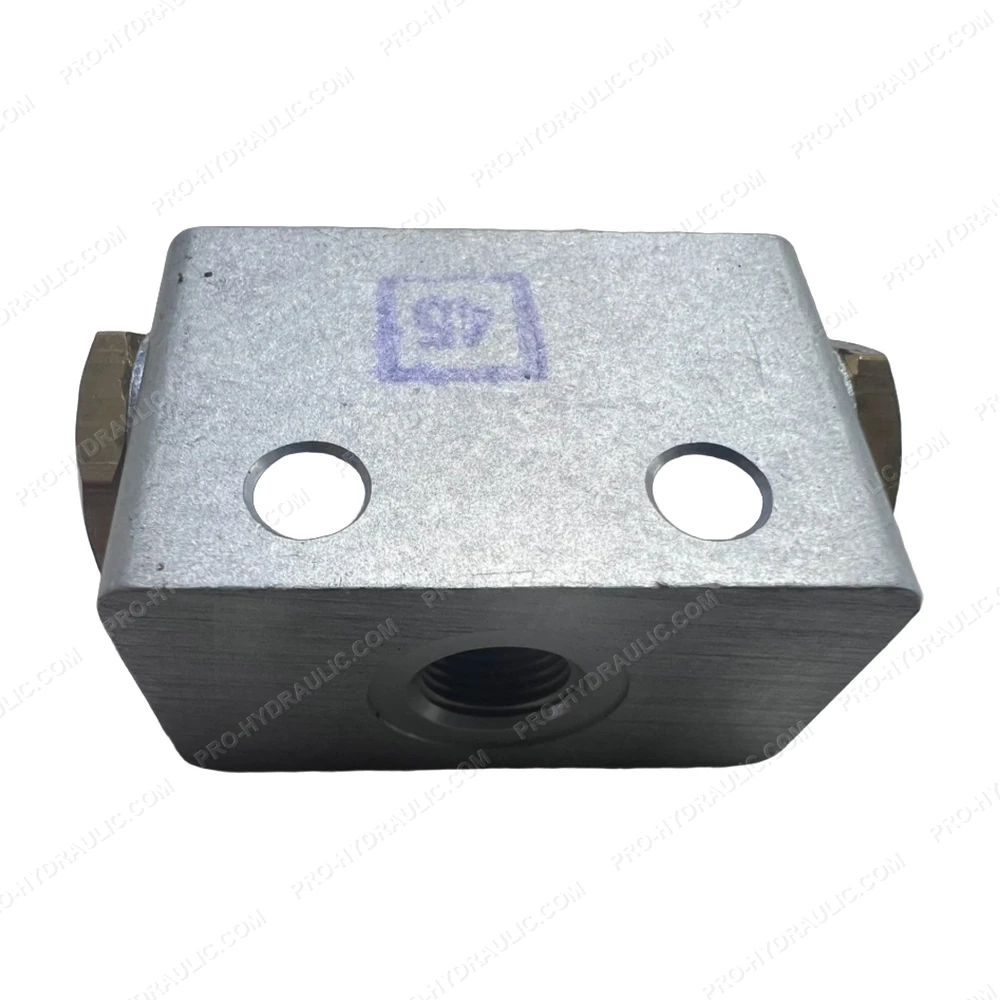

AVENTICS 5342010100 Pneumatic Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the AVENTICS 5342010100 Pneumatic Directional Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
