Product Overview
The AVENTICS 5610141320 ED05 is a high-precision electropneumatic pressure control valve engineered for accurate, closed-loop regulation of compressed air and neutral gases in industrial process systems. As part of the AVENTICS ED05 series, this proportional pressure regulator converts a variable electrical command signal into a linearly proportional output pressure, enabling precise, dynamic control of downstream actuators, cylinders, and pneumatic circuits. The ED05 platform is widely recognized for its fast response, minimal hysteresis, and stable pressure regulation across varying flow demands, making it a critical control component in automated manufacturing, packaging, and process automation environments. Its compact, modular design allows direct integration into valve manifolds or standalone inline installation, delivering reliable electro-pneumatic signal conversion with repeatable performance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electropneumatic Pressure Control Valve (Proportional Pressure Regulator) |
| Model Designation | 5610141320 ED05 |
| Manufacturer | AVENTICS (Emerson) |
| Operating Pressure | Standard Industrial Grade (regulated output up to rated bar) |
| Control Signal | Analog electrical command (voltage or current, model-dependent) |
| Medium | Compressed air / neutral gases (filtered, non-lubricated or lubricated) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (inline or manifold mount) |
| Regulation Principle | Closed-loop proportional pressure control |
Engineering Features & Advantages
- Precision Proportional Regulation: Delivers a highly linear relationship between the electrical command signal and output pressure, ensuring accurate, repeatable control of pneumatic actuators and process variables.
- Fast Dynamic Response: Optimized internal pilot and spool geometry enable rapid pressure adjustment, minimizing settling time in closed-loop control applications.
- Low Hysteresis & High Repeatability: Advanced valve seat and seal design reduces hysteresis and drift, maintaining consistent output pressure across millions of operating cycles.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction resistant to vibration, temperature variation, and contaminated air supplies.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original AVENTICS OEM standards, ensuring drop-in replacement without system modification.
- Compact Modular Design: Space-efficient housing allows integration into dense valve manifolds or standalone installation in constrained control cabinets.
Typical Industrial Applications
The AVENTICS 5610141320 ED05 electropneumatic pressure control valve is deployed across a wide range of demanding industrial scenarios, including plastic injection molding machines requiring precise clamping and injection pressure profiles, metallurgical presses and forming equipment where controlled pneumatic force is critical, packaging and filling lines needing accurate tension and sealing pressure regulation, and CNC machine tools and automated assembly systems where dynamic
PRODUCT IMAGES

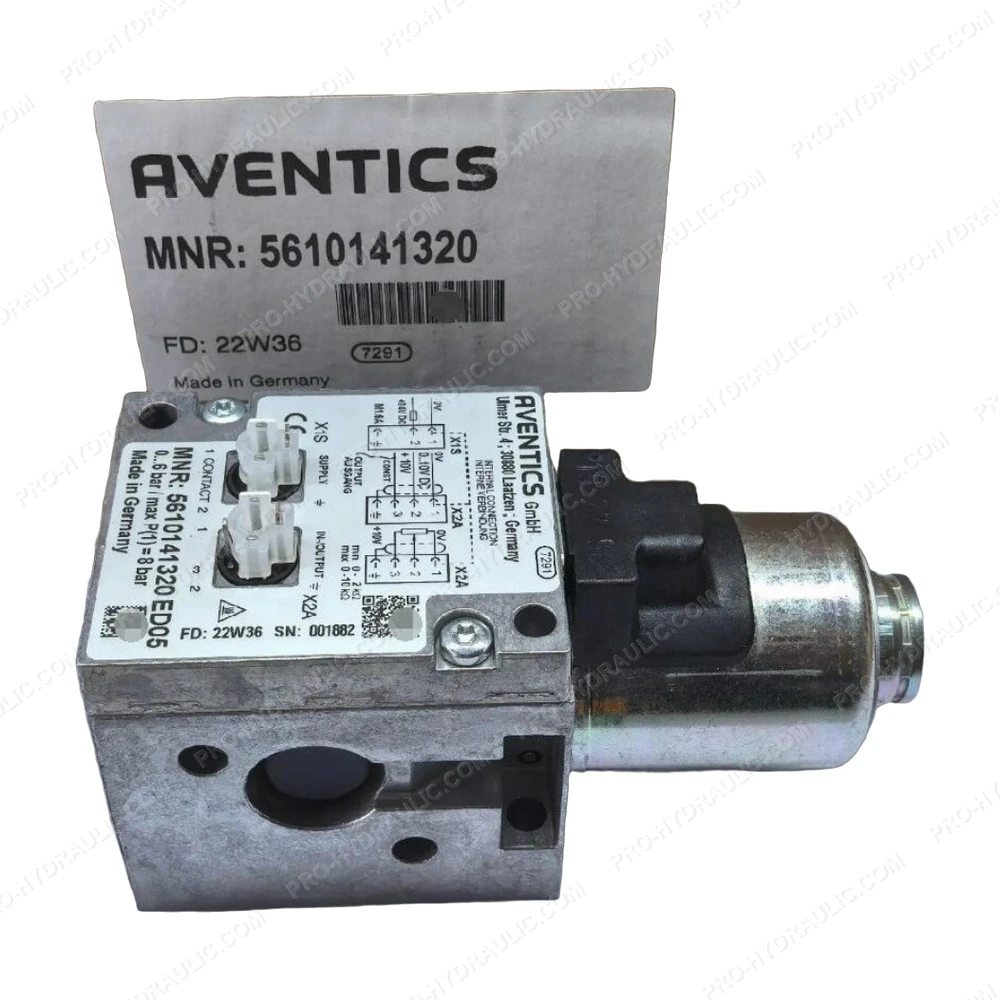

AVENTICS 5610141320 ED05 Electropneumatic Pressure Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AVENTICS 5610141320 ED05 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a 5/2-way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
