Product Overview
The AVENTICS ED07 (part number R414001234) is a high-precision electropneumatic pressure control valve engineered for closed-loop regulation of compressed air and neutral gases in industrial automation systems. As a proportional pressure regulator within the AVENTICS ED07 series, this valve converts an analog electrical command signal into a linearly proportional output pressure, enabling continuous, stepless control rather than simple on/off switching. The integrated electronic control loop compares the actual output pressure—sensed internally—against the setpoint signal and continuously adjusts the valve poppet position to maintain accurate pressure regulation independent of flow fluctuations or supply variations. This device is a pneumatic pressure control valve, not a hydraulic pump, and is designed for air and inert gas service in precision process control applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electropneumatic Pressure Control Valve (Proportional Pressure Regulator) |
| Model Designation | ED07 / R414001234 |
| Manufacturer | AVENTICS (Emerson) |
| Operating Pressure | Standard Industrial Grade (up to rated bar, model-dependent) |
| Control Signal | Analog command input (voltage or current, model-dependent) |
| Regulation Principle | Closed-loop electronic pressure feedback control |
| Mounting & Connection | Standard ISO / Manufacturer Interface (threaded port connections) |
| Media | Compressed air and neutral gases |
Engineering Features & Advantages
- Precision Performance: Integrated closed-loop control maintains output pressure with high accuracy and repeatability, compensating automatically for supply pressure fluctuations and downstream flow changes.
- Stepless Proportional Regulation: Analog command signal enables continuous, infinitely variable pressure setting rather than discrete on/off stages, ideal for dynamic process control.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust valve construction and stable long-term regulation behavior.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM AVENTICS ED07 specifications, ensuring drop-in interchangeability.
Typical Industrial Applications
The AVENTICS ED07 electropneumatic pressure control valve is deployed in precision pneumatic control loops across heavy industry, including plastic injection molding machines requiring accurate clamping and injection pressure profiling, metallurgical and metal-forming presses with regulated pneumatic actuation, packaging and web-tensioning systems needing dynamic pressure adjustment, and CNC machine tools and automated assembly stations where repeatable pneumatic force control is critical. It is equally suited to general process automation, test benches, and any application demanding closed-loop electropneumatic pressure regulation.
PRODUCT IMAGES

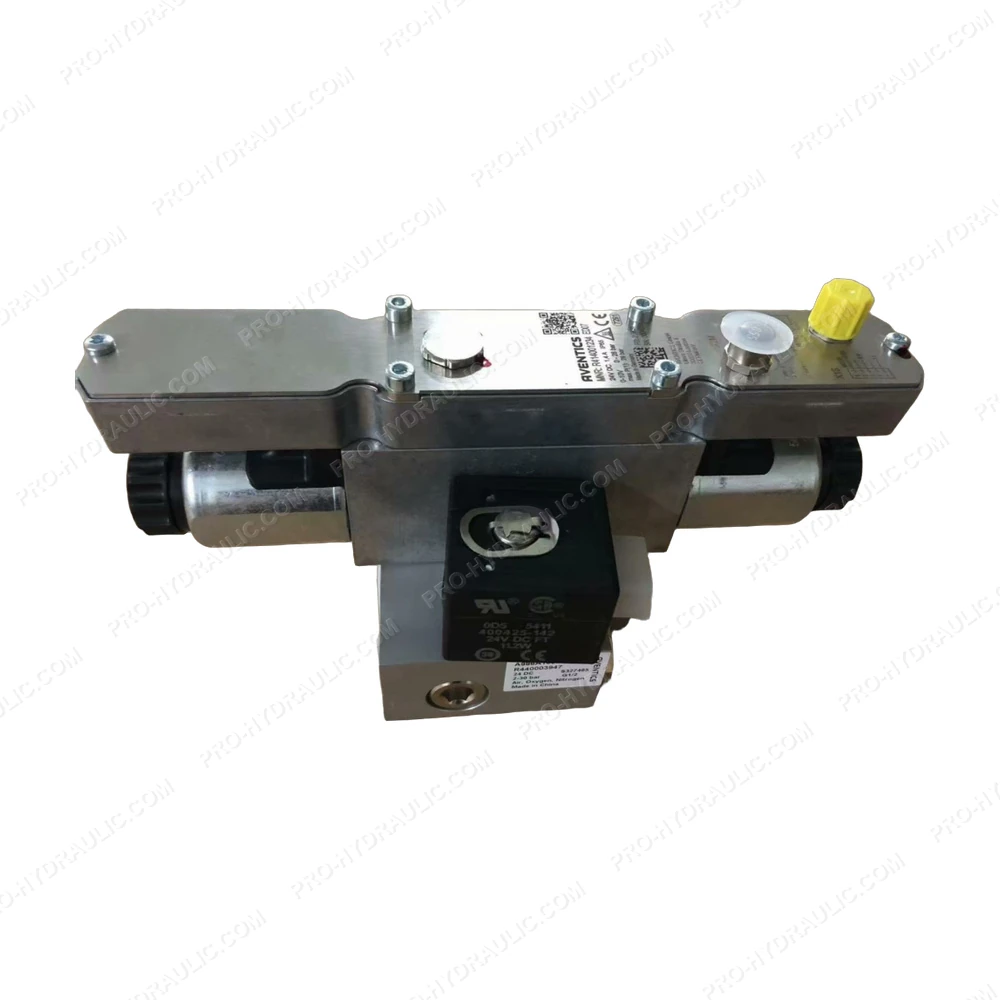

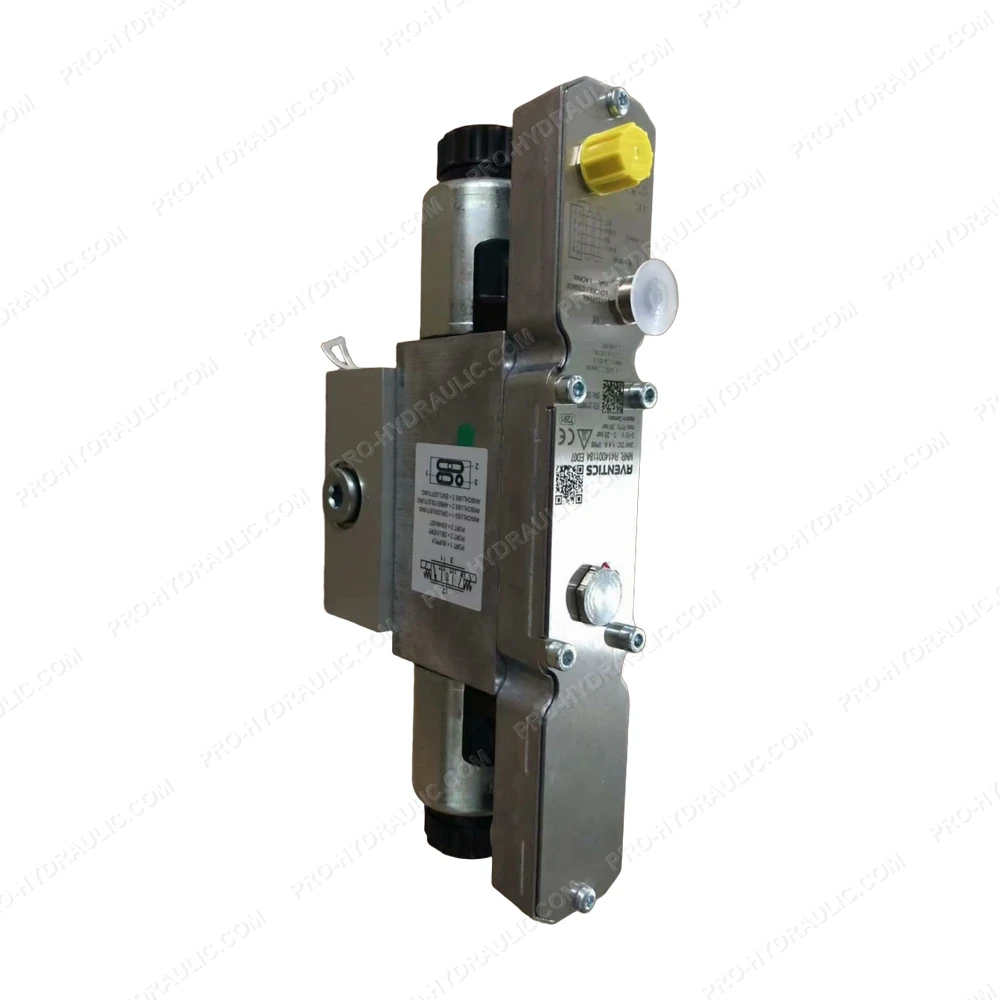

AVENTICS ED07 / R414001234 Electropneumatic Pressure Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AVENTICS ED07 / R414001234 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
