Product Overview
The AVENTICS H-2-LX (part number R431002653) is a high-performance pneumatic directional control valve engineered for precise actuation and reliable air flow management in demanding industrial automation systems. Manufactured by AVENTICS, a globally recognized brand in pneumatic and hydraulic motion control, this valve utilizes a precision-machined spool and sleeve mechanism to direct compressed air to actuators, cylinders, and other pneumatic consumers. Its robust construction and responsive actuation make it an ideal choice for applications requiring fast cycle times, consistent sealing integrity, and long service life in continuous-duty environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve |
| Model Designation | H-2-LX / R431002653 |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Sub-base or Manifold Mount) |
| Actuation Type | Solenoid / Pilot Actuated (Spool Type) |
| Valve Function | 2-Position, 4-Way / 5-Port Directional Control |
| Seal Material | Nitrile (NBR) / Polyurethane (Standard Pneumatic Media) |
| Body Material | Anodized Aluminum / Zinc-Plated Steel |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The hardened, precision-ground spool ensures minimal leakage, low friction, and highly repeatable shifting performance, delivering accurate directional control of pneumatic flow.
- Fast Response Actuation: Optimized solenoid and pilot design provides rapid opening and closing times, enabling high-cycle-rate operation essential for automated assembly and packaging lines.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust internal components that resist wear, contamination, and pressure spikes.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM AVENTICS H-2-LX and R431002653 specifications, ensuring drop-in installation without modification.
- Leak-Tight Sealing: High-quality elastomer seals maintain consistent sealing integrity across the full operating pressure range, minimizing compressed air loss and energy costs.
Typical Industrial Applications
This AVENTICS pneumatic directional control valve is widely deployed in heavy industrial scenarios including plastic injection molding machines for mold opening/closing and ejector control, metallurgical presses for clamping and material handling sequences, packaging and palletizing systems for actuator direction control, and CNC machine tools for tool changer and workpiece clamping operations. It is also suitable for general factory automation, marine pneumatic controls, and process valve actuation where reliable directional air flow is critical.
PRODUCT IMAGES

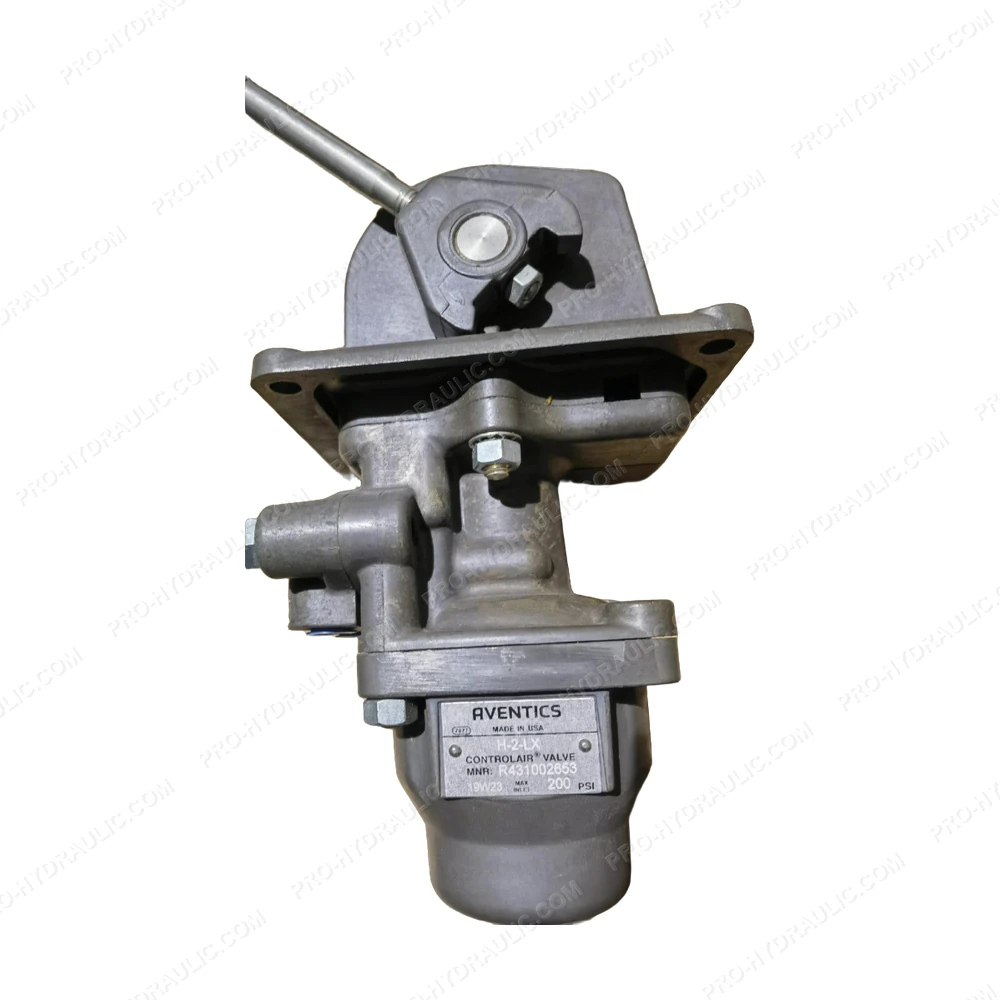

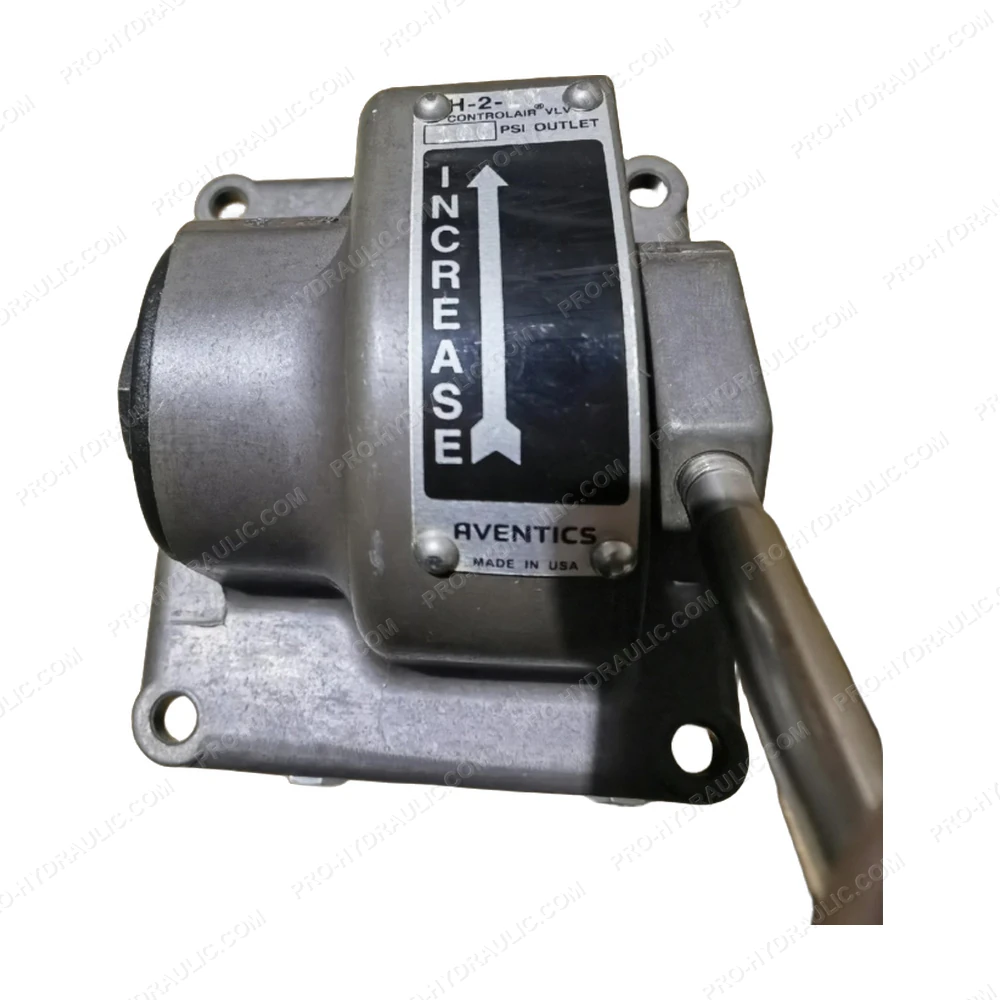

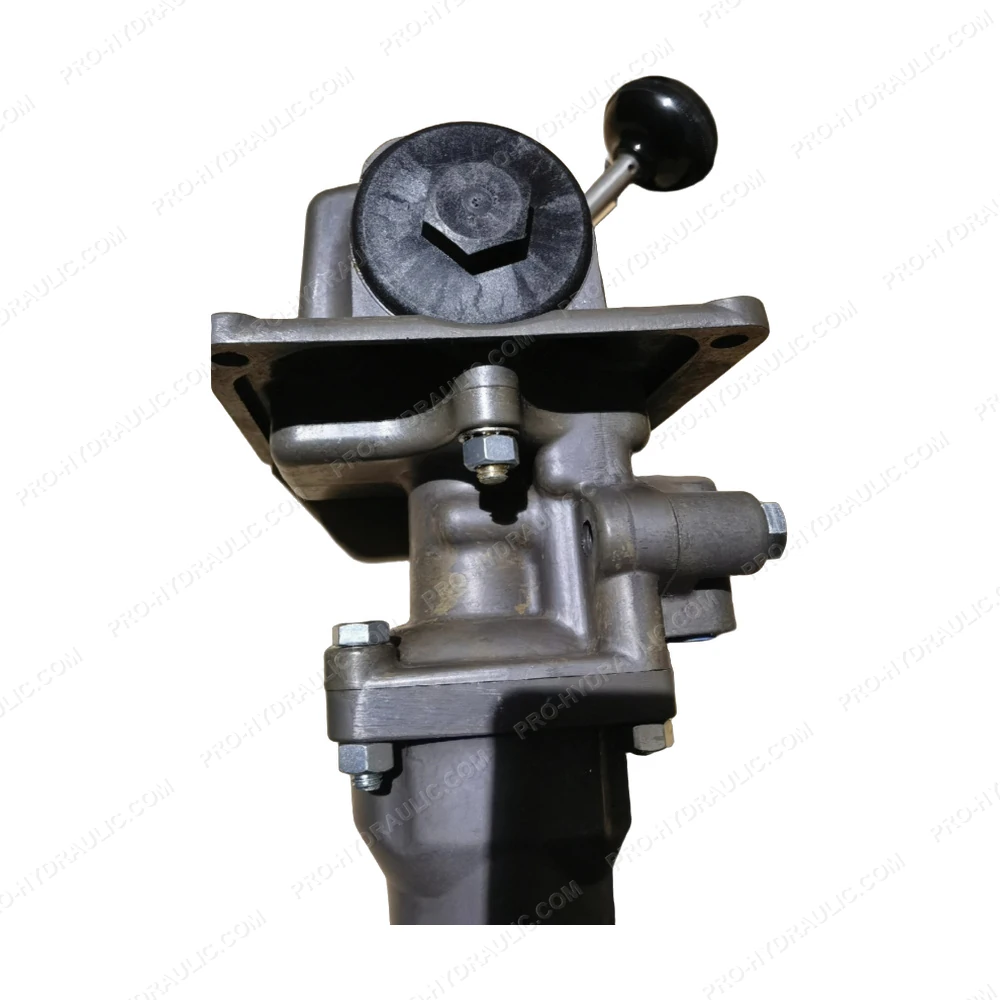

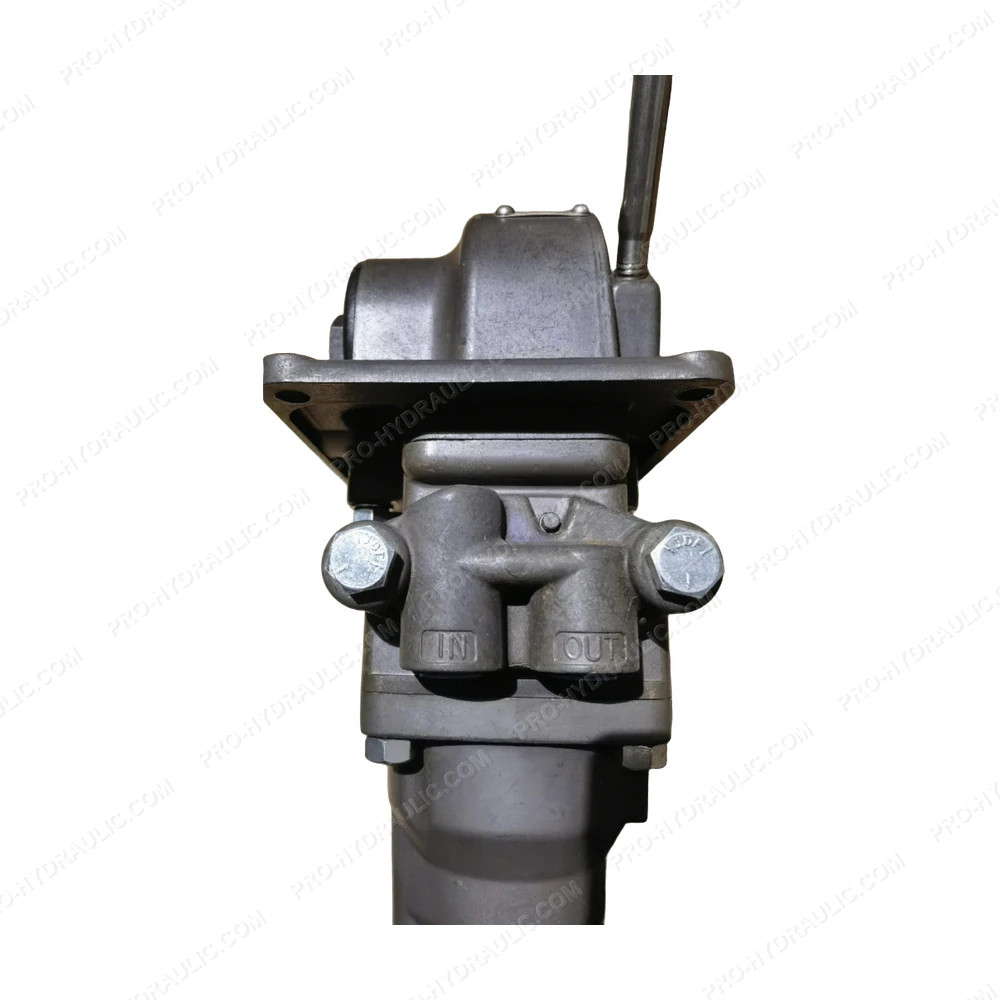

AVENTICS H-2-LX / R431002653 Pneumatic Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AVENTICS H-2-LX / R431002653 Solenoid Directional Spool Valve. This German-made hydraulic component features a reliable spool design, delivering leak-free, precise fluid control for heavy-duty industrial systems.
