Product Overview
The AVENTICS H-4 (R431002820) is a high-performance pneumatic directional control valve engineered for precise actuation and reliable switching of compressed air circuits in demanding industrial environments. As part of the AVENTICS H-series platform, this valve utilizes a precision-machined spool and sleeve assembly to direct airflow with minimal pressure loss and rapid response characteristics. The R431002820 designation identifies a specific configuration within the H-4 family, typically featuring a 4-way, 2-position or 3-position function with solenoid or air-pilot actuation, depending on the exact sub-variant. Designed for inline or manifold mounting, this valve serves as a critical control element in pneumatic automation systems, managing cylinder extension/retraction, directional flow, and circuit isolation with high repeatability. Its robust construction and proven sealing technology make it suitable for continuous duty in factory automation, packaging machinery, and process control applications where consistent pneumatic switching is essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve |
| Model Designation | H-4 / R431002820 |
| Manufacturer | AVENTICS (Emerson) |
| Valve Function | 4-Way, 2-Position / 3-Position (Spool Type) |
| Actuation Method | Solenoid / Air-Pilot (Model Dependent) |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi typical) |
| Port Connection | Standard ISO / Manufacturer Interface (G1/4, G1/2, or NPT equivalent) |
| Mounting Type | Inline / Manifold Mounting |
| Seal Material | NBR / FKM (Application Specific) |
| Body Material | Anodized Aluminum / Zinc Die-Cast |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The H-4 series utilizes a matched spool and sleeve assembly that ensures minimal internal leakage, precise flow metering, and consistent shift response across millions of cycles.
- High Flow Capacity: Optimized internal flow paths reduce pressure drop, delivering high flow rates relative to valve size for efficient pneumatic circuit performance.
- Rapid Response Time: Designed for fast actuation and release, enabling high-speed cycling in automated machinery and improving overall system throughput.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original AVENTICS OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
Its robust construction and proven sealing technology make it suitable for continuous duty in factory automation, packaging machinery, and process control applications where consistent pneumatic switching is essential.
PRODUCT IMAGES

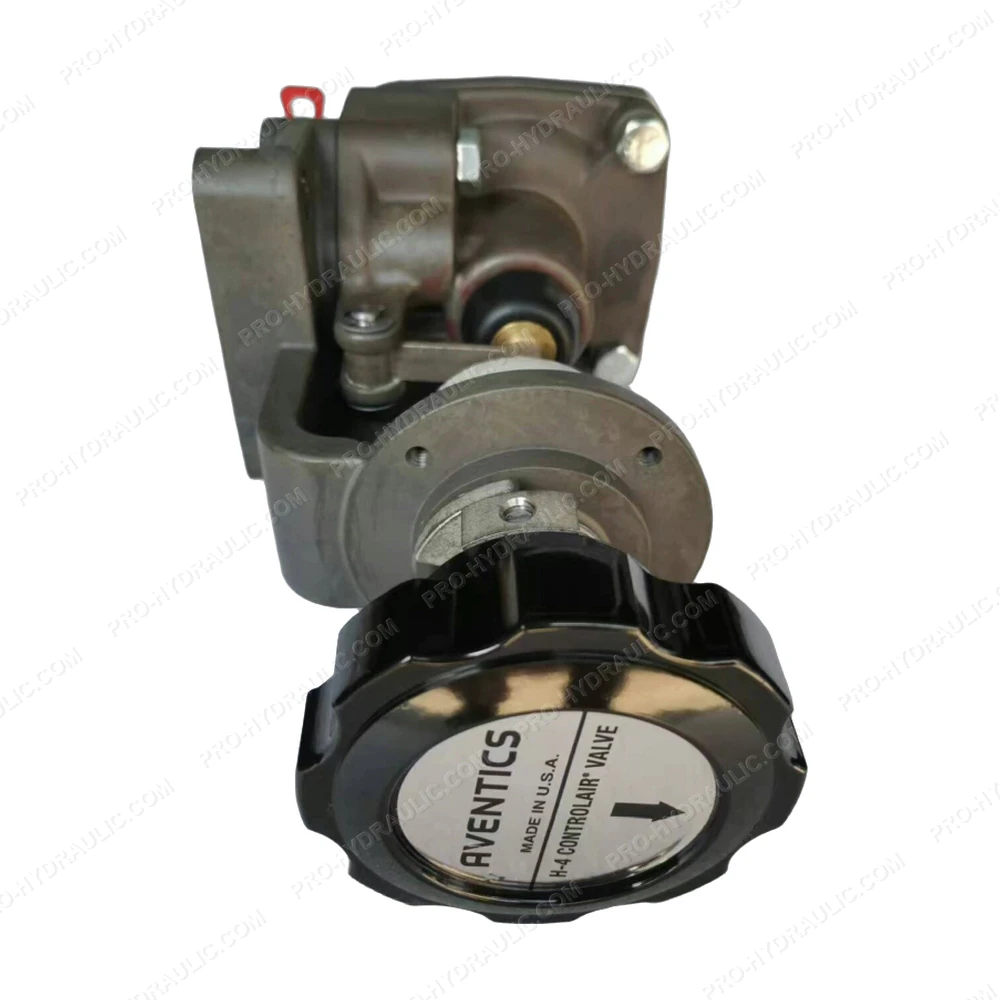

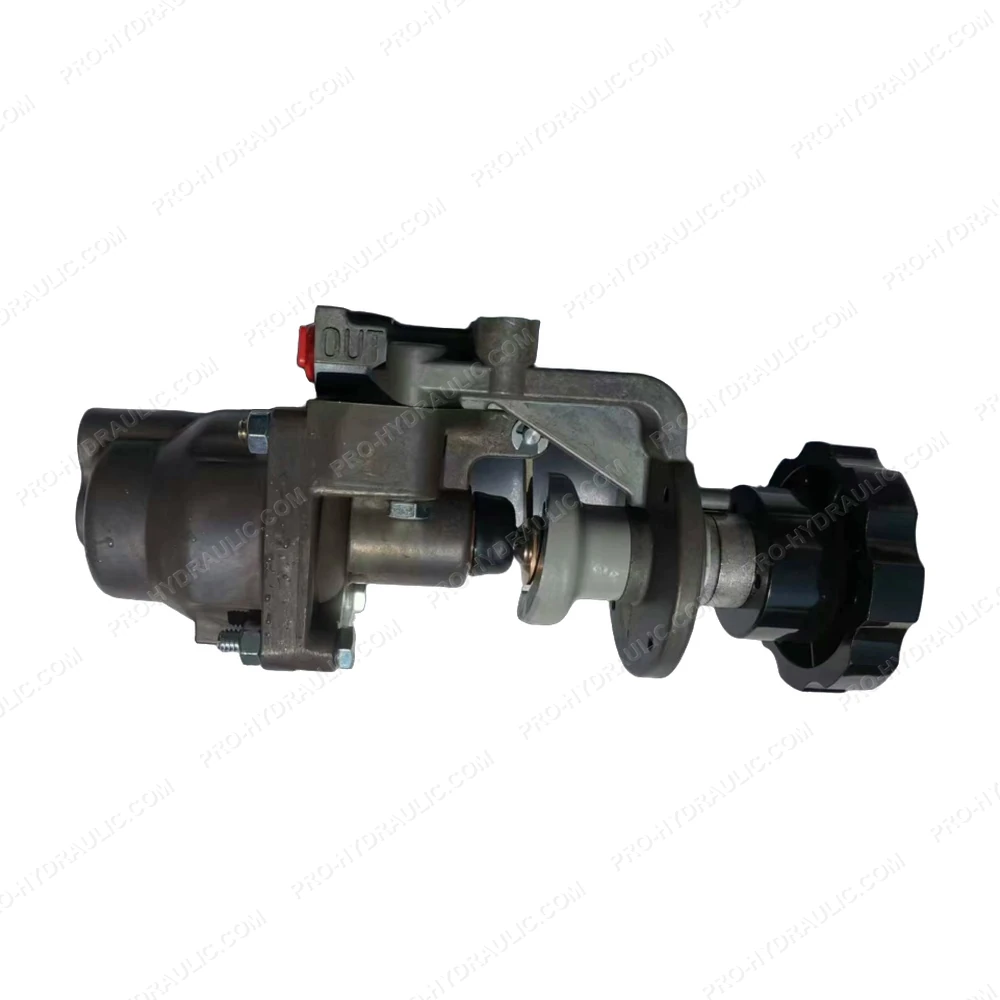

AVENTICS H-4 / R431002820 Pneumatic Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AVENTICS H-4 / R431002820 Solenoid Directional Valve. This Germany-made hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
