Product Overview
The AVENTICS R414001164 is a pneumatically actuated solenoid directional valve engineered for precise control of compressed air flow in industrial automation and process systems. Part of the AVENTICS (Emerson) family of pneumatic control components, this valve utilizes a solenoid pilot mechanism to shift an internal spool, directing air to extend or retract actuators, cylinders, and other pneumatic consumers. Its robust construction and standardized interface make it a reliable choice for demanding factory automation, packaging, and material handling applications where fast response and long service life are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Solenoid Directional Valve |
| Model Designation | R414001164 |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (sub-base or manifold mount) |
| Valve Function | 5/2-way or 3/2-way solenoid actuated directional control |
| Actuation Type | Electrical solenoid with manual override |
| Seal Material | NBR / Nitrile (standard pneumatic media compatibility) |
| Body Material | Aluminum alloy, corrosion-resistant |
Engineering Features & Advantages
- Precision Performance: Fast solenoid response and precise spool positioning ensure accurate directional control of pneumatic actuators, minimizing cycle times and improving process repeatability.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust seals and a durable aluminum body that withstands vibration, pressure cycling, and contaminated plant air.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original AVENTICS OEM standards, allowing drop-in replacement without modification to manifolds or piping.
- Manual Override: Integrated manual override facilitates commissioning, troubleshooting, and emergency operation without energizing the solenoid.
- Low Power Consumption: Efficient solenoid design reduces electrical load and heat generation, suitable for high-density valve manifold installations.
Typical Industrial Applications
This pneumatic solenoid directional valve is widely used in factory automation, packaging machinery, material handling systems, and process control equipment. It is ideal for controlling double-acting pneumatic cylinders, actuating grippers and indexing tables, and managing air logic in textile, food and beverage, and automotive assembly lines. Its reliable solenoid actuation also makes it suitable for CNC machine tool clamping circuits, blow-off systems, and general industrial pneumatic control panels.
PRODUCT IMAGES

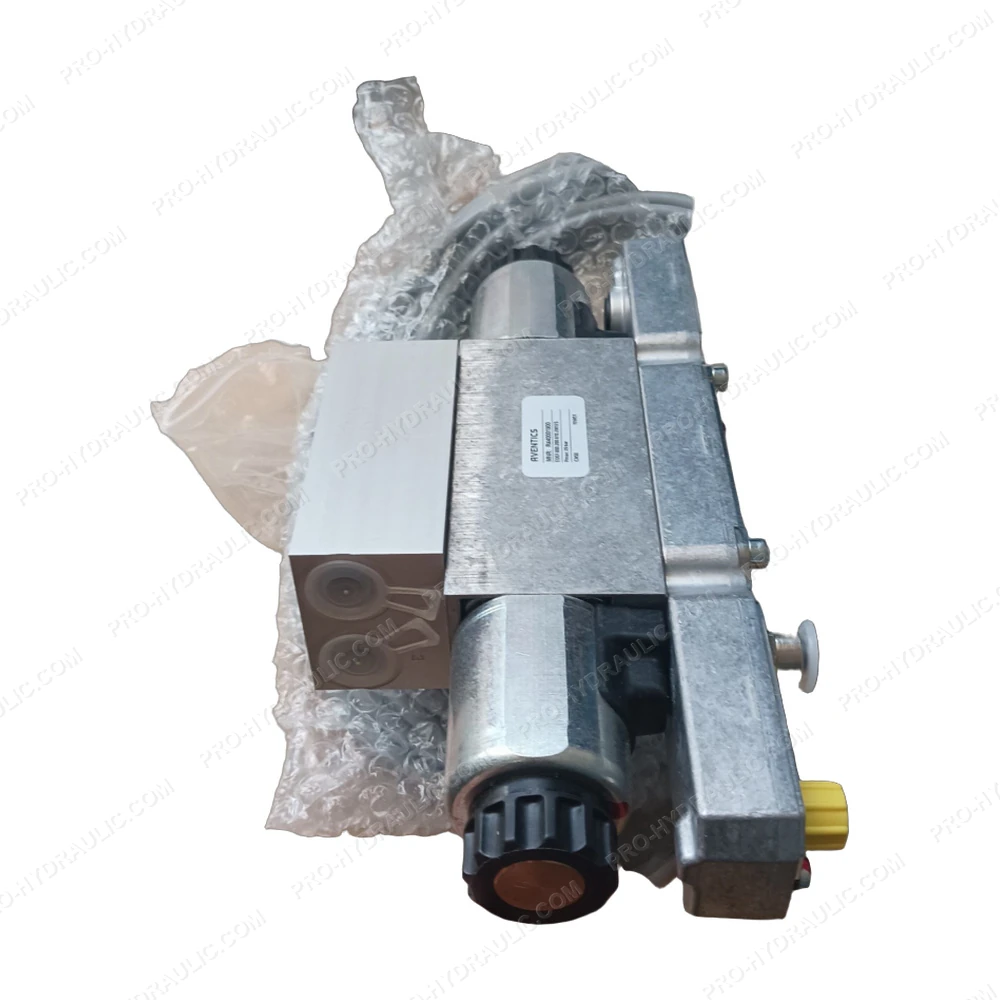

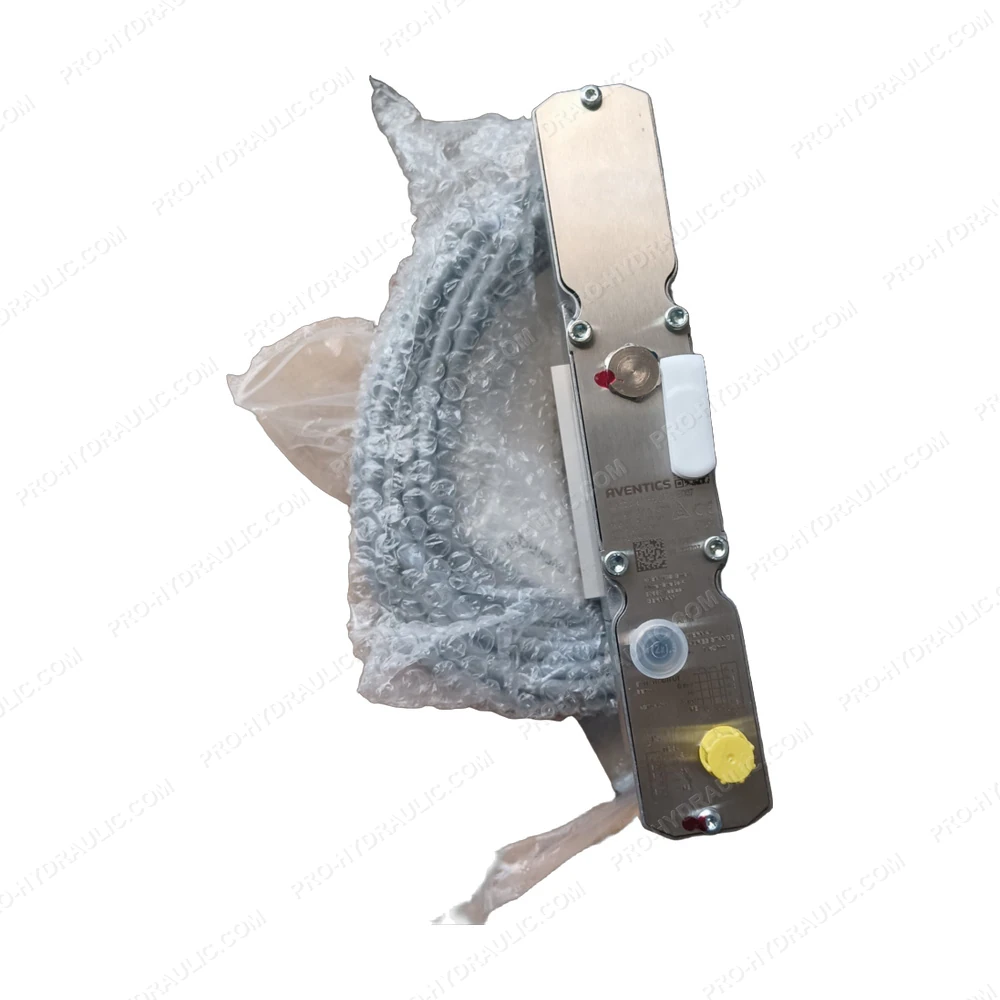

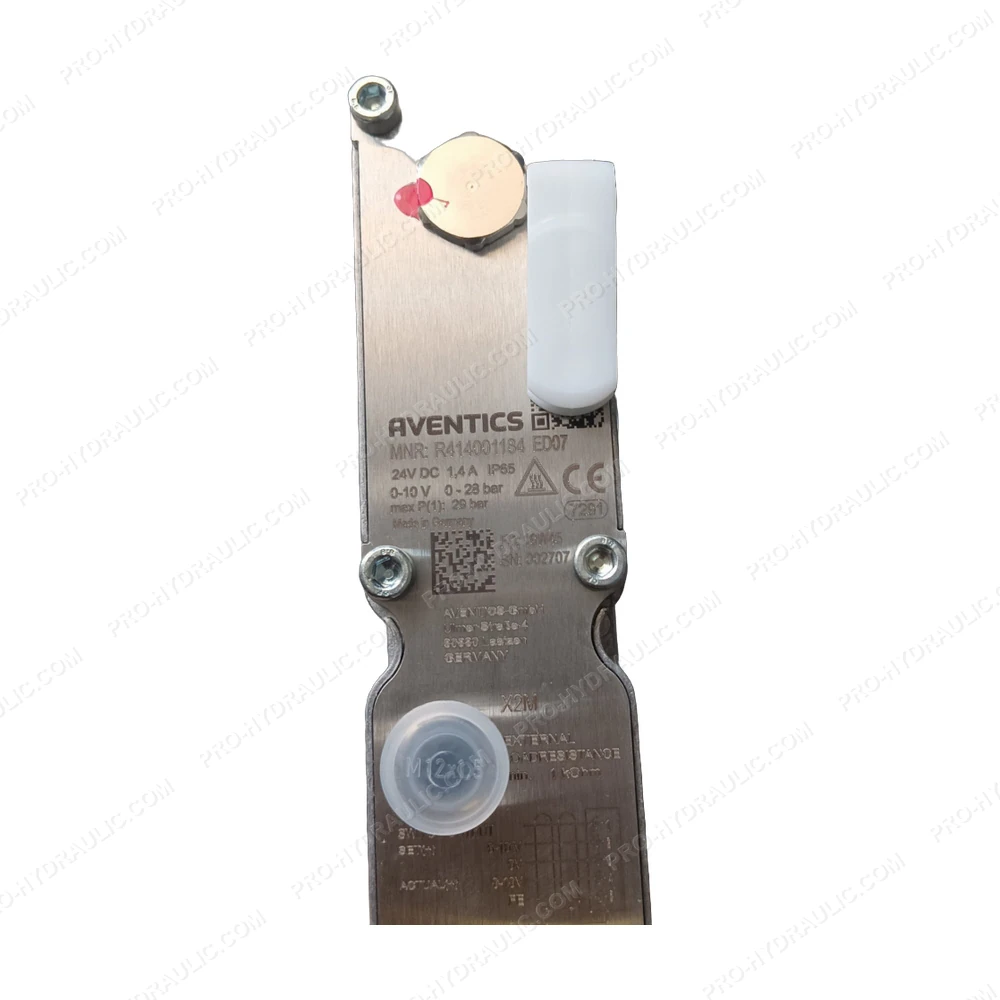

AVENTICS R414001164 Pneumatic Solenoid Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AVENTICS R414001164 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a 4/2-way spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
