Product Overview
The AVENTICS R414002401 ED02 is a precision electropneumatic pressure control valve engineered for accurate, closed-loop regulation of compressed air pressure in industrial automation and process systems. Part of the AVENTICS ED02 series, this proportional pressure regulator converts an electrical setpoint signal into a proportional pneumatic output pressure, enabling dynamic and repeatable pressure control without manual intervention. The valve operates on a servo-pneumatic working principle, utilizing an integrated pressure sensor and electronic control loop to continuously compare actual output pressure against the commanded setpoint and adjust the internal valve mechanism accordingly. This design delivers high regulation accuracy, fast response times, and excellent repeatability, making it a critical component in systems requiring precise force, torque, or flow control. The R414002401 is configured for standard industrial compressed air service and is suitable for both standalone pressure regulation and integration into larger electro-pneumatic control architectures.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electropneumatic Pressure Control Valve (Proportional Pressure Regulator) |
| Model Designation | R414002401 ED02 |
| Manufacturer | AVENTICS (Emerson) |
| Operating Pressure | Standard Industrial Grade (up to rated bar, dependent on configuration) |
| Control Signal | Analog electrical setpoint (industry-standard voltage or current signal) |
| Medium | Compressed air (filtered, lubricated or non-lubricated) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (threaded port connections) |
| Regulation Principle | Closed-loop electro-pneumatic proportional control with integrated pressure feedback |
Engineering Features & Advantages
- Precision Performance: Closed-loop electronic pressure regulation delivers high accuracy, excellent repeatability, and minimal hysteresis, ensuring consistent output pressure for critical process control.
- Fast Dynamic Response: The servo-pneumatic actuation principle enables rapid response to setpoint changes, supporting high-cycle automation and dynamic pressure profiling tasks.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction resistant to vibration, temperature variation, and contaminated compressed air environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original AVENTICS ED02 series specifications, ensuring drop-in replacement without system modification.
- Integrated Feedback: On-board pressure sensing eliminates the need for external feedback devices, simplifying system architecture and reducing installation complexity.
Typical Industrial Applications
The AVENTICS R414002401 ED02 electropneumatic pressure control valve is widely deployed in demanding industrial environments, including plastic injection molding machines for precise clamping and injection pressure control, metallurgical presses and forming equipment requiring accurate force regulation, packaging and web tensioning systems where consistent pneumatic pressure is critical, and CNC machine tools and automated assembly stations utilizing electro-pneumatic actu
PRODUCT IMAGES

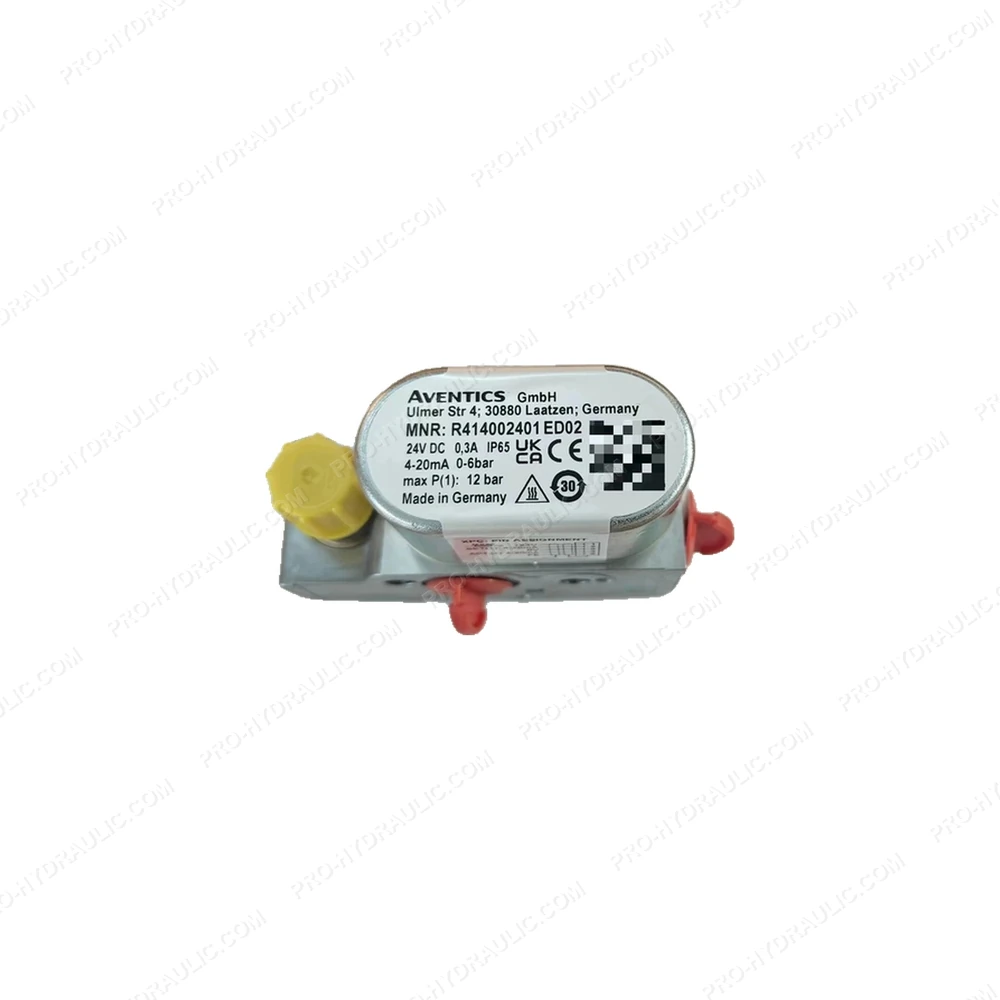

AVENTICS R414002401 ED02 Electropneumatic Pressure Control Valve
