Product Overview
The AVENTICS R414002403 is a pneumatically actuated directional control valve engineered for precise control of compressed air flow in industrial automation and process systems. As part of the AVENTICS (Emerson) family of pneumatic components, this valve utilizes a precision-machined spool and sleeve mechanism to direct, throttle, and shut off air flow with high repeatability. Its robust construction and compact design make it a reliable choice for demanding applications requiring fast response times and long service life in factory automation, packaging machinery, and material handling systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve |
| Model Designation | R414002403 |
| Operating Pressure | Standard Industrial Grade (Up to 10 bar / 145 psi) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Sub-base or manifold mounting) |
| Actuation Type | Pneumatic / Solenoid Pilot (depending on configuration) |
| Valve Function | 5/2 or 3/2 Way Directional Control (spool type) |
| Seal Material | NBR / Polyurethane (standard industrial air service) |
| Port Size | Standard G1/4 or equivalent (model-dependent) |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The hardened, precision-ground spool ensures minimal leakage, low friction, and consistent shifting performance over millions of cycles.
- Fast Response & High Flow: Optimized internal flow paths deliver rapid actuation and high flow capacity, reducing cycle times in automated processes.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust housing and proven seal technology resistant to wear and contaminants.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original AVENTICS OEM standards, ensuring drop-in replacement without modification.
- Versatile Actuation Options: Available with pneumatic pilot or solenoid pilot actuation to suit a wide range of control system architectures.
Typical Industrial Applications
This pneumatic directional control valve is widely used in factory automation, packaging machinery, material handling systems, and assembly lines. It is ideal for controlling double-acting cylinders, air motors, and other pneumatic actuators in applications requiring precise directional control, rapid cycling, and reliable performance in demanding industrial environments.
PRODUCT IMAGES

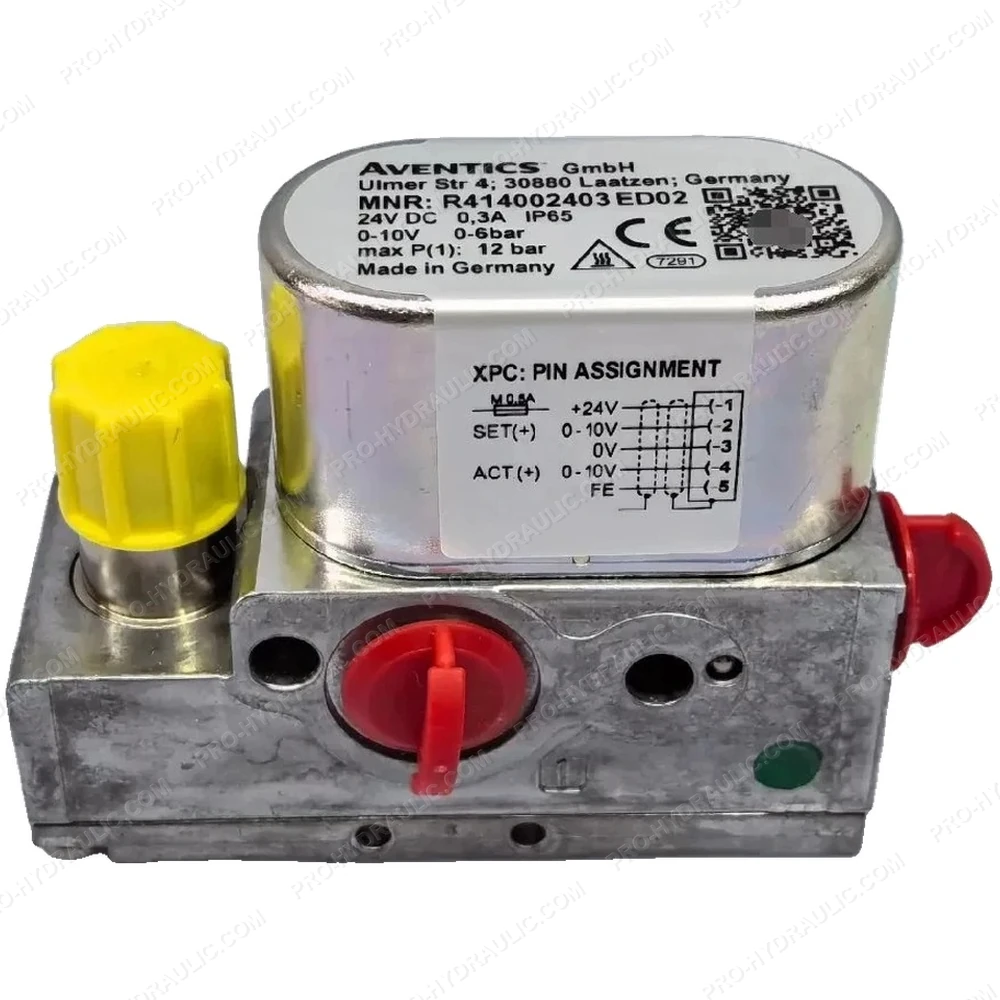

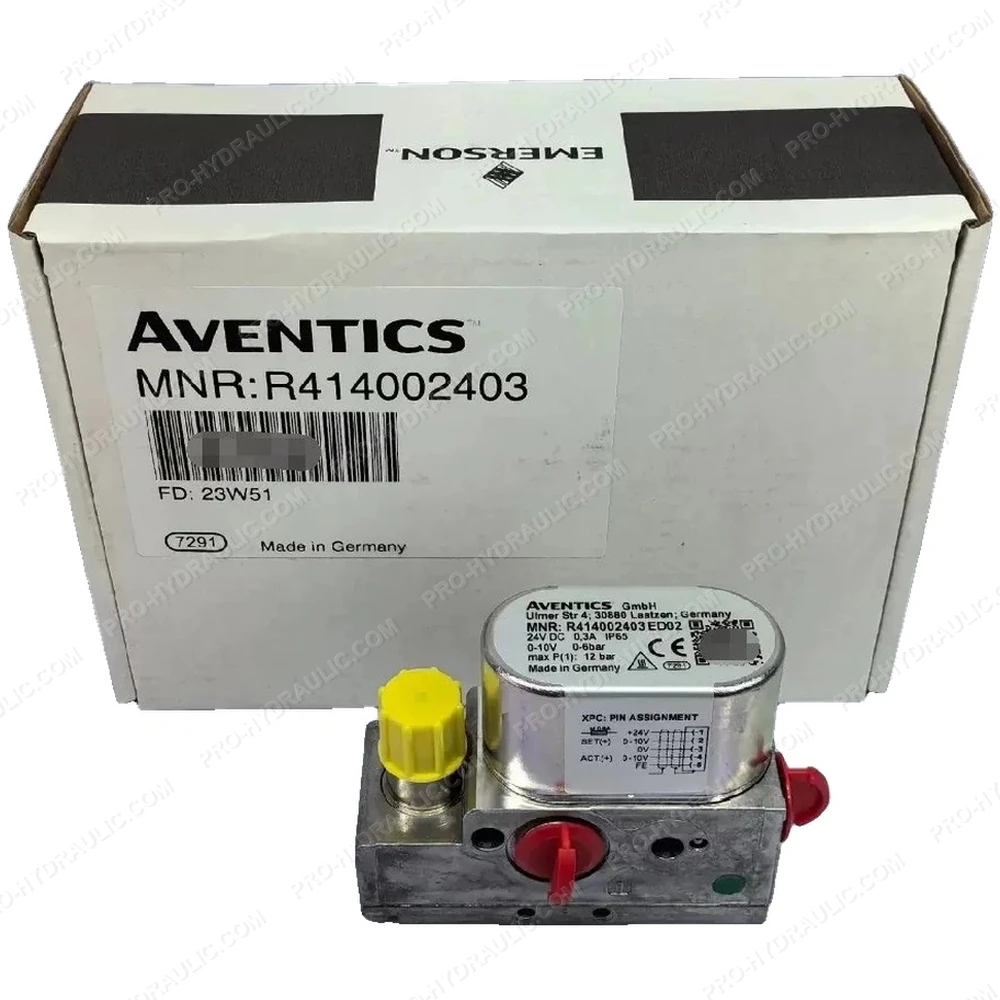

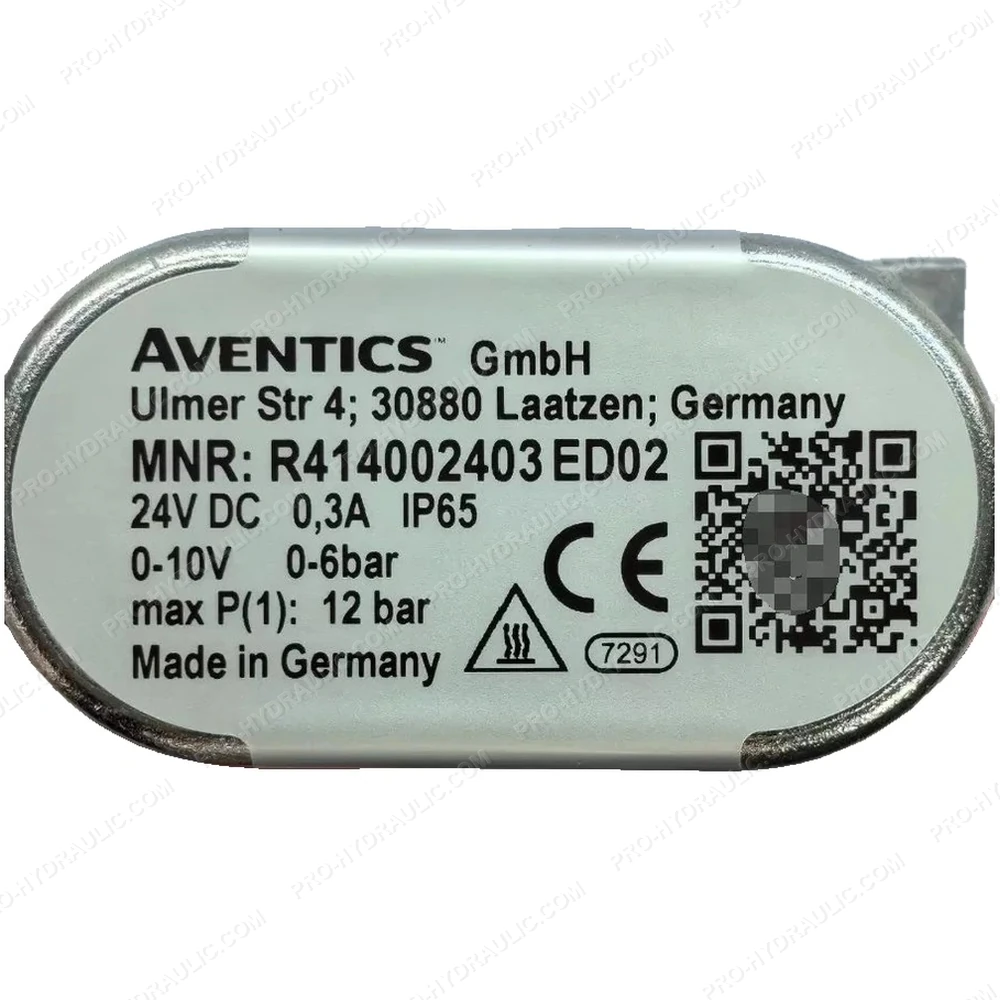

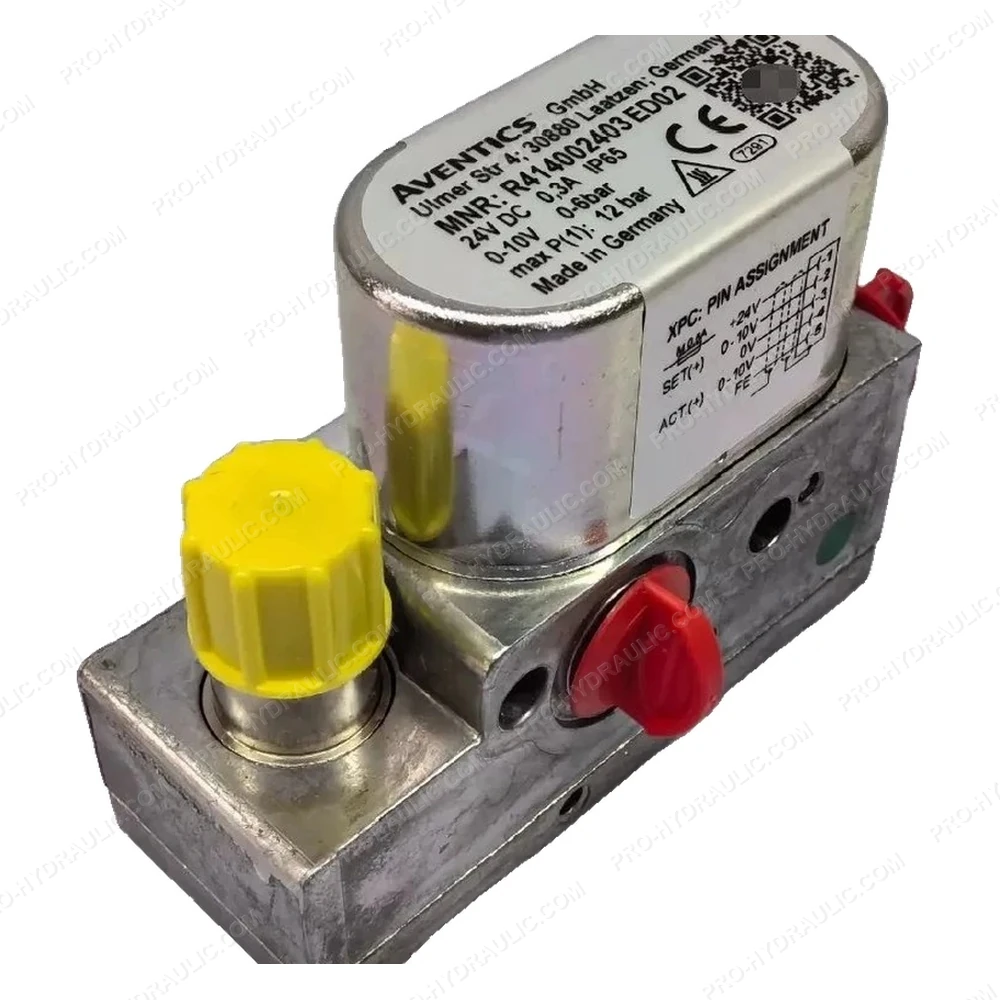

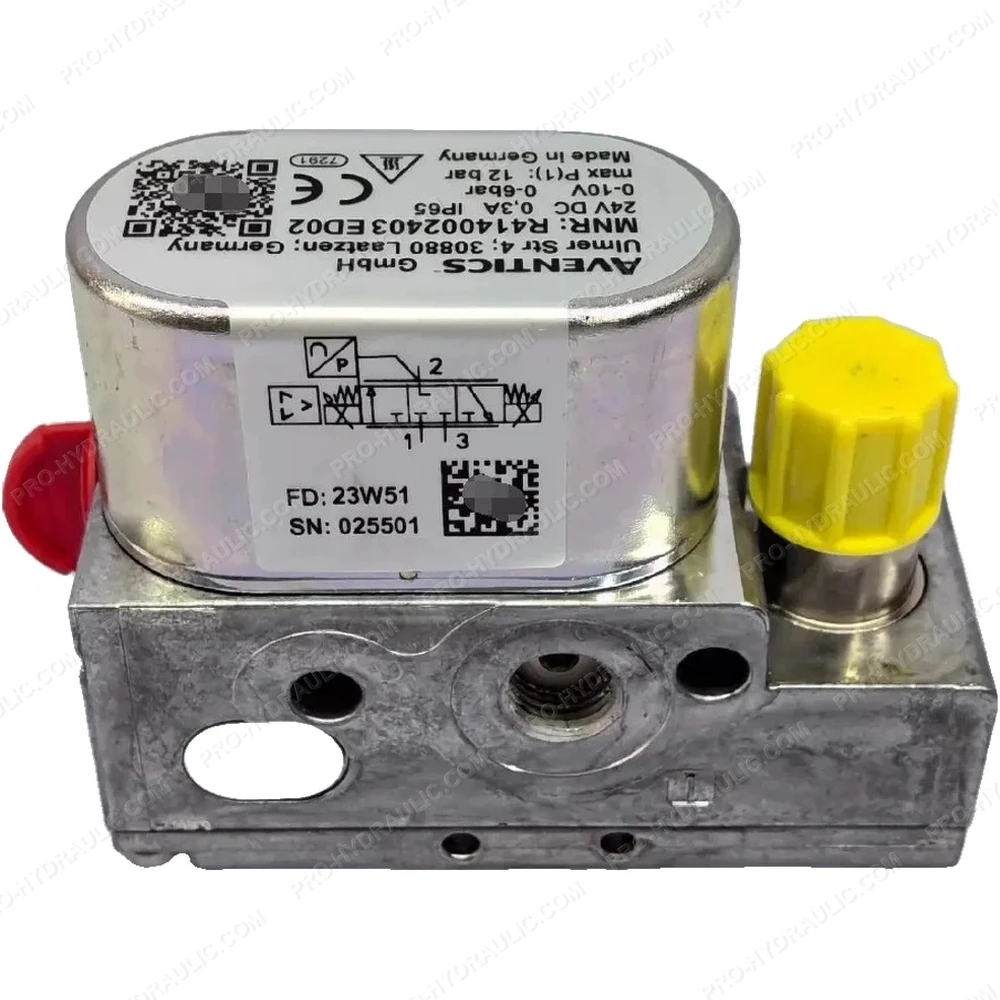

AVENTICS R414002403 Pneumatic Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AVENTICS R414002403 Solenoid Directional Valve. This German-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
