Product Overview
The AZBIL AVP300 is a high-performance electro-pneumatic valve positioner engineered for precise control of pneumatic control valves in demanding industrial process environments. As a core component within the Azbil AVP series, the AVP300 receives a standard electrical input signal (typically 4–20 mA DC) and converts it into a proportional pneumatic output pressure to accurately position a valve actuator. This closed-loop positioner ensures that the valve stem reaches and maintains the exact position commanded by the control system, compensating for friction, packing resistance, and dynamic process forces. The AVP300 is widely deployed in flow, pressure, temperature, and level control loops where precise valve positioning and rapid response are critical to process quality and safety.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Pneumatic Valve Positioner (Automation & Control Instrument) |
| Model Designation | AVP300 |
| Input Signal | 4–20 mA DC (standard); configurable split-range and custom ranges available |
| Output / Actuation | Proportional pneumatic pressure output to single- or double-acting valve actuators |
| Operating Pressure | Standard industrial instrument air supply (typically 140–400 kPa / 20–58 psi) |
| Mounting & Connection | Standard ISO / manufacturer interface; bracket-mounted to yoke per IEC 60534 / NAMUR-compatible patterns |
| Enclosure Protection | Weatherproof / IP66-rated housing for harsh plant environments |
| Feedback Method | Non-contact magnetic position sensing for wear-free, long-term stability |
| Communication / Diagnostics | Supports HART communication for remote configuration and self-diagnostics |
Engineering Features & Advantages
- Precision Performance: Advanced closed-loop control algorithm delivers fast, stable, and highly repeatable valve positioning, minimizing process variability and improving product quality.
- Non-Contact Sensing: Wear-free magnetic feedback eliminates mechanical linkage wear, reducing maintenance intervals and extending service life in continuous-duty applications.
- Auto-Calibration & Self-Diagnostics: Automatic zero/span calibration and comprehensive self-diagnostic functions simplify commissioning and reduce downtime during maintenance.
- Industrial Reliability: Rugged IP66-rated enclosure and corrosion-resistant construction ensure dependable operation under severe industrial conditions, including vibration, temperature extremes, and humidity.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM mounting standards, enabling straightforward retrofit or replacement without piping modifications.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original AZBIL OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The AVP300 is widely deployed in flow, pressure, temperature, and level control loops where precise valve positioning and rapid response are critical to process quality and safety.
PRODUCT IMAGES

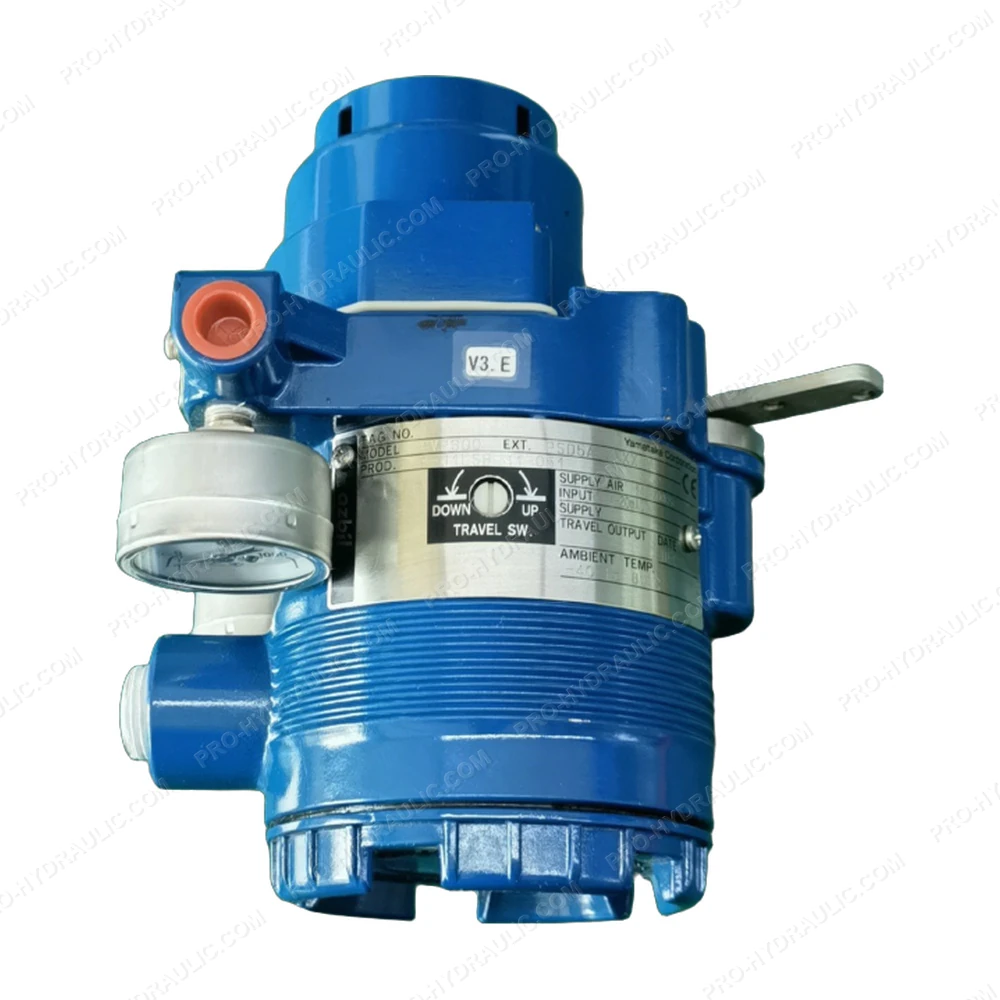

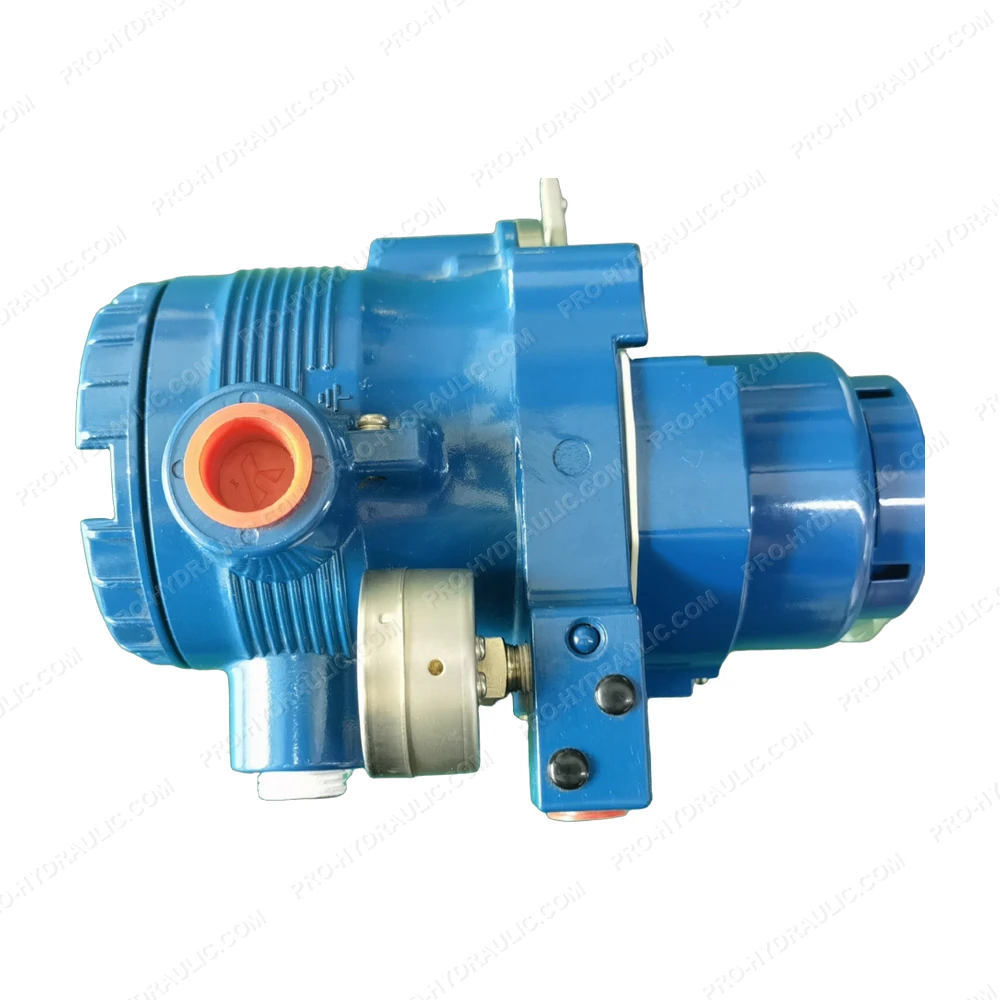

AZBIL AVP300 Electro-Pneumatic Valve Positioner
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine AZBIL AVP300 Electro-Pneumatic Valve Positioner. This Japan-made 4-20 mA automation component features a force-balance feedback system, delivering precise, reliable valve control for heavy-duty industrial process systems.
