Product Overview
The BEINLICH ZPD 3-37,40-KIS-L-FCV/R/GL-SP/009 is a high-performance external gear pump engineered by BEINLICH for demanding industrial hydraulic systems. Operating on the positive displacement principle, this pump utilizes a precision-meshed pair of external spur gears to draw hydraulic fluid from the reservoir and deliver it under pressure to the circuit. The ZPD series is recognized for its robust construction, high volumetric efficiency, and consistent flow delivery across a wide range of operating conditions. With a nominal displacement of approximately 37.40 cm³/rev, this model is well-suited for medium-to-high flow applications requiring reliable and continuous hydraulic power. The integrated valve and control features denoted by the model suffix (FCV/R/GL-SP) indicate a factory-configured unit with specific flow control, relief, and porting options tailored to the end application.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | External Gear Pump |
| Model Designation | ZPD 3-37,40-KIS-L-FCV/R/GL-SP/009 |
| Nominal Displacement | Approx. 37.40 cm³/rev (per gear set designation) |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per BEINLICH ZPD series) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (flanged or threaded ports per configuration) |
| Gear Design | Precision-ground external spur gears with optimized tooth profile |
| Casing Material | High-strength cast iron / aluminum alloy (per BEINLICH ZPD standard) |
| Shaft Seal | Radial shaft seal, suitable for mineral oil-based hydraulic fluids |
| Direction of Rotation | Clockwise (standard; verify per suffix code) |
| Integrated Features | FCV (Flow Control Valve), R (Relief), GL-SP (Special porting/configuration per model code) |
Engineering Features & Advantages
- Precision Gear Meshing: The external spur gears are precision-ground with an optimized involute tooth profile, ensuring minimal internal leakage, high volumetric efficiency, and smooth, low-pulsation flow delivery across the entire operating pressure range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original BEINLICH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a nominal displacement of approximately 37.40 cm³/rev, this model is well-suited for medium-to-high flow applications requiring reliable and continuous hydraulic power.
PRODUCT IMAGES

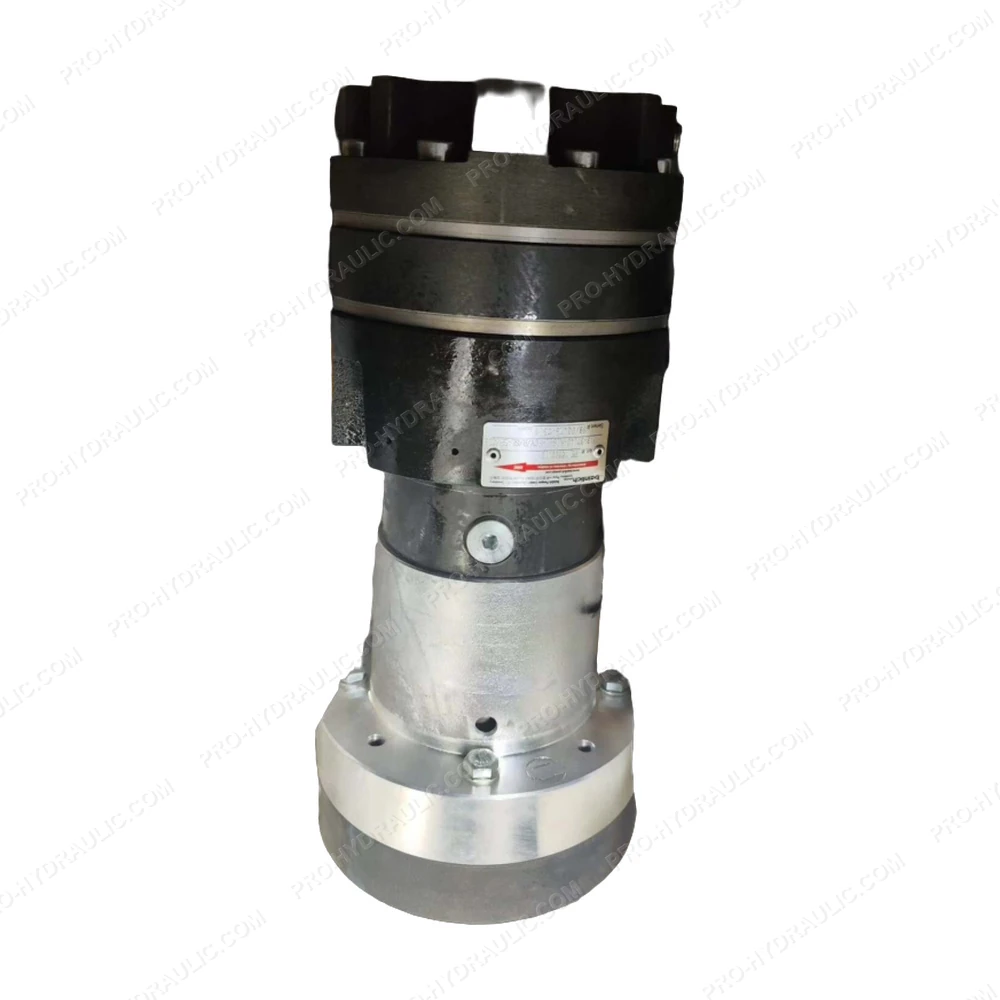

BEINLICH ZPD 3-37,40-KIS-L-FCV/R/GL-SP/009 External Gear Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine BEINLICH ZPD 3-37,40-KIS-L-FCV/R/GL-SP/009 Proportional Directional Control Valve. This Germany-made 24V DC hydraulic component features a spool-type design with integrated feedback, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
