The BESKO KSO-G02-2CA-10 is a heavy-duty industrial directional control valve engineered for precise flow direction and reliable actuation in hydraulic circuits. It features a CETOP 3 / NG6 interface with a two-position, four-way spool configuration, providing dependable switching for continuous-duty machinery.
BESKO KSO-G02-2CA-10 Technical Specifications
| Mounting Standard | CETOP 3 / NG6 / ISO 4401-03 |
|---|---|
| Spool Type | 2-position, 4-way |
| Actuation | Solenoid, wet-pin armature |
| Max Operating Pressure | 315 bar (working ports) |
| Rated Flow | Up to 40 L/min |
| Coil Voltage | 12 VDC / 24 VDC / 110 VAC / 220 VAC options |
| Fluid Temperature Range | -20 °C to +70 °C |
| Body Material | Cast iron |
| Seal Material | NBR (standard), FKM optional |
Key Engineering Features
- Wet-pin solenoid armature for smooth, low-friction spool shifting
- Hardened and ground spool for minimal leakage and long service life
- CETOP 3 / NG6 mounting pattern for direct manifold or subplate installation
- High-strength cast iron body for stable operation under pressure spikes
- Interchangeable coils with DIN and industry-standard connectors
Industrial Applications
- Machine tool hydraulic power units
- Presses and forming equipment
- Material handling and lifting systems
- Mobile and industrial hydraulic manifolds
- Automated production lines requiring directional flow control
For technical inquiries, dimensional drawings, or replacement support for BESKO KSO-G02-2CA-10, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

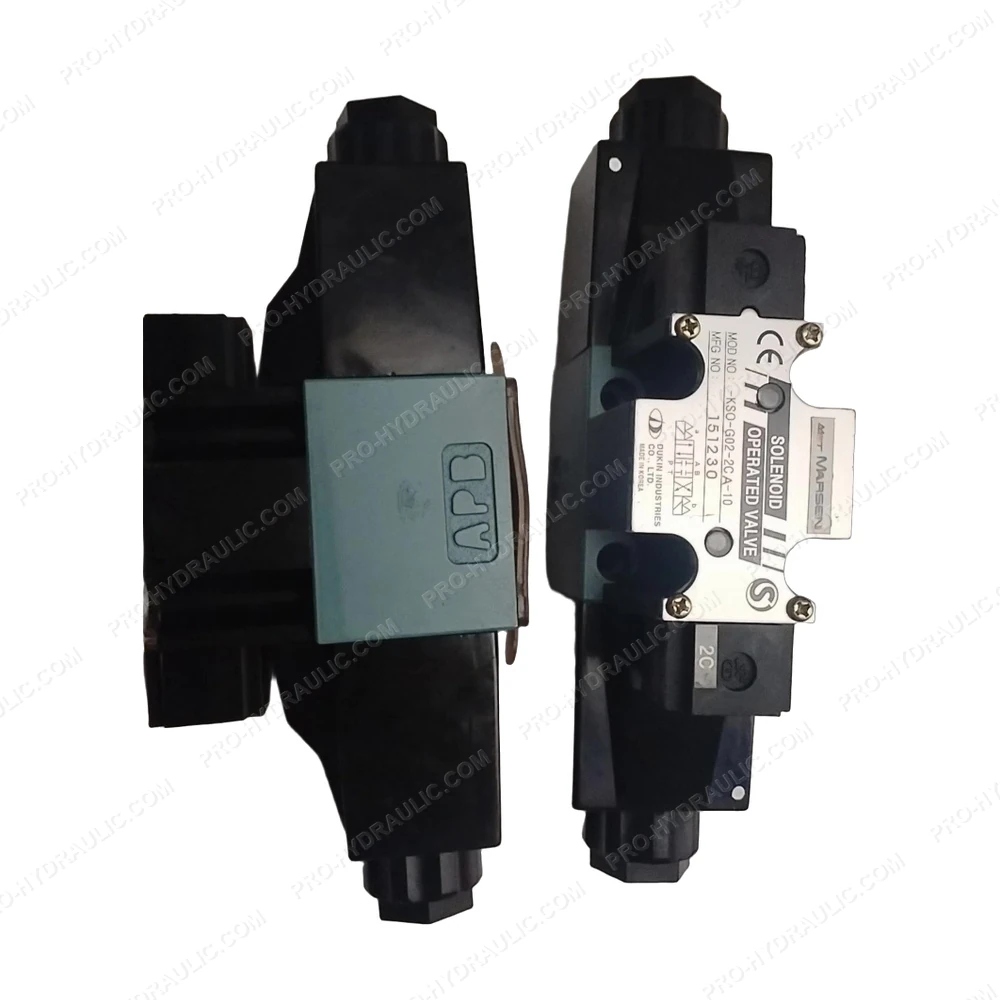

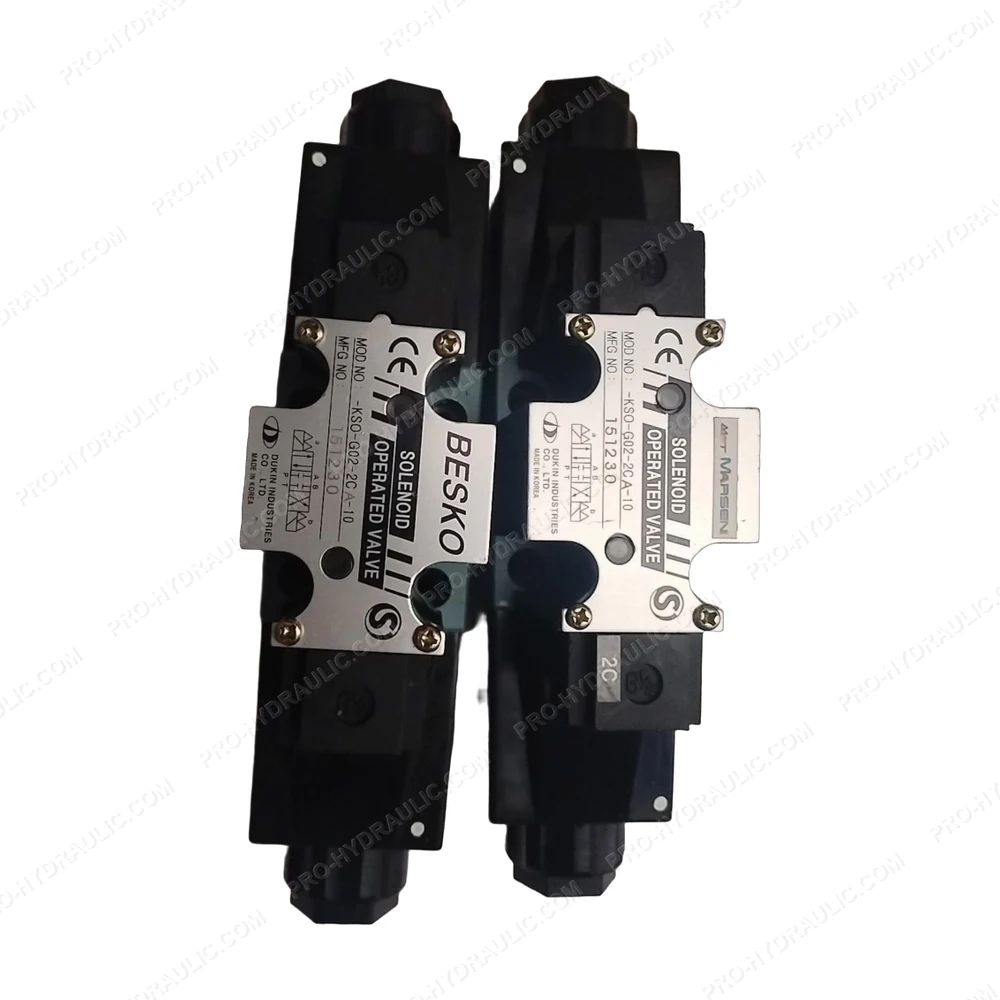

BESKO KSO-G02-2CA-10 Directional Control Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the BESKO KSO-G02-2CA-10 Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
