The BIFOLD FP06P-04-04-S1-02-XX-00-V-77A-24D-35-R65 / FPV-77A is a heavy-duty industrial pneumatic process valve engineered for reliable isolation and tight shut-off in demanding fluid and gas circuits. This valve features a robust 316L stainless steel body with a 1/4 in. port configuration, a pneumatic piston actuator, and a 24 VDC solenoid pilot for automated process control. The FPV-77A designation indicates a direct-acting, normally closed function with a high-cycle life seal package suitable for aggressive media and high-pressure industrial service.
BIFOLD FP06P-04-04-S1-02-XX-00-V-77A-24D-35-R65 / FPV-77A Technical Specifications
| Body Material | 316L Stainless Steel |
|---|---|
| Port Size | 1/4 in. NPT |
| Actuation | Pneumatic Piston Actuator with 24 VDC Solenoid Pilot |
| Function | Normally Closed (NC) |
| Seal Material | PTFE / FKM |
| Max Operating Pressure | 10,000 psi (689 bar) |
| Temperature Range | -20°F to 400°F (-29°C to 204°C) |
| Flow Coefficient (Cv) | 0.8 |
| Mounting | Inline / Panel Mount |
| Electrical Connection | DIN 43650 Form A |
Key Engineering Features
- Pneumatic piston actuator provides fast, repeatable cycling with low air consumption.
- 24 VDC solenoid pilot enables direct integration with PLC and DCS control systems.
- 316L stainless steel body and trim resist corrosion in aggressive process media.
- Bubble-tight PTFE/FKM seat ensures zero leakage in critical isolation duties.
- Compact inline design simplifies installation in tight manifold and skid layouts.
Industrial Applications
- Oil and gas wellhead control panels and chemical injection systems.
- Refinery and petrochemical pilot plants requiring high-pressure isolation.
- Power generation sampling systems and hydraulic power units.
- Pharmaceutical and food processing lines with sanitary or industrial porting.
- Automated test benches and high-cycle industrial process skids.
For technical inquiries, dimensional drawings, or replacement support for BIFOLD FP06P-04-04-S1-02-XX-00-V-77A-24D-35-R65 / FPV-77A, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

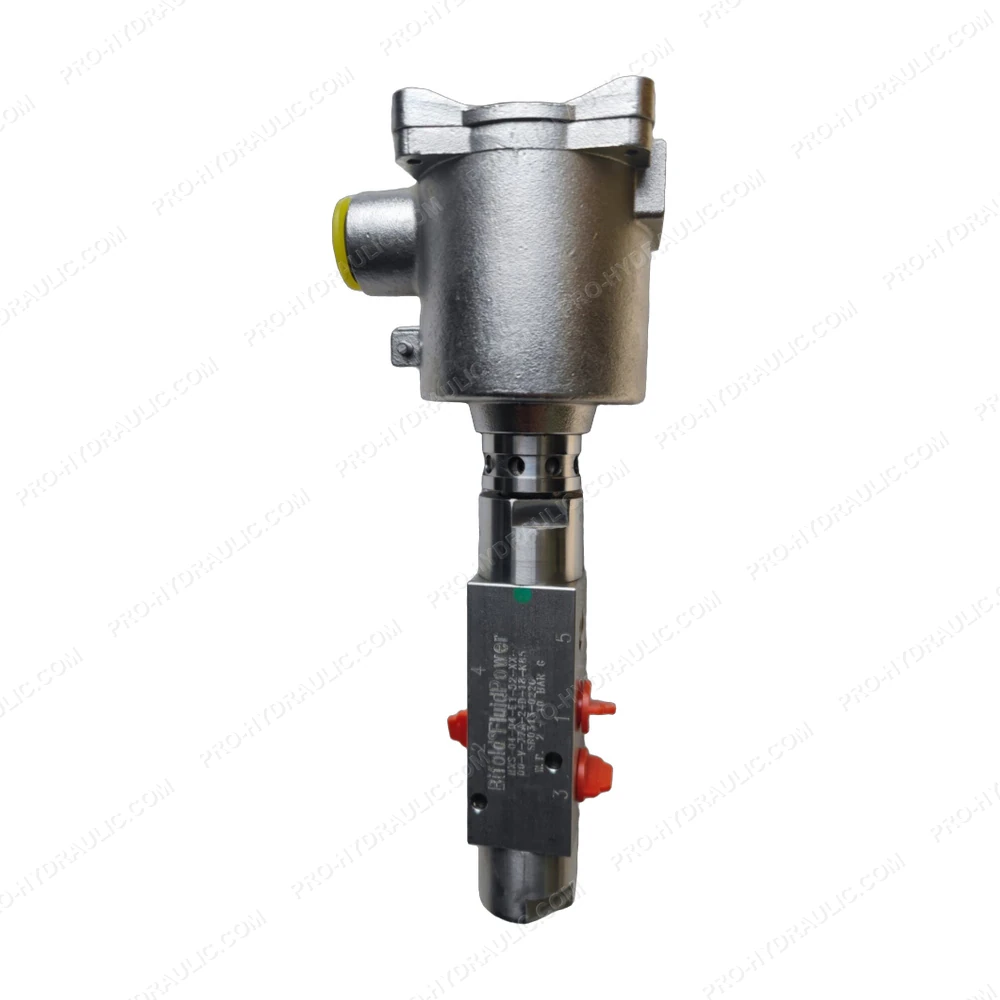

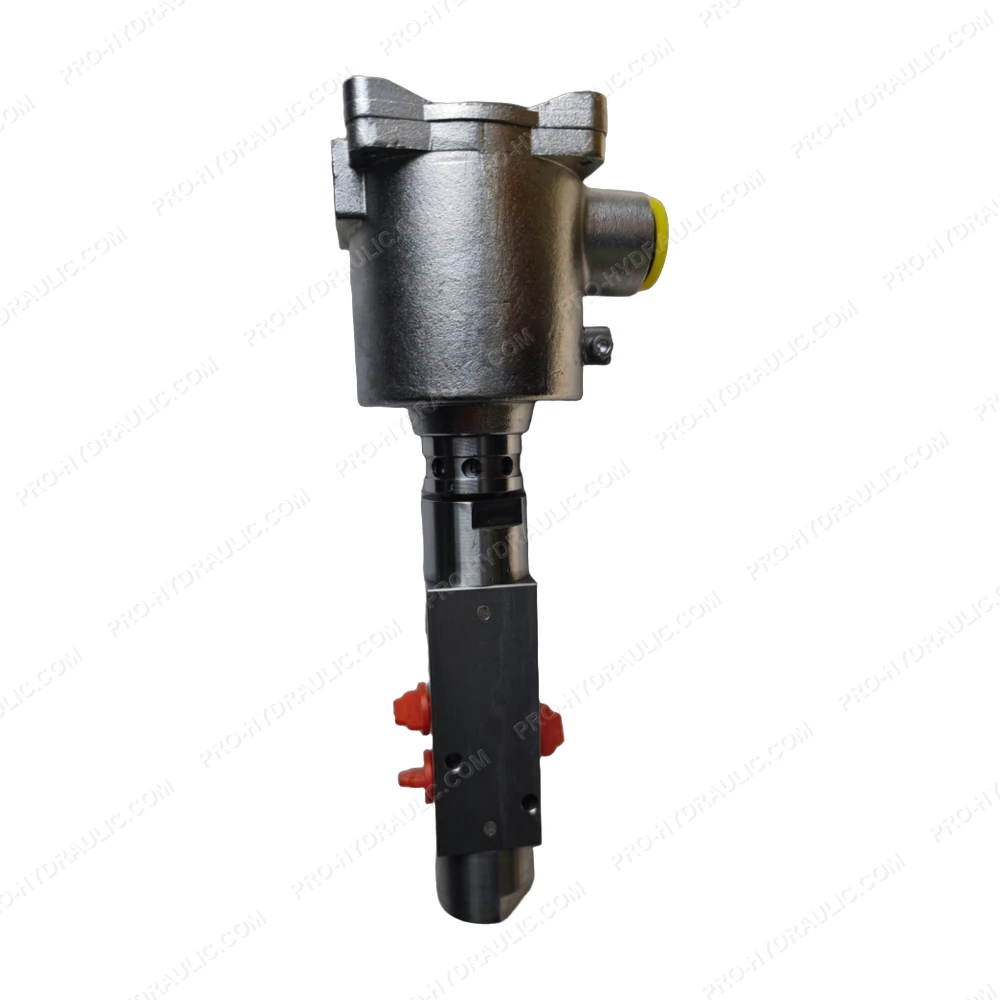

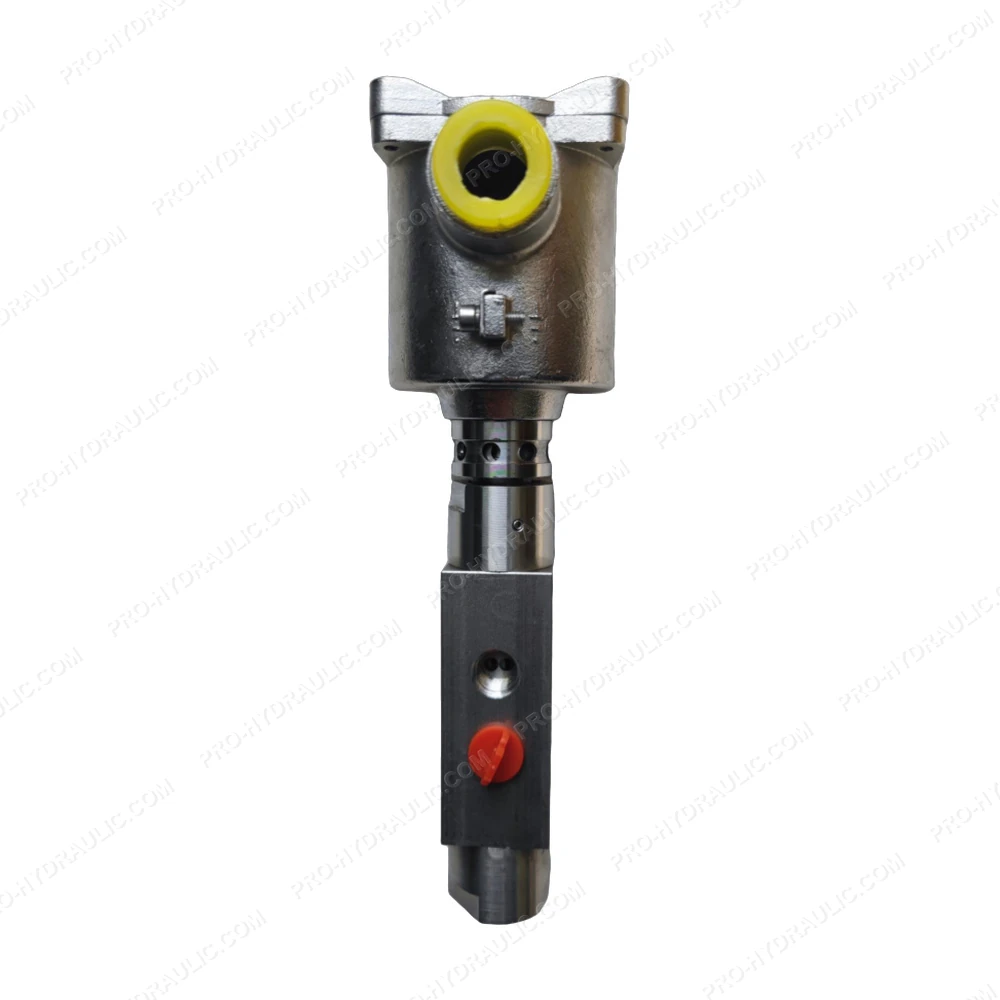

BIFOLD FPV-77A Pneumatic Process Valve
