Product Overview
The BOSCH 0 811 145 178 is a high-performance proportional directional valve engineered for precise, infinitely variable control of hydraulic flow direction and magnitude in industrial hydraulic systems. Operating on a proportional solenoid actuation principle, this valve modulates spool position in direct proportion to an electrical input signal, enabling smooth, stepless control of actuator speed, force, and direction. As a member of the Rexroth proportional and servo valve family, it is designed for demanding closed-loop and open-loop applications where accurate flow metering, fast dynamic response, and repeatable positioning are essential. The valve serves as a critical control interface between electronic command systems and hydraulic power circuits in modern industrial machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve |
| Model Designation | 0 811 145 178 |
| Manufacturer | BOSCH / Rexroth |
| Actuation Type | Proportional Solenoid with Position Feedback |
| Operating Pressure | Standard Industrial Grade (Up to rated bar per model configuration) |
| Control Signal | Analog Voltage / Current Command (Proportional) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (Subplate Mounting) |
| Spool Configuration | Proportional Directional Spool with Metering Notches |
Engineering Features & Advantages
- Precision Proportional Metering: The contoured spool and proportional solenoid deliver infinitely variable flow control proportional to the electrical command signal, enabling accurate velocity and position regulation of hydraulic actuators.
- Fast Dynamic Response: Optimized solenoid force characteristics and low-friction spool guidance ensure rapid response times suitable for closed-loop position, velocity, and force control applications.
- Excellent Repeatability & Hysteresis: Tight manufacturing tolerances and integrated position feedback minimize hysteresis and ensure consistent, repeatable performance across the full operating range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction resistant to contamination, pressure spikes, and thermal cycling.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement without modification to existing manifolds or control electronics.
- System Integration Ready: Compatible with standard proportional amplifier cards and electronic control modules for seamless integration into new and existing hydraulic systems.
Typical Industrial Applications
The BOSCH 0 811 145 178 proportional directional valve is widely deployed in demanding industrial hydraulic systems requiring precise motion control. Typical applications include plastic injection molding machines for accurate injection speed and pressure profiling, metallurgical presses and rolling mills for controlled force application, CNC machine tools and machining centers for precise axis positioning, and construction, marine, and offshore hydraulic systems where reliable proportional flow control is critical. It is also commonly found in test stands
PRODUCT IMAGES

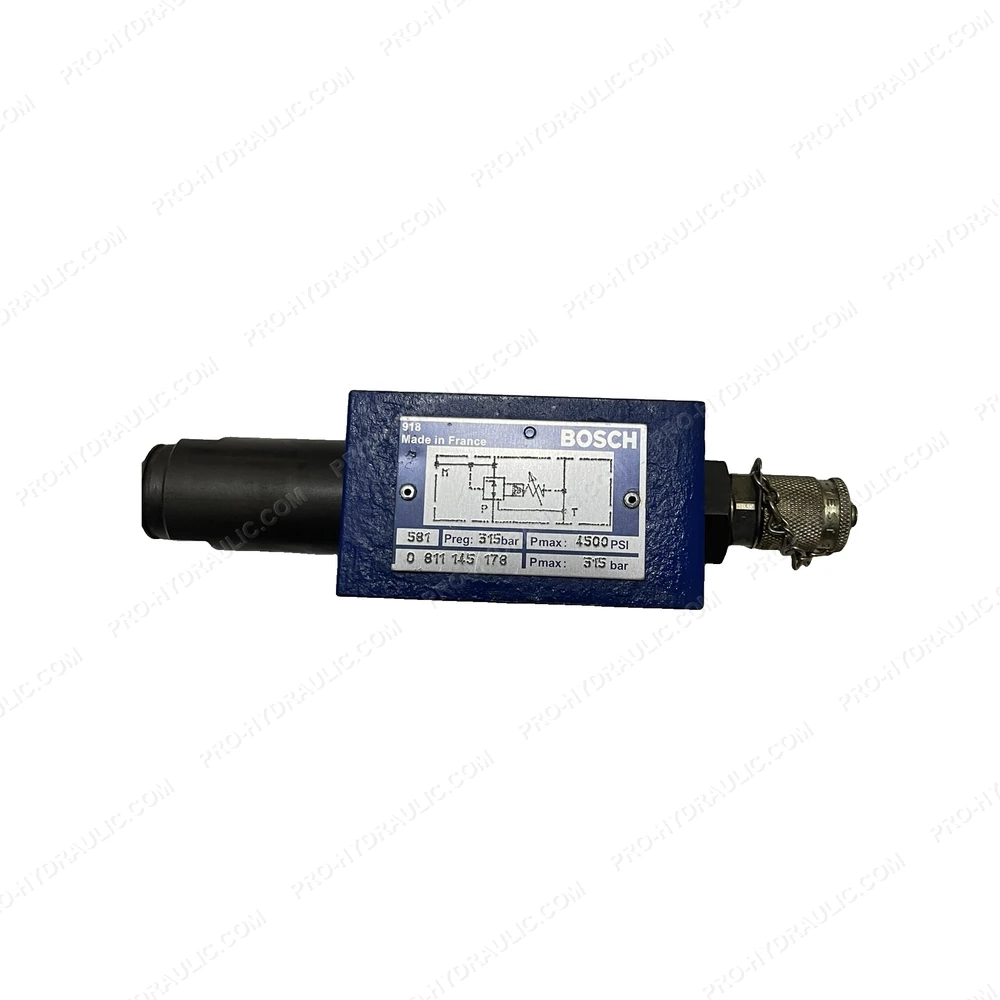

BOSCH 0 811 145 178 Proportional Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine BOSCH 0 811 145 178 Solenoid Directional Seat Valve. This Germany-made 24V DC hydraulic component features a poppet-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
