The BOSCH 0820024102 is a heavy-duty industrial pneumatic control valve engineered for precise directional control of compressed air in automated process systems. This 5/2-way valve features a robust spool design with a wet-pin armature and solenoid pilot actuation, ensuring rapid response and long service life under continuous duty cycles.
BOSCH 0820024102 Technical Specifications
| Function | 5/2-way directional control valve |
|---|---|
| Actuation | Solenoid pilot, wet-pin armature |
| Port Size | 1/4″ NPT (ISO 228/1) |
| Operating Pressure | 2 to 10 bar (29 to 145 psi) |
| Flow Rate | 1200 l/min at 6 bar |
| Voltage | 24 V DC (other voltages available) |
| Mounting | ISO 5599-1 / CETOP 3 |
| Body Material | Anodized aluminum |
| Seal Material | NBR / FKM |
| Temperature Range | -10°C to +60°C |
Key Engineering Features
- Precision-ground spool and sleeve for minimal leakage and consistent shifting
- Wet-pin armature design eliminates dynamic seals, reducing wear and extending cycle life
- Manual override for safe commissioning and emergency operation
- Compact, lightweight housing suitable for high-density manifold mounting
- Corrosion-resistant anodized aluminum body with robust sealing system
Industrial Applications
- Automated assembly and packaging machinery
- Pneumatic actuation in food and beverage processing
- Material handling and robotics end-effectors
- General factory automation and process control systems
- Textile, printing, and woodworking equipment
For technical inquiries, dimensional drawings, or replacement support for BOSCH 0820024102, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

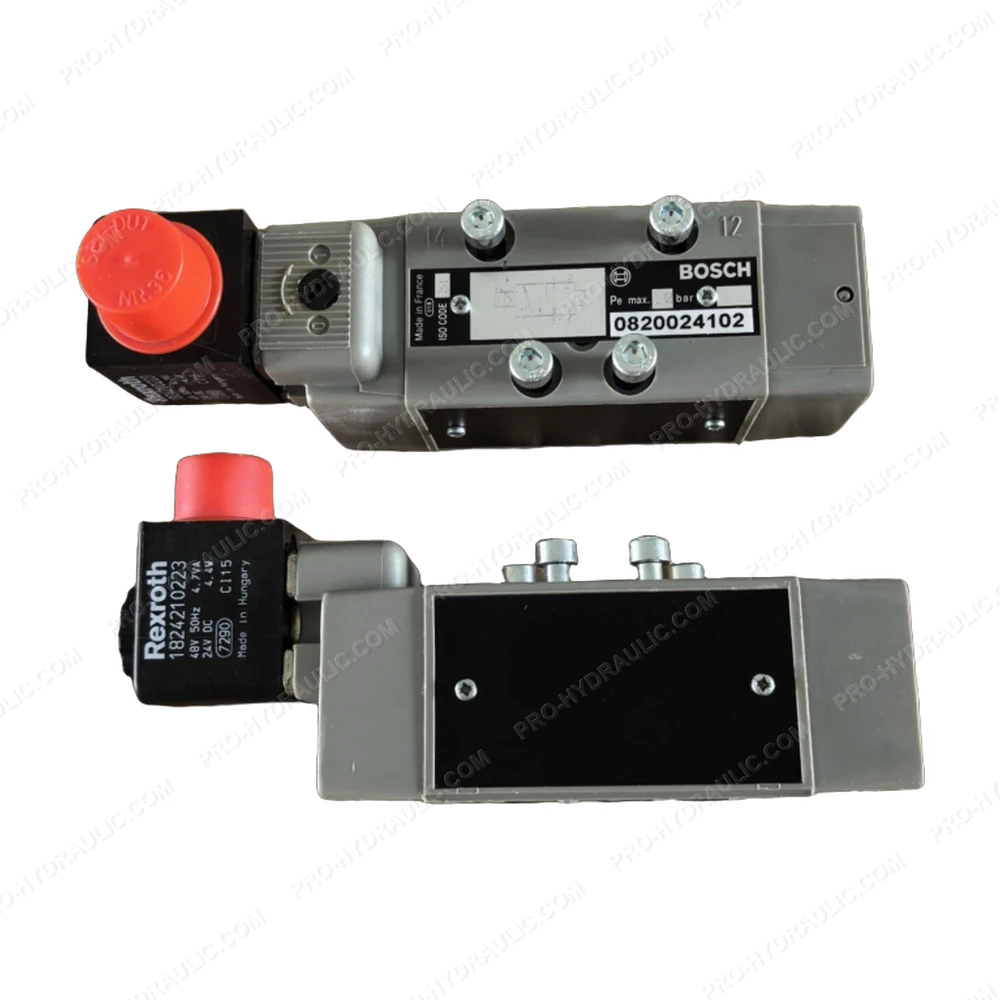

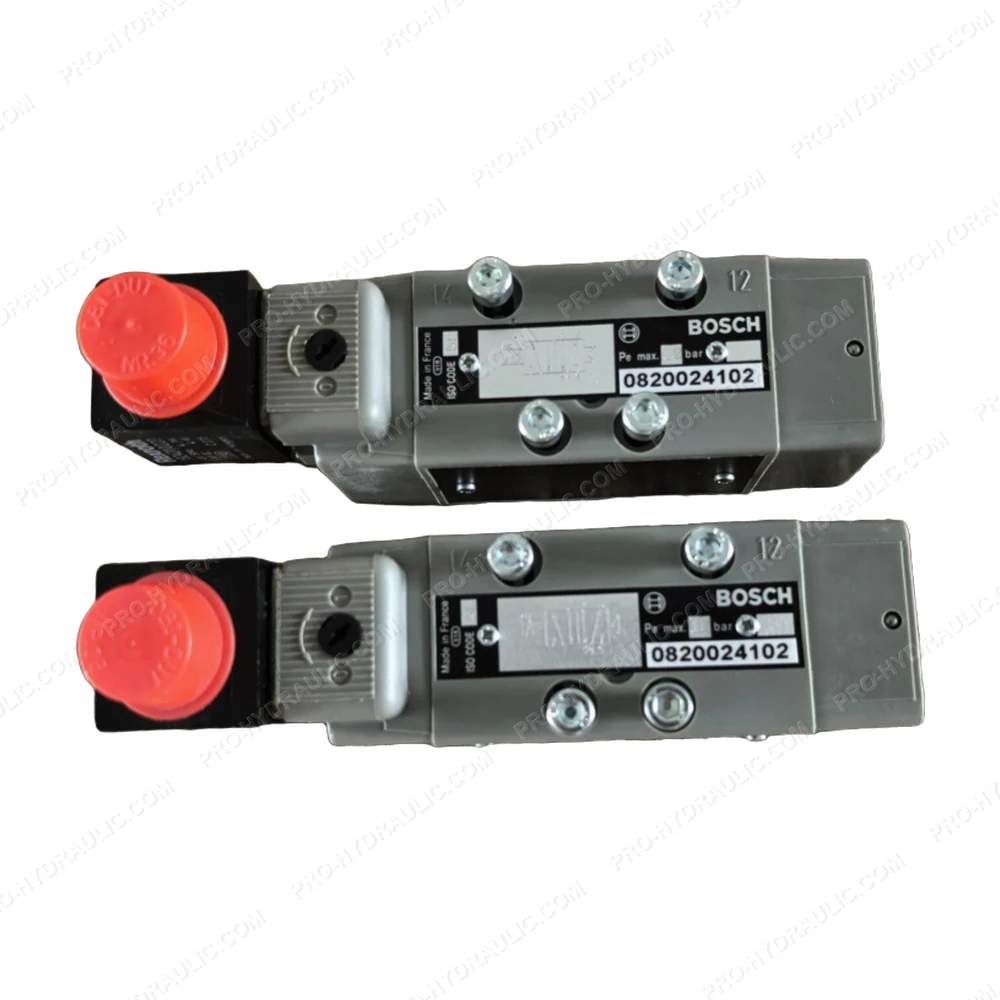

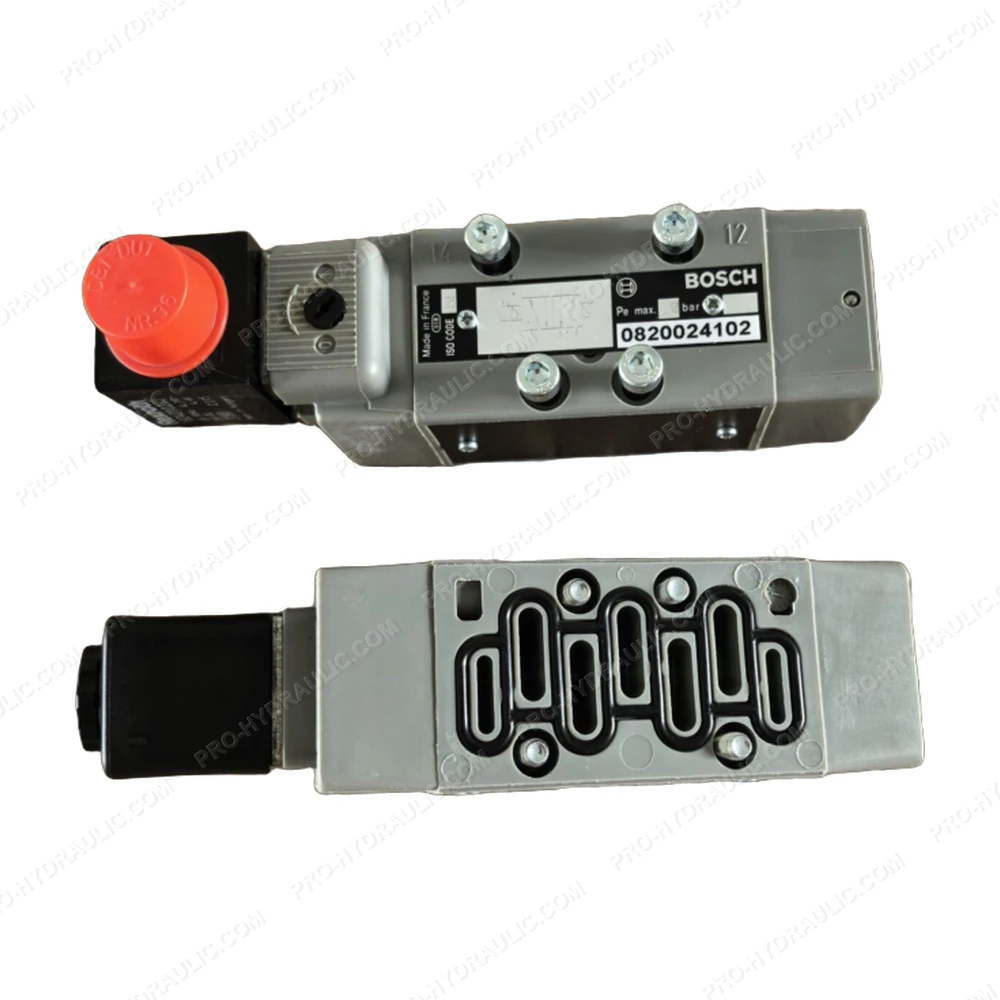

BOSCH 0820024102 Pneumatic Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the BOSCH 0820024102 Pneumatic Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
