Product Overview
The Bosch Rexroth DBDS 10 K1C/315 is a direct operated pressure relief valve from the DBDS series, engineered to protect hydraulic systems against excessive pressure and to serve as a reliable pressure-limiting control element. As a direct acting poppet-type valve, it responds immediately to pressure rises without pilot-stage delay, making it ideal for systems requiring fast, accurate overpressure protection. The valve is set to a cracking pressure of 315 bar and is designed for inline mounting with subplate connection. Its robust construction, precision-machined seat, and hardened internal components ensure stable pressure regulation, minimal internal leakage, and long service life in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Direct Operated Pressure Relief Valve (Pressure Control Valve) |
| Model Designation | DBDS 10 K1C/315 |
| Nominal Size | NG10 (Size 10) |
| Pressure Setting | 315 bar (preset cracking pressure) |
| Operating Pressure | Up to 315 bar rated |
| Actuation Type | Direct acting, spring-loaded poppet |
| Adjustment | Sleeve with hexagon and locknut (K1C adjustment style) |
| Mounting & Connection | Subplate mounting, ISO 4401 / DIN 24340 standard interface |
| Hydraulic Fluid | Mineral oil based hydraulic fluids (HL, HLP) |
| Fluid Temperature Range | -20 °C to +80 °C (standard seals) |
| Viscosity Range | 10 to 800 mm²/s (cSt) |
Engineering Features & Advantages
- Precision Performance: Direct operated poppet design delivers fast response and accurate pressure limiting with minimal pressure overshoot, ensuring reliable system protection even under rapid pressure spikes.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened valve seat and precision-ground poppet for consistent sealing and long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Bosch Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
Its robust construction, precision-machined seat, and hardened internal components ensure stable pressure regulation, minimal internal leakage, and long service life in demanding industrial environments.
PRODUCT IMAGES

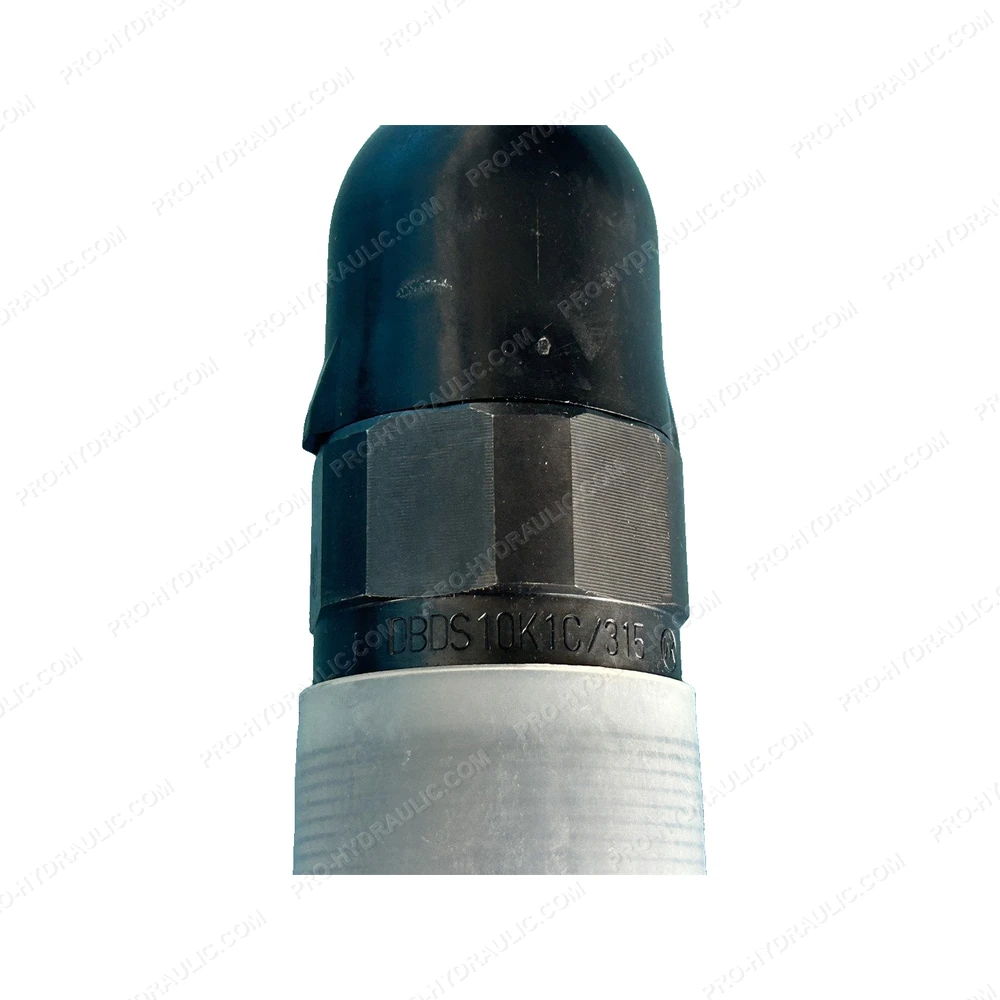

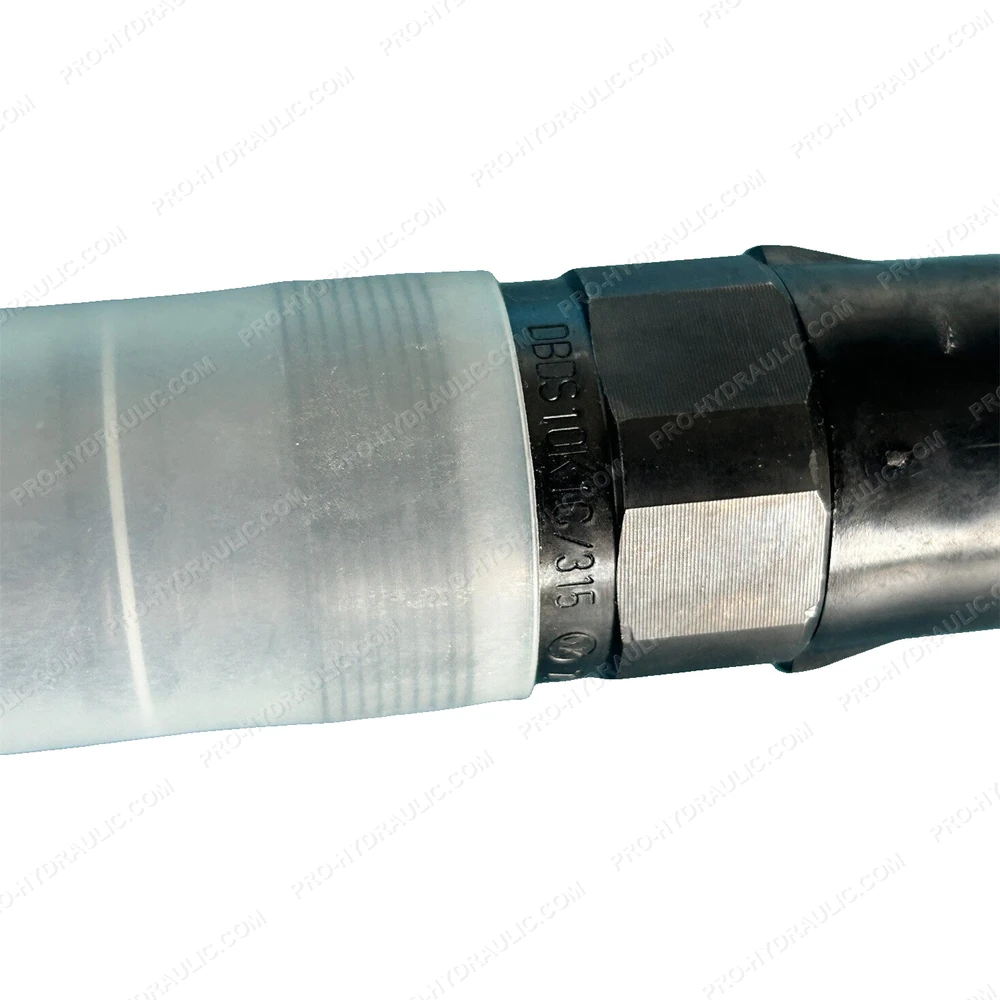

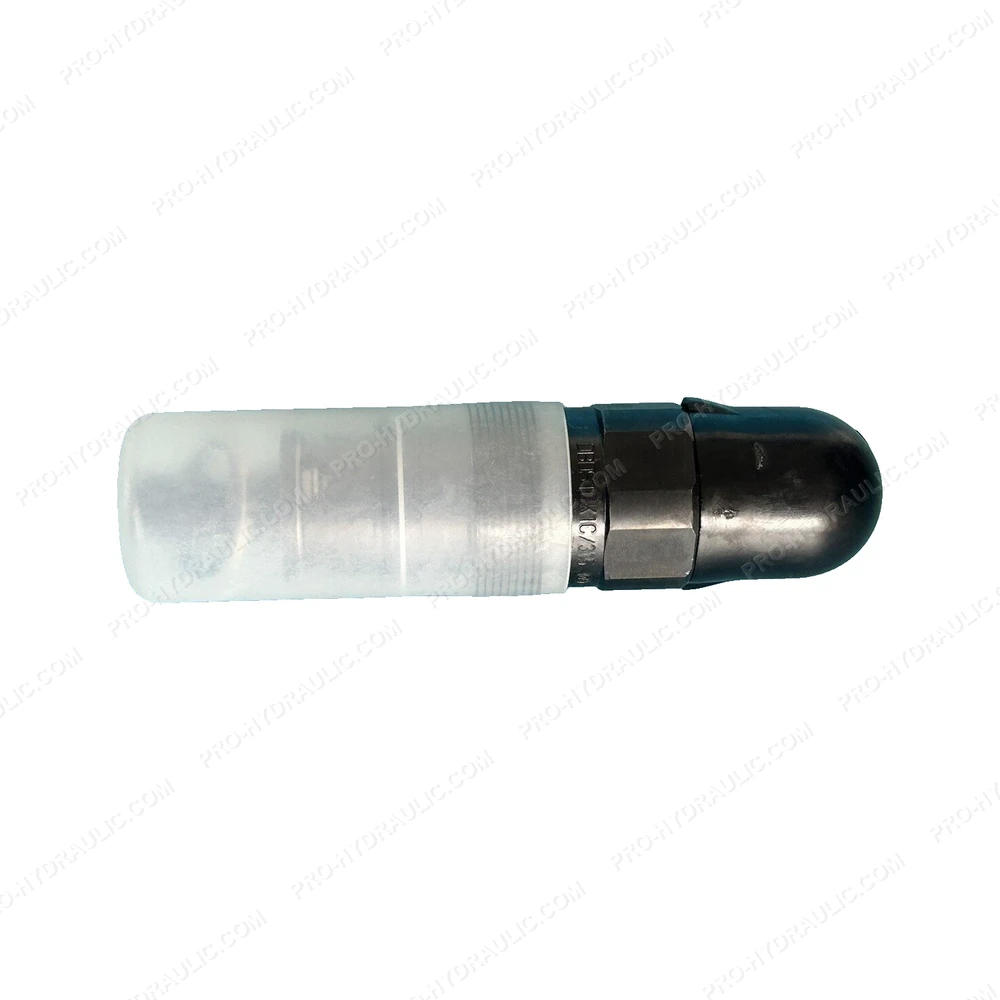

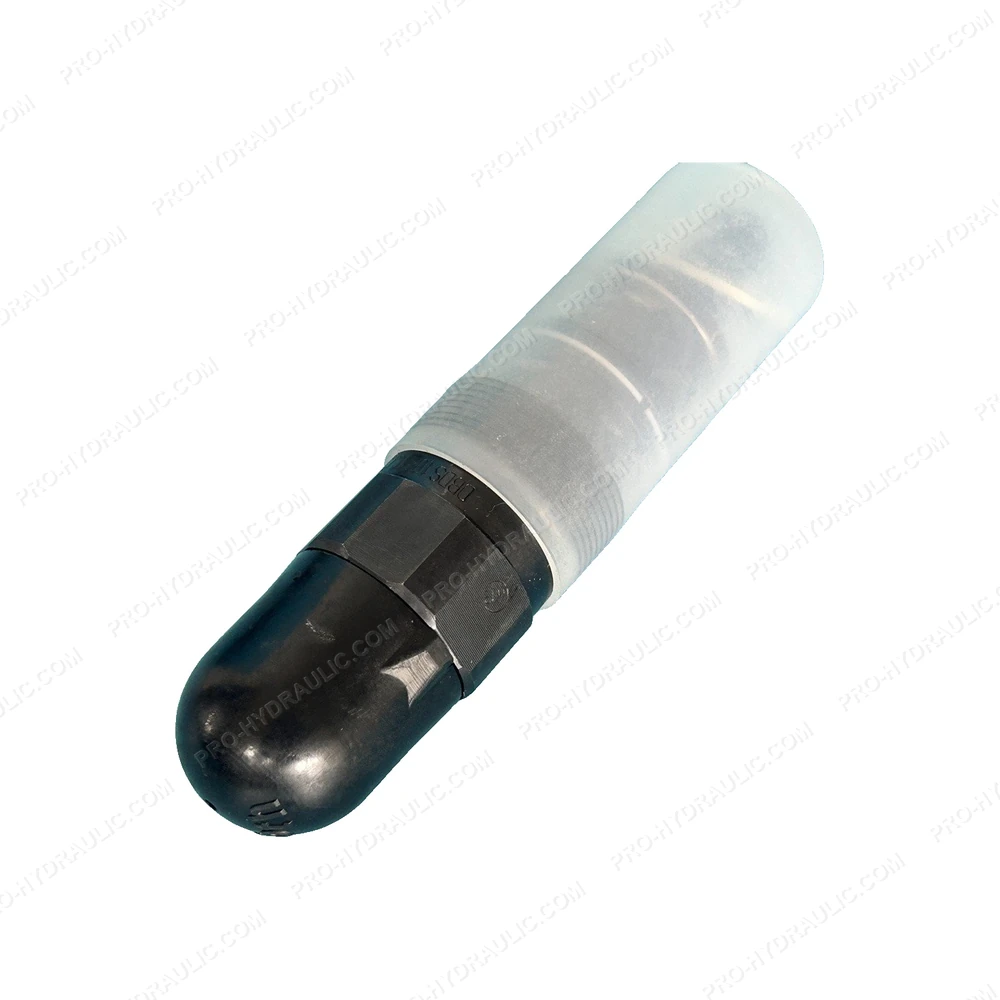

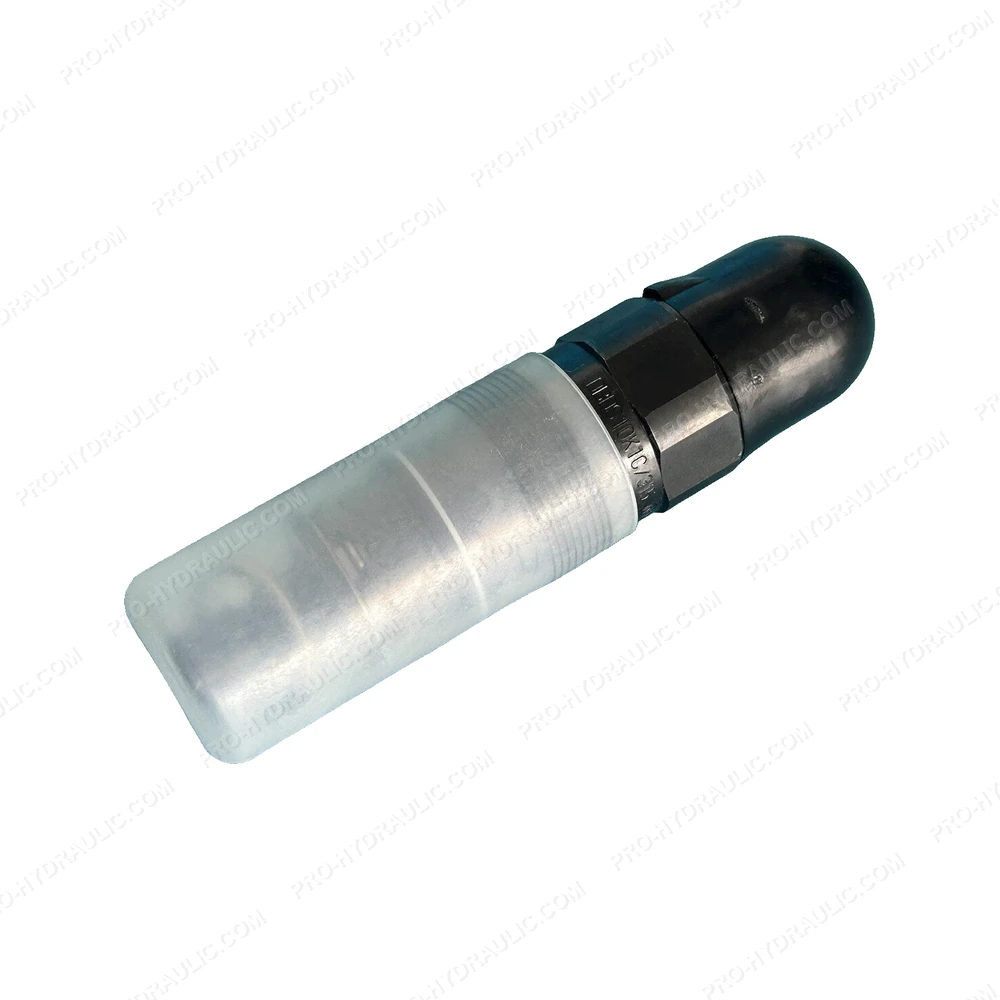

Bosch Rexroth DBDS 10 K1C/315 Direct Operated Pressure Relief Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Bosch Rexroth DBDS 10 K1C/315 Pressure Relief Valve. This German-made hydraulic component features a direct-operated poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
