Product Overview
The BRAY 93-0636-11300-532 is a quarter-turn pneumatic valve actuator engineered for precise, reliable automation of industrial process valves. Manufactured by BRAY Controls, a globally recognized leader in flow control technology, this rack-and-pinion actuator converts compressed air pressure into controlled rotary torque to operate ball, butterfly, and plug valves across demanding process environments. The model designation 93-0636-11300-532 identifies a specific configuration within the BRAY Series 93 pneumatic actuator family, which is widely deployed in general process and pneumatic valve applications where dependable open/close or modulating control is essential. Its compact, symmetric design allows for direct mounting to standard ISO 5211 valve flanges, ensuring seamless integration into both new installations and existing process loops.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Actuator (Quarter-Turn Rack & Pinion) |
| Model Designation | 93-0636-11300-532 |
| Operating Pressure | Standard Industrial Grade (Up to 8 bar / 120 psi) |
| Mounting & Connection | ISO 5211 Valve Flange / Namur Interface |
| Actuation Type | Double-Acting or Spring-Return (Configurable) |
| Rotation | 90° Quarter-Turn with Adjustable Stops |
| Body Material | Anodized Aluminum Alloy |
| Temperature Range | -20°C to +80°C (Standard NBR Seals) |
Engineering Features & Advantages
- Precision Performance: The rack-and-pinion mechanism delivers smooth, consistent torque output throughout the full 90° stroke, ensuring accurate valve positioning and repeatable operation in critical process control loops.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, the hard-anodized aluminum body and corrosion-resistant internal components provide long service life in demanding plant environments.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including ISO 5211 mounting patterns and Namur solenoid interfaces, allowing drop-in replacement without modification.
- Adjustable Travel Stops: External mechanical stops enable precise calibration of both open and closed valve positions, optimizing sealing performance and extending valve seat life.
- Compact & Lightweight: The symmetric, space-efficient housing reduces installation footprint and piping stress, ideal for retrofits and high-density valve manifolds.
Typical Industrial Applications
The BRAY 93-0636-11300-532 pneumatic actuator is widely specified across heavy industrial sectors including chemical and petrochemical processing plants, water and wastewater treatment facilities, power generation stations, and general manufacturing process lines. It is particularly suited for automated ball valve and butterfly valve operation in pipeline isolation, flow
PRODUCT IMAGES

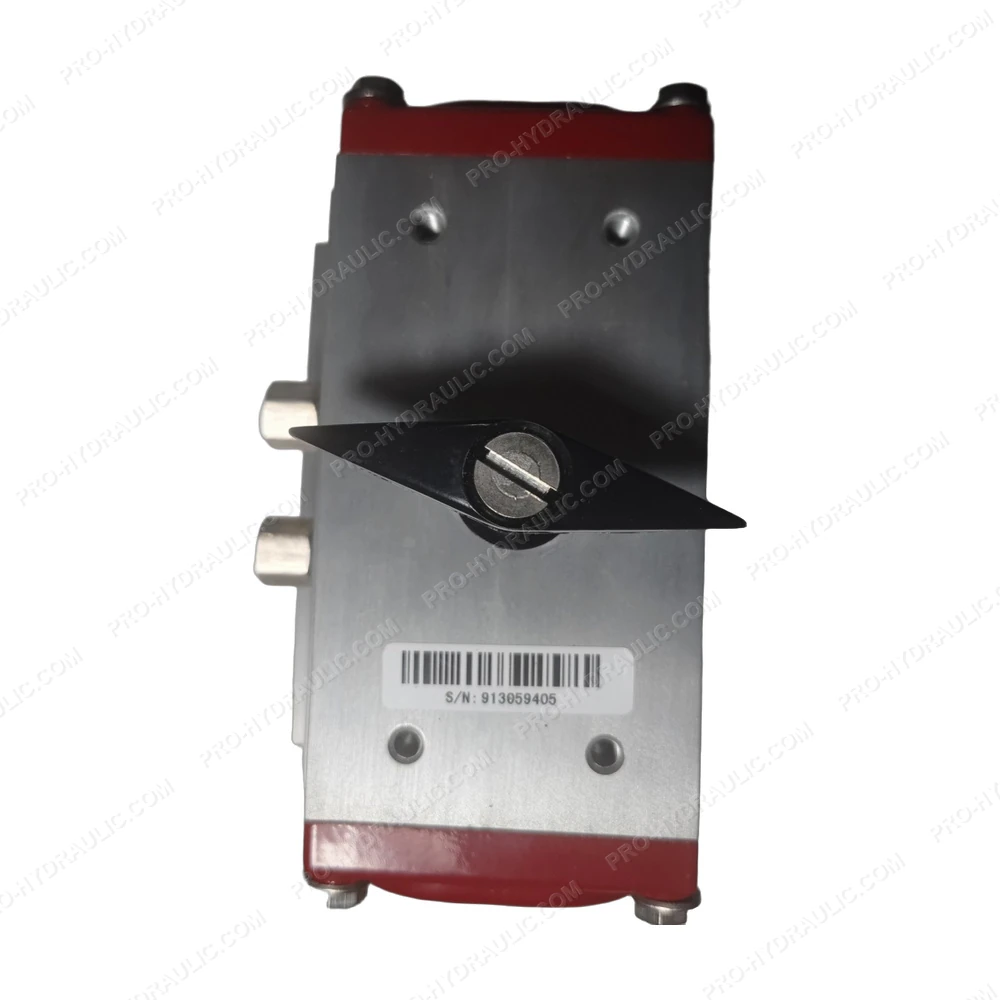

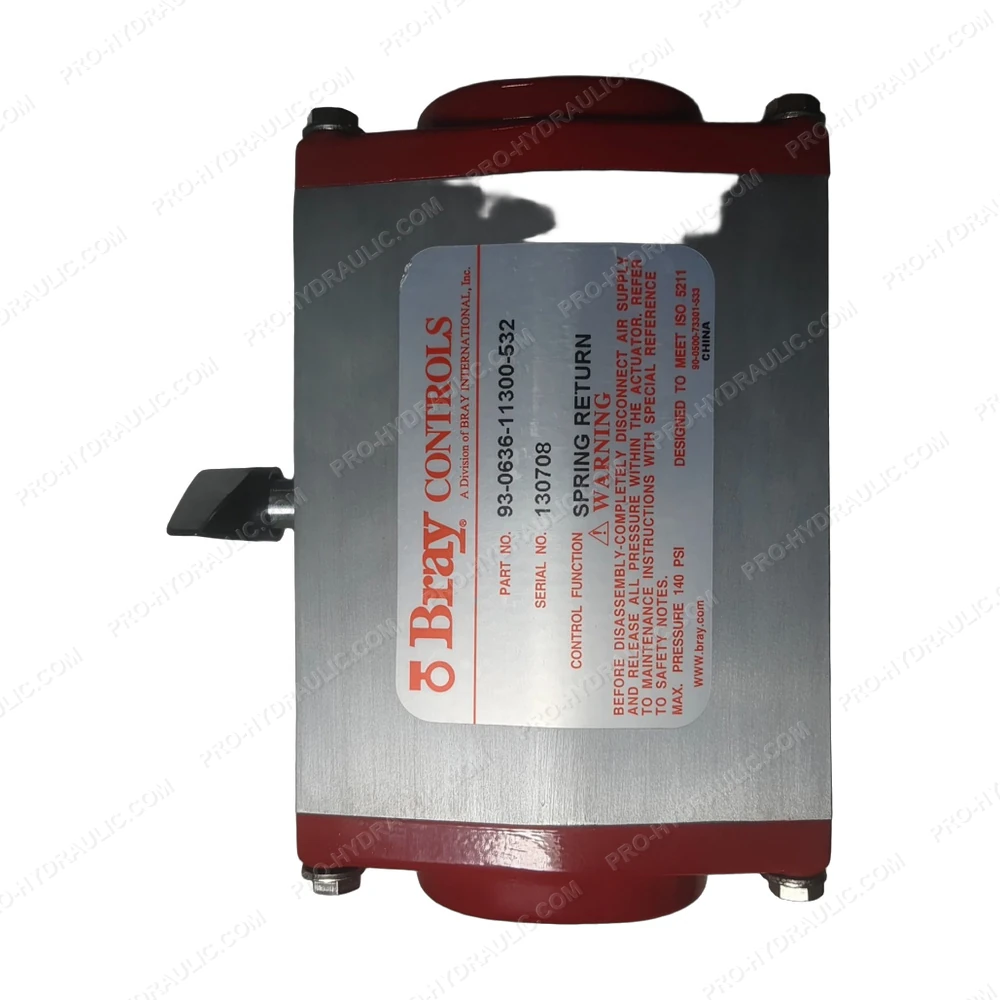

BRAY 93-0636-11300-532 Pneumatic Actuator
