Product Overview
The BUCHER BFCV-10-N-S-03RA-8-0 is a precision-engineered screw-in cartridge flow control valve from Bucher Hydraulics’ BFCV series, designed for accurate regulation of hydraulic fluid flow rates within compact manifold and integrated circuit architectures. Operating on a pressure-compensated, two-port flow control principle, this cartridge valve maintains a constant preset flow independent of load-induced pressure fluctuations, ensuring stable actuator speeds and repeatable cycle times. The “10” size designation corresponds to a nominal NG10 / 3/4-16 UNF cavity, while the “N” adjustment style provides a fixed or manually adjustable flow setting. With its robust steel cartridge body and hardened metering spool, the BFCV-10-N-S-03RA-8-0 serves as a critical flow-regulating element in demanding industrial hydraulic power units, manifolds, and motion control circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve — Flow Control Cartridge Valve (Pressure-Compensated) |
| Model Designation | BFCV-10-N-S-03RA-8-0 |
| Manufacturer | Bucher Hydraulics |
| Cavity / Size | NG10 cartridge, 3/4-16 UNF screw-in cavity |
| Operating Pressure | Standard Industrial Grade (Up to 350 bar rated) |
| Flow Regulation Principle | Pressure-compensated, load-independent metering |
| Adjustment Style | “N” — fixed / preset flow configuration |
| Mounting & Connection | Screw-in cartridge, standard ISO / Bucher cavity interface |
| Sealing | NBR / FKM O-ring with back-up ring (per “S” designation) |
| Body Material | Hardened, ground steel spool and sleeve |
Engineering Features & Advantages
- Precision Flow Metering: The pressure-compensating spool automatically adjusts the metering orifice in response to upstream and downstream pressure changes, holding the commanded flow rate constant regardless of varying load conditions.
- Compact Cartridge Architecture: The screw-in NG10 cartridge design eliminates external piping and leak paths, allowing high-density integration into custom manifold blocks and reducing overall system footprint.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original BUCHER specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With its robust steel cartridge body and hardened metering spool, the BFCV-10-N-S-03RA-8-0 serves as a critical flow-regulating element in demanding industrial hydraulic power units, manifolds, and motion control circuits.
PRODUCT IMAGES

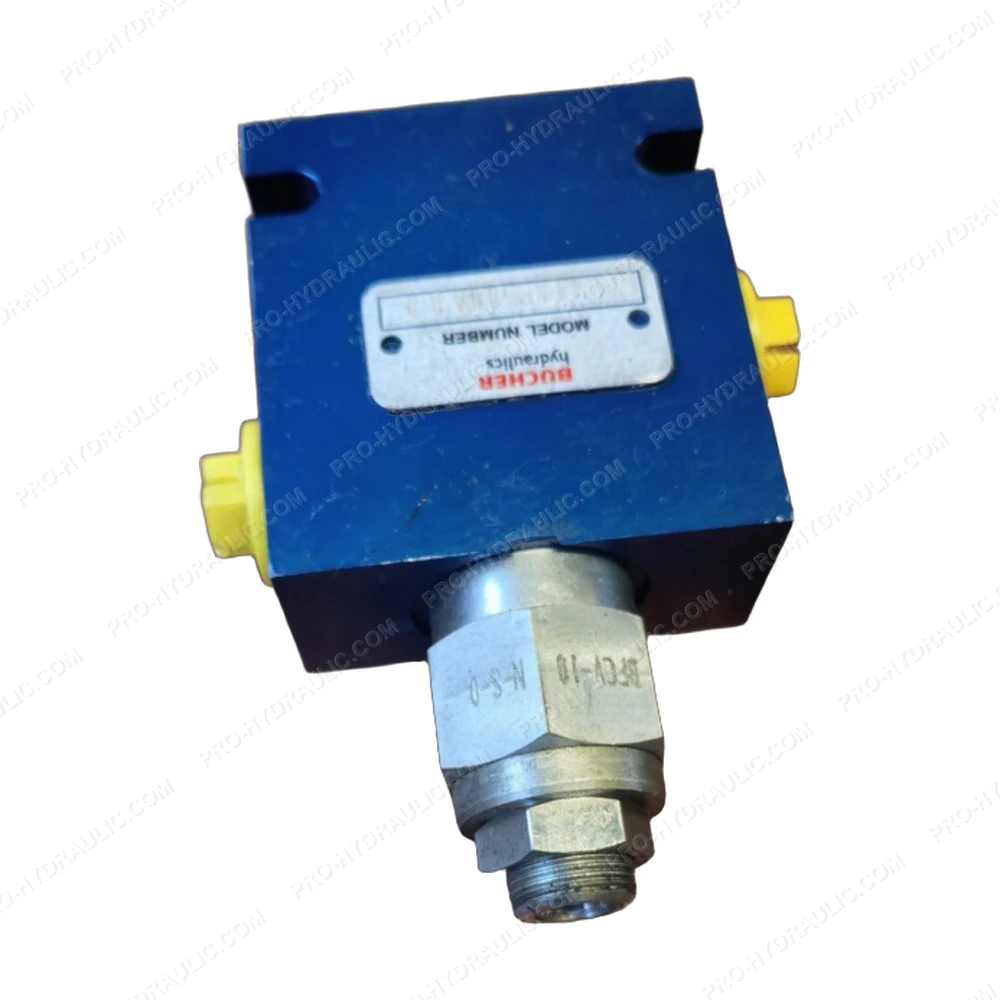

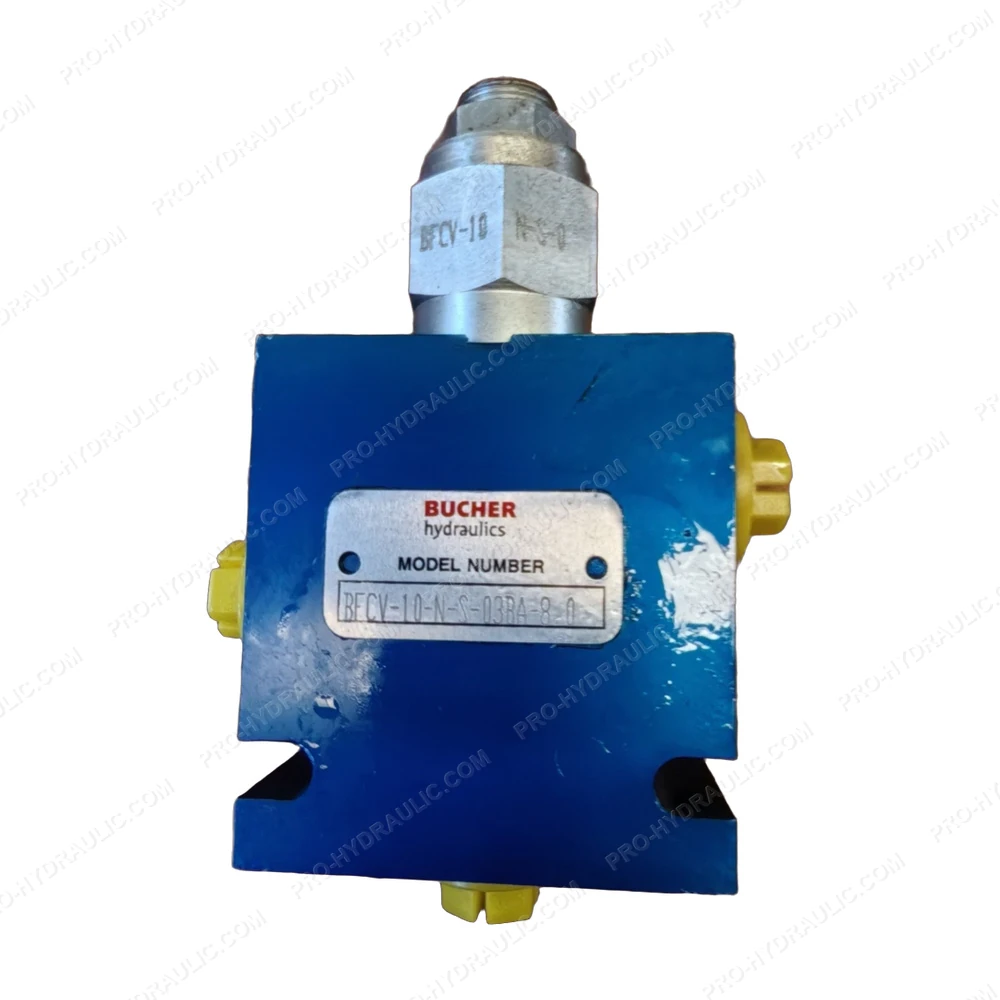

BUCHER BFCV-10-N-S-03RA-8-0 Flow Control Cartridge Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine BUCHER BFCV-10-N-S-03RA-8-0 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a spool-type design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
