The BURKERT 00337788 is a heavy-duty industrial micro solenoid valve engineered for precise fluid control in compact pneumatic and process systems. Featuring a direct-acting plunger and wet-pin armature design, it ensures rapid response and long service life in demanding applications.
BURKERT 00337788 Technical Specifications
| Type | Micro Solenoid Valve |
|---|---|
| Actuation | Direct-acting, wet-pin armature |
| Function | 2/2-way, normally closed (NC) |
| Orifice Size | 0.8 mm |
| Flow Coefficient (Kv) | 0.025 m³/h |
| Pressure Range | 0–10 bar (0–145 psi) |
| Body Material | Brass or stainless steel (depending on variant) |
| Seal Material | FKM (Viton) or EPDM |
| Port Connection | G 1/8″ or flange (sub-base) |
| Coil Voltage | 24 V DC, 230 V AC, or 110 V AC |
| Power Consumption | 2 W (DC) / 3 VA (AC) |
| Protection Class | IP65 (with cable plug) |
| Media | Neutral gases and liquids, compressed air, water |
| Media Temperature | -10 °C to +90 °C |
| Ambient Temperature | -10 °C to +55 °C |
| Mounting | Any position, preferably upright |
Key Engineering Features
- Direct-acting plunger mechanism for reliable operation at zero pressure differential.
- Wet-pin armature design minimizes friction and wear, ensuring consistent switching.
- Compact micro valve body ideal for space-constrained manifolds and analytical instruments.
- High cycle life with chemically resistant seal materials.
- Available with a range of coil voltages and port connections for system integration.
Industrial Applications
- Medical and laboratory equipment for precise fluid dosing.
- Analytical instrumentation and process control systems.
- Pneumatic automation and compact manifolds.
- Water treatment and chemical dosing systems.
- Food and beverage processing (with appropriate seals).
For technical inquiries, dimensional drawings, or replacement support for BURKERT 00337788, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

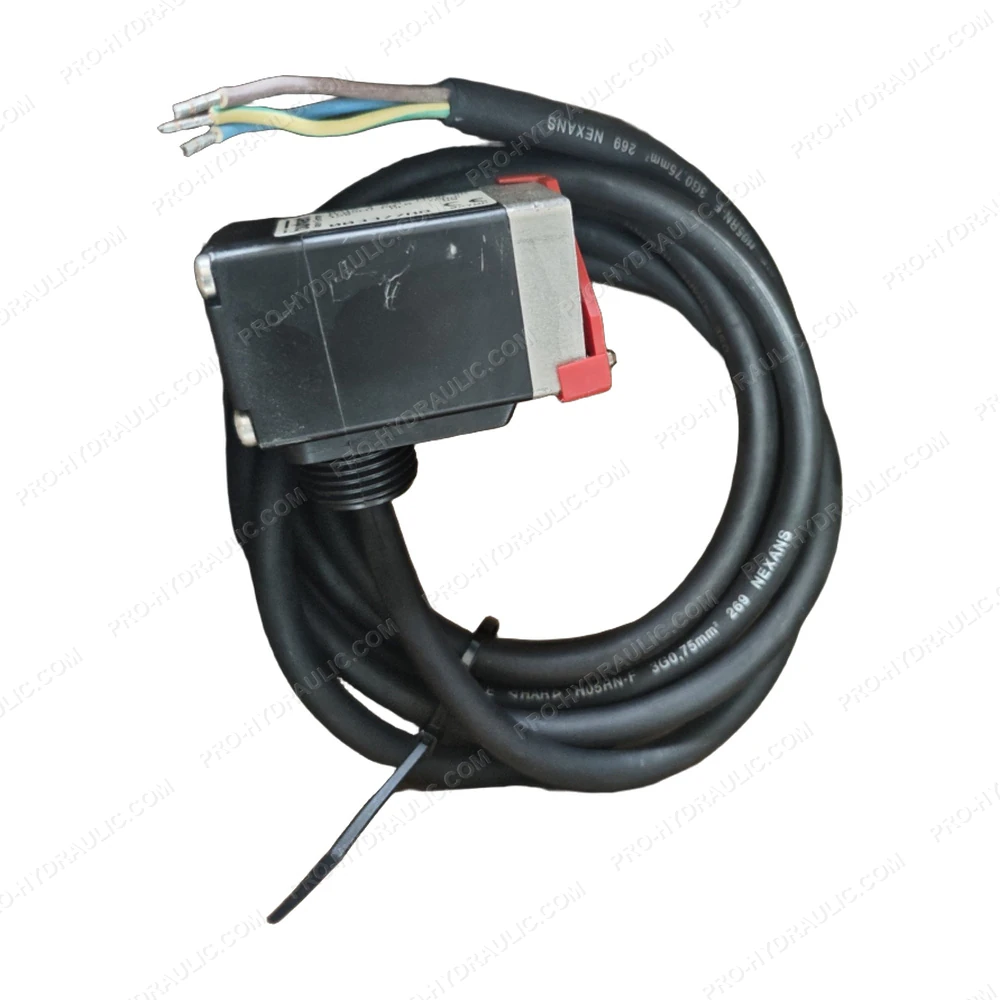

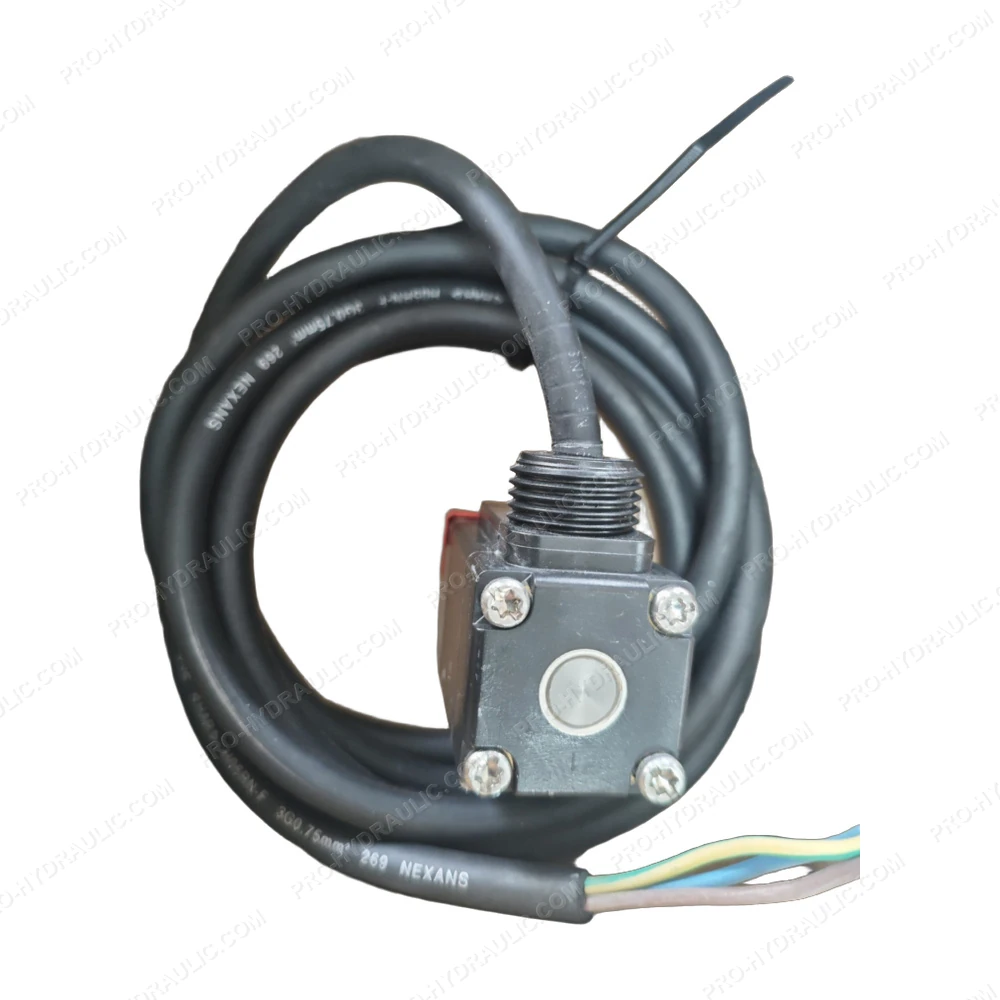

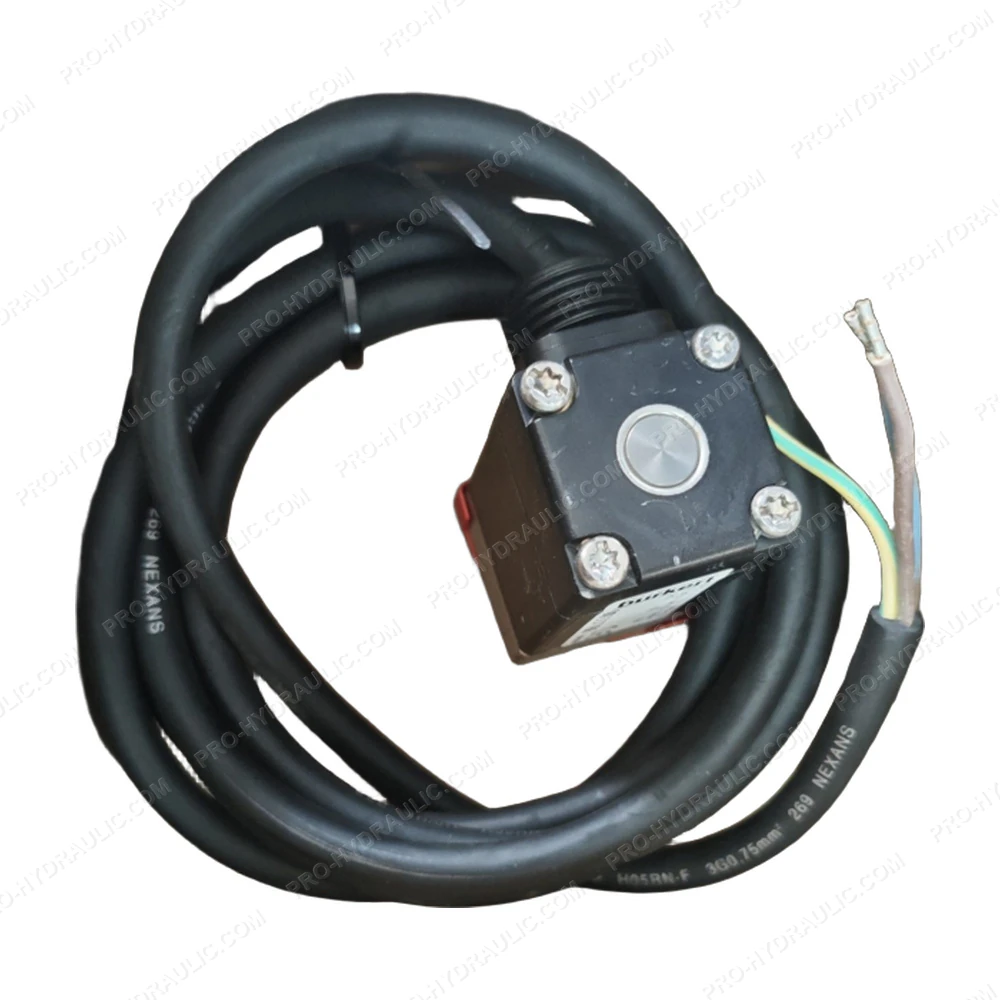

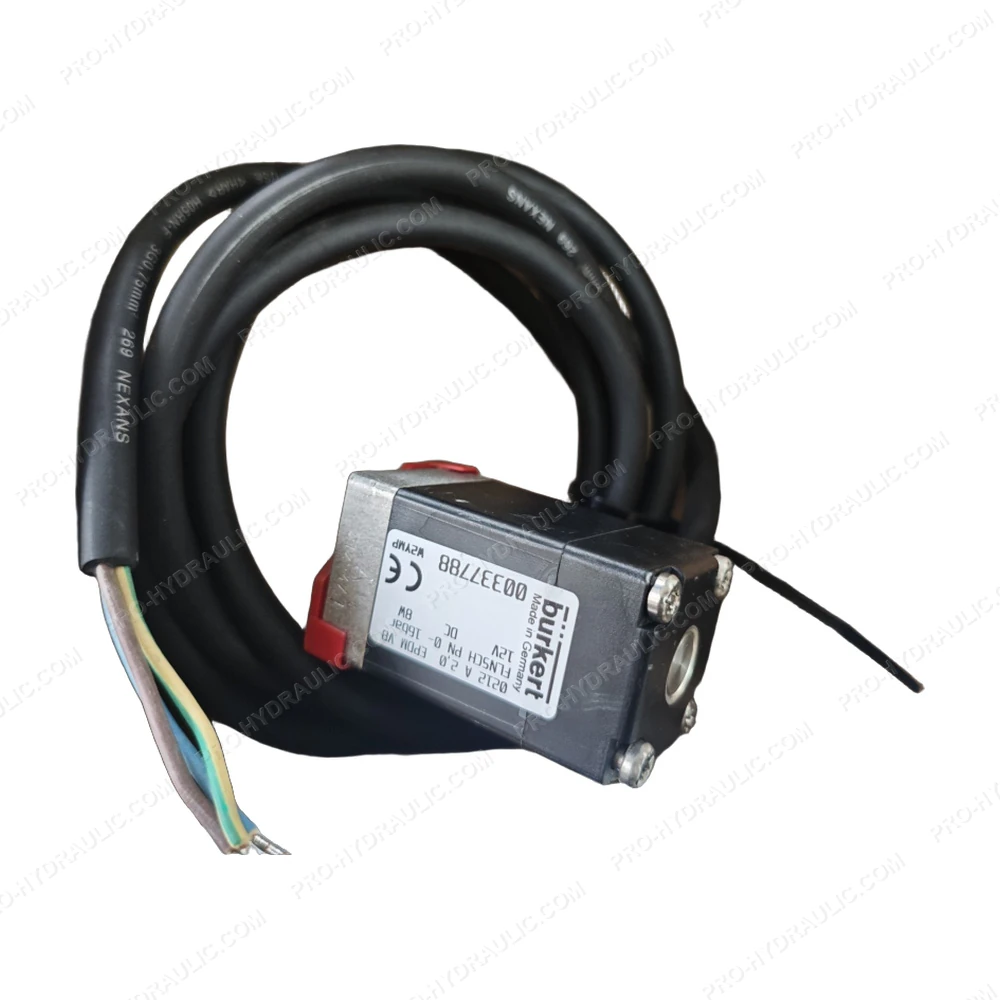

BURKERT 00337788 Micro Solenoid Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the BURKERT 00337788 Micro Solenoid Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
